UKBS

Fire-resistant partition

The components UKBS are three-sided S90 duct fire protection bulkheads with floor connections and are installed in wall openings. They are part of the Wichmann WD 90 system that prevents fire and smoke from being transmitted through fire barriers with a fire resistance duration of 90 minutes. The fire protection bulkheads can be refitted near inspection openings at any time with little effort and in a non-destructive manner. They are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346.

Get in touch Download datasheet

Variants

Article

H

Höhe

B

Breite

L

Länge

E

Einbaumaß

G

Gewicht je Lagermengeneinheit
  • UKBS 28-190S
    Brandschutzschott
    Höhe
    41 mm
    Breite
    220 mm
    Länge
    270 mm
    Einbaumaß
    260 x 56 mm
    Gewicht je Lagermengeneinheit
    1.640 kg
    More information
  • UKBS 28-250S
    Brandschutzschott
    Höhe
    41 mm
    Breite
    280 mm
    Länge
    270 mm
    Einbaumaß
    320 x 56 mm
    Gewicht je Lagermengeneinheit
    3.000 kg
    More information
  • UKBS 28-350S
    Brandschutzschott
    Höhe
    41 mm
    Breite
    380 mm
    Länge
    270 mm
    Einbaumaß
    420 x 56 mm
    Gewicht je Lagermengeneinheit
    2.500 kg
    More information
  • UKBS 38-190S
    Brandschutzschott
    Höhe
    55 mm
    Breite
    220 mm
    Länge
    270 mm
    Einbaumaß
    260 x 70 mm
    Gewicht je Lagermengeneinheit
    1.860 kg
    More information
  • UKBS 38-250S
    Brandschutzschott
    Höhe
    55 mm
    Breite
    280 mm
    Länge
    270 mm
    Einbaumaß
    320 x 70 mm
    Gewicht je Lagermengeneinheit
    2.200 kg
    More information
  • UKBS 38-350S
    Brandschutzschott
    Höhe
    55 mm
    Breite
    380 mm
    Länge
    270 mm
    Einbaumaß
    420 x 70 mm
    Gewicht je Lagermengeneinheit
    2.750 kg
    More information
  • UKBS 48-190S
    Brandschutzschott
    Höhe
    68 mm
    Breite
    220 mm
    Länge
    270 mm
    Einbaumaß
    260 x 83 mm
    Gewicht je Lagermengeneinheit
    2.070 kg
    More information
  • UKBS 48-250S
    Brandschutzschott
    Höhe
    68 mm
    Breite
    280 mm
    Länge
    270 mm
    Einbaumaß
    320 x 83 mm
    Gewicht je Lagermengeneinheit
    2.420 kg
    More information
  • UKBS 48-350S
    Brandschutzschott
    Höhe
    68 mm
    Breite
    380 mm
    Länge
    270 mm
    Einbaumaß
    420 x 83 mm
    Gewicht je Lagermengeneinheit
    3.000 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Technical Information Screed-Covered Duct Systems

    Technische Information

    PDF, 1 MB

    de en

  • VDE Certificate 40030347 UK UKL

    Zertifikat

    PDF, 260 KB

    de
    Download

  • Installation Instructions UKBS

    Montageanleitung

    PDF, 456 KB

    de en

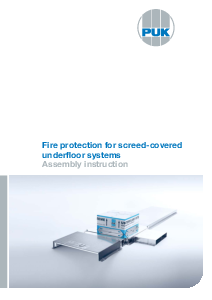

  • Fire-resistant partition

    Assembly instruction

    PDF, 345 KB

    de
    Download
