Variants
Article
G
Weight per storage unit
-
UGM1-3
sealing sleeve UGM1-3,0.003 kg
UGM

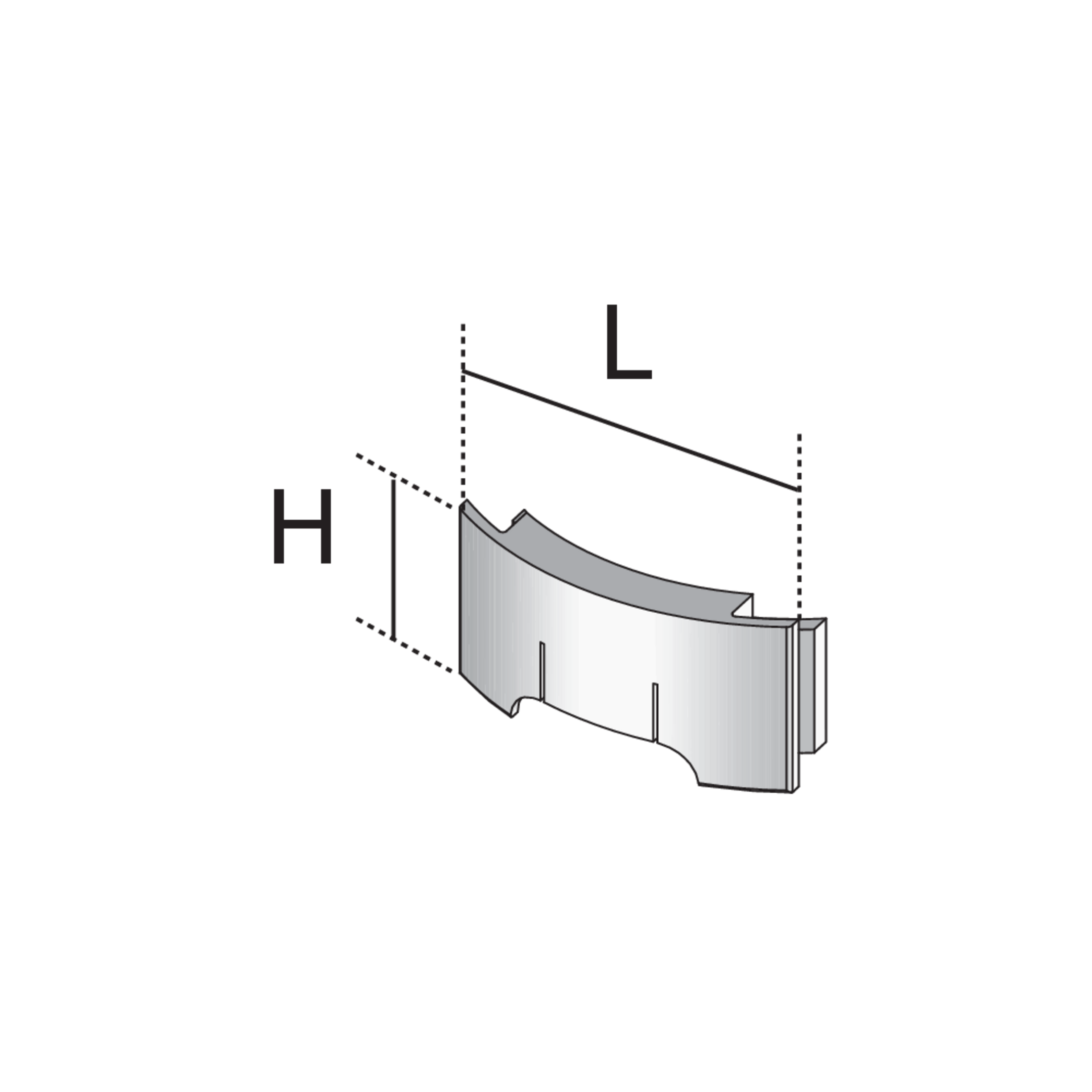

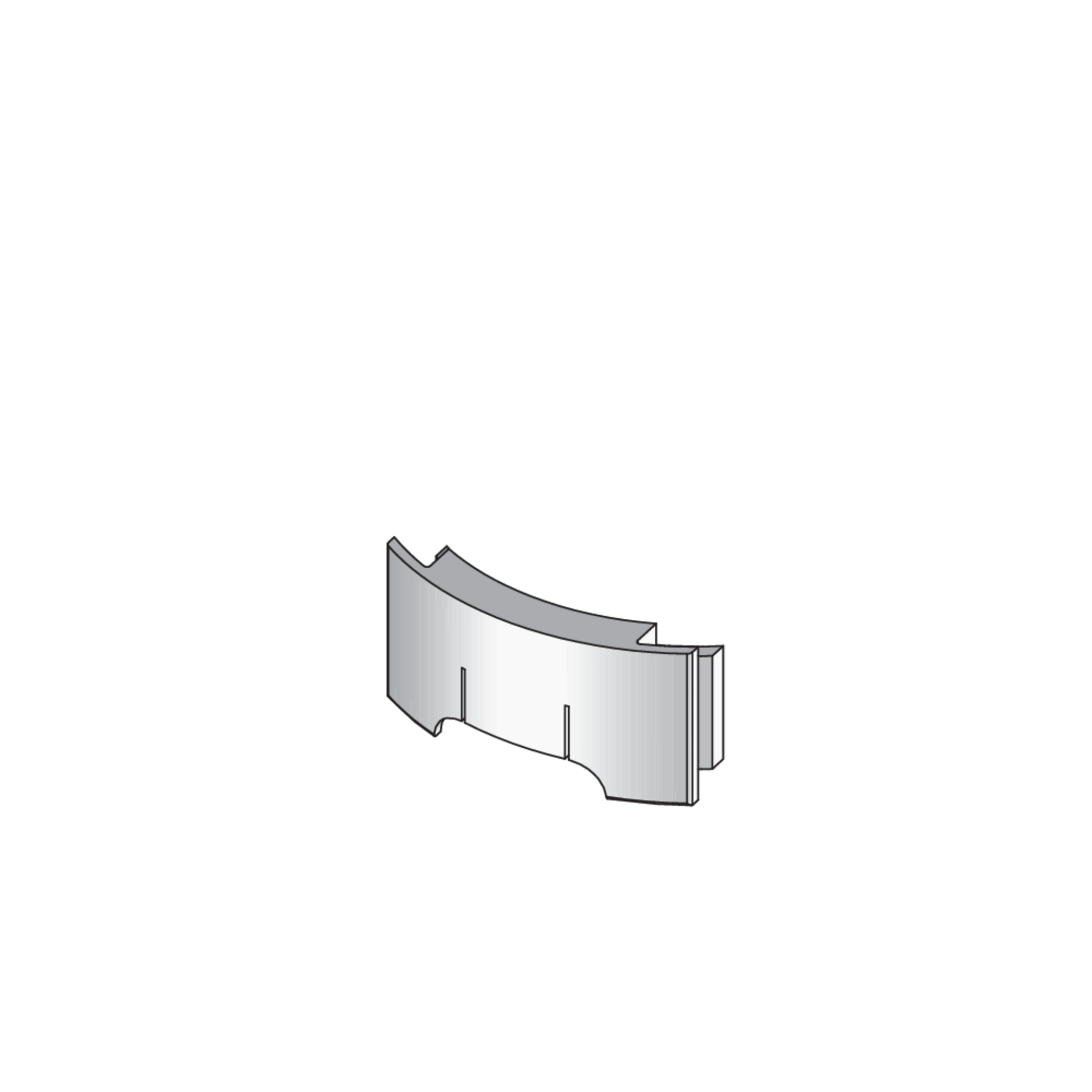

Rubber bushing
UGM components are rubber sleeves from the range of installation units for underfloor systems. These accessories seal the cable outlets in BODO N/NL single outlets against dust. The sleeves are made of high-quality TPE Shore 70 plastic, which is characterised by its thermoplastic behaviour and particularly high elasticity. UGM have a VDE/TÜV approval according to DIN EN 50085.
Load requirements according to: DIN EN 50085
Details
- Load requirements according to: DIN EN 50085
