UGET CEE

Device carrier, CEE socket

UGET CEE components are device carriers from the underfloor system range. They contain a CEE socket and, instead of a mounting box, can be inserted into the corresponding snap-in ladders using the integrated fastening clamps and then snapped into the centre of the installation units. The device carriers are made of sendzimir hot-dip galvanised sheet steel, with the socket housing in light grey and the cover in red. It is advisable to use an angled plug for assembly.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

Hmin

minimum installation height

B

width

L

length

Design

G

Weight per storage unit

  • UGET-CEE16 226
    device carrier, made of galvanized
    height
    122 mm
    minimum installation height
    185 mm
    width
    75 mm
    length
    236 mm
    Design
    16 A (3-polig + N + PE)
    Weight per storage unit
    0.850 kg
    More information
  • UGET-CEE32 226
    device carrier, made of galvanized
    height
    122 mm
    minimum installation height
    210 mm
    width
    75 mm
    length
    236 mm
    Design
    32 A (3-polig + N + PE)
    Weight per storage unit
    0.931 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    • de

    • en

    Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Declaration

    PDF, 106.06 KB

    • de

    Download

    EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    • de

    • en

    Underfloor Systems - Catalogue

    Catalogue

    • de

    • en

    Assembly instruction for device installation cups and installation devices

    Assembly Instructions

    • de

    • en

    Technical Information Device Sockets and Installation Devices

    Technical Information

    • de

    • en

    Installation Instructions Data-device carriers

    Data-device carriers UFS UGET

    • de

    • en

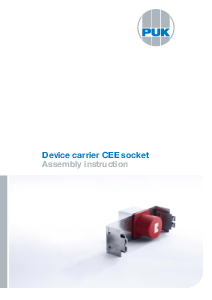

    Assembly instruction for Device carrier for CEE sockets

    Assembly Instructions

    • de

    • en
