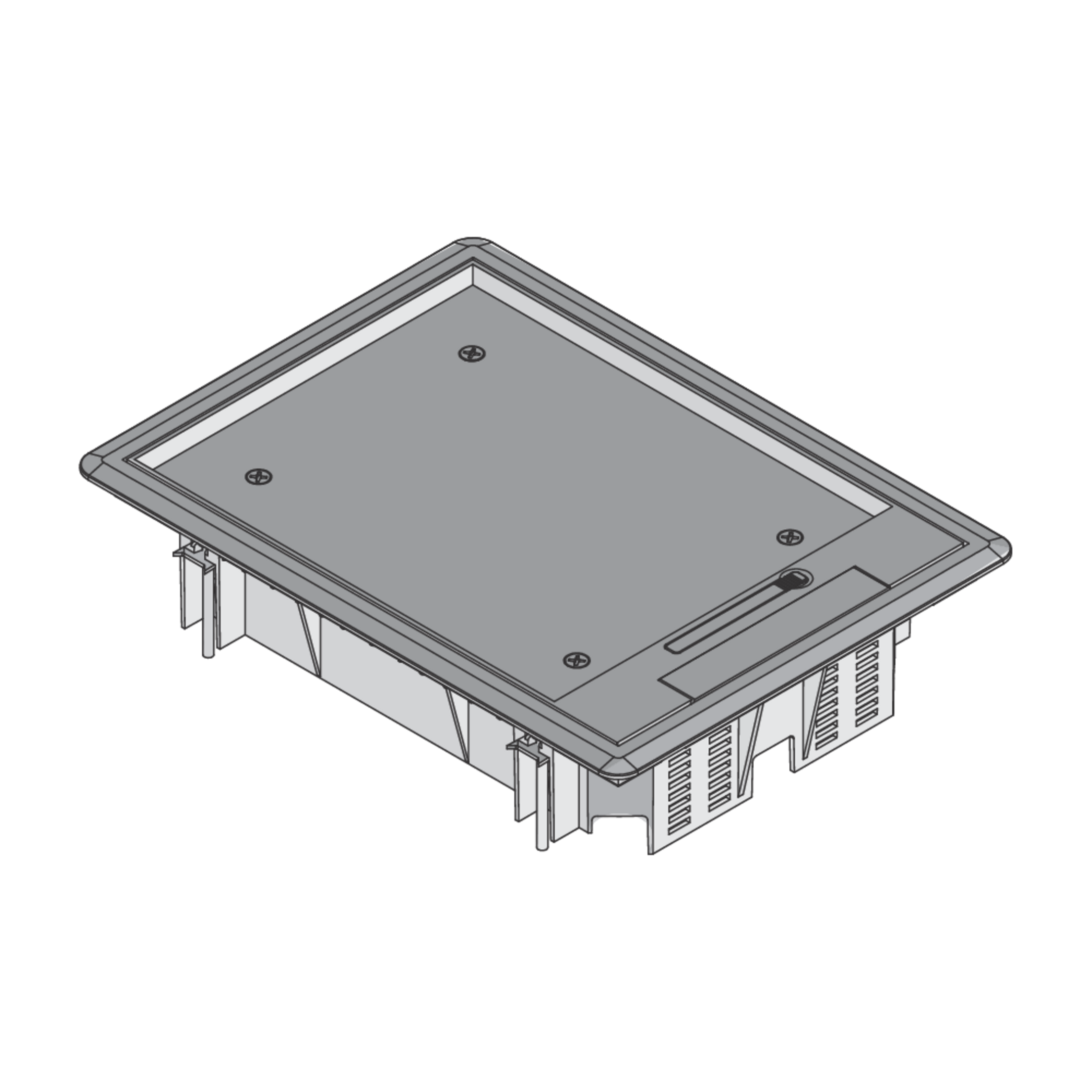

UEKD2 V

Plastic hinged cover unit, 2x, angular

UEKD2 V installation units are angular, plastic hinged cover units with carpet protection frame. They are used in dry-cleaned rooms in assembly covers, floor sockets and in raised or false floor openings. They are designed for office traffic loads and can be used to gradually lower two mounting boxes when supplemented with snap-in ladders. The units have floor-level, swivelling cable outlets, opening levers and universal claws. The covers and frames are made of polyamide in graphite black (RAL 9011) and iron grey (RAL 7011). They have an IP protection rating of IP 30 in an unused condition, an IP protection rating of IP 20 when used, a minimum installation height of 74 mm, a maximum load of 2 kN and installation dimensions of 261 x 186 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

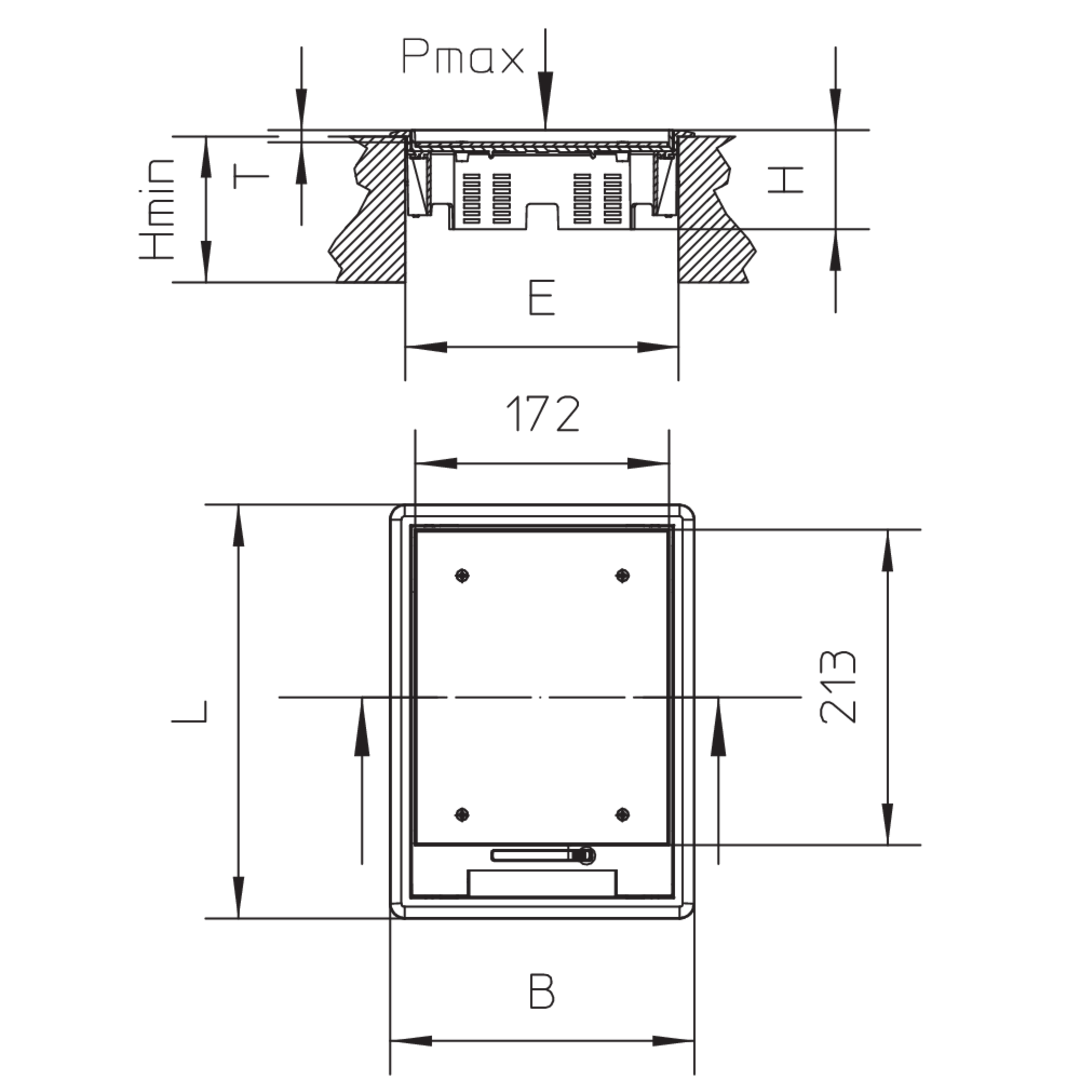

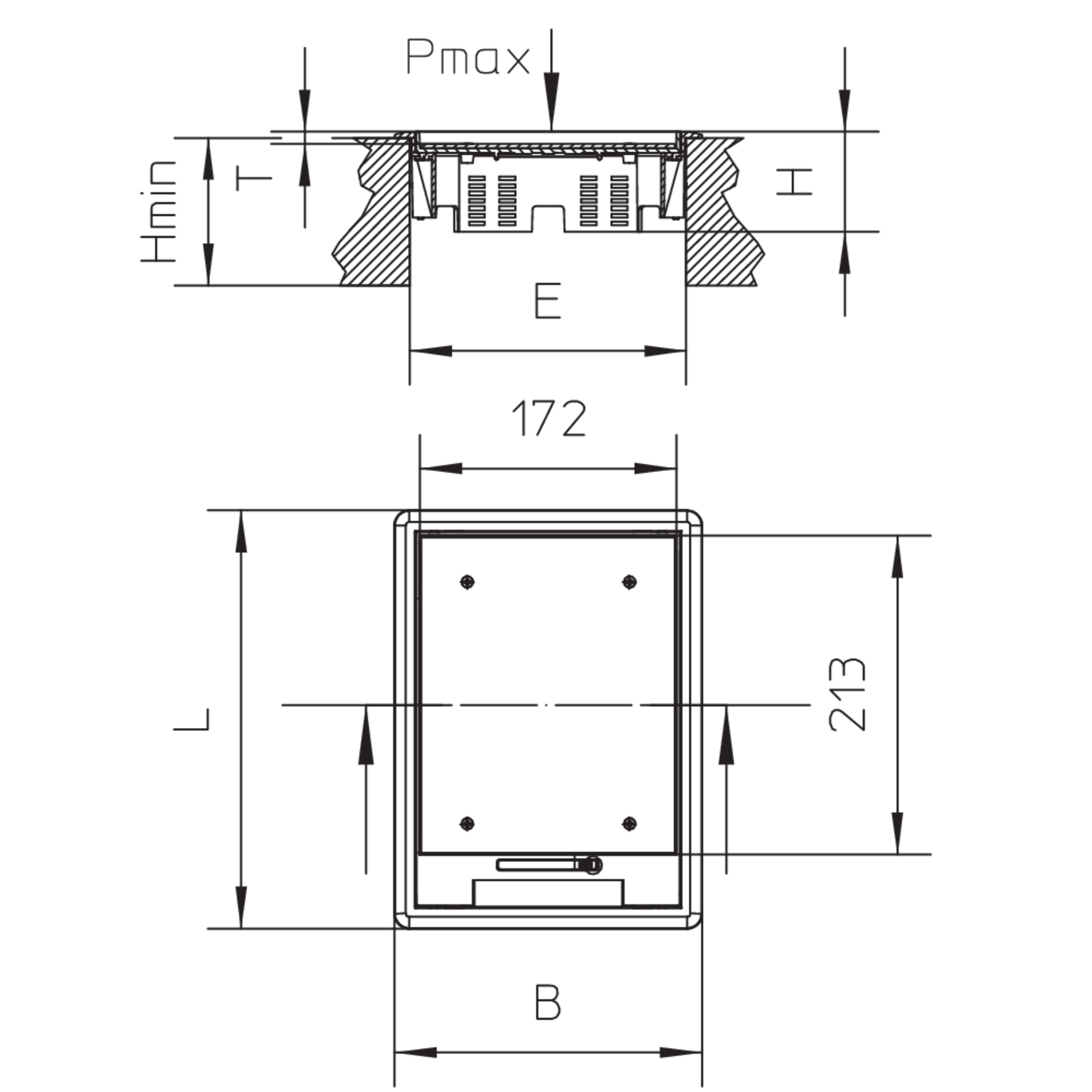

Variants

Article

H

height

Hmin

minimum installation height

B

width

L

length

Pmax

maximum load

mounting box

maximum number of installable device casings

E

fitting dimension

colour

color

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit
  • UEKD2-V-G
    installation unit,
    65 mm
    74 mm
    206 mm
    280 mm
    2.00 kN
    2
    261 x 186 mm
    RAL 7011 (iron gray)
    IP 20
    IP 30
    8 mm
    1.321 kg
    Included accessories
    More information
  • UEKD2-V-S
    installation unit,
    65 mm
    74 mm
    206 mm
    280 mm
    2.00 kN
    2
    261 x 186 mm
    RAL 9011 (graphite black)
    IP 20
    IP 30
    8 mm
    1.321 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
