UEKD VP E

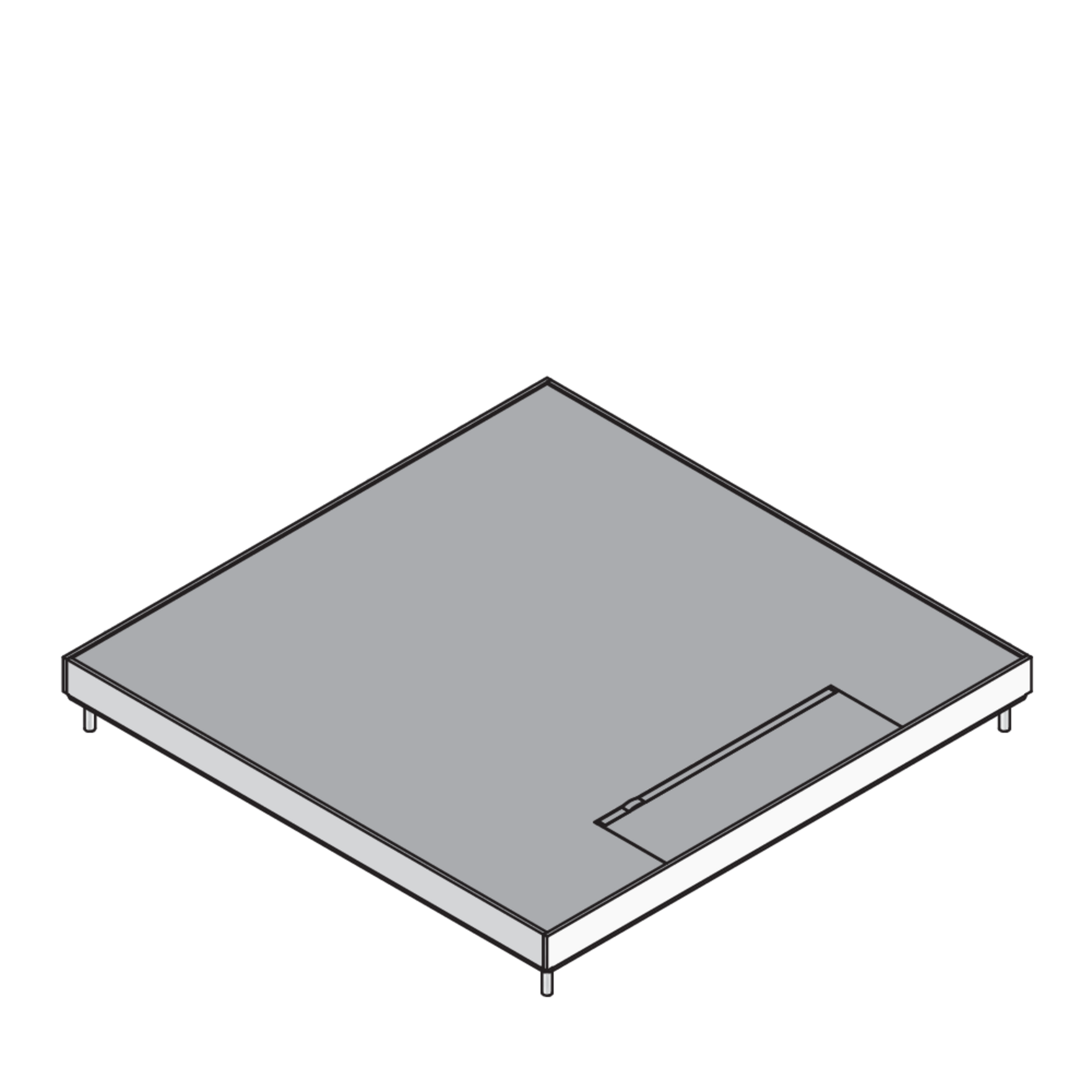

Stainless steel hinged cover unit, 3x, angular, flat

UEKD VP E components are square hinged cover units. They consist of a cartridge mounting frame with insert cartridge, cable outlet, floor-level cable outlet and rubber seal. Mounted on levelling units with Phillips screws, they accommodate max. 3 mounting boxes with installation devices and are used in floor sockets in dry-cleaned and damp-cleaned rooms with office traffic loads. The units are made of stainless steel with flat surfaces. They have an IP protection class of IP 30 in an unused condition, an IP protection class of IP 20 when used and a max. load capacity of 4.00 kN. They have installation dimensions of 261 x 261 mm and a minimum installation height of 85 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

H

Höhe

Hmin

min. Einbauhöhe

B

Breite

L

Länge

Pmax

max. Belastung

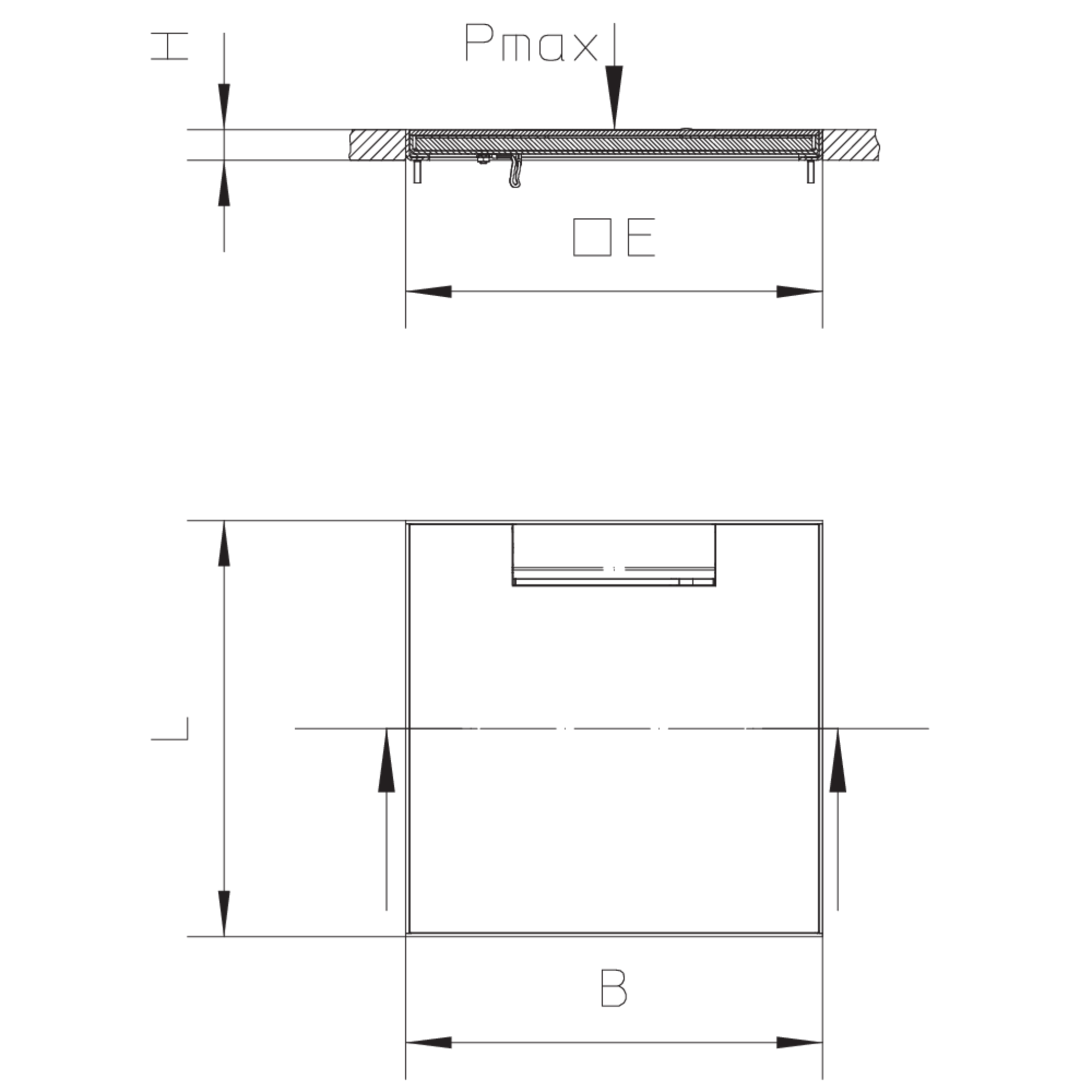

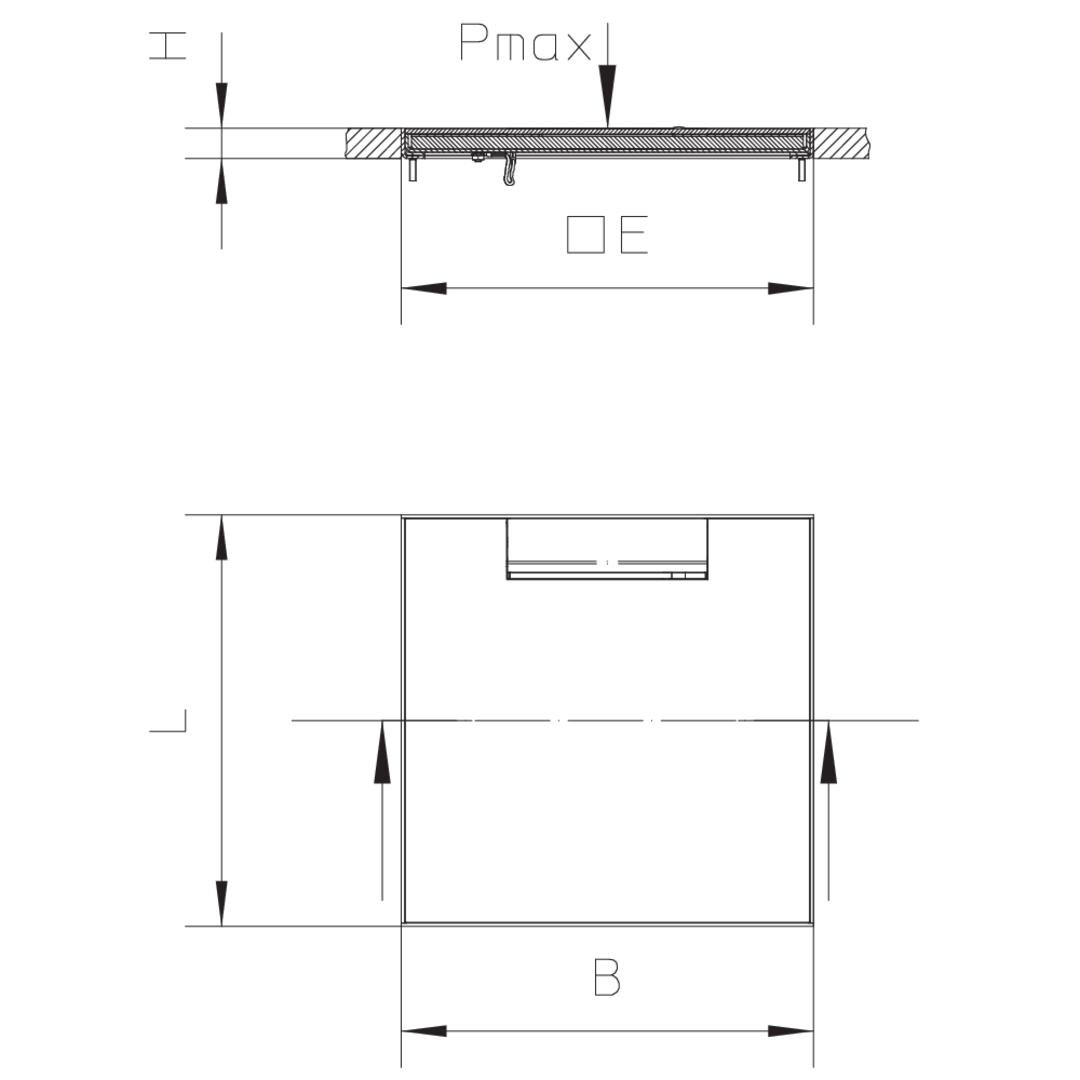

Gerätebecher

max. Anzahl installierbarer Gerätebecher

E

Einbaumaß

IPg

IP-Schutzgrad im genutzten Zustand

IPn

IP-Schutzgrad im nicht genutzten Zustand

T

Tiefe der Bodenbelagaussparung

G

Gewicht je Lagermengeneinheit
  • UEKD 15-VP E
    Kassetteneinheit,
    Höhe
    19 mm
    min. Einbauhöhe
    85 mm
    Breite
    258 mm
    Länge
    258 mm
    max. Belastung
    4.00 kN
    max. Anzahl installierbarer Gerätebecher
    3
    Einbaumaß
    261 x 261 mm
    IP-Schutzgrad im genutzten Zustand
    IP 20
    IP-Schutzgrad im nicht genutzten Zustand
    IP 30
    Tiefe der Bodenbelagaussparung
    0 mm
    Gewicht je Lagermengeneinheit
    4.634 kg
