UEKD R E

Stainless steel hinged cover unit, 3x, round

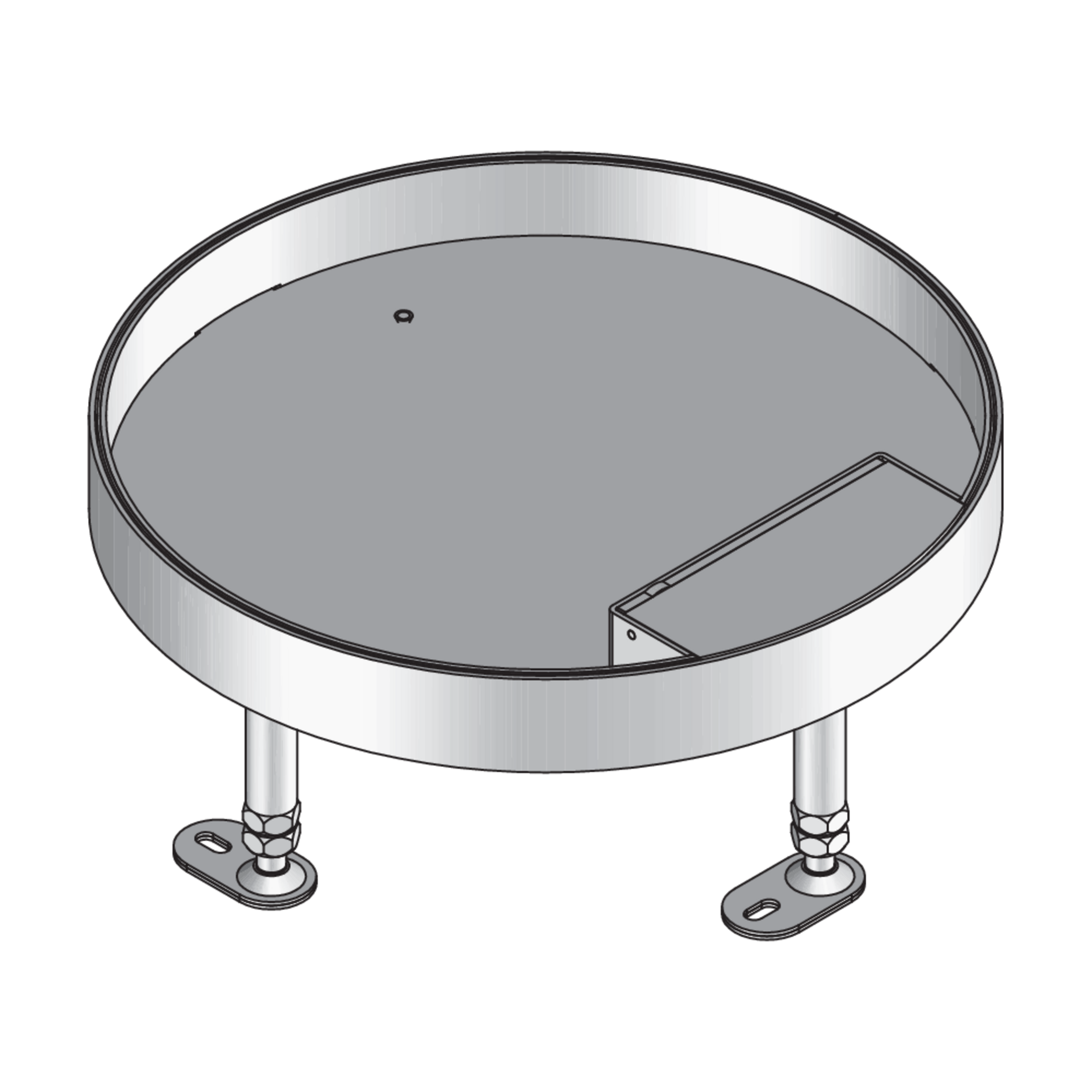

UEKD R E installation units are round hinged cover units with abutting edges. They can accommodate a maximum of three mounting boxes. They consist of height-adjustable cartridge mounting frames with a cable outlet cartridge, an opening lever and a rubber seal and are suitable for dry-cleaned and damp-cleaned rooms with office traffic loads. They are installed in UBDHB floor sockets, assembly covers and raised or false floor openings. The components are made of stainless steel V2A. They have an IP protection class of IP 30 in an unused condition, a max. load capacity of 2 kN, an adjustment range of 55 mm, a min. installation height of 100 mm and installation dimensions of 307 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

Hmin

N

Pmax

ØB

mounting box

ØE

IPg

IPn

T

W

Included accessories

  • UEKD 15-R E
    cartridge unit,
    19 mm
    100 mm
    55 mm
    2.00 kN
    304 mm
    3
    307 mm
    IP 20
    IP 30
    12 mm
    2.367 kg
    Included accessories
    More information
  • UEKD 25-R E
    Cassette unit
    29 mm
    110 mm
    55 mm
    2.00 kN
    304 mm
    3
    307 mm
    IP 20
    IP 30
    22 mm
    2.872 kg
    Included accessories
    More information
  • UEKD 35-R E
    cartridge unit,
    38 mm
    117 mm
    55 mm
    2.00 kN
    305 mm
    3
    307 mm
    IP 20
    IP 30
    30 mm
    4.146 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
