UEK3 V

Plastic hinged cover unit, 3x, angular

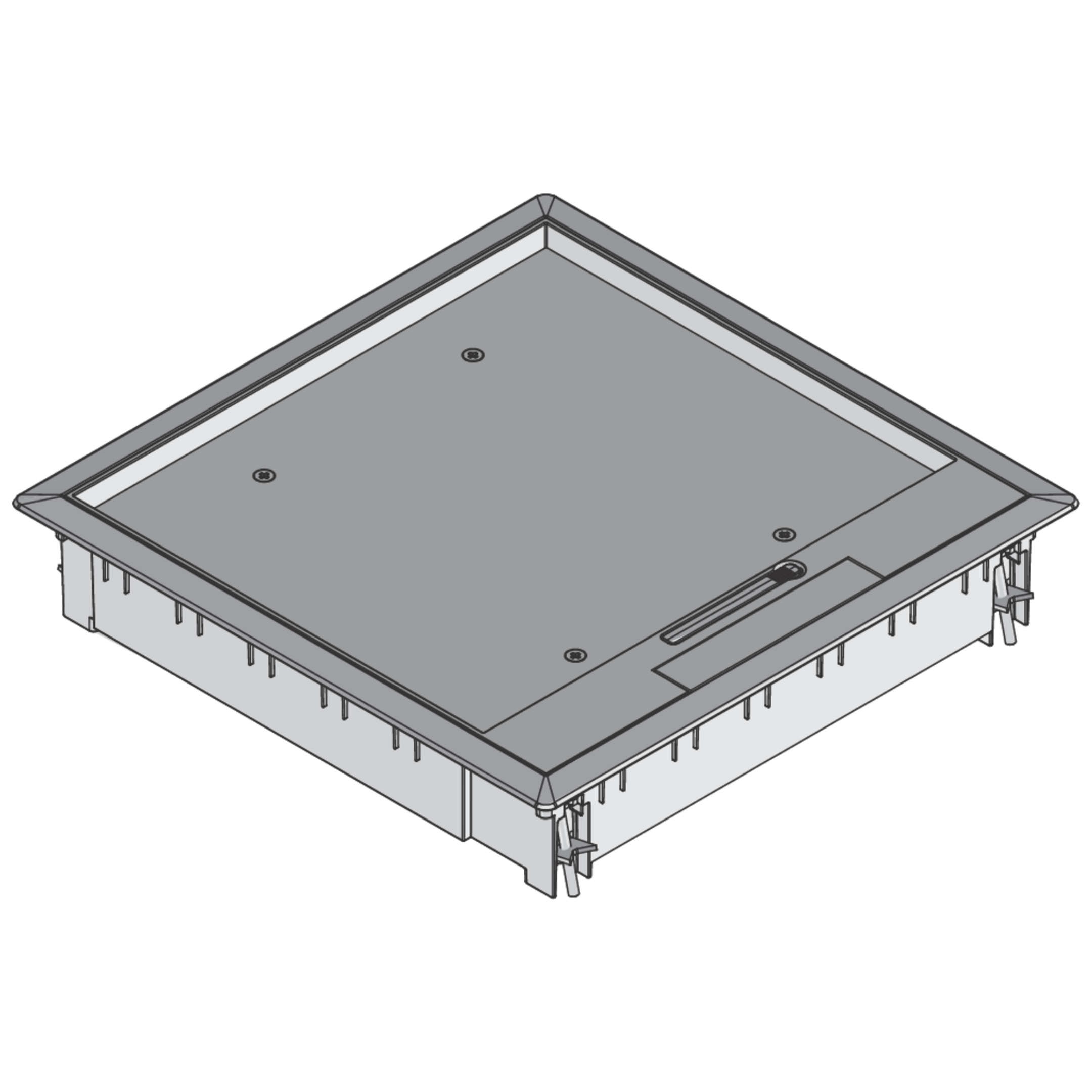

UEK3 V installation units are angular, plastic hinged cover units with carpet protection frames that are used in dry-cleaned rooms in assembly covers, UBDHB floor sockets and in raised or false floor openings. They are designed for office traffic loads and can be used to lower three mounting boxes by max. 30 mm. The units have floor-level brush cable outlets that swivel 180°, opening levers and universal claw sets. The covers and frames are made of polyamide in graphite black (RAL 9011) and iron grey (RAL 7011). They have an IP protection rating of IP 30 in an unused condition and an IP protection rating of IP 20 when used. They have a minimum installation height of 63 mm, a maximum load of 2 kN and installation dimensions of 260 x 260 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

H

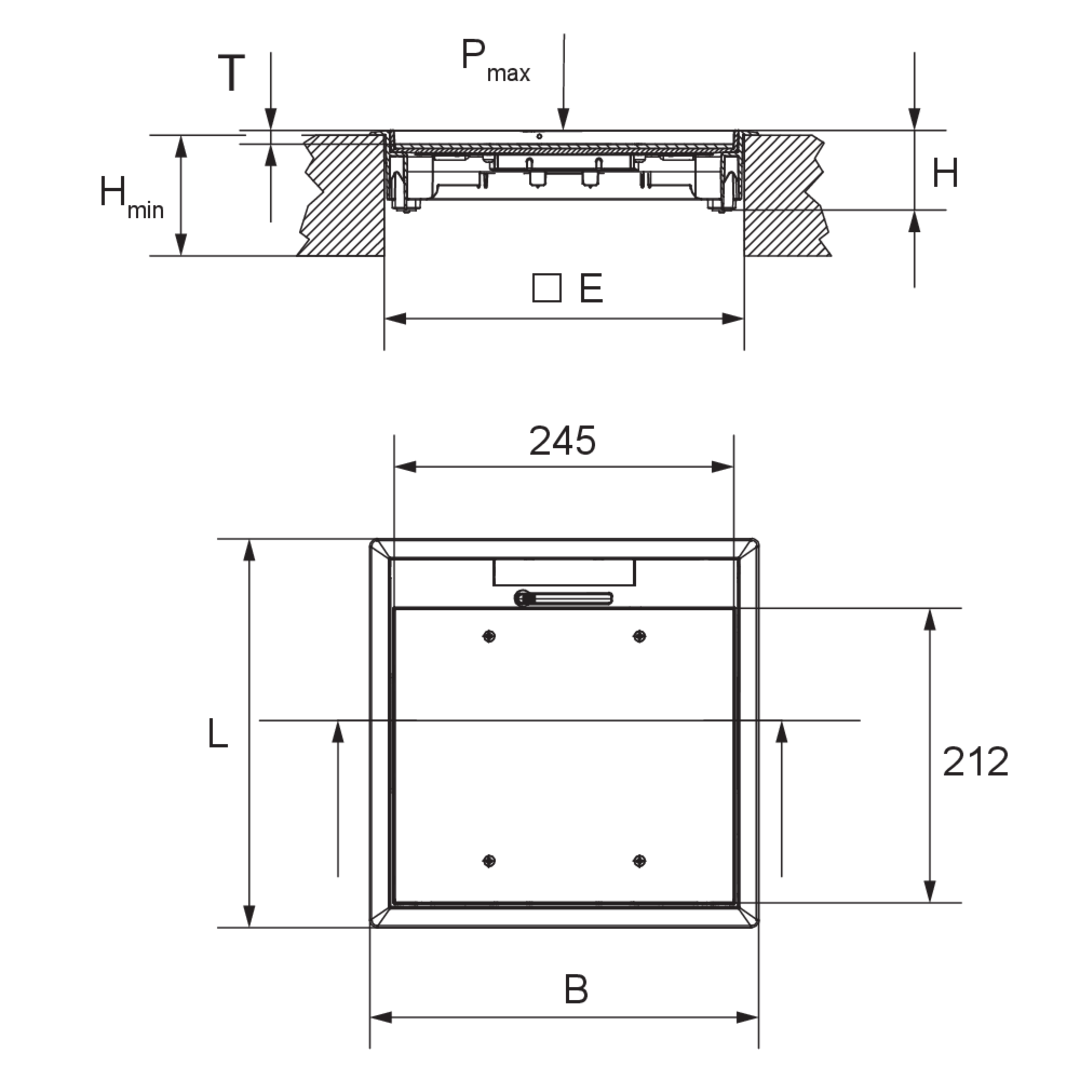

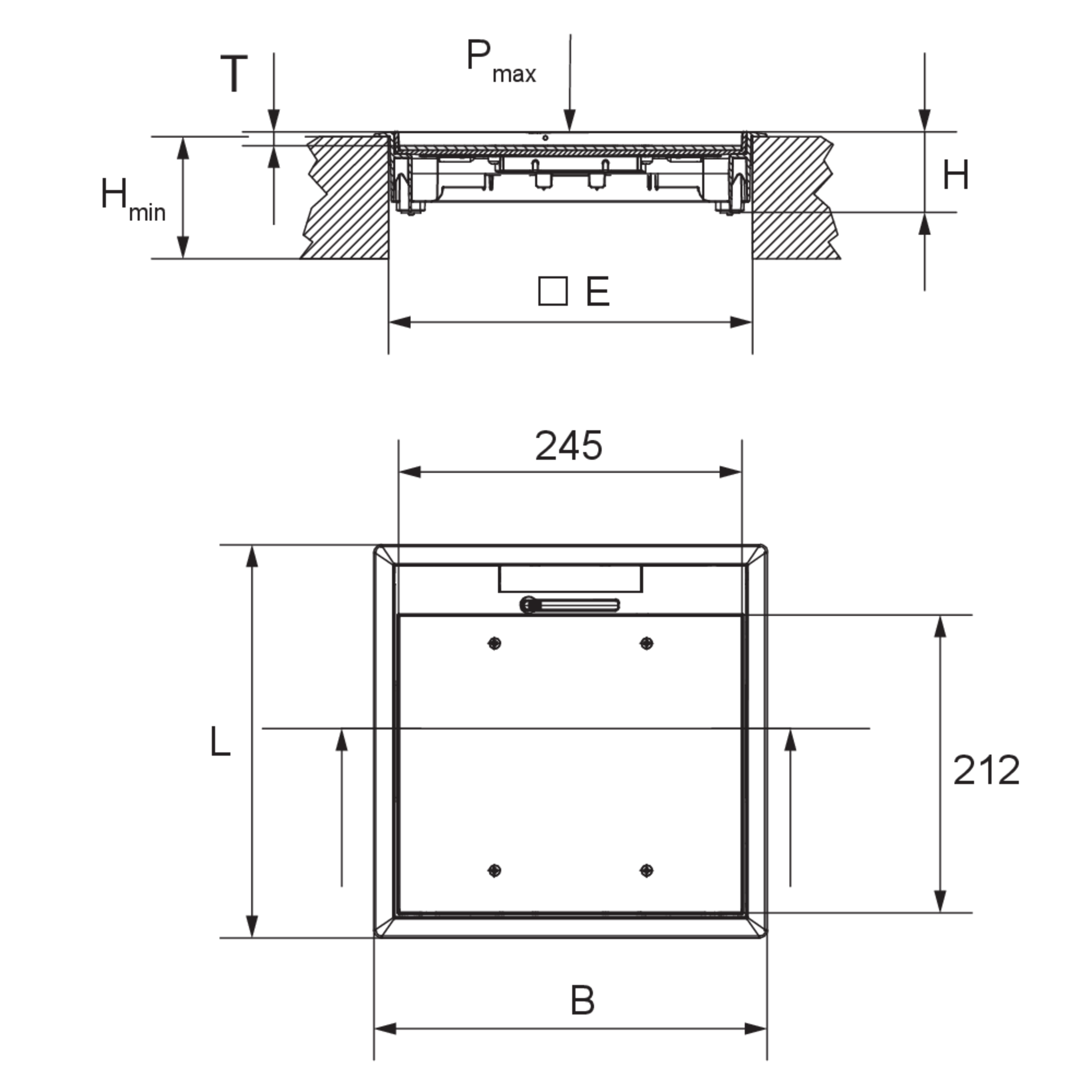

Höhe

Hmin

min. Einbauhöhe

B

Breite

L

Länge

Pmax

max. Belastung

Gerätebecher

max. Anzahl installierbarer Gerätebecher

E

Einbaumaß

Farbe

Farbe

IPg

IP-Schutzgrad im genutzten Zustand

IPn

IP-Schutzgrad im nicht genutzten Zustand

T

Tiefe der Bodenbelagaussparung

G

Gewicht je Lagermengeneinheit
  • UEK3-V-G
    Einbaueinheit,
    Höhe
    58 mm
    min. Einbauhöhe
    63 mm
    Breite
    280 mm
    Länge
    280 mm
    max. Belastung
    2.00 kN
    max. Anzahl installierbarer Gerätebecher
    3
    Einbaumaß
    260 x 260 mm
    Farbe
    RAL 7011 (Eisengrau)
    IP-Schutzgrad im genutzten Zustand
    IP 20
    IP-Schutzgrad im nicht genutzten Zustand
    IP 30
    Tiefe der Bodenbelagaussparung
    10 mm
    Gewicht je Lagermengeneinheit
    1.797 kg

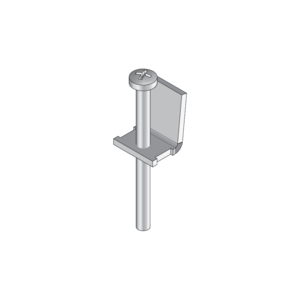

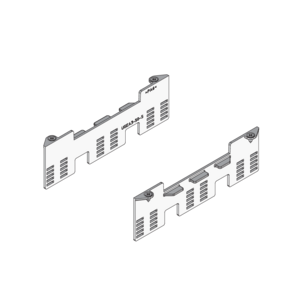

    Included accessories
    More information
  • UEK3-V-S
    Einbaueinheit,
    Höhe
    58 mm
    min. Einbauhöhe
    63 mm
    Breite
    280 mm
    Länge
    280 mm
    max. Belastung
    2.00 kN
    max. Anzahl installierbarer Gerätebecher
    3
    Einbaumaß
    260 x 260 mm
    Farbe
    RAL 9011 (Graphitschwarz)
    IP-Schutzgrad im genutzten Zustand
    IP 20
    IP-Schutzgrad im nicht genutzten Zustand
    IP 30
    Tiefe der Bodenbelagaussparung
    10 mm
    Gewicht je Lagermengeneinheit
    1.797 kg

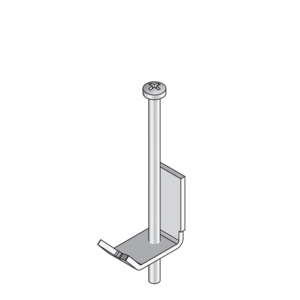

    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Units for screed and hollow floors - Technical information

    Technische Information

    PDF, 14 MB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Notice for types of protection and floor maintenance

    Notice for installation units

    PDF, 328 KB

    de en

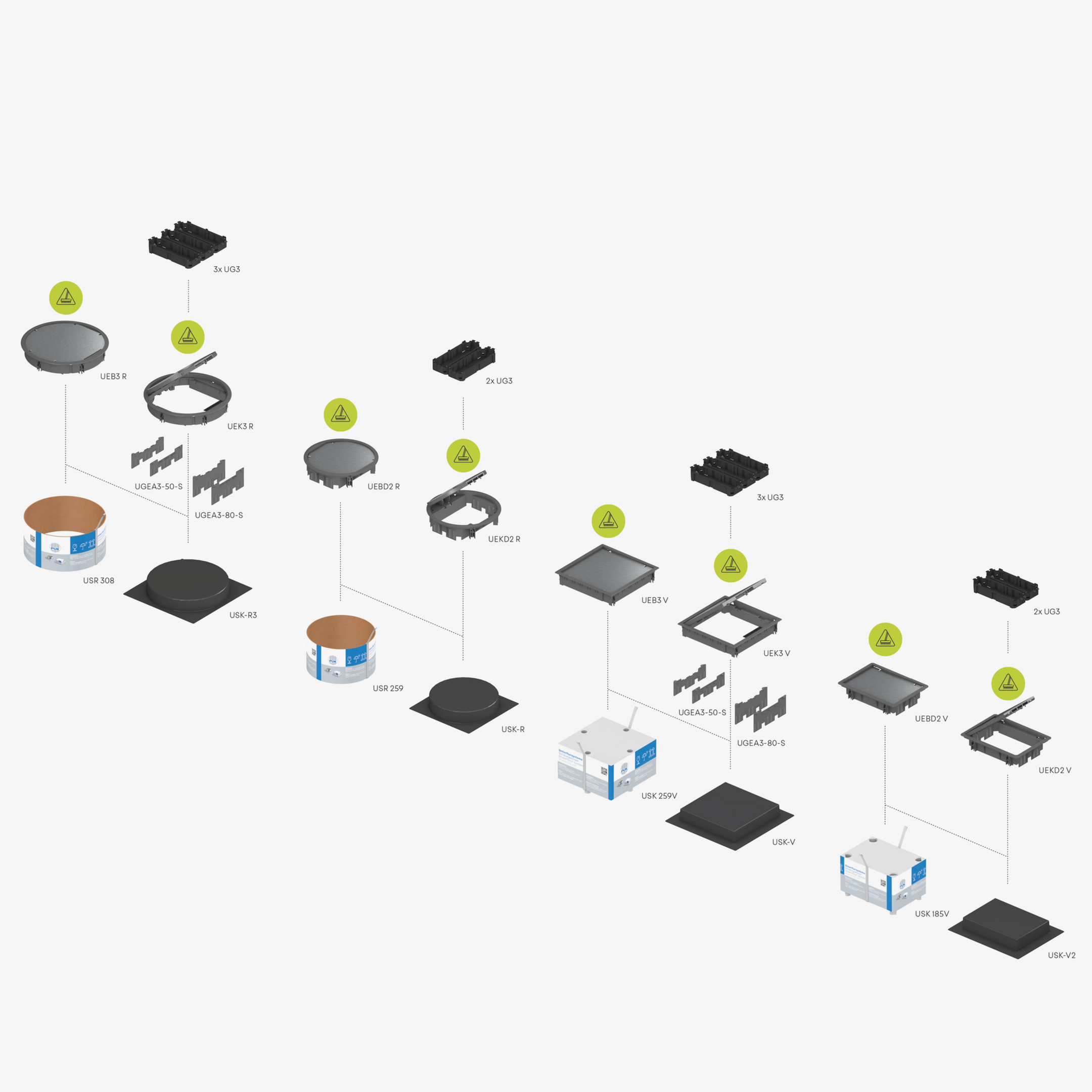

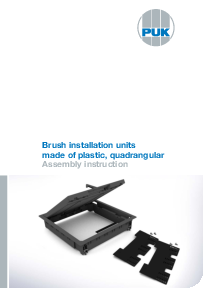

  • Installation Instructions Square Plastic Installation Units
