UEK3 R

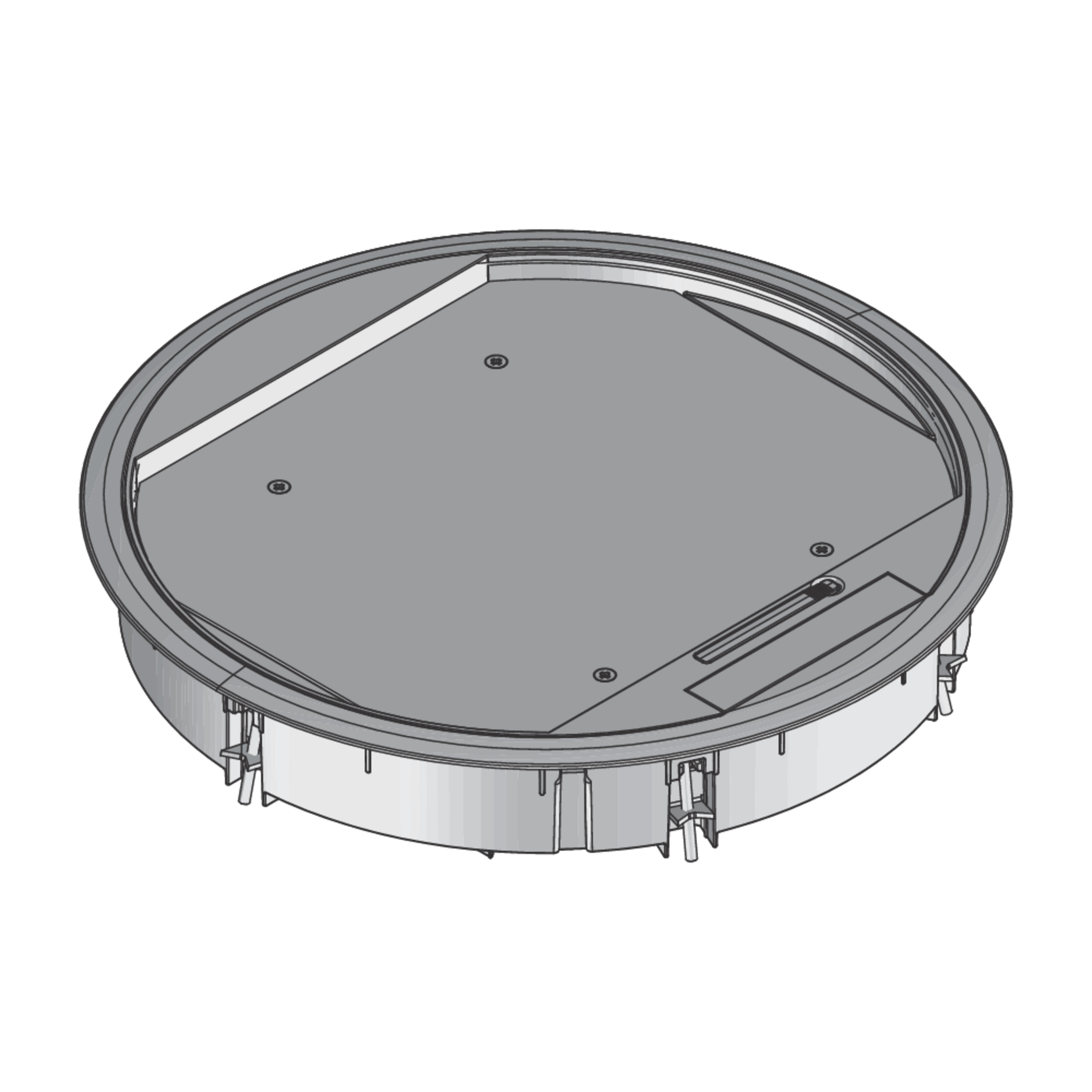

Plastic hinged cover unit, 3x, round

UEK3 R installation units are round hinged cover units with carpet protection frames that are used in dry-cleaned rooms in assembly covers, UBDHB floor sockets and in raised or false floor openings. They are designed for office traffic loads and can be used to gradually lower three mounting boxes when supplemented with snap-in ladders. The units have floor-level brush cable outlets that swivel 180°, opening levers and the UDKS3-VR universal claw. The covers and frames are made of polyamide and the insert is made from hot-dip galvanised sheet steel. They have an IP protection rating of IP 30 in an unused condition, an IP protection rating of IP 20 when used, a minimum installation height of 63 mm, a maximum load of 2 kN and installation dimensions of 307 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

H

Höhe

Hmin

min. Einbauhöhe

Pmax

max. Belastung

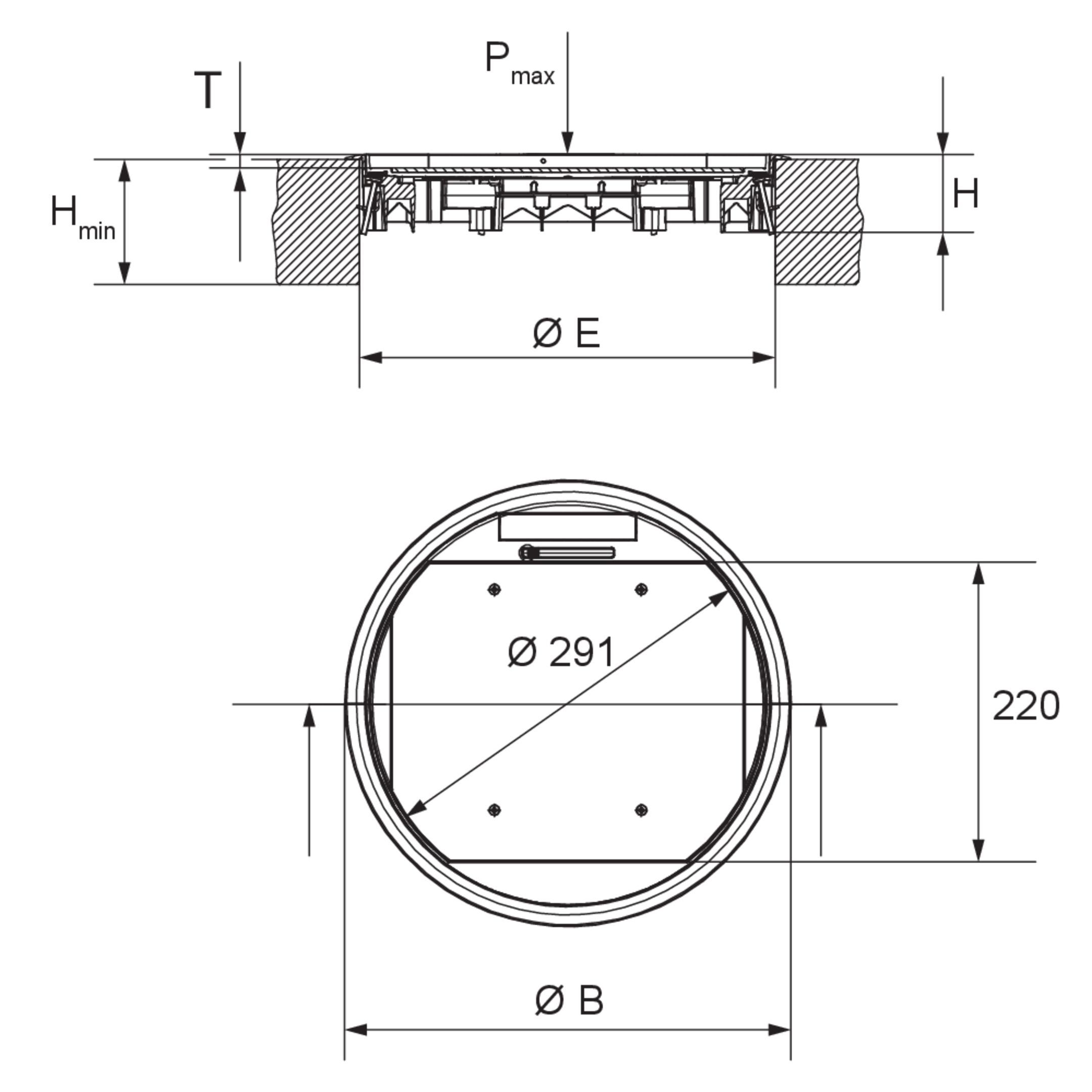

ØB

Einbaudurchmesser

Gerätebecher

max. Anzahl installierbarer Gerätebecher

ØE

Einbaumaß

Farbe

Farbe

IPg

IP-Schutzgrad im genutzten Zustand

IPn

IP-Schutzgrad im nicht genutzten Zustand

T

Tiefe der Bodenbelagaussparung

G

Gewicht je Lagermengeneinheit
  • UEK3-R-G
    Einbaueinheit,
    Höhe
    58 mm
    min. Einbauhöhe
    65 mm
    max. Belastung
    2.00 kN
    Einbaudurchmesser
    330 mm
    max. Anzahl installierbarer Gerätebecher
    3
    Einbaumaß
    307 mm
    Farbe
    RAL 7011 (Eisengrau)
    IP-Schutzgrad im genutzten Zustand
    IP 20
    IP-Schutzgrad im nicht genutzten Zustand
    IP 30
    Tiefe der Bodenbelagaussparung
    10 mm
    Gewicht je Lagermengeneinheit
    1.935 kg
    Included accessories
    More information
  • UEK3-R-S
    Einbaueinheit,
    Höhe
    58 mm
    min. Einbauhöhe
    65 mm
    max. Belastung
    2.00 kN
    Einbaudurchmesser
    330 mm
    max. Anzahl installierbarer Gerätebecher
    3
    Einbaumaß
    307 mm
    Farbe
    RAL 9011 (Graphitschwarz)
    IP-Schutzgrad im genutzten Zustand
    IP 20
    IP-Schutzgrad im nicht genutzten Zustand
    IP 30
    Tiefe der Bodenbelagaussparung
    10 mm
    Gewicht je Lagermengeneinheit
    1.935 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
