UEBDS V E

Stainless steel heavy-duty dummy cover unit, 3x, angular

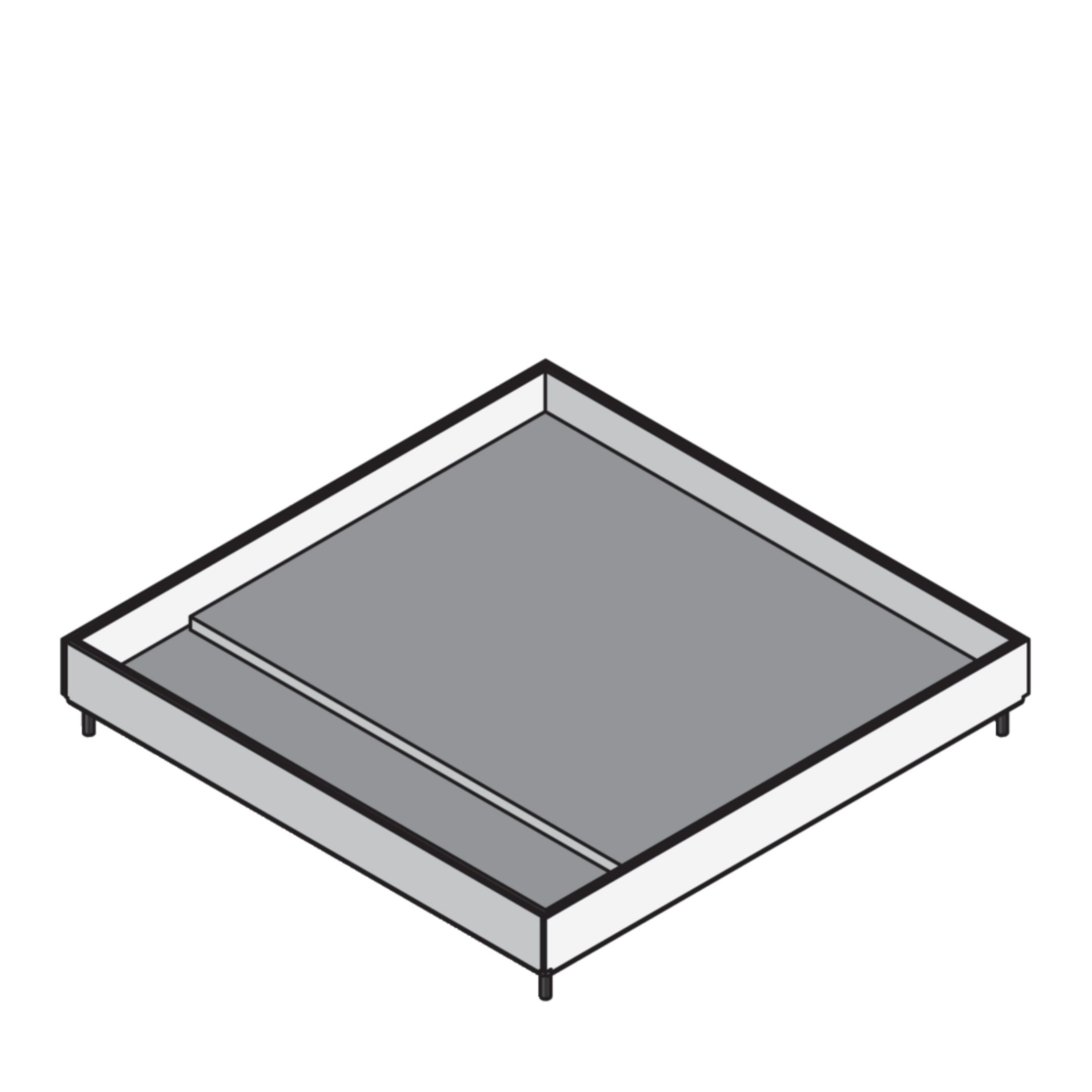

UEBDS V E components are square heavy-duty dummy cover units with abutting edges. They consist of a cartridge mounting frame with a heavy-duty cartridge and a rubber seal. The units are mounted on UNE levelling units using UKS M4X16E Phillips screws and can be used with max. 3 mounting boxes in floor sockets, assembly covers and raised or false floor openings in wet-cleaned rooms with high traffic loads. They are made of stainless steel V2A or brass.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

H

Hmin

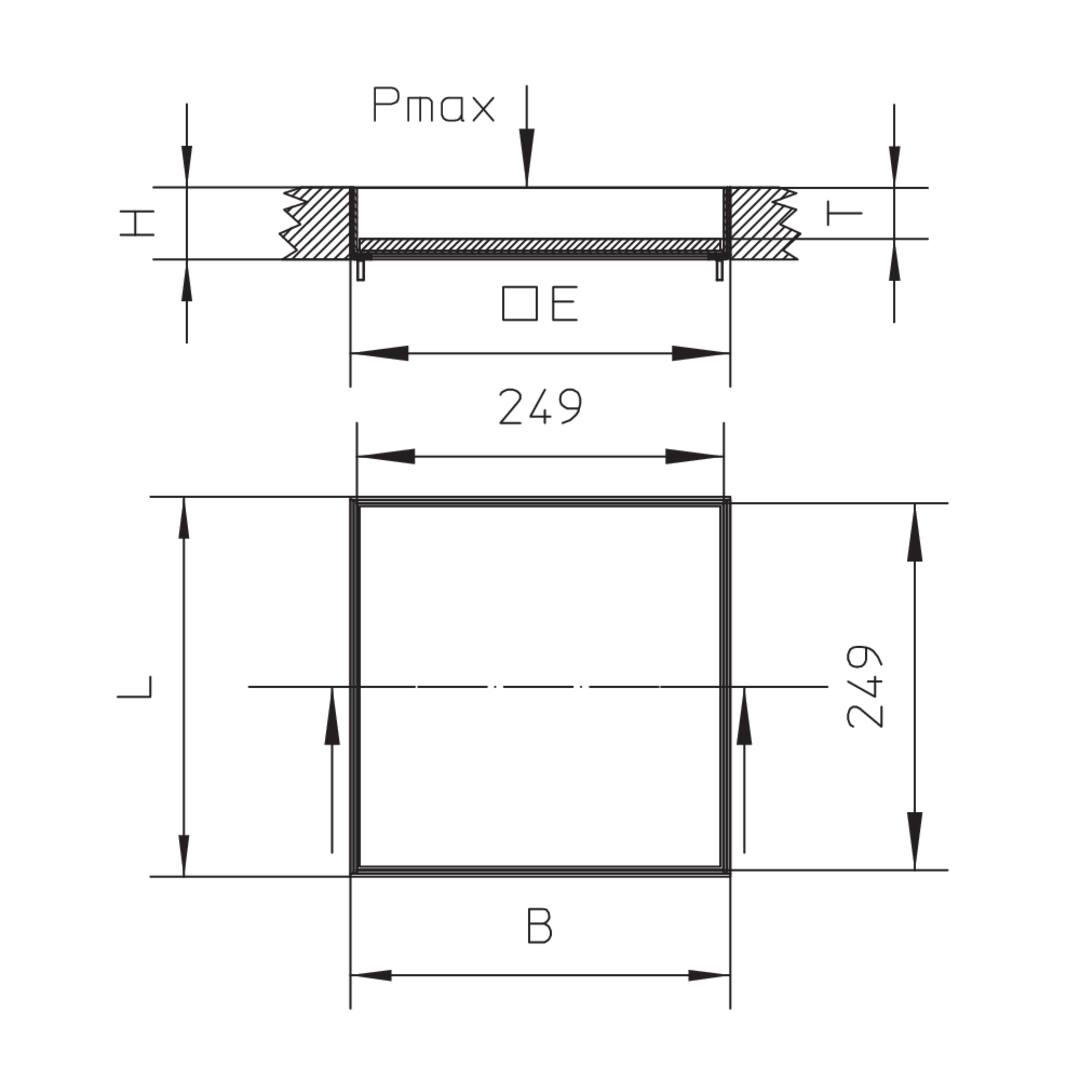

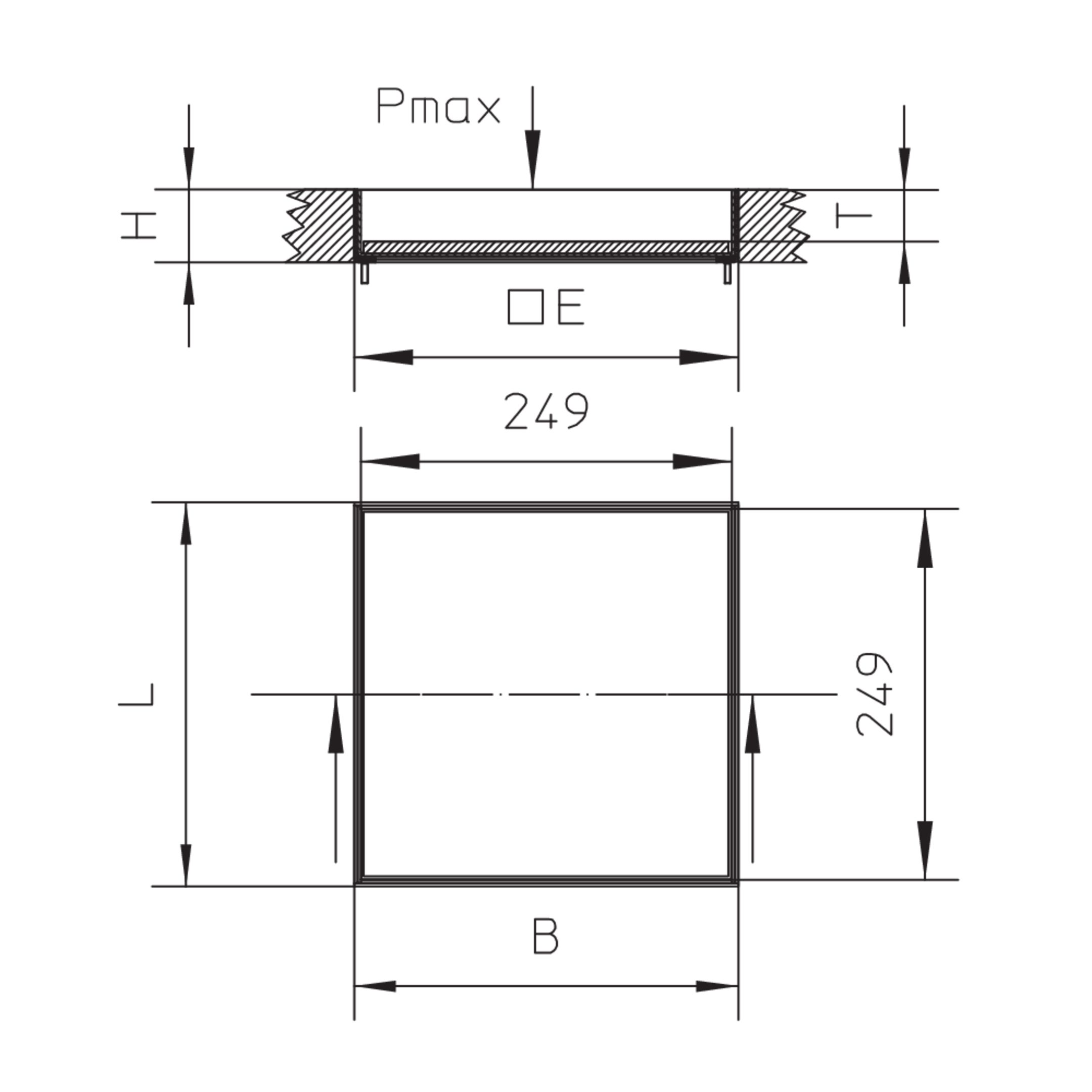

B

L

Pmax

E

IPn

T

W

Included accessories

  • UEBDS 25-V6 E
    heavy duty cartridge unit,
    29 mm
    95 mm
    258 mm
    258 mm
    10.00 kN
    261 x 261 mm
    IP 54
    16.5 mm
    4.835 kg
    Included accessories
    More information
  • UEBDS 35-V6 E
    heavy duty cartridge unit,
    39 mm
    105 mm
    258 mm
    258 mm
    10.00 kN
    261 x 261 mm
    IP 54
    26.5 mm
    5.162 kg
    Included accessories
    More information
  • UEBDS 35-V8 E
    heavy duty cartridge unit,
    39 mm
    105 mm
    258 mm
    258 mm
    20.00 kN
    261 x 261 mm
    IP 54
    24.5 mm
    6.089 kg
    Included accessories
    More information
  • UEBDS 45-V6 E
    heavy duty cartridge unit,
    49 mm
    115 mm
    258 mm
    258 mm
    10.00 kN
    261 x 261 mm
    IP 54
    36.5 mm
    5.475 kg
    Included accessories
    More information
  • UEBDS 45-V8 E
    heavy duty cartridge unit,
    49 mm
    115 mm
    258 mm
    258 mm
    20.00 kN
    261 x 261 mm
    IP 54
    34.5 mm
    6.104 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
