UEBDM R WD

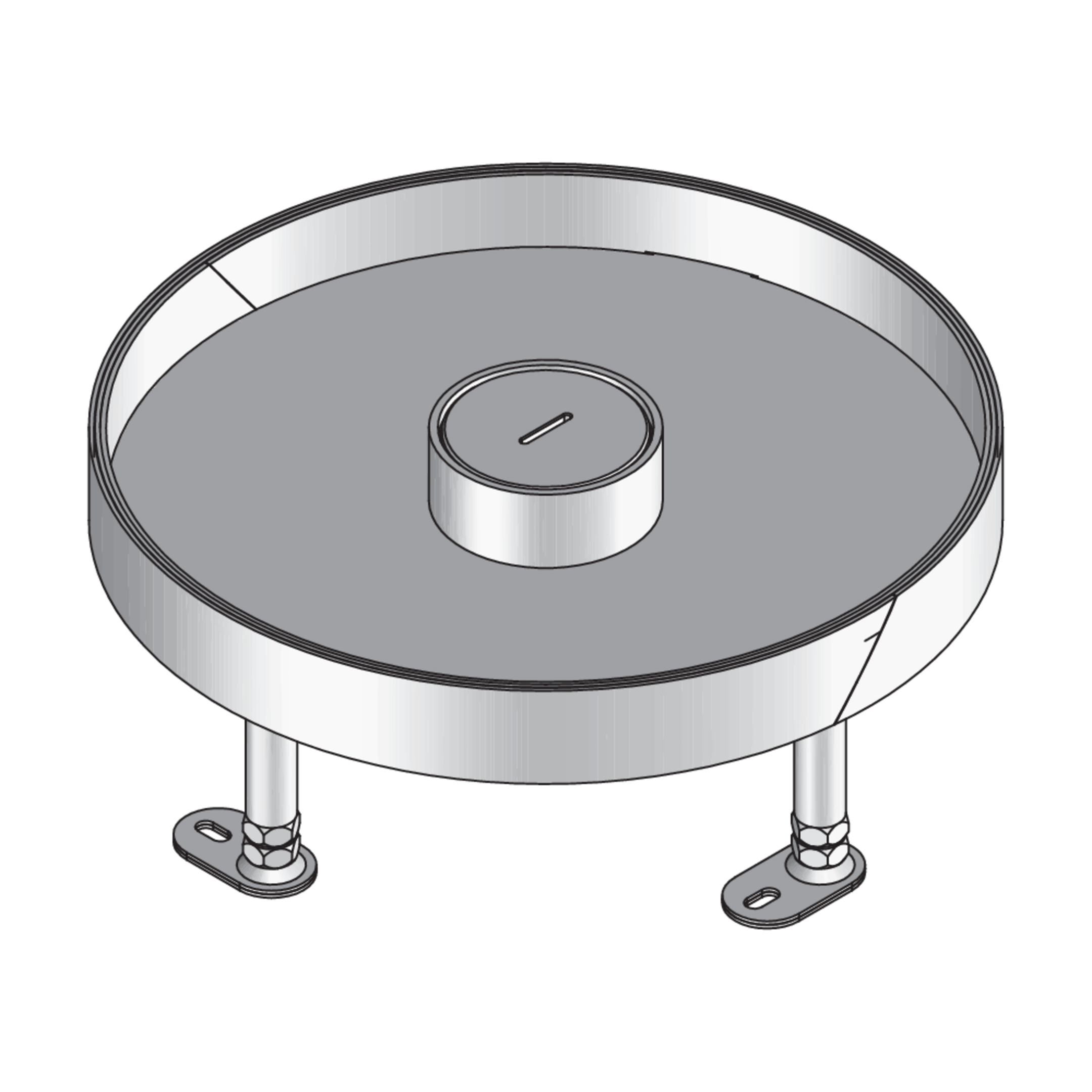

Stainless steel tube cover unit, 3x, round

The UEBDM R WD are round tube cover units with an abutting edge accommodating max. three mounting boxes. They consist of a height-adjustable cartridge mounting frame with a tube outlet cartridge, a bolted mounting kit made of anodised aluminium and a rubber seal. The units are suitable for wet-cleaned rooms with office traffic loads. They are installed in floor sockets, assembly covers and raised or false floor openings. The cartridge, frame and base plate are made of stainless steel V2A with an IP protection class of IP 54 in an unused condition. They have a maximum load capacity of 2 kN, a levelling range of 55 mm, installation dimensions of 307 mm and are 305 mm wide.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

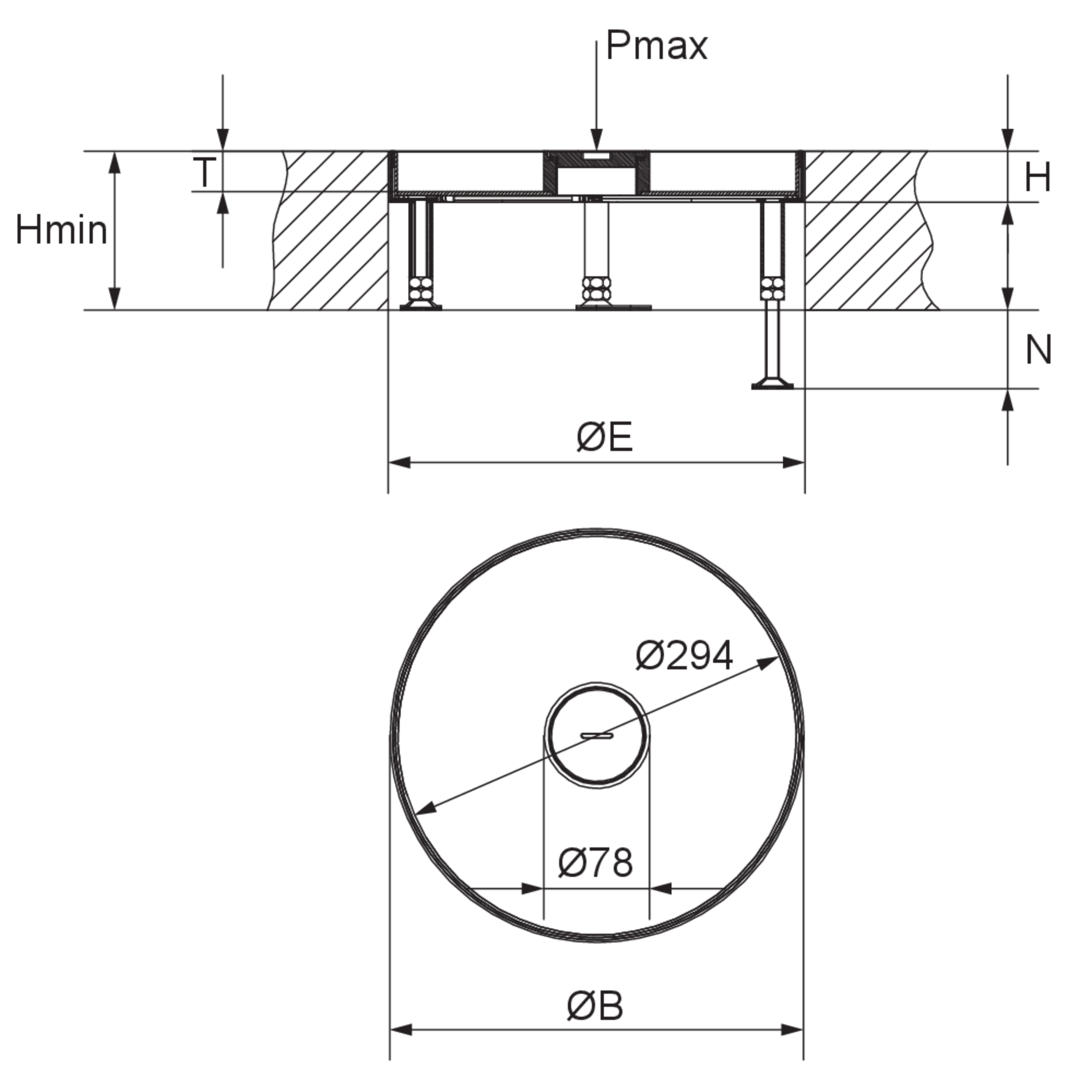

H

height

Hmin

minimum installation height

N

levelling range

Pmax

maximum load

ØB

Installation diameter

mounting box

maximum number of installable device casings

ØE

fitting dimension

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit
  • UEBDM 15-R-WD
    cartridge unit,
    height
    19 mm
    minimum installation height
    100 mm
    levelling range
    55 mm
    maximum load
    2.00 kN
    Installation diameter
    304 mm
    maximum number of installable device casings
    3
    fitting dimension
    307 mm
    IP protection level in used condition
    IP 22
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    12 mm
    Weight per storage unit
    2.499 kg
