UEBDD2 V E

Stainless steel dummy cover cartridge, 2x, angular

UEBDD2 V E products are square dummy cover cartridges for accommodating up to two mounting boxes. The installation units consist of a carpet protection frame with dummy insert cartridge, rubber seal, opening lever and universal claw set. They are designed for damp-cleaned and dry-cleaned floor coverings with office traffic loads and are used in floor sockets, assembly covers and raised or false floor openings. The dummy cover cartridges are made of stainless steel V2A, have an IP protection class of IP 30 in an unused condition, a minimum installation height of 90 or 100 mm, a width of 258 mm, an installation dimension of 261 x 186 mm and a maximum load limit of 1.5 kN.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

H

Höhe

Hmin

min. Einbauhöhe

B

Breite

L

Länge

Pmax

max. Belastung

E

Einbaumaß

IPn

IP-Schutzgrad im nicht genutzten Zustand

T

Tiefe der Bodenbelagaussparung

G

Gewicht je Lagermengeneinheit
  • UEBDD2 15-V E
    Kassetteneinbaueinheit,
    Höhe
    72 mm
    min. Einbauhöhe
    90 mm
    Breite
    210 mm
    Länge
    283 mm
    max. Belastung
    1.50 kN
    Einbaumaß
    261 x 186 mm
    IP-Schutzgrad im nicht genutzten Zustand
    IP 30
    Tiefe der Bodenbelagaussparung
    12 mm
    Gewicht je Lagermengeneinheit
    1.638 kg
    Included accessories
    More information
  • UEBDD2 25-V E
    Kassetteneinbaueinheit,
    Höhe
    82 mm
    min. Einbauhöhe
    100 mm
    Breite
    210 mm
    Länge
    283 mm
    max. Belastung
    1.50 kN
    Einbaumaß
    261 x 186 mm
    IP-Schutzgrad im nicht genutzten Zustand
    IP 30
    Tiefe der Bodenbelagaussparung
    22 mm
    Gewicht je Lagermengeneinheit
    1.855 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Units for screed and hollow floors - Technical information

    Technische Information

    PDF, 14 MB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Notice for types of protection and floor maintenance

    Notice for installation units

    PDF, 328 KB

    de en

  • VDE Certificate 40035723 Stainless Steel Units

    Zertifikat

    PDF, 316 KB

    de en

  • Cartridge installation units made of stainless steel

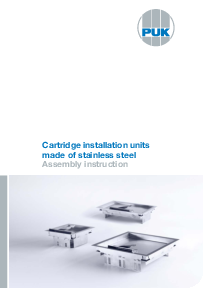

    Montageanleitung
