UEBD2 R

Plastic dummy cover unit, 2x, round

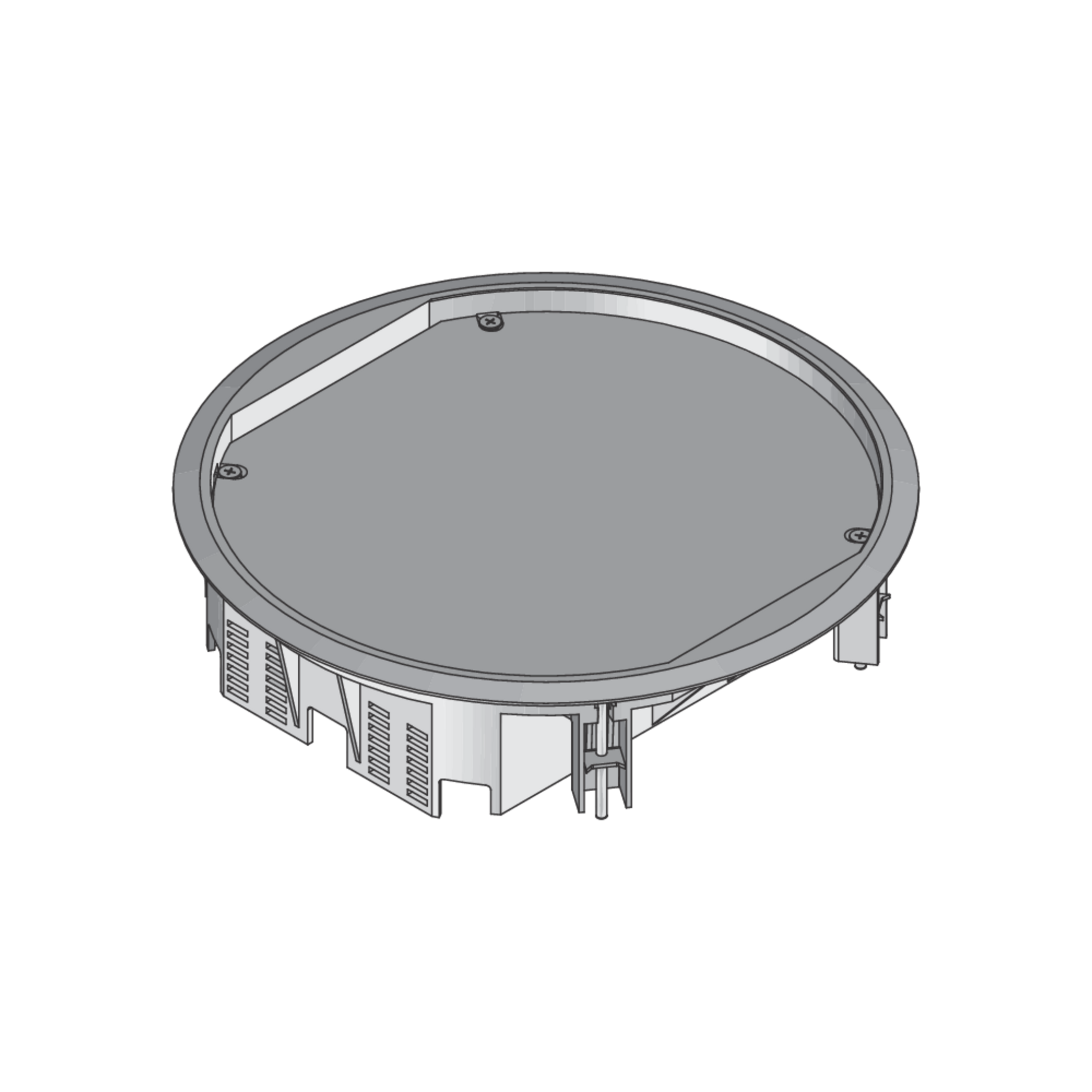

The UEBD2 R product solutions are round dummy cover units with carpet protection frames. They are used in dry-cleaned rooms in assembly covers, UBDHB floor sockets and raised or false floor openings. They are designed for office traffic loads and are used as mounting frames for two mounting boxes. The covers and frames are made of polyamide with matt surfaces in graphite black (RAL 9011) and iron grey (RAL 7011). They are supplied with the universal fastening claw sets and have an IP protection class of IP 30 in an unused condition. Their min. installation height is 65 mm, they are 280 mm wide, have a max. load of 2 kN and installation dimensions of 260 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

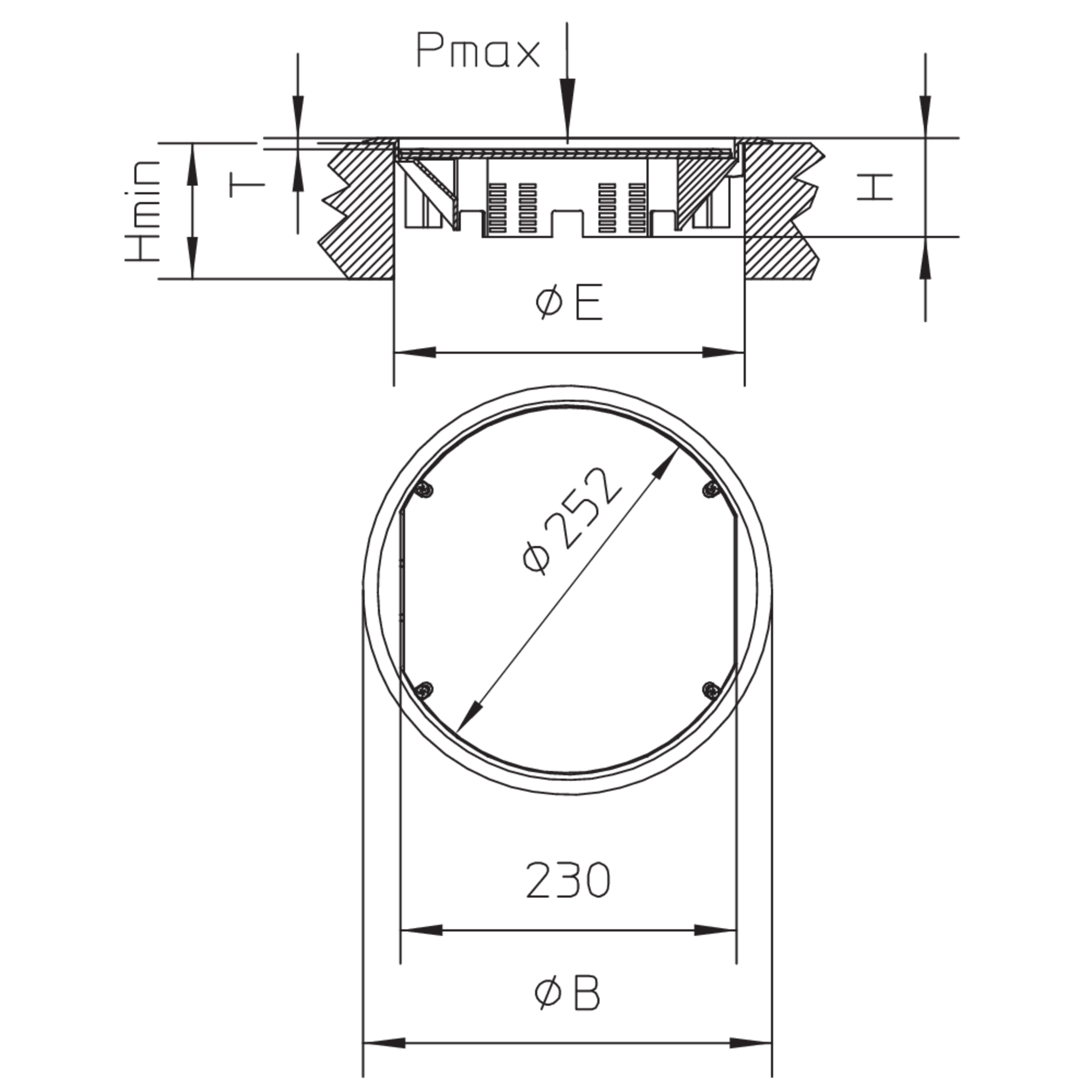

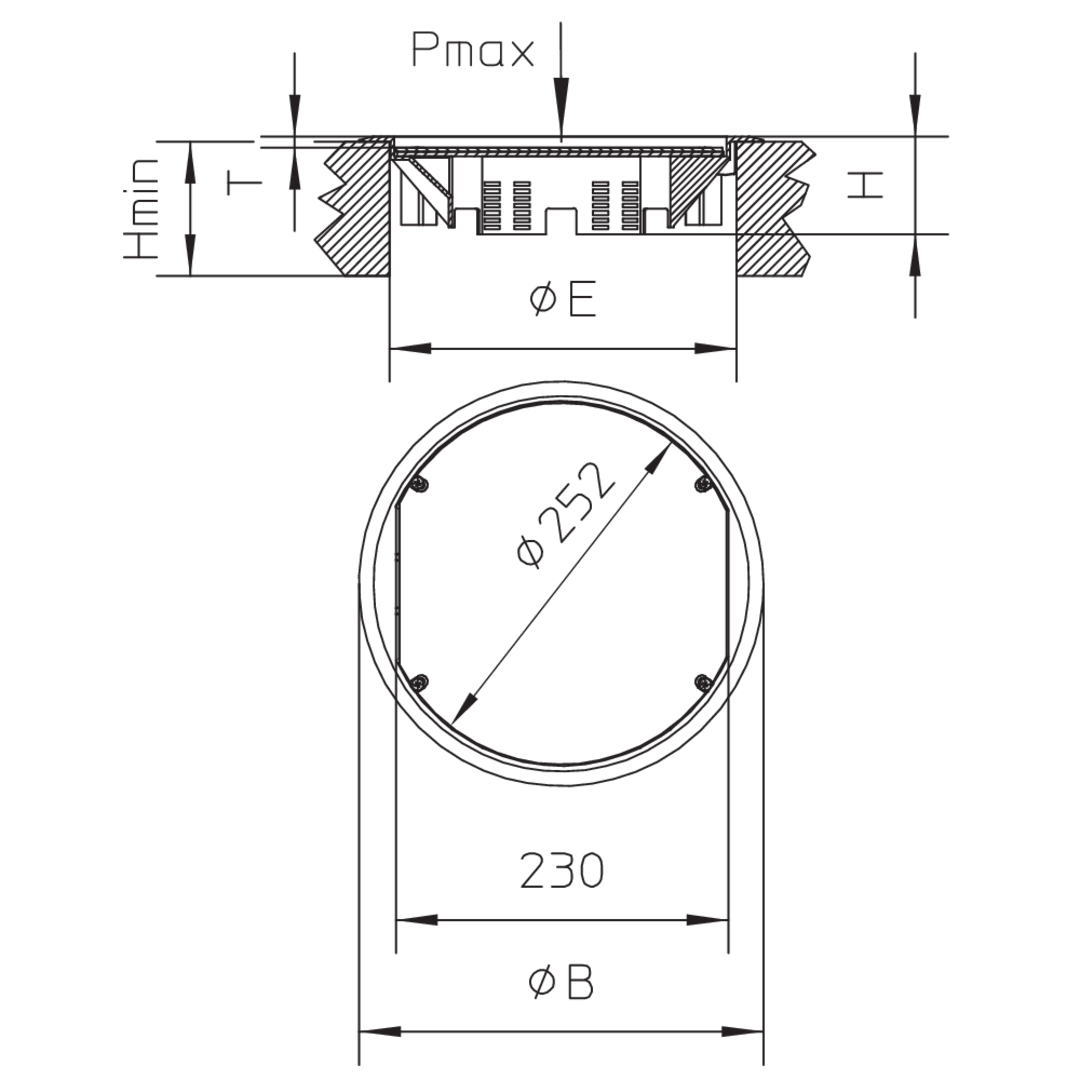

Variants

Article

H

Hmin

Pmax

ØB

ØE

Farbe

IPn

T

Werkstoff Deckel

G

Included accessories

  • UEBD2-R-G
    Einbaueinheit,
    68 mm
    65 mm
    2.00 kN
    280 mm
    260 mm
    RAL 7011 (Eisengrau)
    IP 30
    8 mm
    Kunststoff
    1.457 kg
    Included accessories
    More information
  • UEBD2-R-S
    Einbaueinheit,
    68 mm
    65 mm
    2.00 kN
    280 mm
    260 mm
    RAL 9011 (Graphitschwarz)
    IP 30
    8 mm
    Kunststoff
    1.457 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Elektro- und Elektronikgeräte – Informationen von Herstellern für gewerbliche Nutzer

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Units for screed and hollow floors - Technical information

    Technische Information

    PDF, 14 MB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Notice for types of protection and floor maintenance

    Notice for installation units

    PDF, 328 KB

    de en

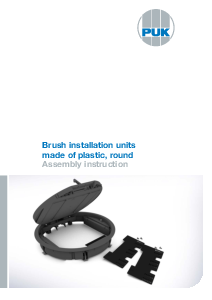

  • Installation Instructions Round Plastic Installation Units
