UEB3 R

Plastic dummy cover unit, 3x, round

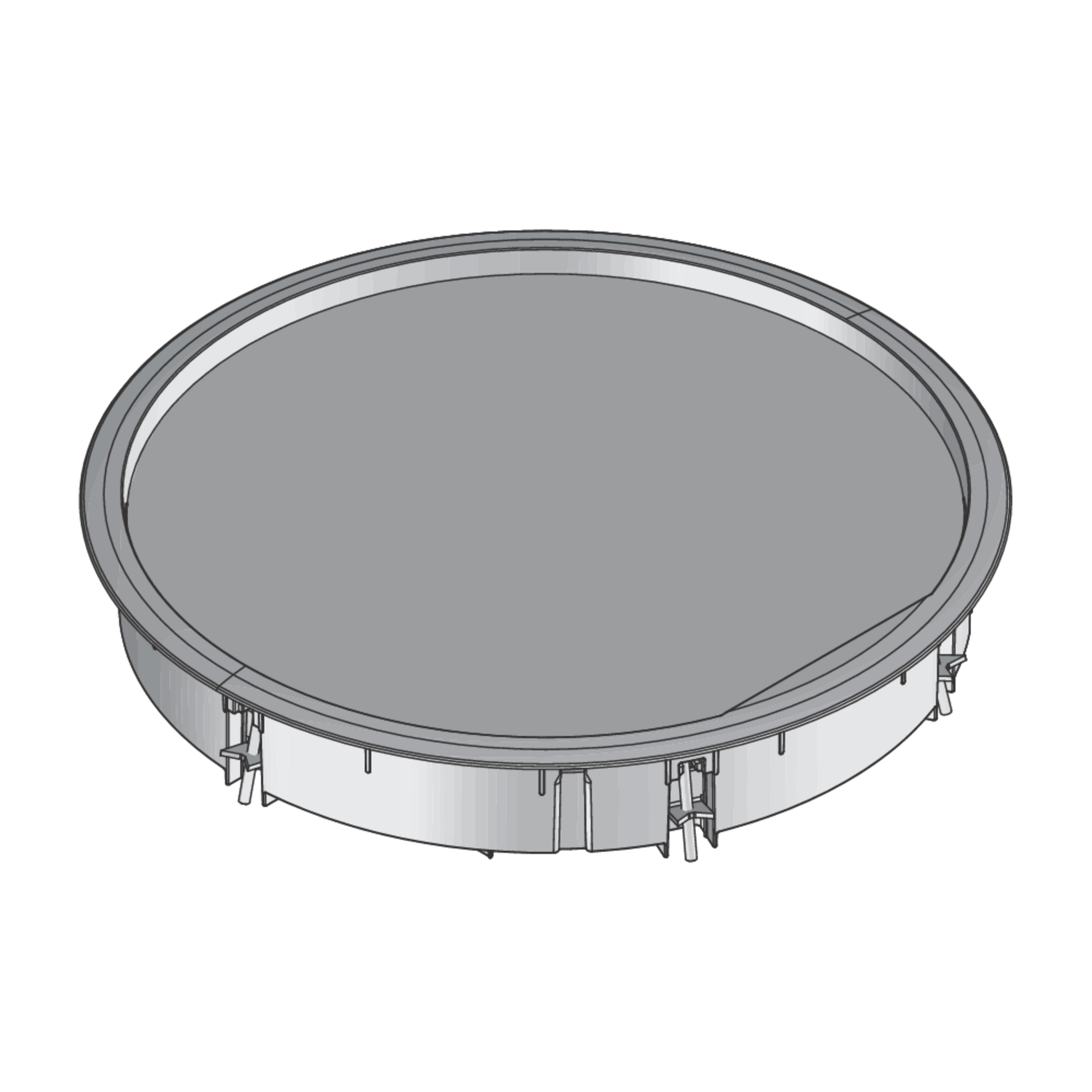

The installation units UEB3 R are round dummy cover units that are used in assembly covers, UBDHB floor sockets and raised or false floor openings. They act as a mounting frame for three mounting boxes and are suitable for dry-cleaned rooms with office traffic loads. The cover units have a carpet protection frame and are supplied with UDKS3-VR universal fixing claws. The covers and frames are made of polyamide with matt surfaces and the insert is made of hot-dip galvanised sheet steel. They have an IP protection rating of IP 30 in an unused condition, a minimum installation height of 54 mm, a maximum load of 2.00 kN and installation dimensions of 307 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

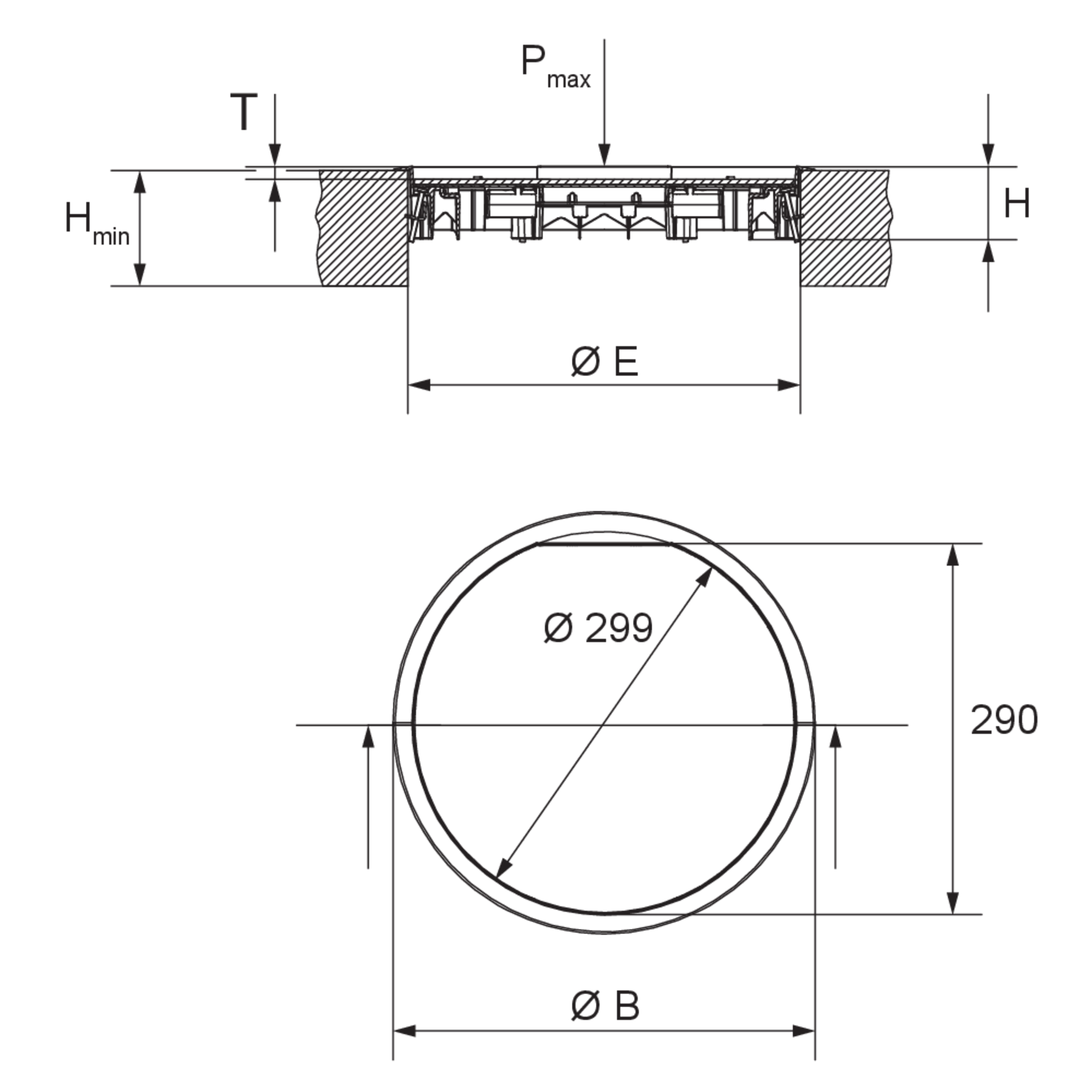

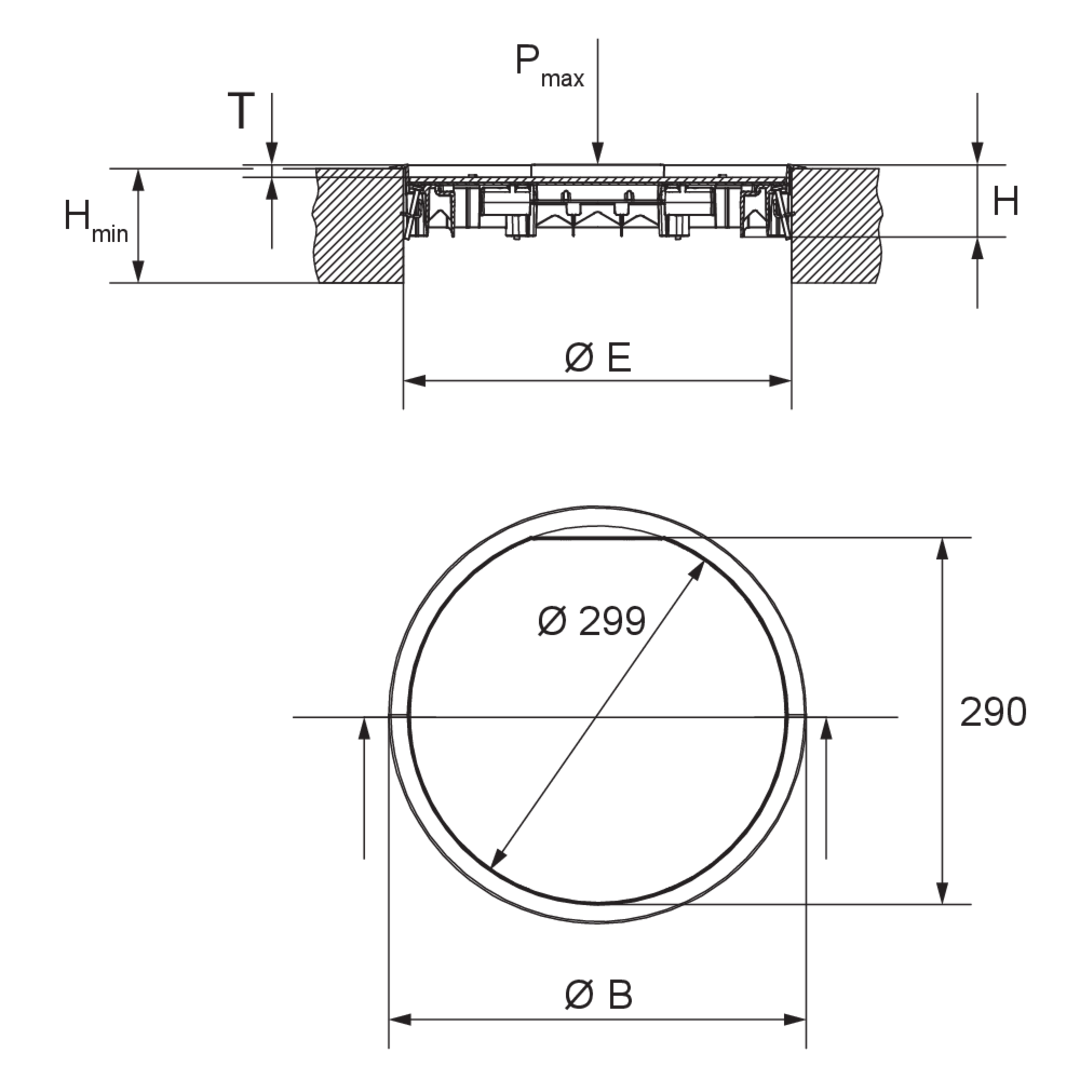

Variants

Article

H

Höhe

Hmin

min. Einbauhöhe

Pmax

max. Belastung

ØB

Einbaudurchmesser

ØE

Einbaumaß

Farbe

Farbe

IPn

IP-Schutzgrad im nicht genutzten Zustand

T

Tiefe der Bodenbelagaussparung

G

Gewicht je Lagermengeneinheit
  • UEB3-R-G
    Einbaueinheit,
    Höhe
    58 mm
    min. Einbauhöhe
    54 mm
    max. Belastung
    2.00 kN
    Einbaudurchmesser
    330 mm
    Einbaumaß
    307 mm
    Farbe
    RAL 7011 (Eisengrau)
    IP-Schutzgrad im nicht genutzten Zustand
    IP 30
    Tiefe der Bodenbelagaussparung
    10 mm
    Gewicht je Lagermengeneinheit
    2.554 kg
    Included accessories
    More information
  • UEB3-R-S
    Einbaueinheit,
    Höhe
    58 mm
    min. Einbauhöhe
    54 mm
    max. Belastung
    2.00 kN
    Einbaudurchmesser
    330 mm
    Einbaumaß
    307 mm
    Farbe
    RAL 9011 (Graphitschwarz)
    IP-Schutzgrad im nicht genutzten Zustand
    IP 30
    Tiefe der Bodenbelagaussparung
    10 mm
    Gewicht je Lagermengeneinheit
    2.554 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
