UBEBES

End piece

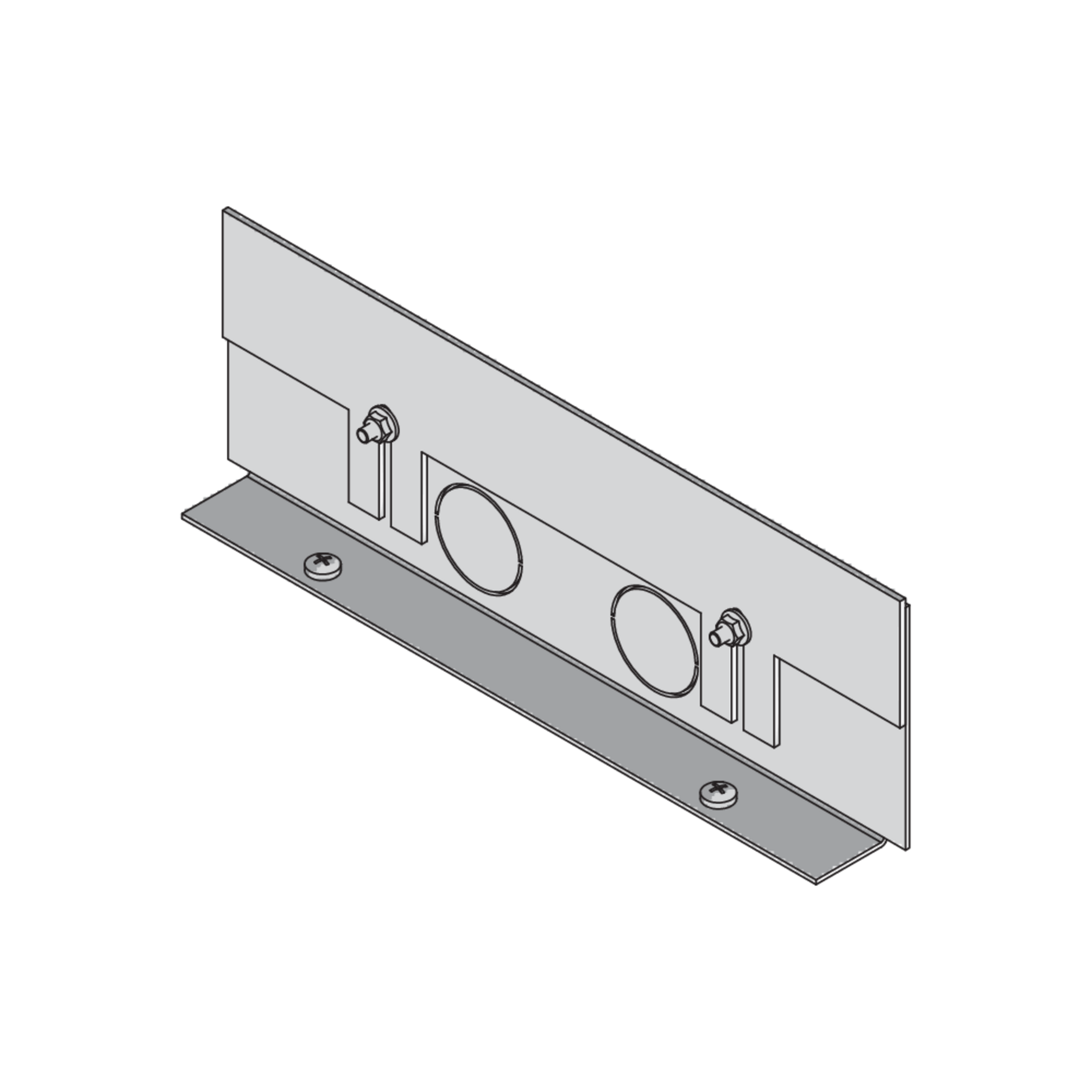

UBEBES product solutions are variable end pieces that are used to close CHALI screed-flush brush channels. The mounting components can be levelled and adapt to floor coverings 25 mm thick. They are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346. They have a minimum installation height of 80 mm and are 250 mm wide.

Load requirements according to: DIN EN 50085

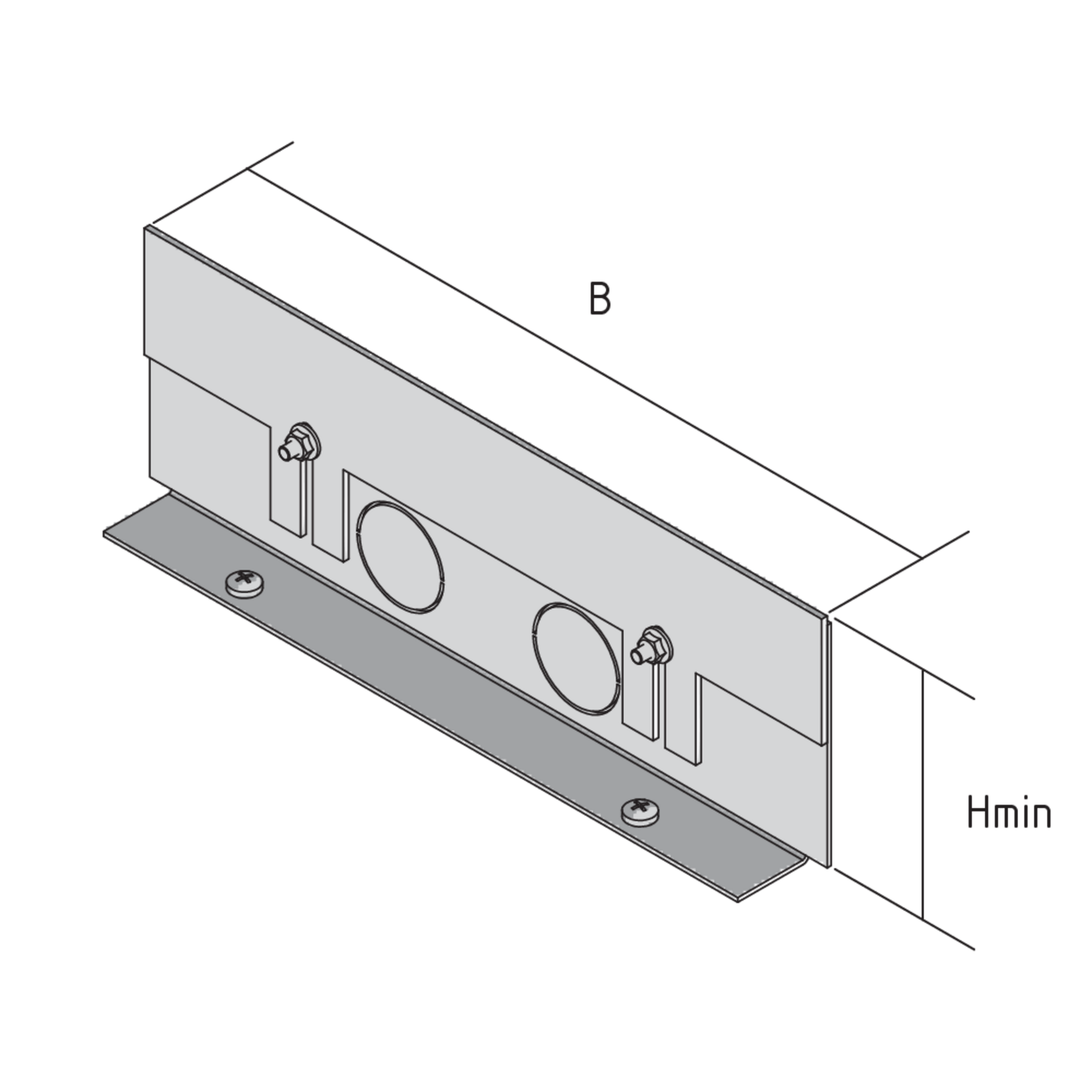

Variants

Article

Hmin

minimum installation height

B

width

N

levelling range

G

Weight per storage unit

  • UBEBES 85-25S
    end fitting,
    minimum installation height
    80 mm
    width
    250 mm
    levelling range
    25 mm
    Weight per storage unit
    0.877 kg
    Included accessories

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    • de

    • en

    Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Declaration

    PDF, 106.06 KB

    • de

    Download

    EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    • de

    • en

    Underfloor Systems - Catalogue

    Catalogue

    • de

    • en

    Installation Instructions CHALI

    Assembly Instructions

    • de

    • en

    Technical Information for Flush-Mounted Duct Systems

    Technical Information

    • de

    • en

    CHALI - Compact information

    Compact information for screed-flush brush duct CHALI

    • de

    • en

    VDE Certificate 40050759 CHALI

    Certificate

    PDF, 576.35 KB

    • de

    Download

BIM- und CAD-Data

    BIM Data Screed-Flush Duct Systems

    BIM Data

    • de

    • en


Included accessories
