Cable clamp for fastening to flat profiles

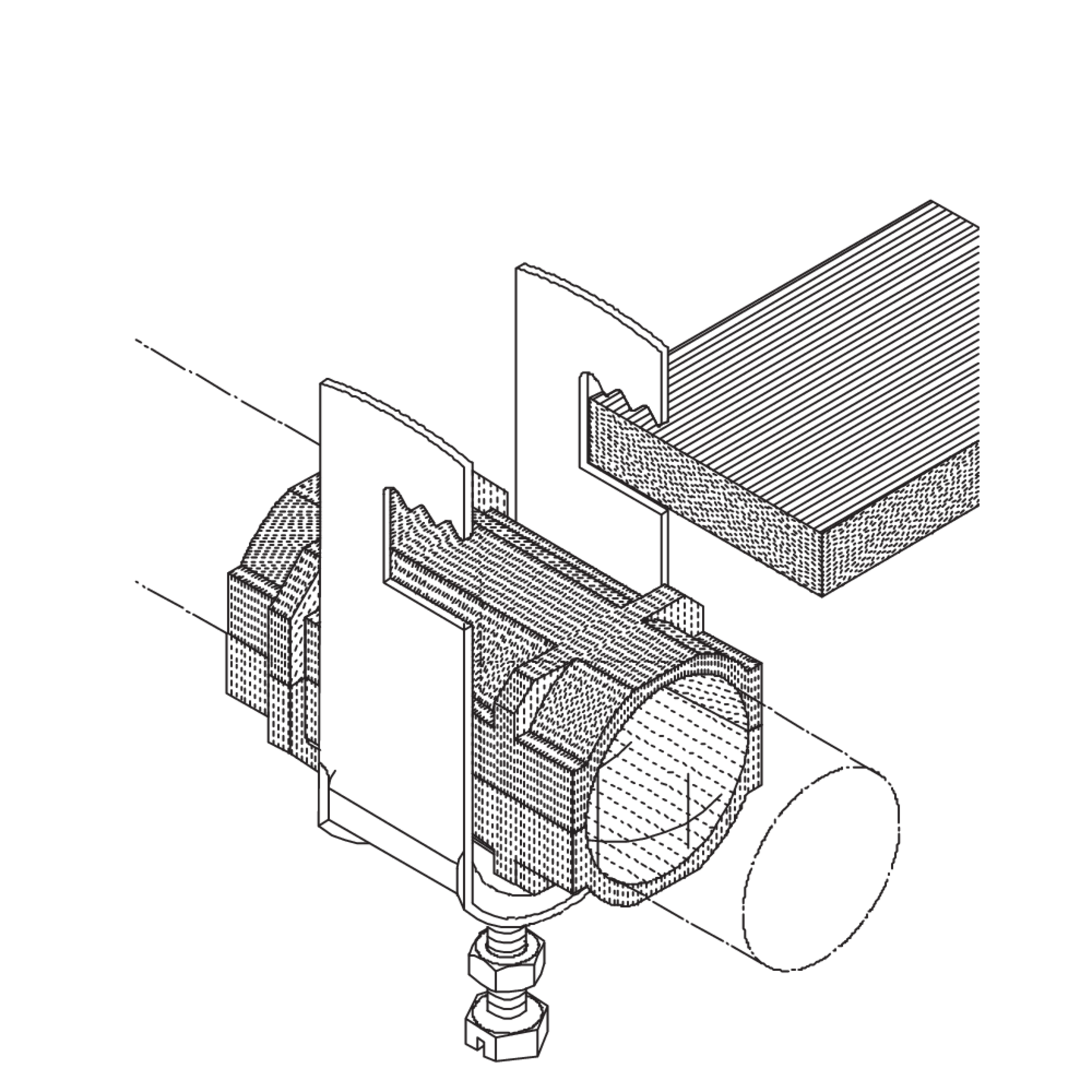

The HF cable clamp U-HW with full-surface pressure trough made of galvanised steel and plastic half troughs made of polystyrene can route fibre-optic/high-frequency cables with a maximum diameter of 1 5/8 inches. It is suitable for fastening to flat profiles made from material max. 12 mm thick. We provide components in various materials and surface finishes to ensure that various requirements for different areas of application are met.

Get in touch Download datasheet

Variants

steel, zinc plated

20 U-HW
HF cable clamp 20 U-HW

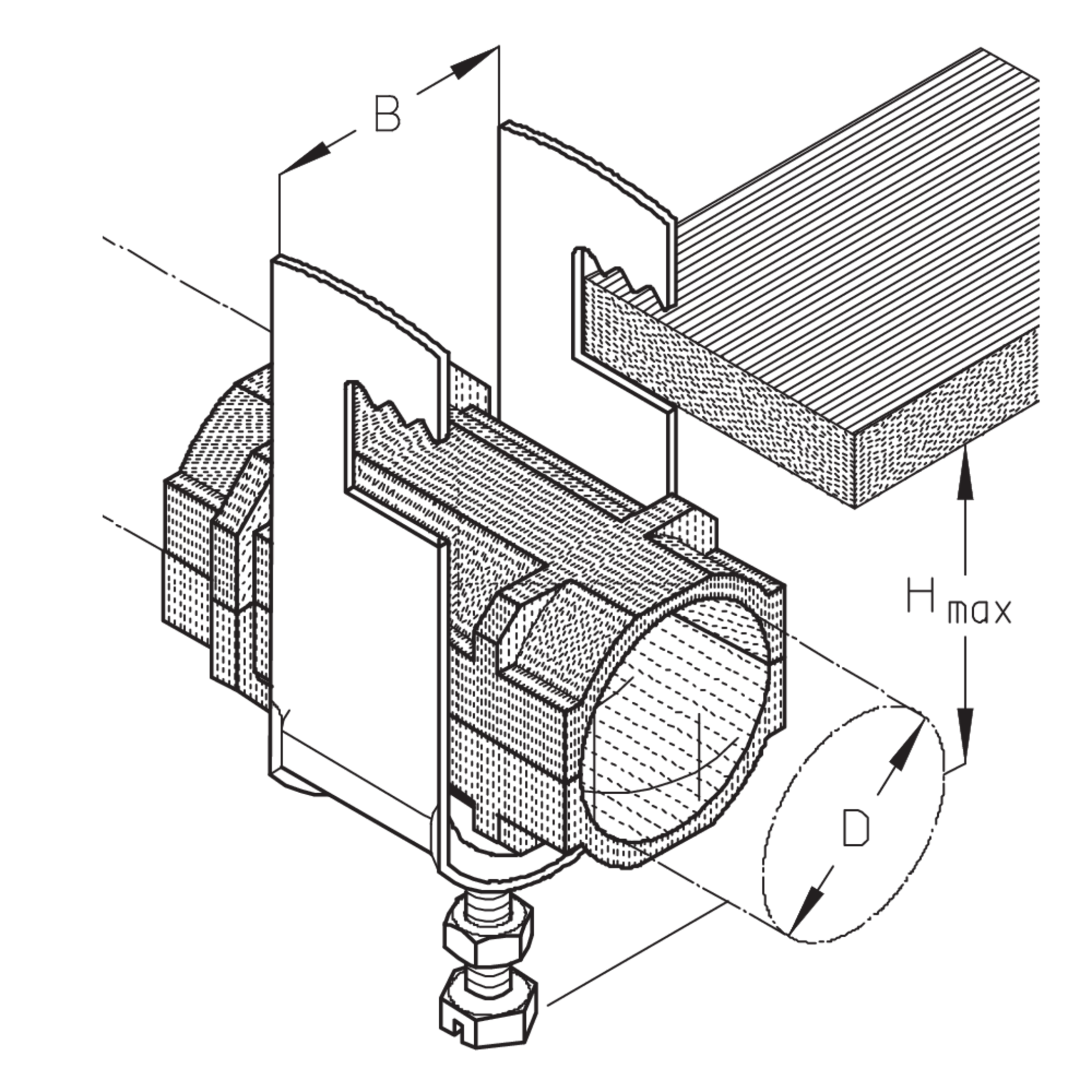

maximum height
53 mm
width
20 mm
clamping range
17 mm
diameter
1/2 inch
max. number of cables
1
Weight per storage unit
0.043 kg
More information
32 U-HW
HF cable clamp 32 U-HW
maximum height
68 mm
width
32 mm
clamping range
29 mm
diameter
7/8 inch
max. number of cables
1
Weight per storage unit
0.066 kg
More information
44 U-HW
HF cable clamp 44 U-HW
maximum height
83 mm
width
44 mm
clamping range
39 mm
diameter
1 1/4 inch
max. number of cables
1
Weight per storage unit
0.130 kg
More information
56 U-HW
HF cable clamp 56 U-HW
maximum height
106 mm
width
56 mm
clamping range
51 mm
diameter
1 5/8 inch
max. number of cables
1
Weight per storage unit
0.161 kg
More information
20/2 U-HW
HF cable clamp 20/2 U-HW
maximum height
73 mm
width
20 mm
clamping range
17 mm
diameter
1/2 inch
max. number of cables
2
Weight per storage unit
0.054 kg
More information
32/2 U-HW
HF cable clamp 32/2 U-HW
maximum height
102 mm
width
32 mm
clamping range
29 mm
diameter
7/8 inch
max. number of cables
2
Weight per storage unit
0.083 kg
More information
44/2 U-HW
HF cable clamp 44/2 U-HW
maximum height
129 mm
width
44 mm
clamping range
39 mm
diameter
1 1/4 inch
max. number of cables
2
Weight per storage unit
0.207 kg
More information
56/2 U-HW
HF cable clamp 56/2 U-HW
maximum height
164 mm
width
56 mm
clamping range
51 mm
diameter
1 5/8 inch
max. number of cables
2
Weight per storage unit
0.221 kg
More information
20/3 U-HW
HF cable clamp 20/3 U-HW
maximum height
93 mm
width
20 mm
clamping range
17 mm
diameter
1/2 inch
max. number of cables
3
Weight per storage unit
0.065 kg
More information
32/3 U-HW
HF cable clamp 32/3 U-HW
maximum height
136 mm
width
32 mm
clamping range
29 mm
diameter
7/8 inch
max. number of cables
3
Weight per storage unit
0.100 kg
More information

Stainless steel, acc. to AISI 304 (BS 304S31)

20 U-HW-E
HF cable clamp 20 U-HW-VA
maximum height
53 mm
width
20 mm
clamping range
17 mm
diameter
1/2 inch
max. number of cables
1
Weight per storage unit
0.041 kg
More information
32 U-HW-E
HF cable clamp 32 U-HW-VA
maximum height
68 mm
width
32 mm
clamping range
29 mm
diameter
7/8 inch
max. number of cables
1
Weight per storage unit
0.063 kg
More information
44 U-HW-E
HF cable clamp 44 U-HW-VA
maximum height
83 mm
width
44 mm
clamping range
39 mm
diameter
1 1/4 inch
max. number of cables
1
Weight per storage unit
0.125 kg
More information
56 U-HW-E
HF cable clamp 56 U-HW-VA
maximum height
106 mm
width
56 mm
clamping range
51 mm
diameter
1 5/8 inch
max. number of cables
1
Weight per storage unit
0.155 kg
More information
20/2 U-HW-E
HF cable clamp 20/2 U-HW-VA
maximum height
73 mm
width
20 mm
clamping range
17 mm
diameter
1/2 inch
max. number of cables
2
Weight per storage unit
0.052 kg
More information
32/2 U-HW-E
HF cable clamp 32/2 U-HW-VA
maximum height
102 mm
width
32 mm
clamping range
29 mm
diameter
7/8 inch
max. number of cables
2
Weight per storage unit
0.079 kg
More information
44/2 U-HW-E
HF cable clamp 44/2 U-HW-VA
maximum height
129 mm
width
44 mm
clamping range
39 mm
diameter
1 1/4 inch
max. number of cables
2
Weight per storage unit
0.192 kg
More information
56/2 U-HW-E
HF cable clamp 56/2 U-HW-VA
maximum height
164 mm
width
56 mm
clamping range
51 mm
diameter
1 5/8 inch
max. number of cables
2
Weight per storage unit
0.251 kg
More information
20/3 U-HW-E
HF cable clamp 20/3 U-HW-VA
maximum height
93 mm
width
20 mm
clamping range
17 mm
diameter
1/2 inch
max. number of cables
3
Weight per storage unit
0.062 kg
More information
32/3 U-HW-E
HF cable clamp 32/3 U-HW-VA
maximum height
136 mm
width
32 mm
clamping range
29 mm
diameter
7/8 inch
max. number of cables
3
Weight per storage unit
0.138 kg
More information
44/3 U-HW-E
HF cable clamp 44/3 U-HW-VA
maximum height
176 mm
width
44 mm
clamping range
39 mm
diameter
1 1/4 inch
max. number of cables
3
Weight per storage unit
0.268 kg
More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link

Heinze.de

Tender texts for this product

Open Link

Downloads

**Price list 2025 Building extension**
Valid from February 1st, 2025, updated version from 31/03/2025.
de
en

**EC Declaration of Conformity Cable clamps**
Installation equipment for electric cables and circuits
de
en

**3335-772-11-3 - Expert statement**
DIN 4102-12
Standardised supporting structure: Cable clamps
Fire resistance duration: F30; F60; F90
Functional maintenance classes: E30; E60; F90
Fastening distance: ≤ 0.3 m; ≤ 0.4 m
Period of validity: 06.07.2027
PDF, 834.47 KB
de
Download
