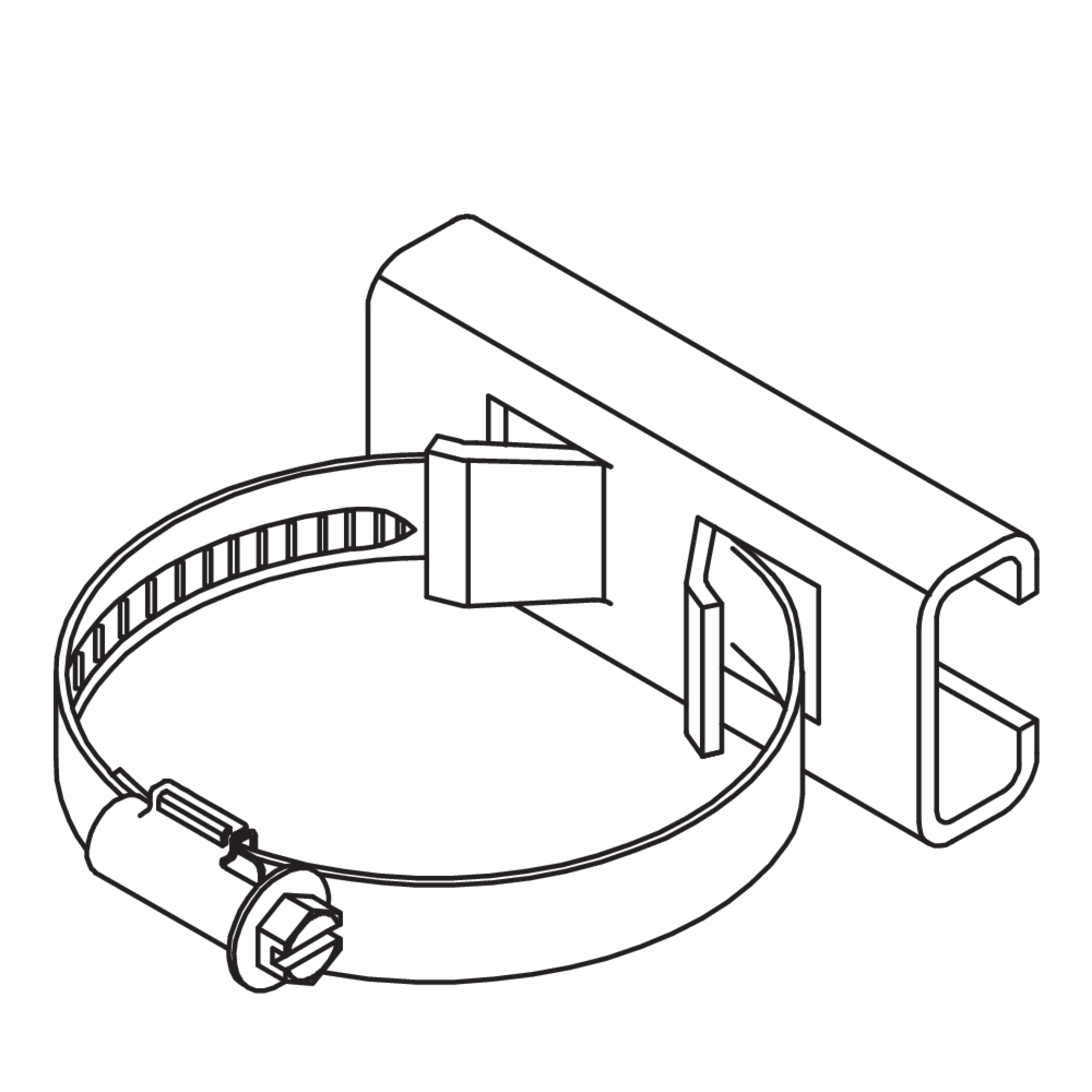

SRS-A

Anchor clamp

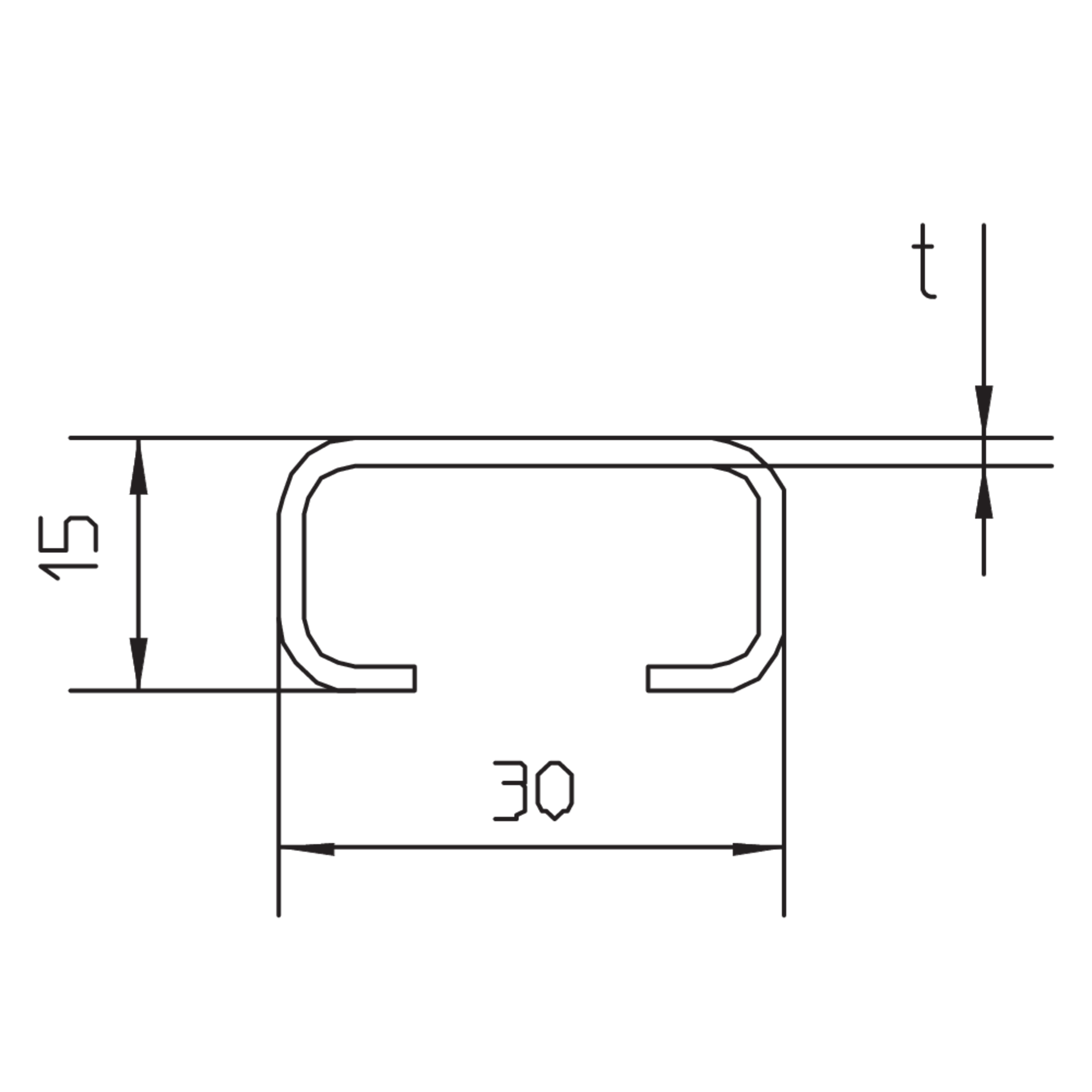

The anchor clamp SRS-A and 70 mm profile rail attached to it can be used, for example, to attached signs to the protective tube. The anchor clamp is available with diameters of 30 or 60 mm. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

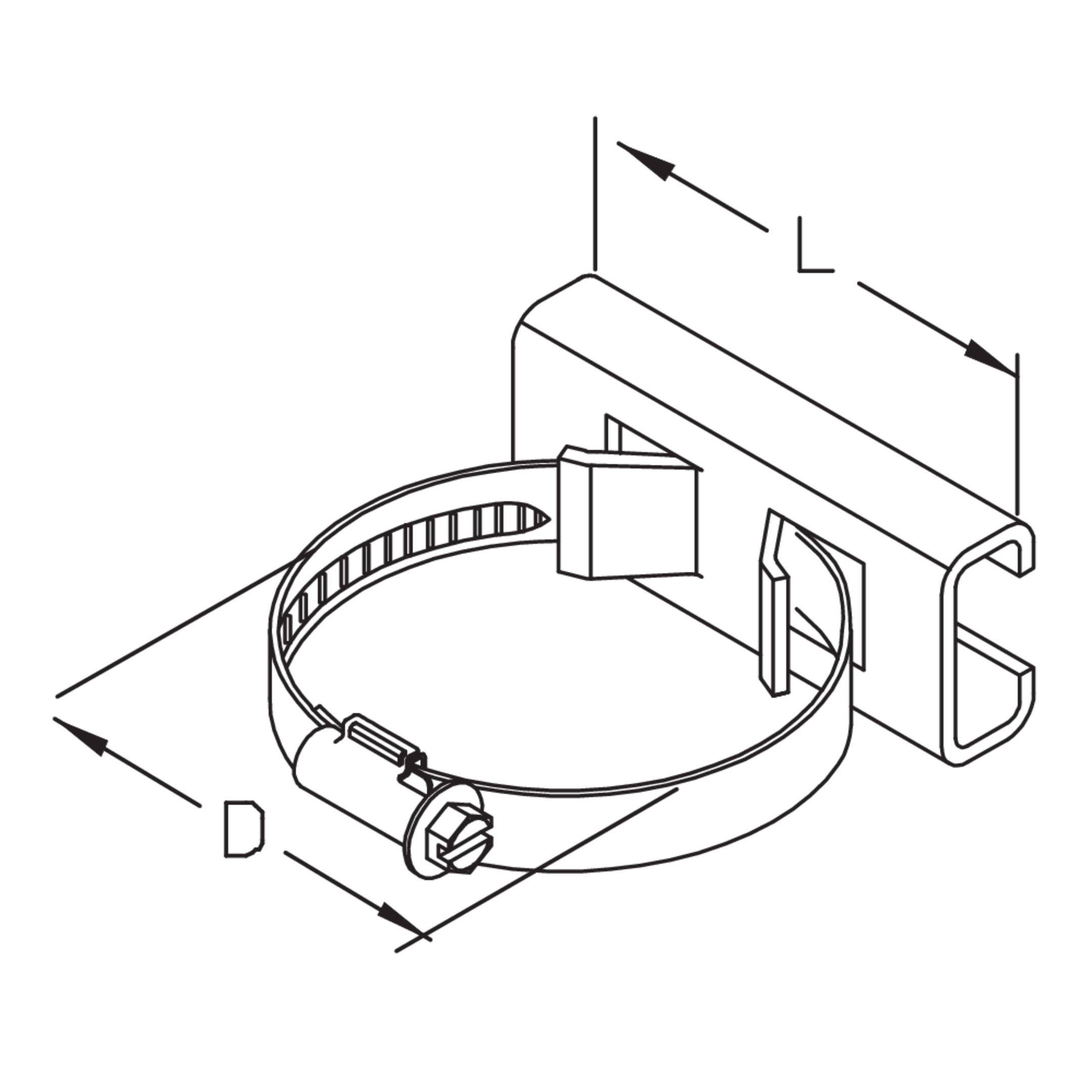

Article

L

length

t

material thickness

D

diameter

G

Weight per storage unit
  • SRS-A 30F
    support clamp SRS-A 30F
    length
    70 mm
    material thickness
    1.50 mm
    diameter
    30 mm
    Weight per storage unit
    0.060 kg
    More information
  • SRS-A 60F
    support clamp SRS-A 60F
    length
    70 mm
    material thickness
    1.50 mm
    diameter
    60 mm
    Weight per storage unit
    0.080 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

L

length

t

material thickness

D

diameter

G

Weight per storage unit
  • SRS-A 30E
    support clamp SRS-A 30E
    length
    70 mm
    material thickness
    1.50 mm
    diameter
    30 mm
    Weight per storage unit
    0.060 kg
    More information
  • SRS-A 60E
    support clamp SRS-A 60E
    length
    70 mm
    material thickness
    1.50 mm
    diameter
    60 mm
    Weight per storage unit
    0.080 kg
    More information
