SD E

Strap

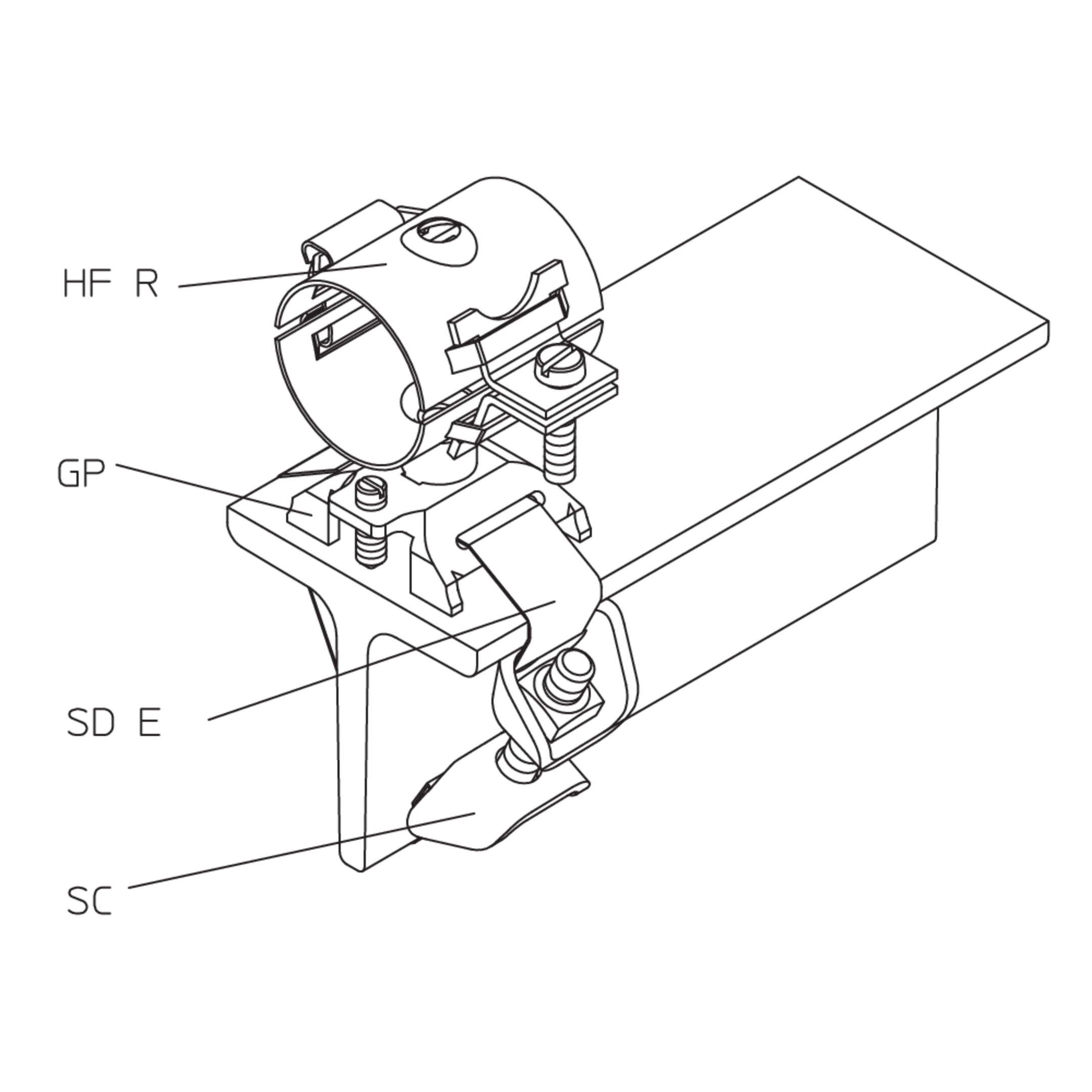

The tension clamp SD E is used in combination with the tension clamp SC and the base plate GP to create an M8 threaded attachment point on a structure (e.g. pole or pipe). The strap SD E is available in lengths of 1000 and 50,000 mm. The permissible tensile force is < 2.0 kN. The strap is made of stainless steel.

Get in touch Download datasheet

Variants

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

B

width

L

length

PZug

max. permissible tensile force

G

Weight per storage unit
  • SD E
    Fastening strip SD E

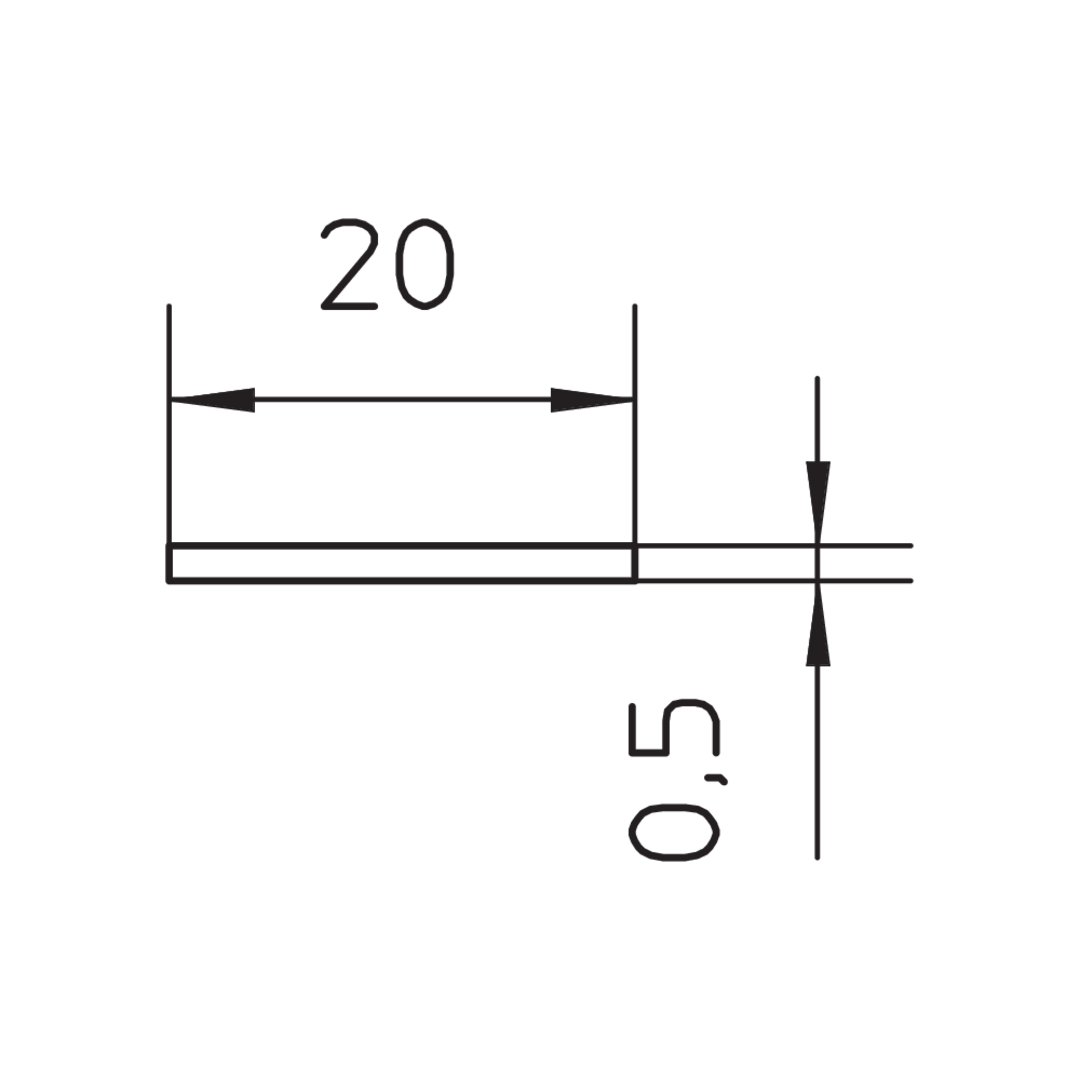

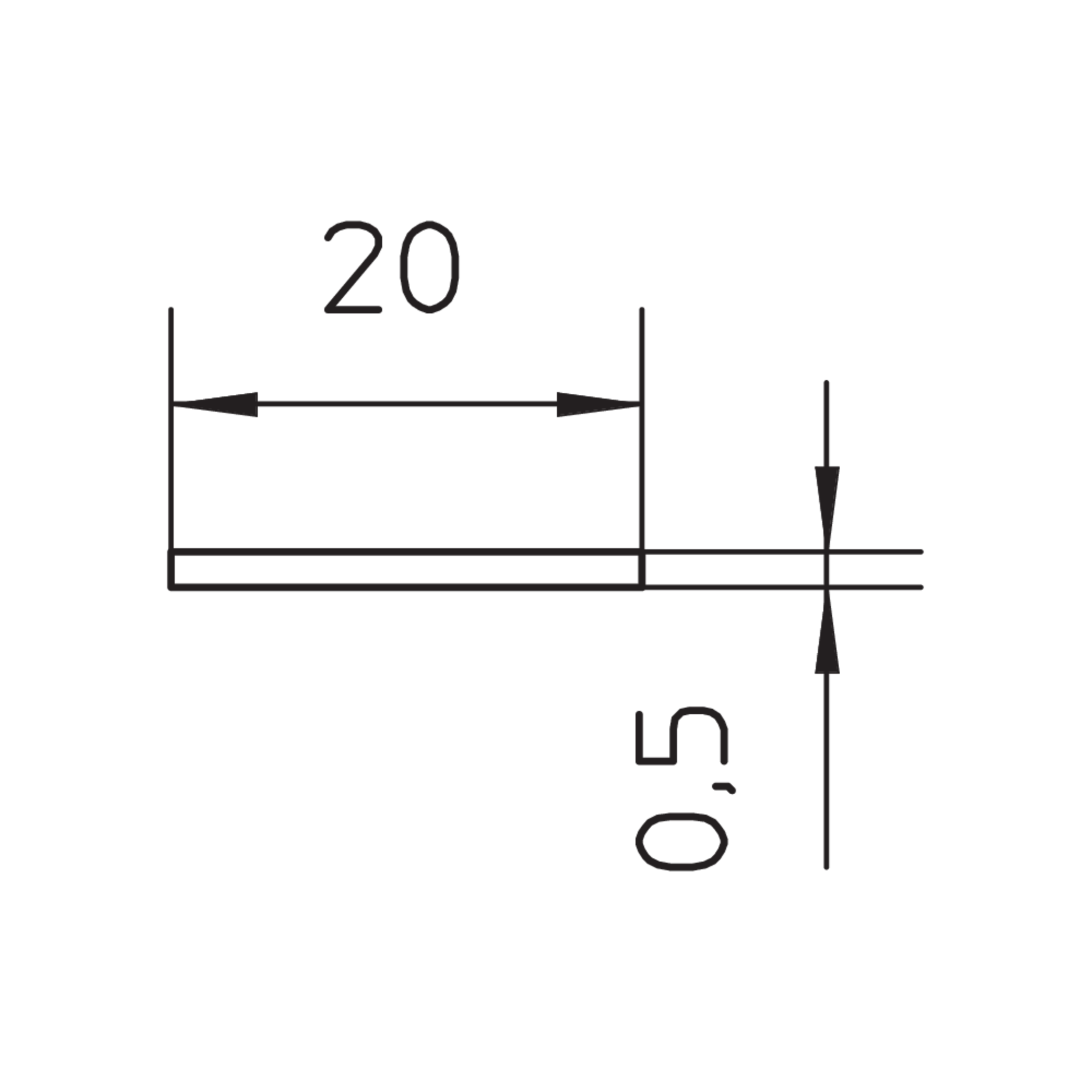

    width
    20 mm
    length
    1000 mm
    max. permissible tensile force
    < 2 kN
    Weight per storage unit
    0.079 kg
    More information
  • SD E 50M
    Fastening strip SD E 50M
    width
    20 mm
    length
    50000 mm
    max. permissible tensile force
    < 2 kN
    Weight per storage unit
    4.240 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en
