RB-BS45 60

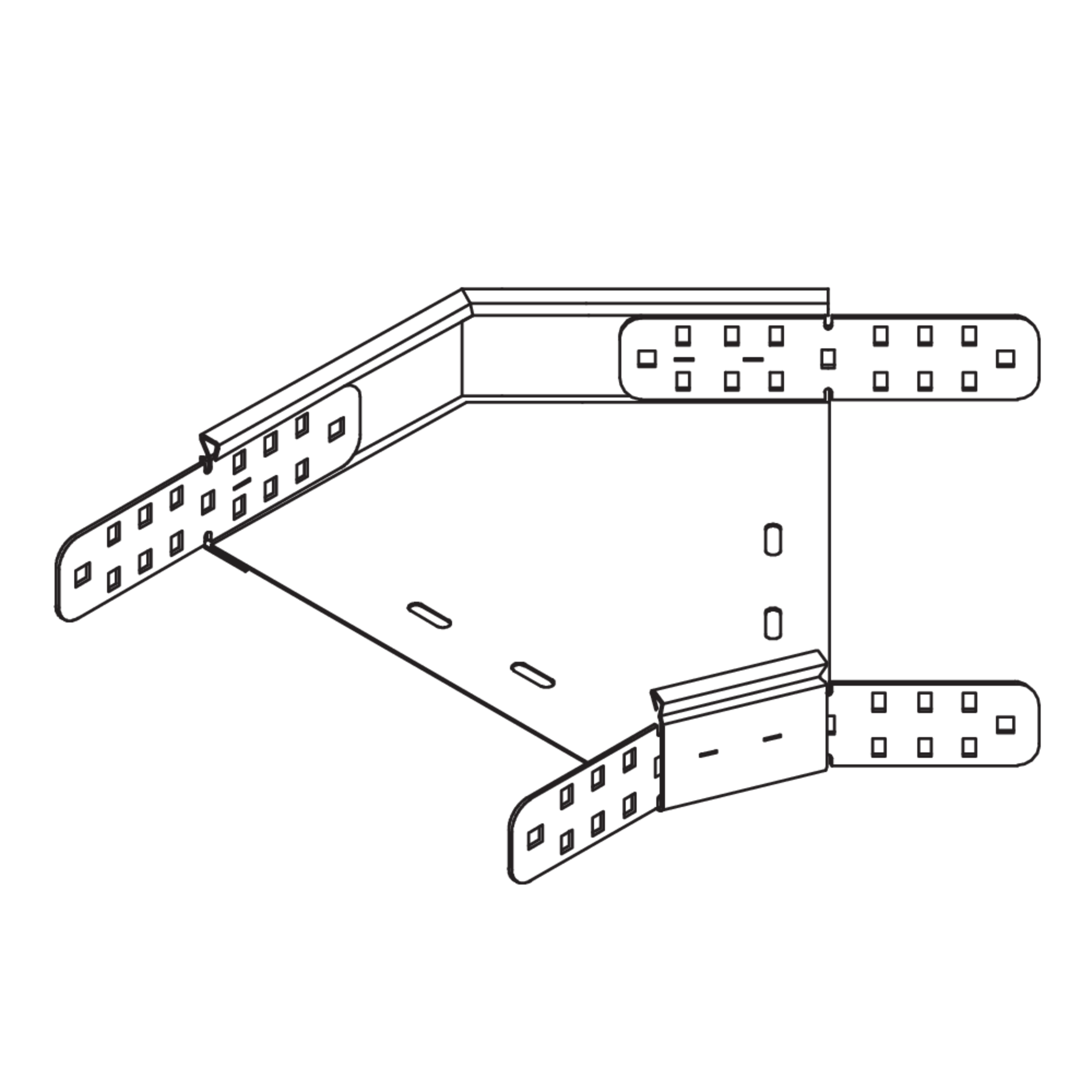

Cable tray bend, height = 60 mm, maintenance of function

Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

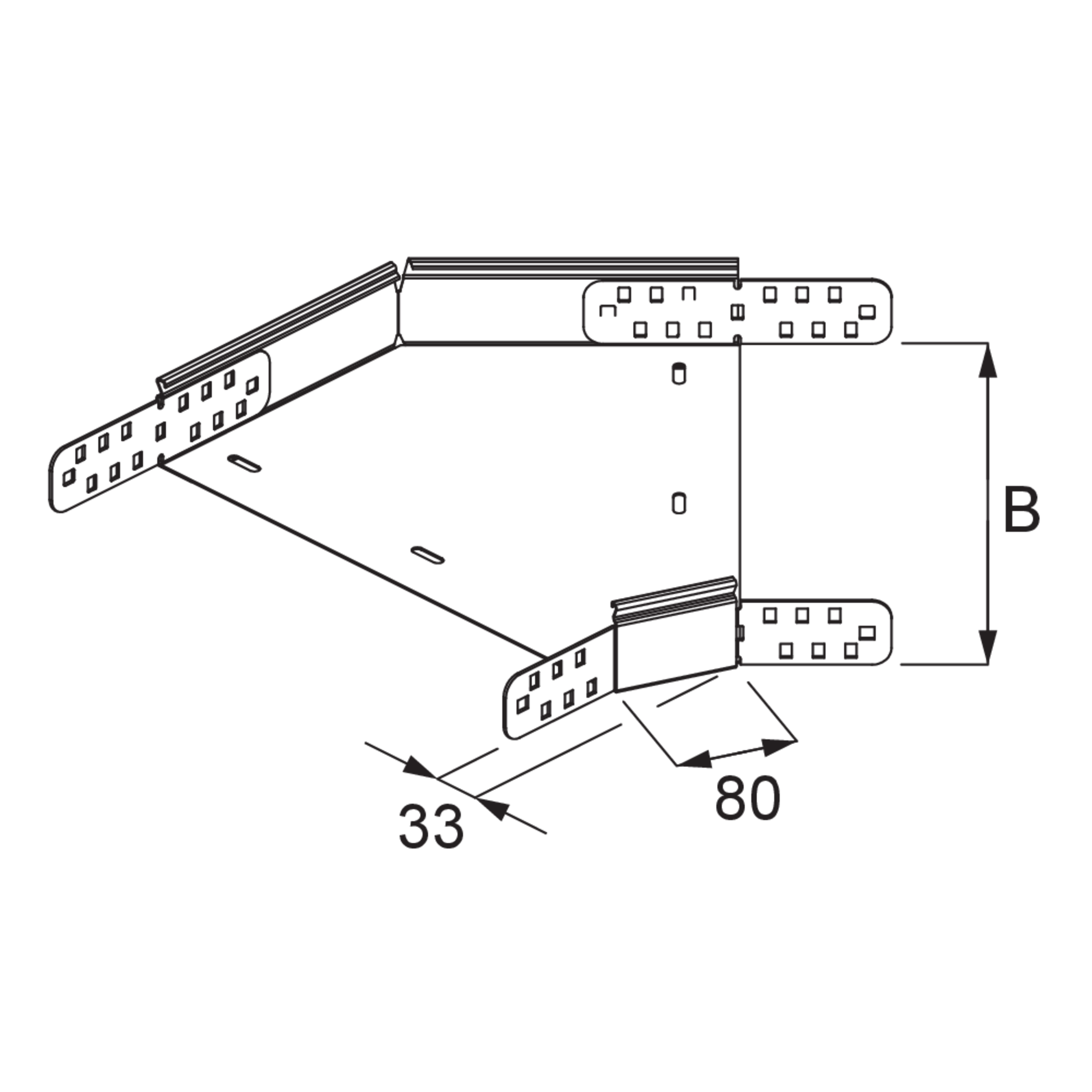

B

width

direction

Direction change

W

Angle

G

Weight per storage unit
  • RB-BS45 60-10S
    Cable tray bend 45°, fire prevention
    height
    60 mm
    width
    100 mm
    Direction change
    horizontal
    Angle
    45°
    Weight per storage unit
    0.720 kg
    Included accessories
    More information
  • RB-BS45 60-20S
    Cable tray bend 45°, fire prevention
    height
    60 mm
    width
    200 mm
    Direction change
    horizontal
    Angle
    45°
    Weight per storage unit
    0.989 kg
    Included accessories
    More information
  • RB-BS45 60-30S
    Cable tray bend 45°, fire prevention
    height
    60 mm
    width
    300 mm
    Direction change
    horizontal
    Angle
    45°
    Weight per storage unit
    1.402 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

direction

Direction change

W

Angle

G

Weight per storage unit
  • RB-BS45 60-10F
    Cable tray bend 45°, fire prevention
    height
    60 mm
    width
    100 mm
    Direction change
    horizontal
    Angle
    45°
    Weight per storage unit
    0.774 kg
    Included accessories
    More information
  • RB-BS45 60-20F
    Cable tray bend 45°, fire prevention
    height
    60 mm
    width
    200 mm
    Direction change
    horizontal
    Angle
    45°
    Weight per storage unit
    1.062 kg
    Included accessories
    More information
  • RB-BS45 60-30F
    Cable tray bend 45°, fire prevention
    height
    60 mm
    width
    300 mm
    Direction change
    horizontal
    Angle
    45°
    Weight per storage unit
    1.504 kg
    Included accessories
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • P-MPA-E-14-010 - KDU57/KDU 60 - Functional maintenance certificate

    General building authority test certificate
    DIN 4102-12
    Cable manufacturer: Kabelwerke Eupen AG
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: 20 kg/m
    Fastening distance: ≤ 1.5 m
    Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
    Period of validity: 23/07/2029

    PDF, 5 MB

    de
    Download

  • P-MPA-E-16-013 - KDU57/KDU 60 - Functional maintenance certificate

    General building authority test certificate
    DIN 4102-12
    Cable manufacturer: Studer Cables AG
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: 20 kg/m
    Fastening distance: ≤ 1.5 m
    Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
    Period of validity: 30.08.2027

    PDF, 8 MB

    de
    Download

  • MPABS-2402543 - Fire protection statement

    DIN 4102-12
    Standardised supporting structure: Cable trays
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: ≤ 10 kg/m
    Fastening distance: ≤ 1.2 m
    Period of validity: 15.01.2030

    PDF, 11 MB

    de
    Download
