VB-BS

Floor connector, maintenance of function

Get in touchDownload datasheet

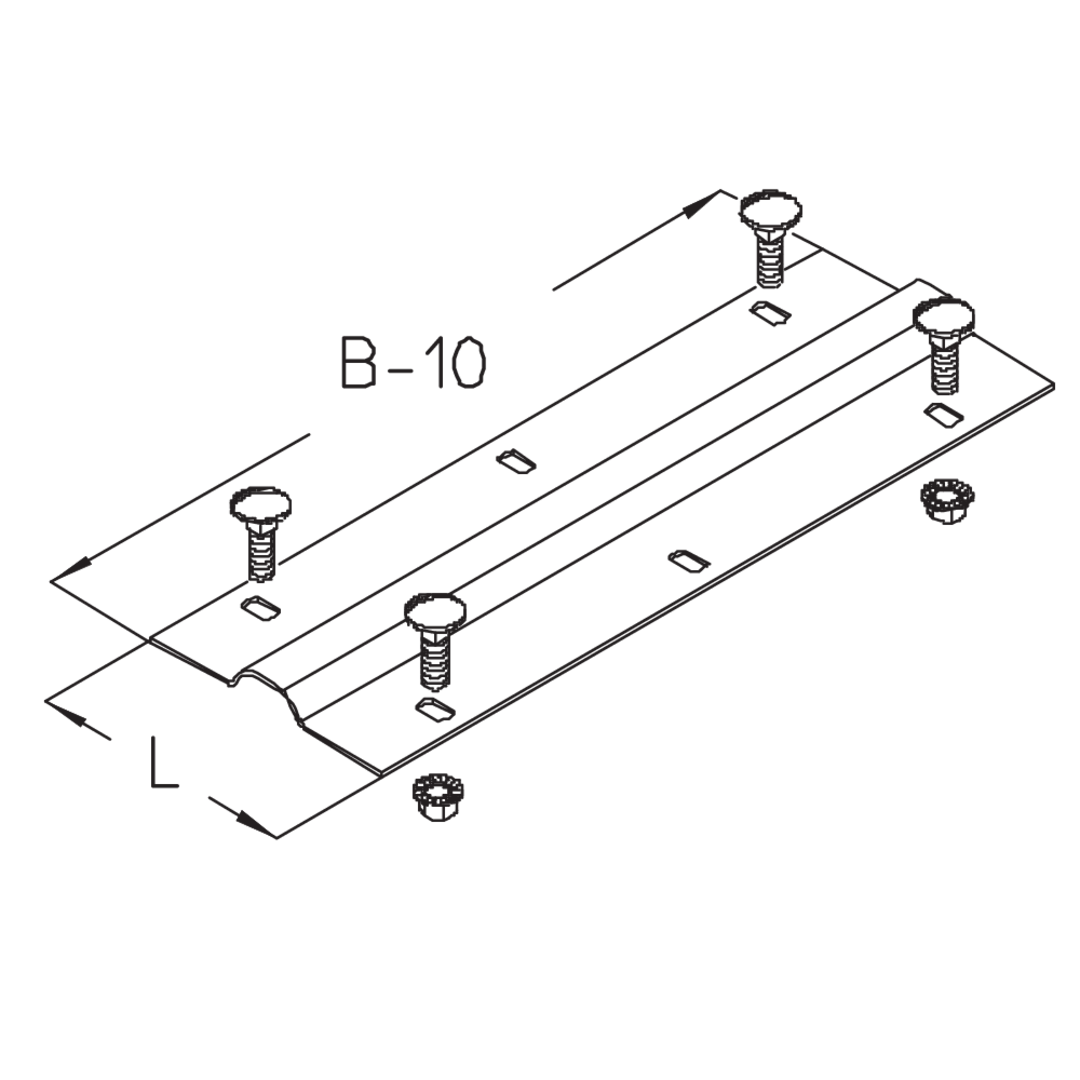

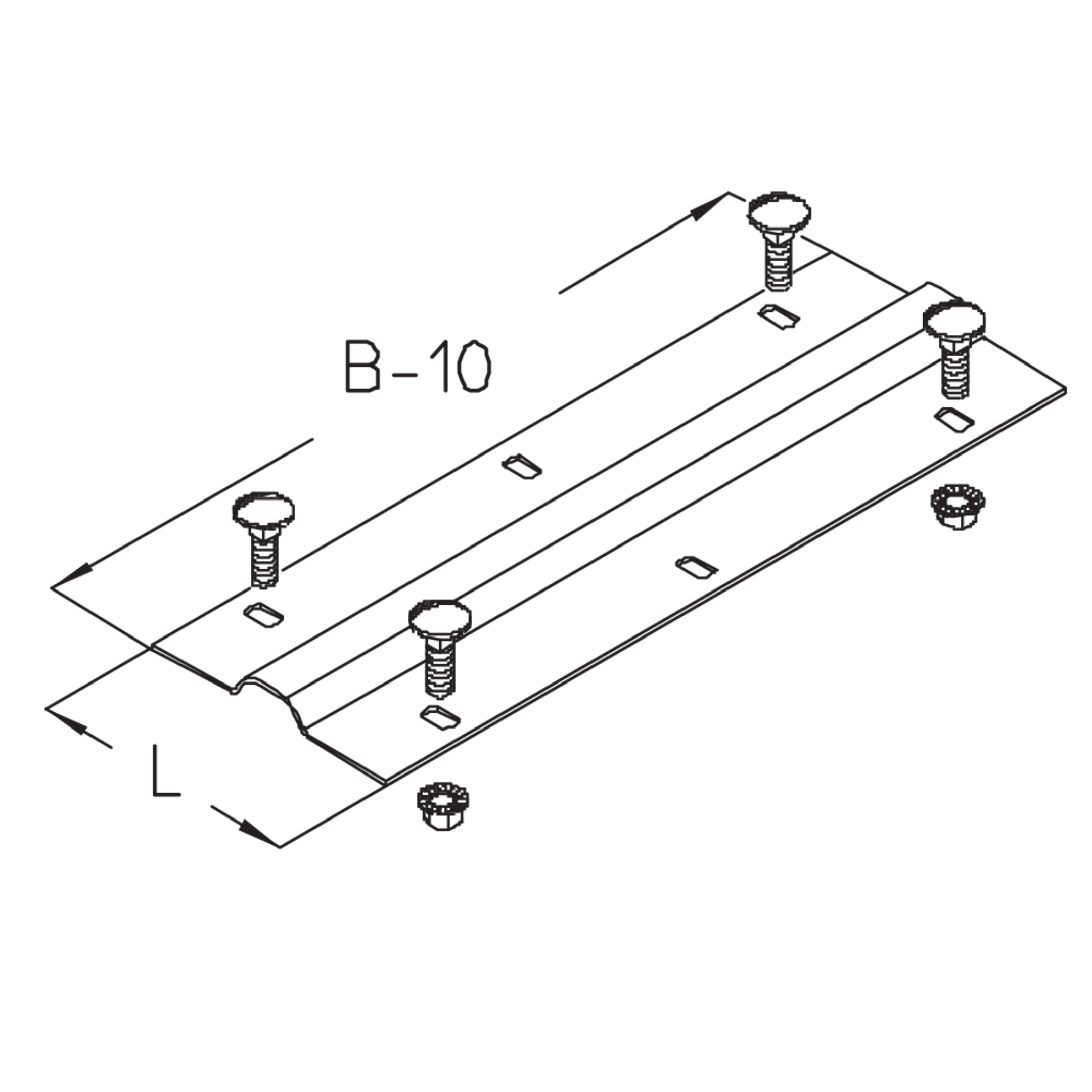

Variants

Steel, pre-galvanised/Sendzimir process

Article

B

width

L

length

G

Weight per storage unit

  • VB-BS 10S
    Connection plate VB-BS 10S
    width
    84 mm
    length
    99 mm
    Weight per storage unit
    0.099 kg
    Included accessories
    More information
  • VB-BS 20S
    Connection plate VB-BS 20S
    width
    184 mm
    length
    99 mm
    Weight per storage unit
    0.214 kg
    Included accessories
    More information
  • VB-BS 30S
    Connection plate VB-BS 30S
    width
    284 mm
    length
    99 mm
    Weight per storage unit
    0.316 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

B

width

L

length

G

Weight per storage unit

  • VB-BS 10F
    Connection plate VB-BS 10F
    width
    84 mm
    length
    99 mm
    Weight per storage unit
    0.107 kg
    Included accessories
    More information
  • VB-BS 20F
    Connection plate VB-BS 20F
    width
    184 mm
    length
    99 mm
    Weight per storage unit
    0.231 kg
    Included accessories
    More information
  • VB-BS 30F
    Connection plate VB-BS 30F
    width
    284 mm
    length
    99 mm
    Weight per storage unit
    0.340 kg
    Included accessories
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    • de

    • en

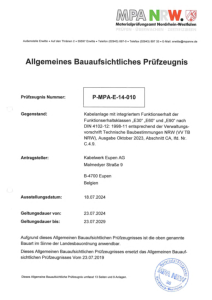

    P-MPA-E-14-010 - KDU57/KDU 60 - Functional maintenance certificate

    General building authority test certificate
    DIN 4102-12
    Cable manufacturer: Kabelwerke Eupen AG
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: 20 kg/m
    Fastening distance: ≤ 1.5 m
    Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
    Period of validity: 23/07/2029

    PDF, 4.94 MB

    • de

    Download

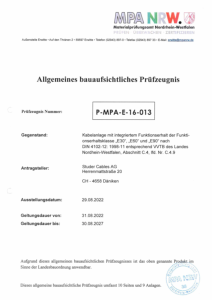

    P-MPA-E-16-013 - KDU57/KDU 60 - Functional maintenance certificate

    General building authority test certificate
    DIN 4102-12
    Cable manufacturer: Studer Cables AG
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: 20 kg/m
    Fastening distance: ≤ 1.5 m
    Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
    Period of validity: 30.08.2027

    PDF, 7.84 MB

    • de

    Download

    MPABS-2402543 - Fire protection statement

    DIN 4102-12
    Standardised supporting structure: Cable trays
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: ≤ 10 kg/m

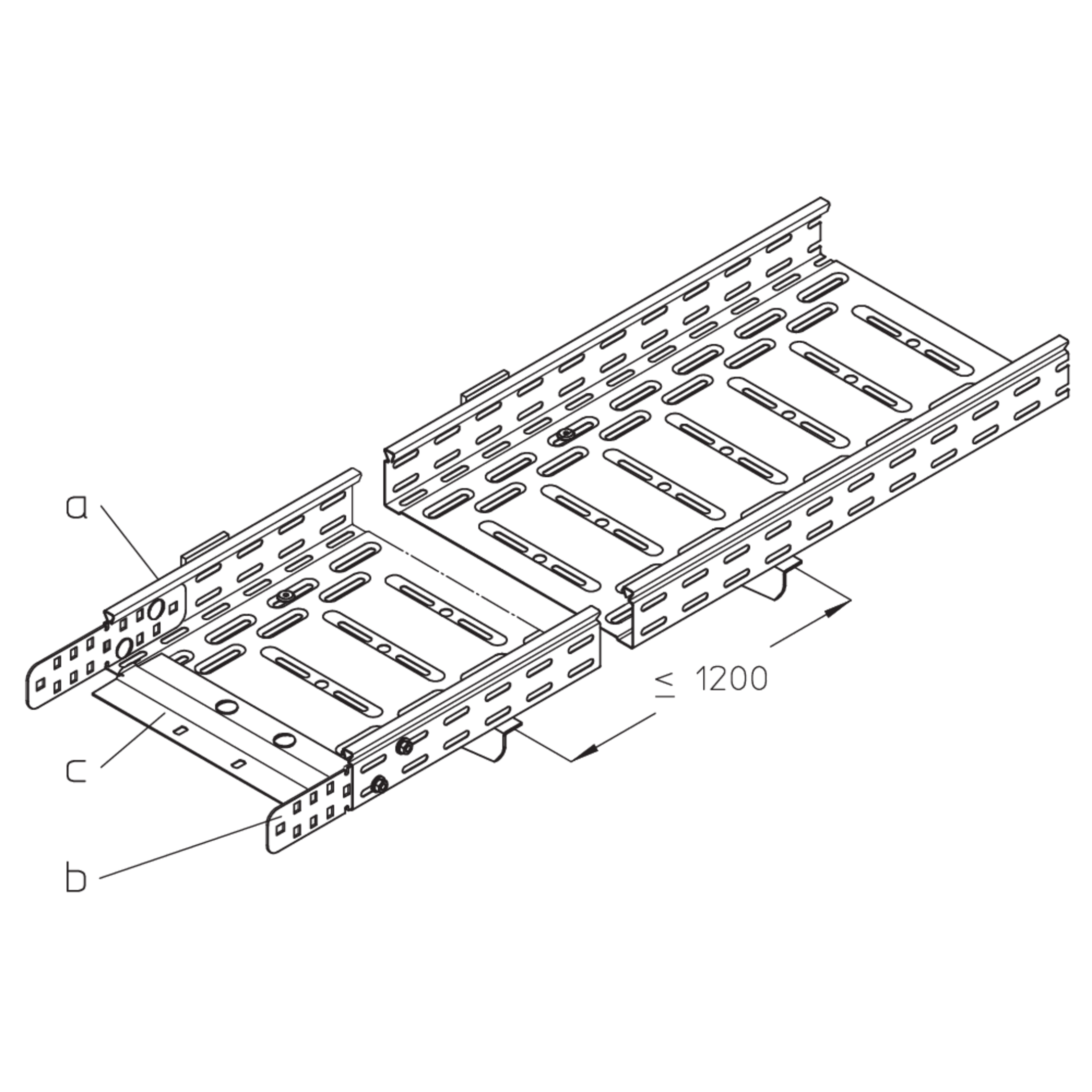

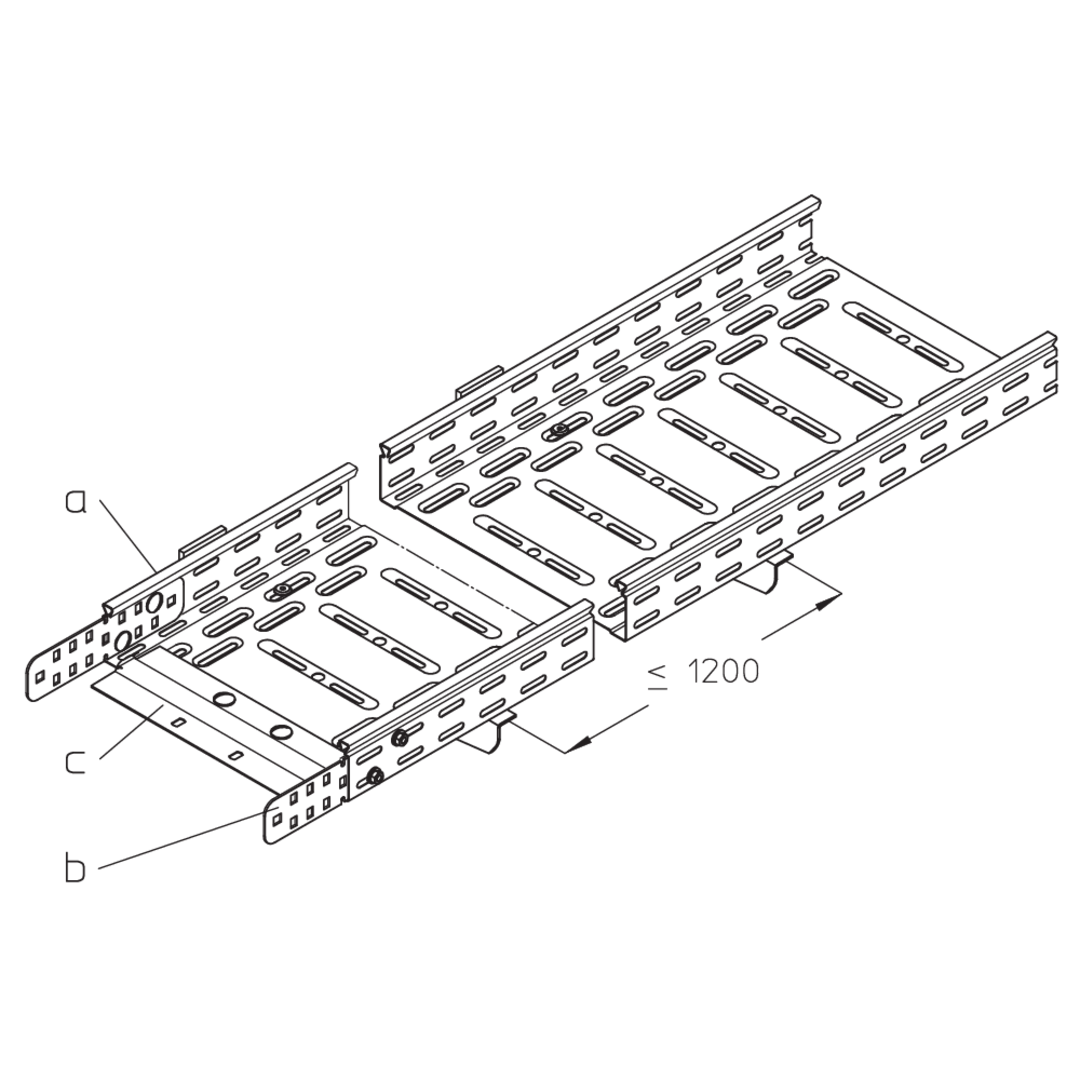

    Fastening distance: ≤ 1.2 m
    Period of validity: 15.01.2030

    PDF, 11.03 MB

    • de

    Download
