RAA-BS 60

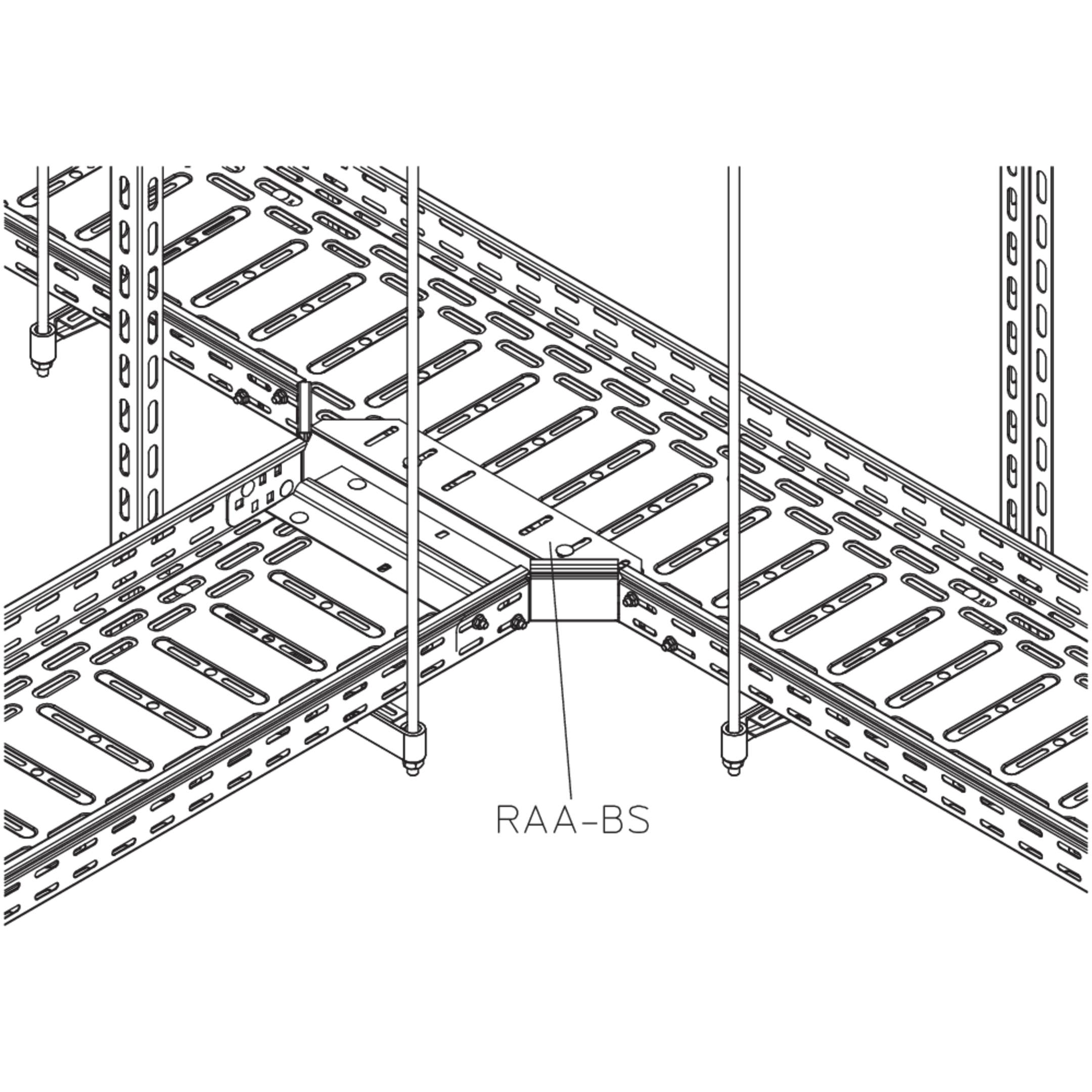

Cable tray attachment branch, height = 60 mm, maintenance of function

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

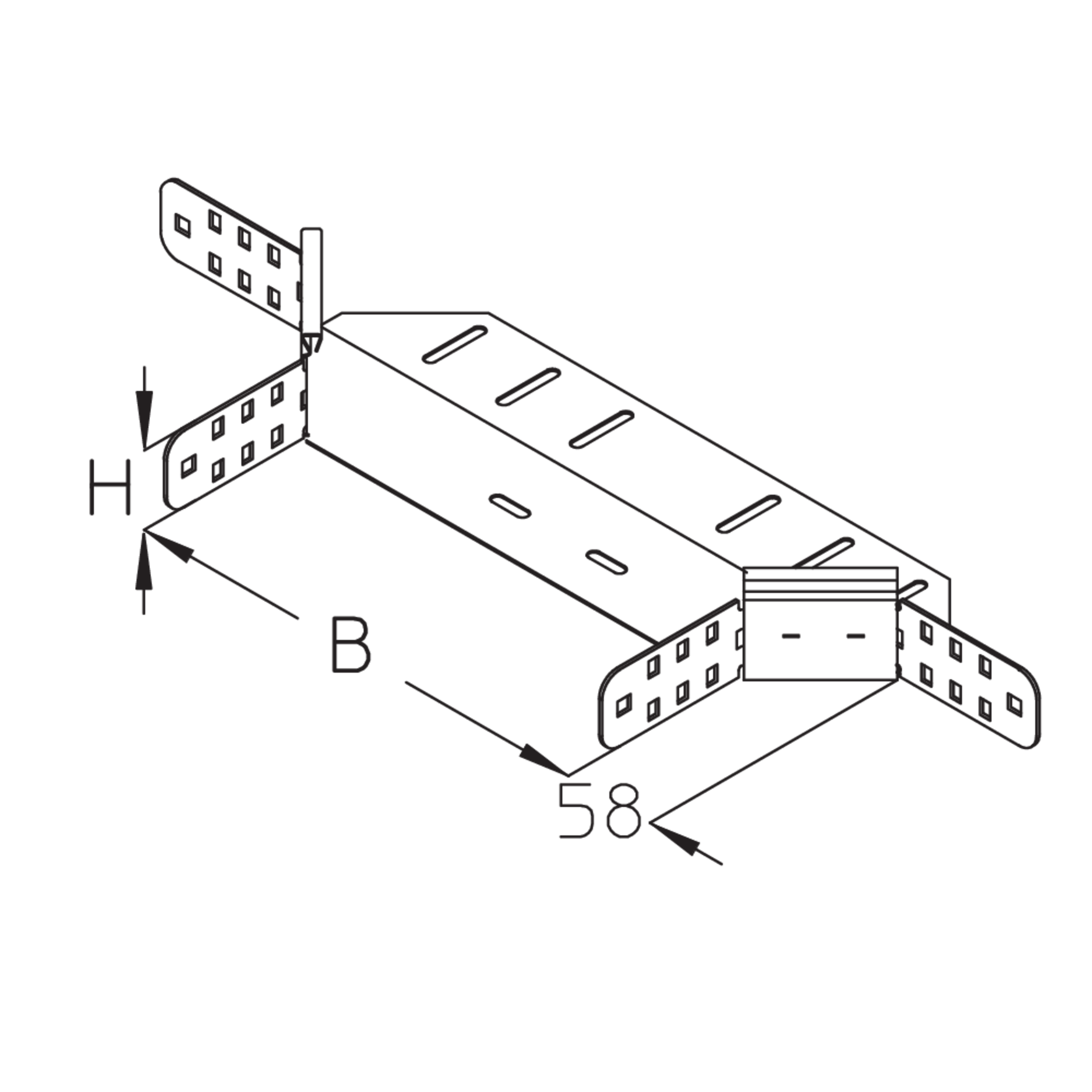

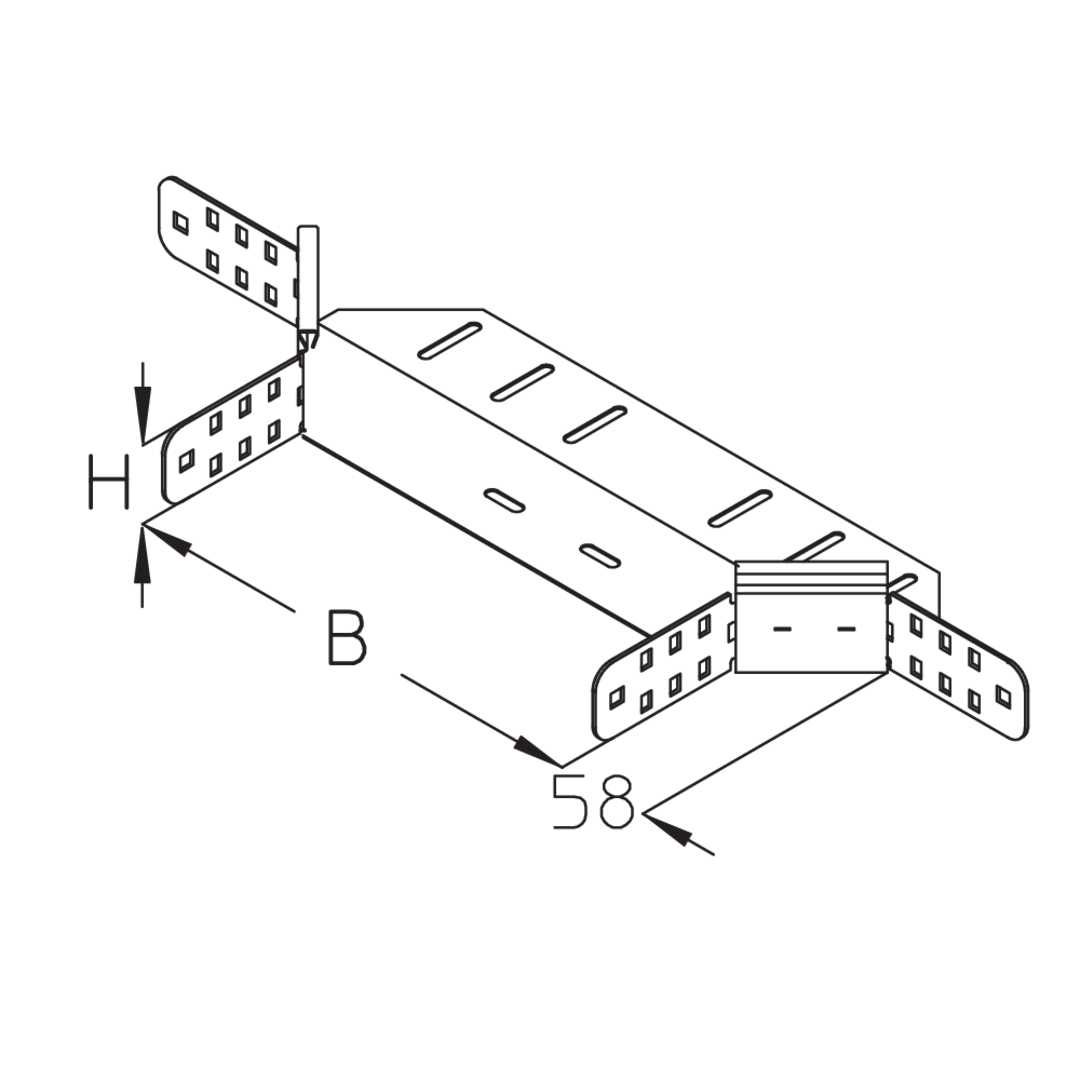

H

height

B

width

G

Weight per storage unit

  • RAA-BS 60-10S
    Cable tray attachment branch-piece, fire
    height
    60 mm
    width
    100 mm
    Weight per storage unit
    0.752 kg
    Included accessories
    More information
  • RAA-BS 60-20S
    Cable tray attachment branch-piece, fire
    height
    60 mm
    width
    200 mm
    Weight per storage unit
    0.880 kg
    Included accessories
    More information
  • RAA-BS 60-30S
    Cable tray attachment branch-piece, fire
    height
    60 mm
    width
    300 mm
    Weight per storage unit
    1.012 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

G

Weight per storage unit

  • RAA-BS 60-10F
    Cable tray attachment branch-piece, fire
    height
    60 mm
    width
    100 mm
    Weight per storage unit
    0.809 kg
    Included accessories
    More information
  • RAA-BS 60-20F
    Cable tray attachment branch-piece, fire
    height
    60 mm
    width
    200 mm
    Weight per storage unit
    0.946 kg
    Included accessories
    More information
  • RAA-BS 60-30F
    Cable tray attachment branch-piece, fire
    height
    60 mm
    width
    300 mm
    Weight per storage unit
    1.087 kg
    Included accessories
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    • de

    • en

    P-MPA-E-14-010 - KDU57/KDU 60 - Functional maintenance certificate

    General building authority test certificate
    DIN 4102-12
    Cable manufacturer: Kabelwerke Eupen AG
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: 20 kg/m
    Fastening distance: ≤ 1.5 m
    Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
    Period of validity: 23/07/2029

    PDF, 4.94 MB

    • de

    Download

    P-MPA-E-16-013 - KDU57/KDU 60 - Functional maintenance certificate

    General building authority test certificate
    DIN 4102-12
    Cable manufacturer: Studer Cables AG
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: 20 kg/m
    Fastening distance: ≤ 1.5 m
    Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
    Period of validity: 30.08.2027

    PDF, 7.84 MB

    • de

    Download

    MPABS-2402543 - Fire protection statement

    DIN 4102-12
    Standardised supporting structure: Cable trays
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: ≤ 10 kg/m
    Fastening distance: ≤ 1.2 m
    Period of validity: 15.01.2030

    PDF, 11.03 MB

    • de

    Download

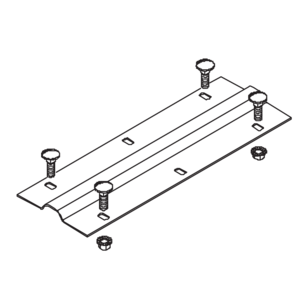

Included accessories
