Art.-Nr. 110700020323

Penta OBS XV BD 810 900

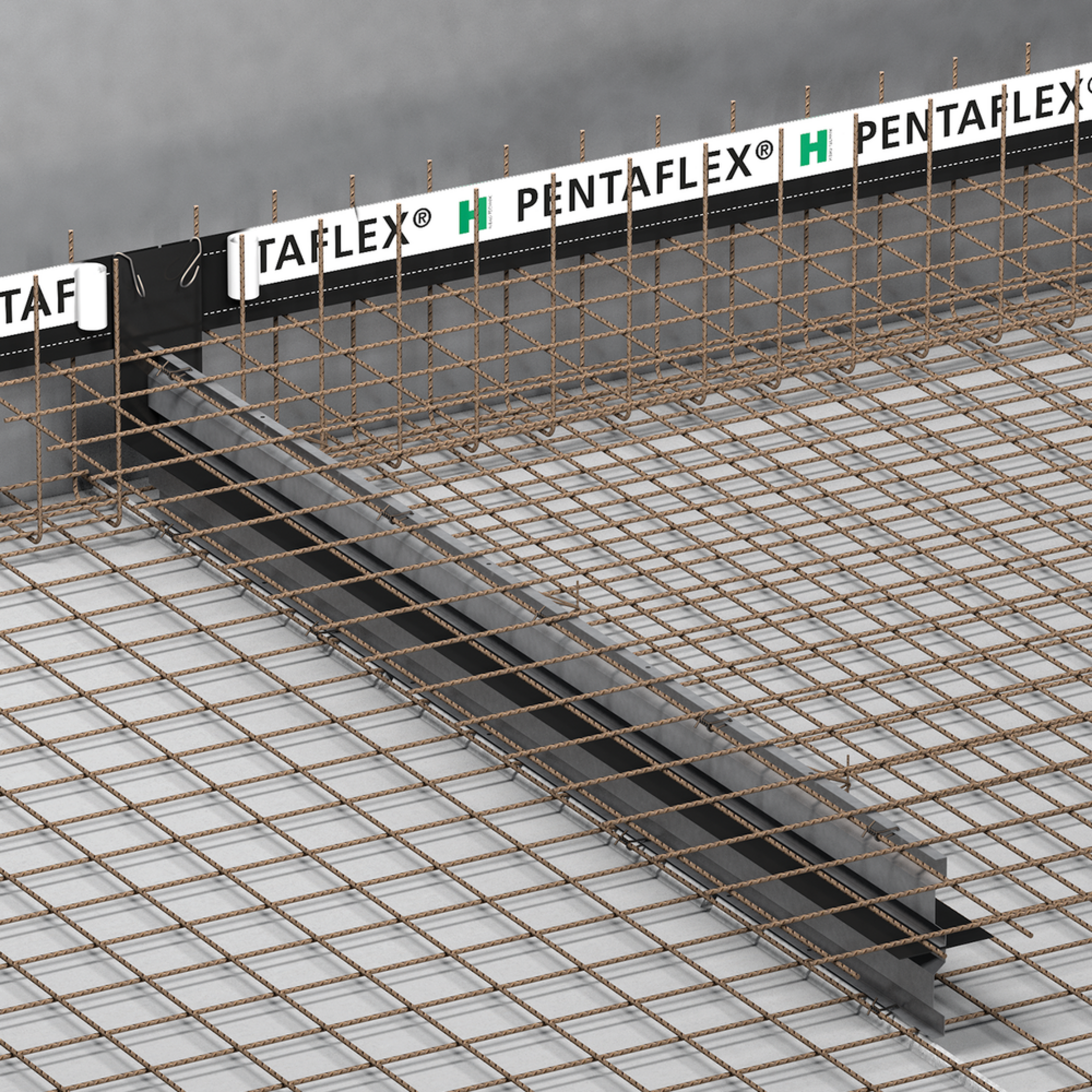

In-situ concrete crack control element with joint sheet (interlocking joint)

PENTAFLEX® OBS V-S Floor floor panel elements for interlocked joints consist of PENTAFLEX KB® joint sheets with wings made of galvanised sheet steel. They come in lengths of 2500 mm as standard. The standard installation dimension is 140 - 1000 mm.

Art.-Nr.
110700020323
installation height
810-900 mm
length
2500 mm
Weight per storage unit
9.390 kg
General building authority test certificate: P-5120/231/09 MPA-BS
European Technical Assessment: ETA-15/0003
Get in touchDownload datasheet

Variants

Article

H

installation height

L

length

G

Weight per storage unit

  • 110700019961
    Penta OBS V B 140 200
    installation height
    140-200 mm
    length
    2500 mm
    Weight per storage unit
    2.610 kg
    More information
  • 110700019962
    Penta OBS V B 210 250
    installation height
    210-250 mm
    length
    2500 mm
    Weight per storage unit
    2.740 kg
    More information
  • 110700019963
    Penta OBS-V B 260 300
    installation height
    260-300 mm
    length
    2500 mm
    Weight per storage unit
    2.960 kg
    More information
  • 110700019964
    Penta OBS V B 310 350
    installation height
    310-350 mm
    length
    2500 mm
    Weight per storage unit
    3.340 kg
    More information
  • 110700019965
    Penta OBS V B 360 400
    installation height
    360-400 mm
    length
    2500 mm
    Weight per storage unit
    3.590 kg
    More information
  • 110700020319
    Penta OBS XV BD 410 500
    installation height
    410-500 mm
    length
    2500 mm
    Weight per storage unit
    4.080 kg
    More information
  • 110700020321
    Penta OBS XV BD 710 800
    installation height
    710-800 mm
    length
    2500 mm
    Weight per storage unit
    8.900 kg
    More information
  • 110700020322
    Penta OBS XV BD 610 700
    installation height
    610-700 mm
    length
    2500 mm
    Weight per storage unit
    5.950 kg
    More information
  • 110700020323
    Penta OBS XV BD 810 900
    installation height
    810-900 mm
    length
    2500 mm
    Weight per storage unit
    9.390 kg
    More information
  • 110700020324
    Penta OBS XV BD 910 1000
    installation height
    910-1000 mm
    length
    2500 mm
    Weight per storage unit
    9.880 kg
    More information
  • 110700020331
    Penta OBS XV BD 510 600
    installation height
    510-600 mm
    length
    2500 mm
    Weight per storage unit
    5.460 kg
    More information

Details

  • General building authority test certificate: P-5120/231/09 MPA-BS
  • European Technical Assessment: ETA-15/0003
  • Approved throughout Europe by ETA-15/0003
  • German building code test certificate (abP) P-5120/231/09 MPA-BS

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    Price list 2025 Shell construction / facade

    Valid from February 1, 2025, updated version from 27/09/2025.

    • de

    • en

    General building authority test certificate PENTAFLEX® KB, FTS, OBS, ABS, Modul (general technical approval certificate)

    General Building Authority Test Certificate

    • de

    • en

    PENTAFLEX® - Technical information

    Technical information

    • de

    • en

    ETA 15/0003 PENTAFLEX®

    Approval

    • de

    • en

    Installation instructions PENTAFLEX® OBS Floor

    Please observe these installation and application instructions before installation. Our application technology and consulting engineers will be happy to answer any questions you may have.

    • de

    • en

Included accessories

    Services: From planning to utilisation

    We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.

    Consulting, planning, design

    Customised solutions
