Art.-Nr. 111900022897

Penta ABS R W 310 350

Sealing formwork element as a rough joint

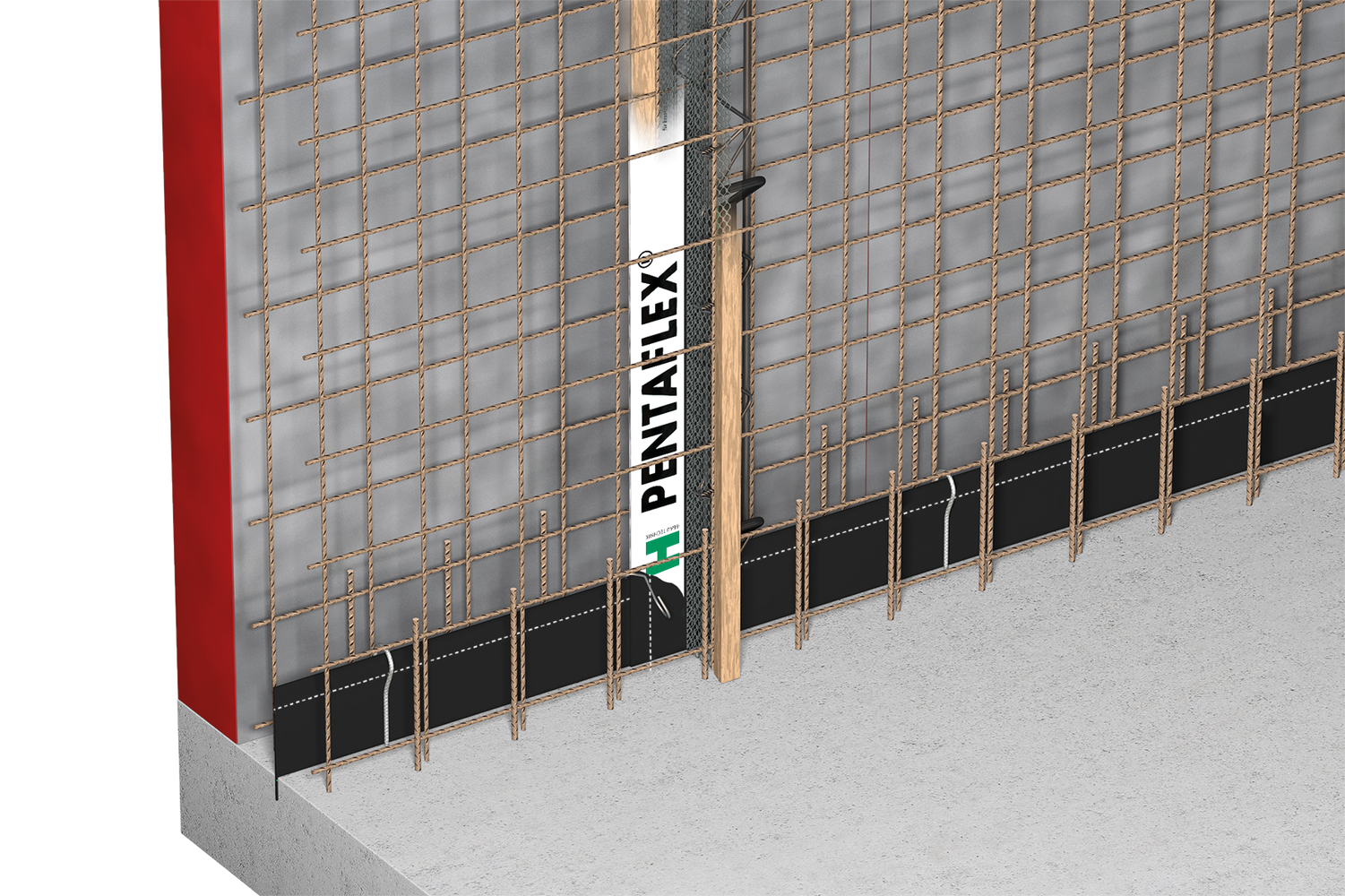

The component PENTAFLEX® ABS R Wall/Wall is a formwork element that is used to create waterproof construction joints in the wall-to-wall connection area of reinforced concrete components. The ABS-R version with a shortened, stiffening lattice girder construction is suitable for forming rough joints. The formwork element is made of DC04 steel and has been verified as watertight up to 5.0 bar. It is 2400 mm long and 80 to 590 mm high. Other length dimensions, e.g. short or conical pieces, are also available on request.

Art.-Nr.
111900022897
Weight per storage unit
3.260 kg
European Technical Assessment: ETA-15/0003
Get in touch Download datasheet

Variants

Article

H

installation height

G

Weight per storage unit
  • 111900022862
    Penta ABS R W 80 200 2.4
    installation height
    140-200 mm
    Weight per storage unit
    2.370 kg
    More information
  • 111900022863
    Penta ABS R W 210 250 2.4
    installation height
    210-250 mm
    Weight per storage unit
    2.600 kg
    More information
  • 111900022864
    Penta ABS R W 260 300 2.4
    installation height
    260-300 mm
    Weight per storage unit
    2.820 kg
    More information
  • 111900022865
    Penta ABS R W 310 350 2.4
    installation height
    310-350 mm
    Weight per storage unit
    3.260 kg
    More information
  • 111900022866
    Penta ABS R W 360 400 2.4
    installation height
    360-400 mm
    Weight per storage unit
    3.500 kg
    More information
  • 111900022867
    Penta ABS R W 410 500 2.4
    installation height
    410-500 mm
    Weight per storage unit
    3.990 kg
    More information
  • 111900022868
    Penta ABS R W 510 590 2.4
    installation height
    510-590 mm
    Weight per storage unit
    4.920 kg
    More information
  • 111900022894
    Penta ABS R W 80 200
    installation height
    Weight per storage unit
    2.370 kg
    More information
  • 111900022895
    Penta ABS R W 210 250
    installation height
    Weight per storage unit
    2.600 kg
    More information
  • 111900022896
    Penta ABS R W 260 300
    installation height
    Weight per storage unit
    2.820 kg
    More information
  • 111900022897
    Penta ABS R W 310 350
    installation height
    Weight per storage unit
    3.260 kg
    More information
  • 111900022898
    Penta ABS R W 360 400
    installation height
    Weight per storage unit
    3.500 kg
    More information
  • 111900022899
    Penta ABS R W 410 500
    installation height
    Weight per storage unit
    3.990 kg
    More information
  • 111900022900
    Penta ABS R W 510 590
    installation height
    Weight per storage unit
    4.920 kg
    More information

Details

  • European Technical Assessment: ETA-15/0003

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • General building authority test certificate PENTAFLEX® KB, FTS, OBS, ABS, Modul (general technical approval certificate)

    Allgemeines bauaufsichtliches Prüfzeugnis

    PDF, 1 MB

    de en

  • Allgemeines bauaufsichtliches Prüfzeugnis

    PDF, 875 KB

    en
    Download

  • PENTAFLEX® - Technical information

    Technical information

    PDF, 7 MB

    de en

  • ETA 15/0003 PENTAFLEX®

    Zulassung

    PDF, 1 MB

    de en

  • Order Sheet PENTAFLEX® ABS Wall

    Bestellblatt

    PDF, 137 KB

    de
    Download

  • Order Sheet PENTAFLEX® Perforated ABS Wall

    Bestellblatt

    PDF, 131 KB

    de
    Download

  • Order Sheet PENTAFLEX® ABS Element Wall

    Bestellblatt

    PDF, 128 KB

    de
    Download

Included accessories

Services: From planning to utilisation

We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.

Consulting, planning, design

Customised solutions
