MKDPOT

Mounting clamp with potential equalization

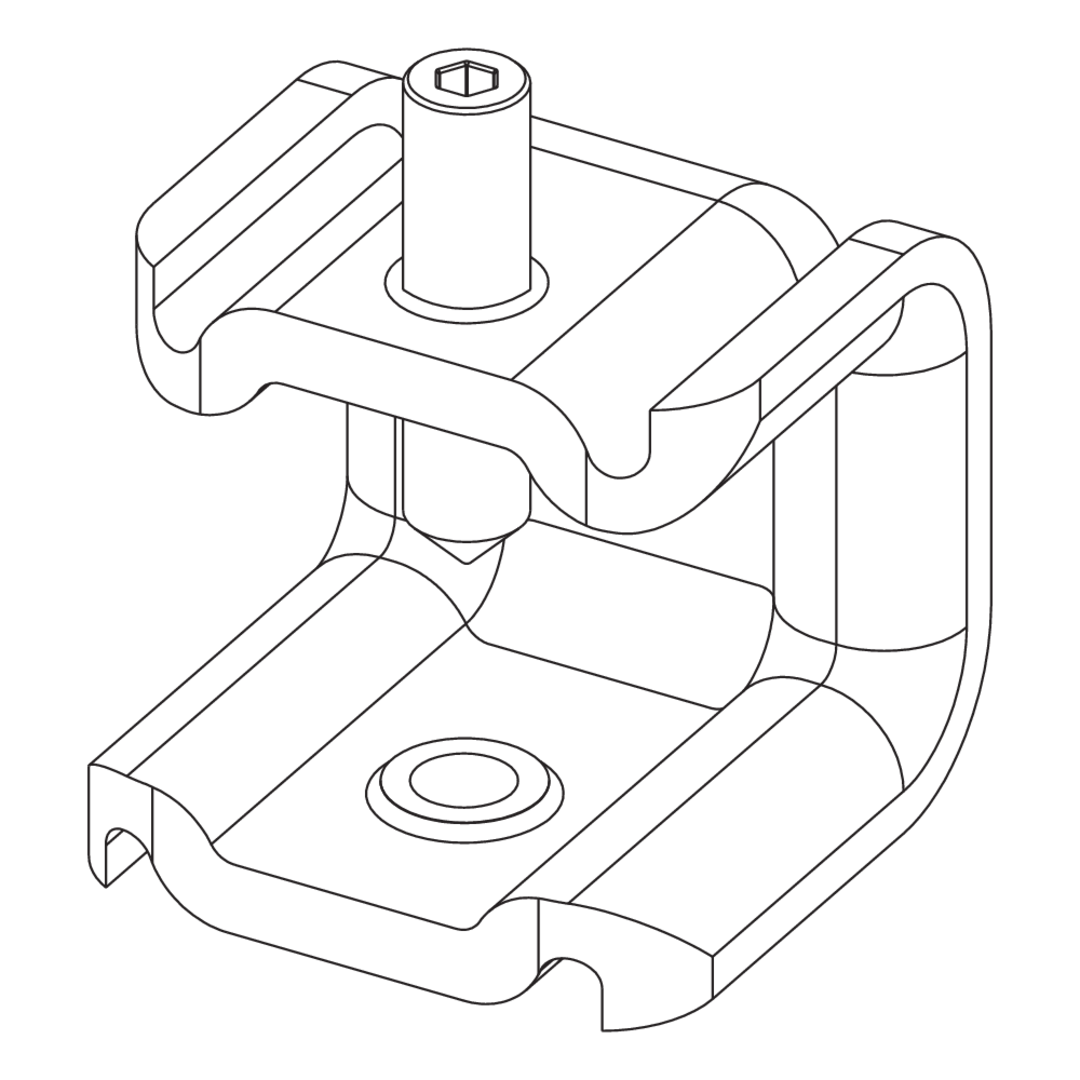

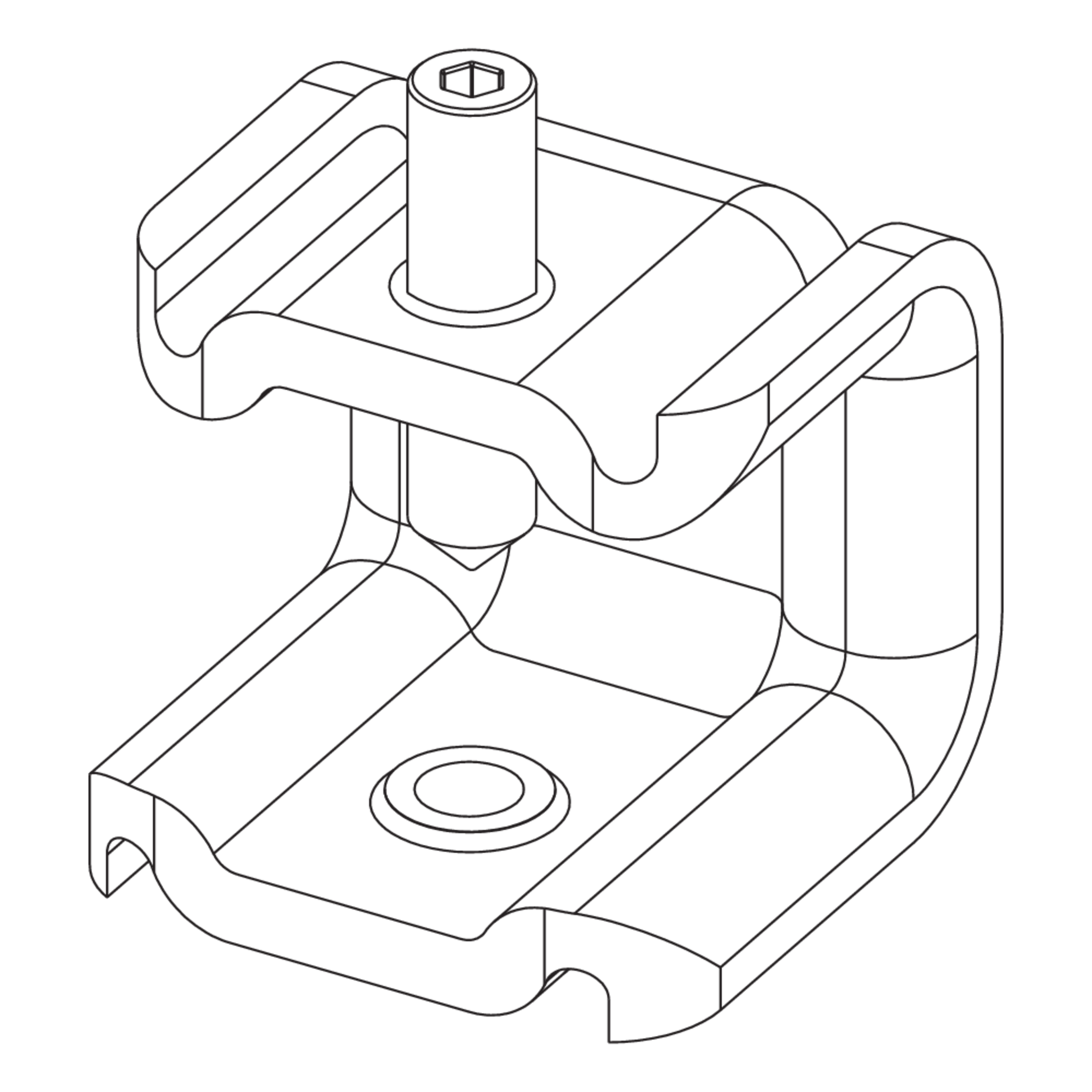

The MKDPOT mounting clamp with pointed stud screw is used for clamping to coated steel beams where potential equalization must be guaranteed. The maximum load is 1.5 kN. The clamping range extends from 6 - 21 mm. The maximum thickness of the coating to be penetrated is 80 µm.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

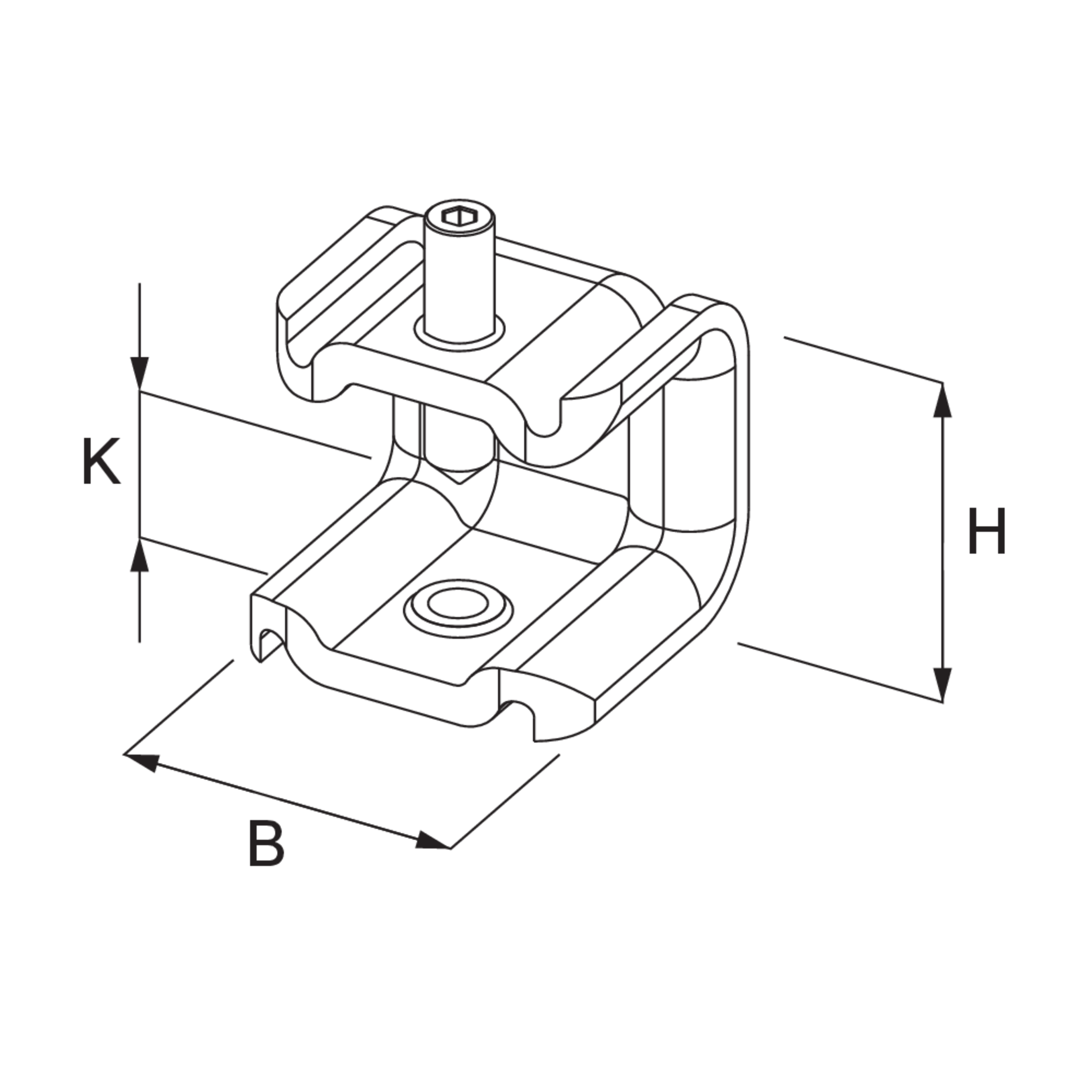

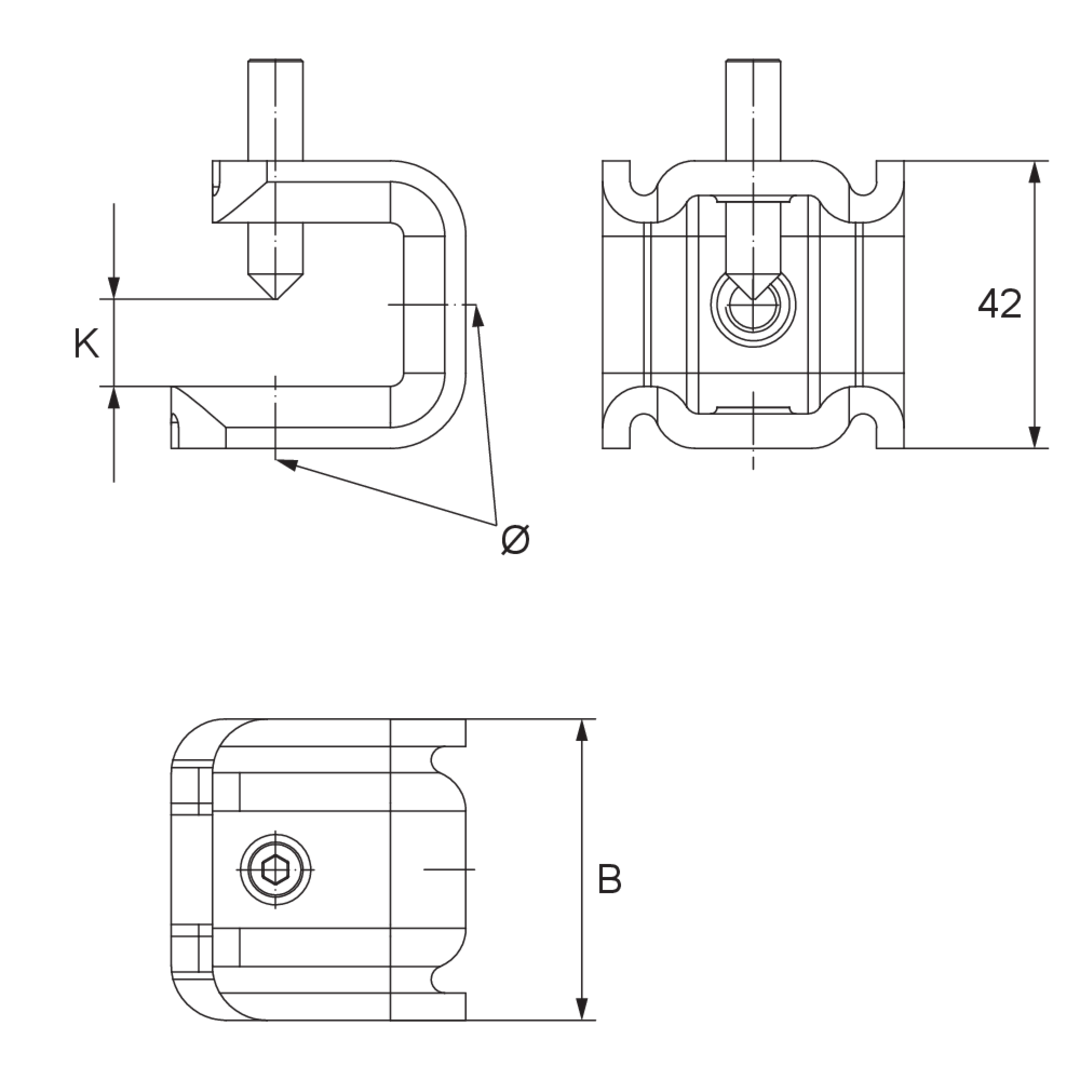

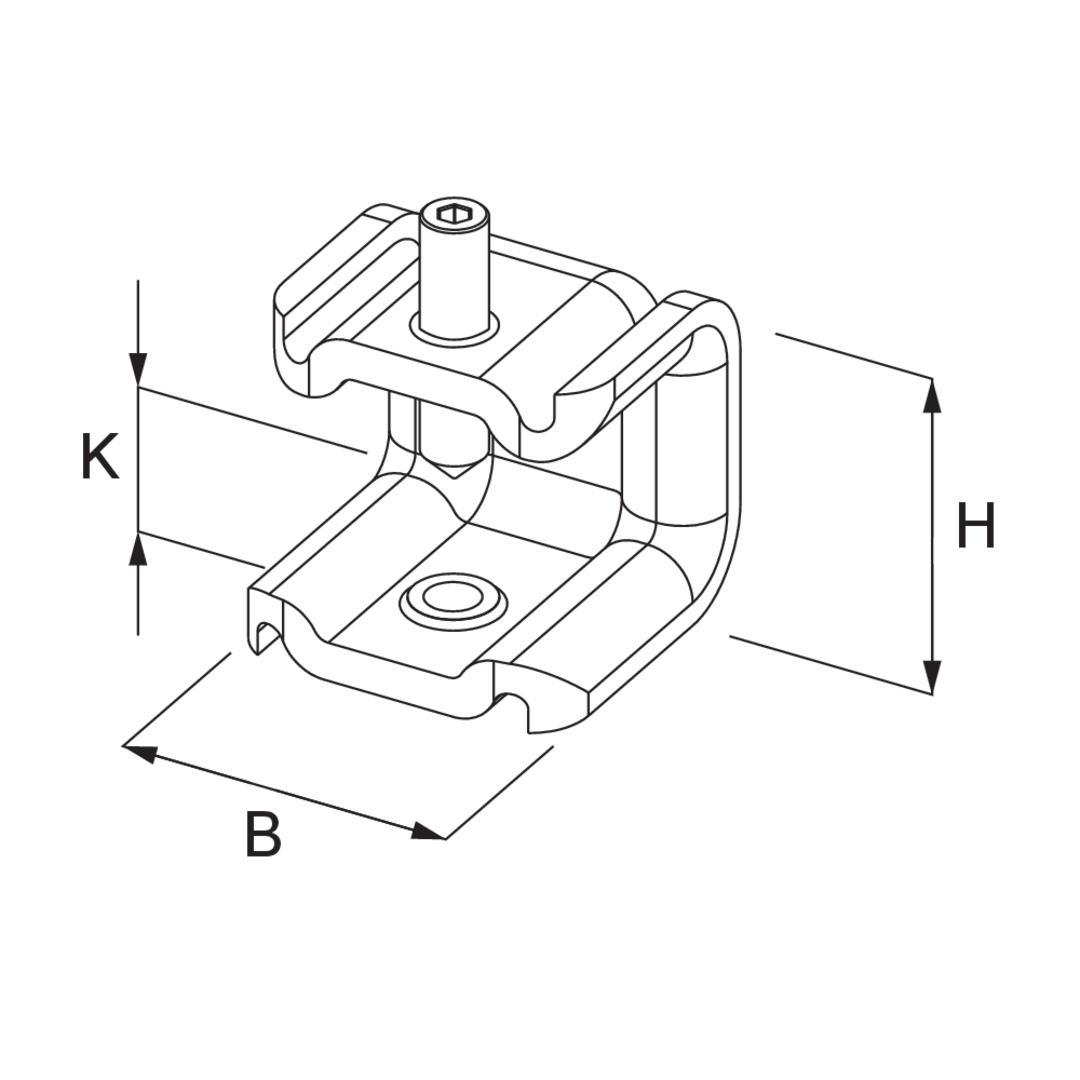

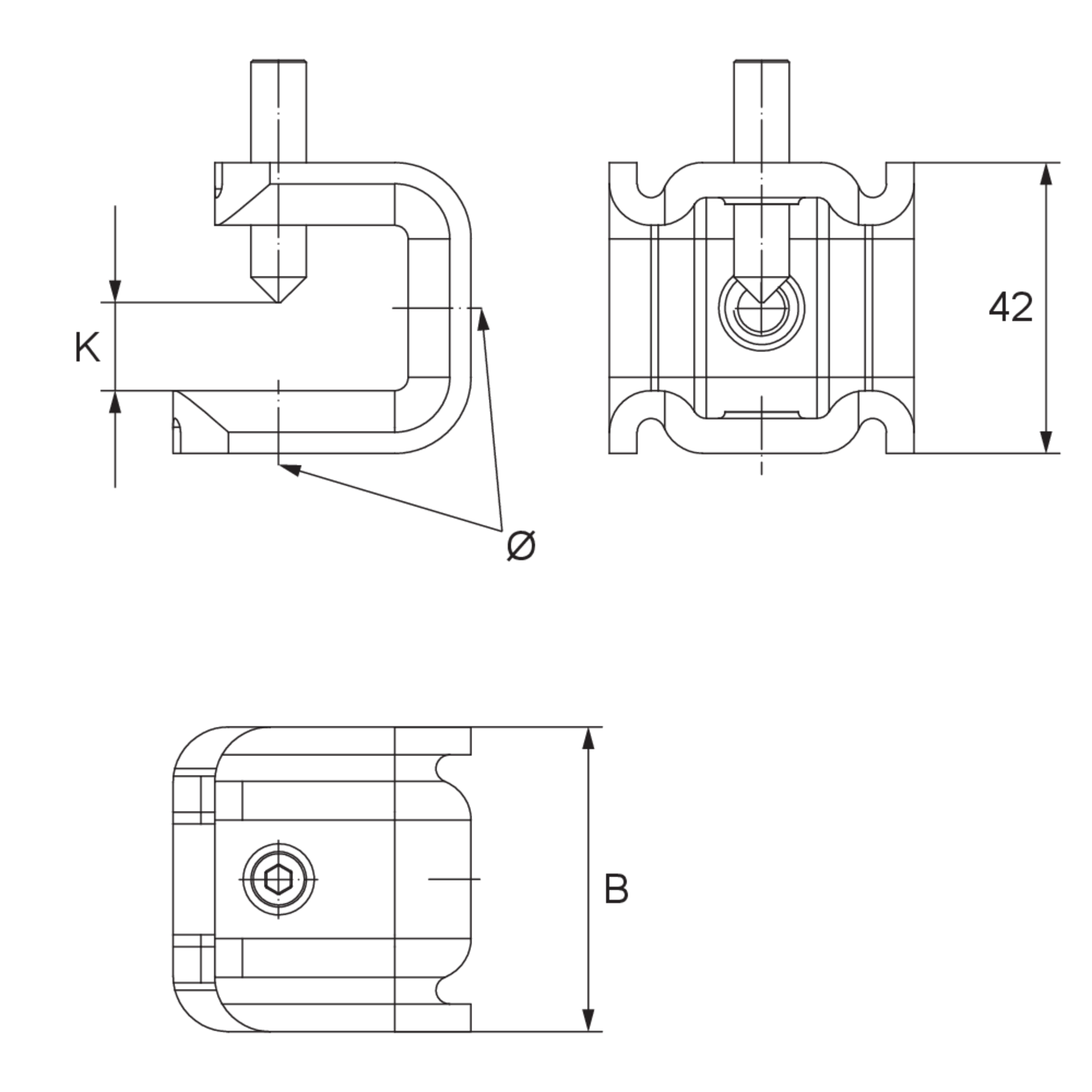

H

height

B

width

L

length

M

torque

MG

thread size (metric)

k

clamping range

G

Weight per storage unit

  • MKDPOT 21
    Beam clamp for potential equalisation
    height
    42 mm
    width
    44 mm
    length
    43 mm
    torque
    4 Nm
    thread size (metric)
    M8
    clamping range
    6 - 21 mm
    Weight per storage unit
    0.153 kg
    Included accessories
    More information
  • MKDPOT 21 M10
    Beam clamp for potential equalisation
    height
    42 mm
    width
    44 mm
    length
    43 mm
    torque
    4 Nm
    thread size (metric)
    M10
    clamping range
    6 - 21 mm
    Weight per storage unit
    0.153 kg
    Included accessories
    More information
  • MKDPOT 21 M6
    Beam clamp for potential equalisation
    height
    42 mm
    width
    44 mm
    length
    43 mm
    torque
    4 Nm
    thread size (metric)
    M6
    clamping range
    6 - 21 mm
    Weight per storage unit
    0.153 kg
    Included accessories
    More information
