LGV 50

Cable ladder connector, height = 50 mm

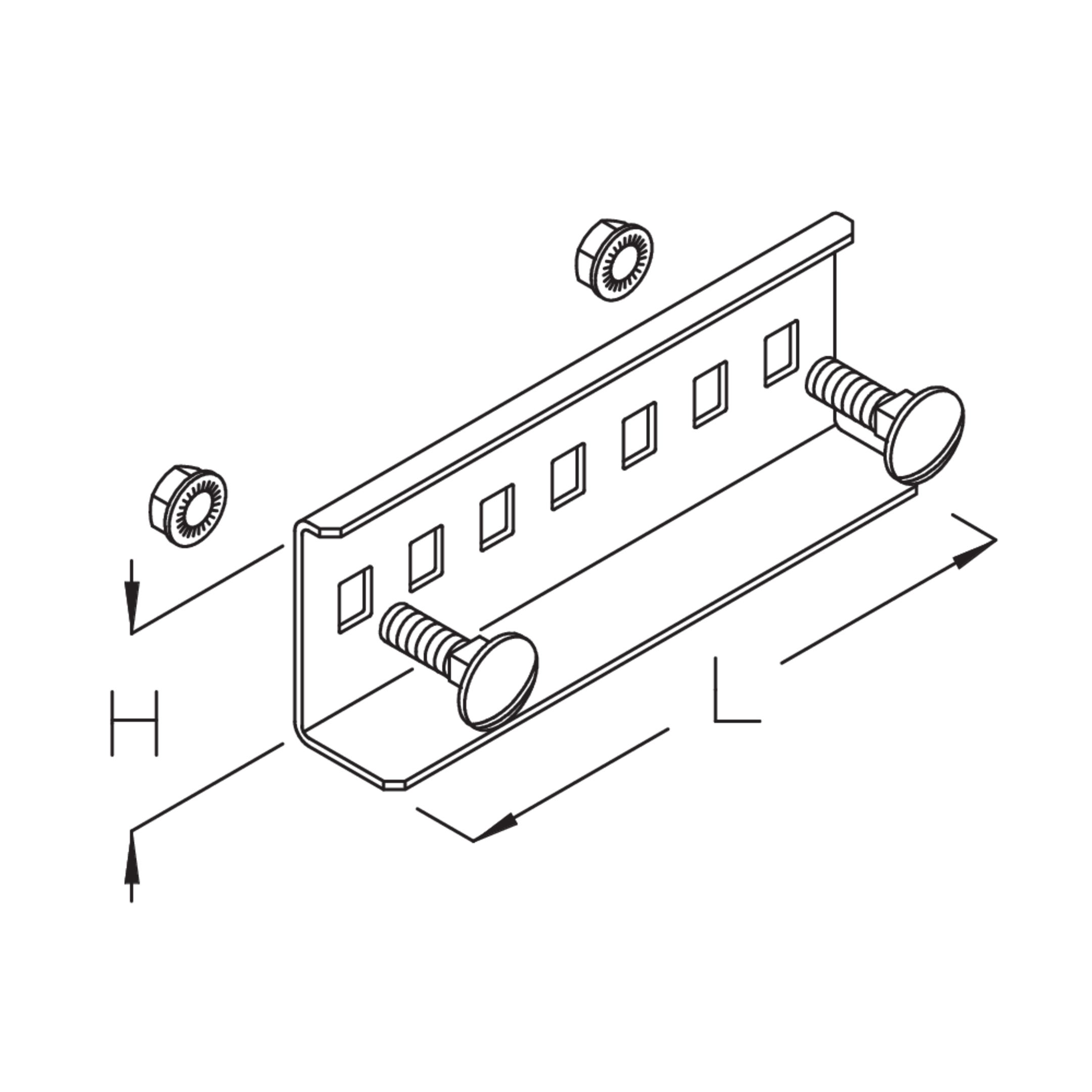

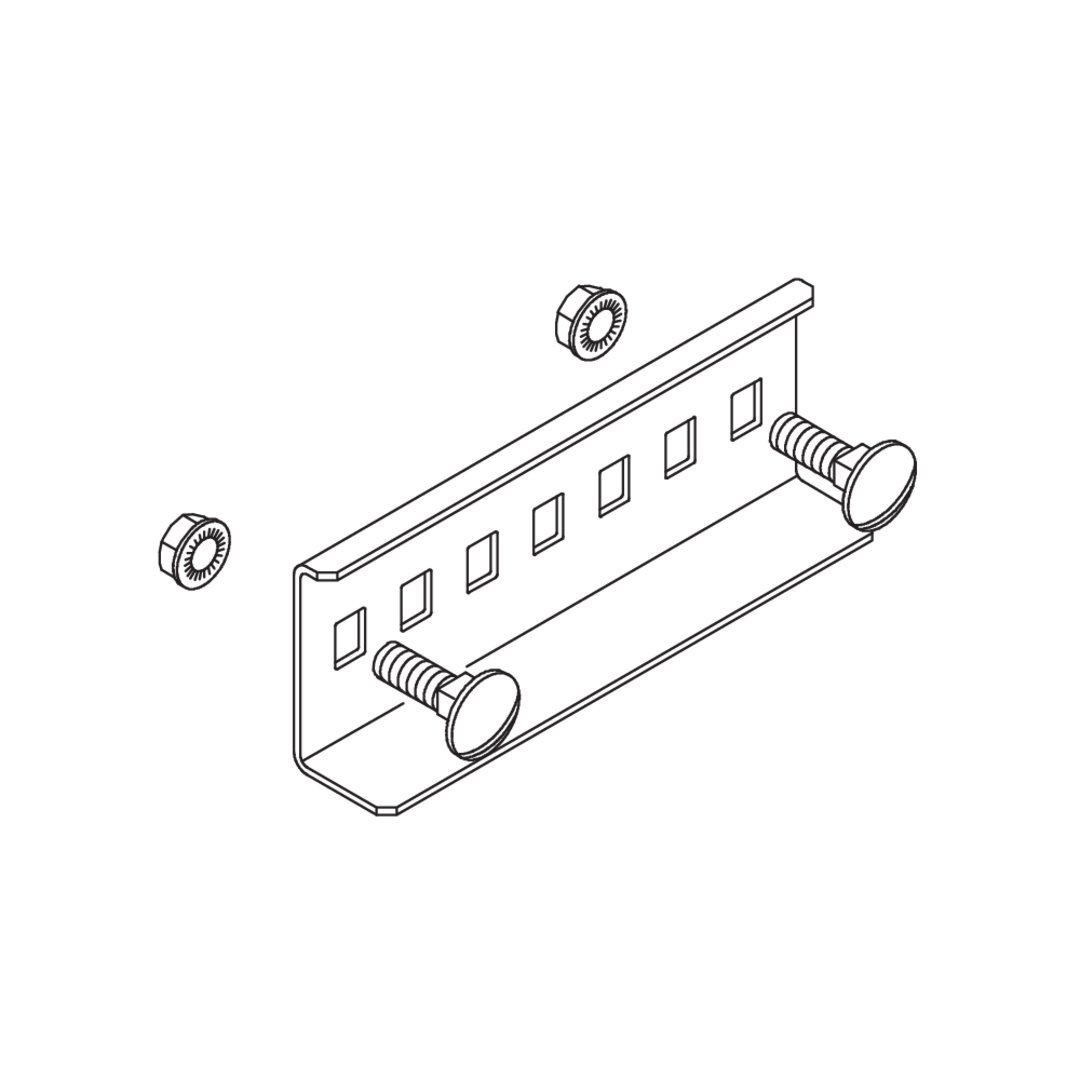

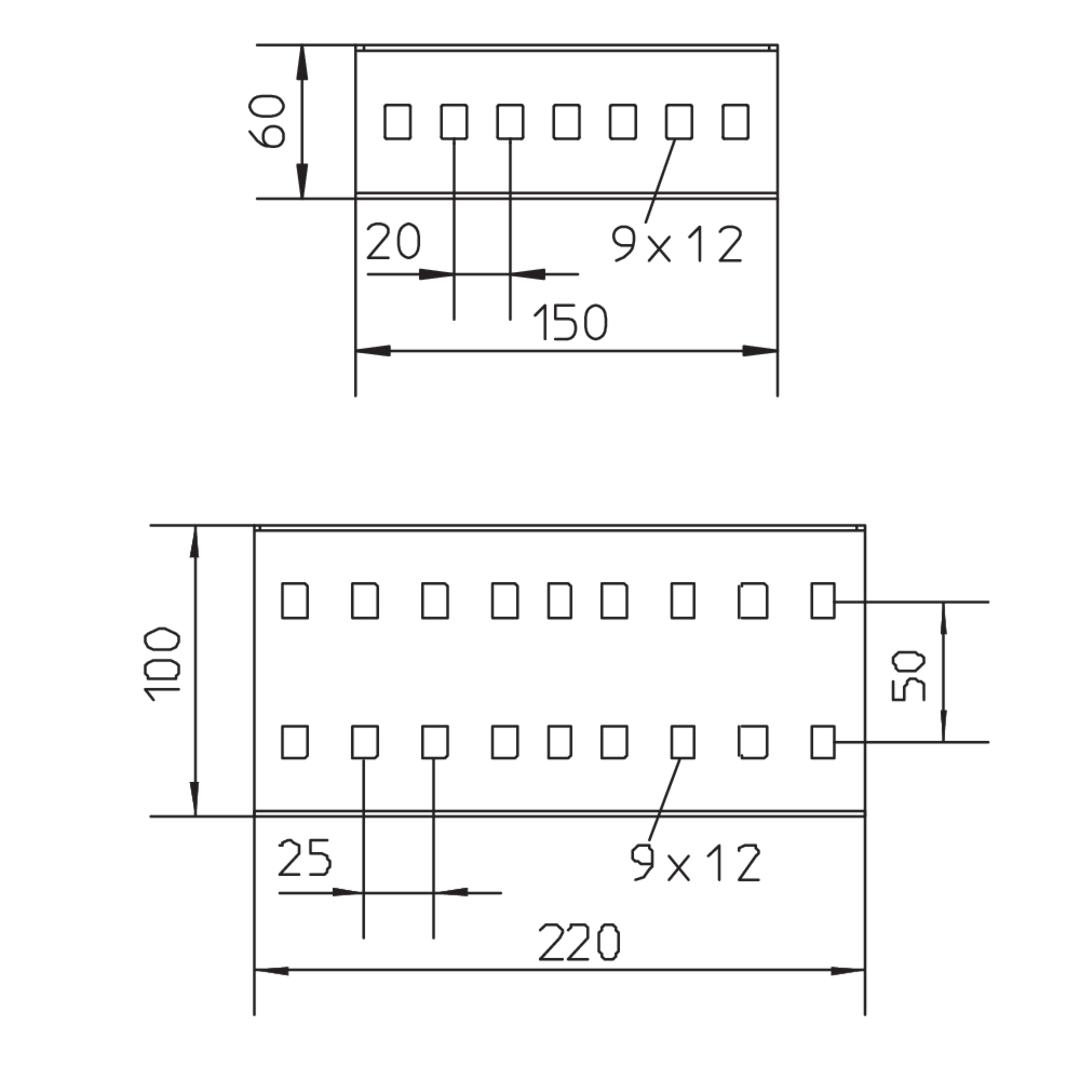

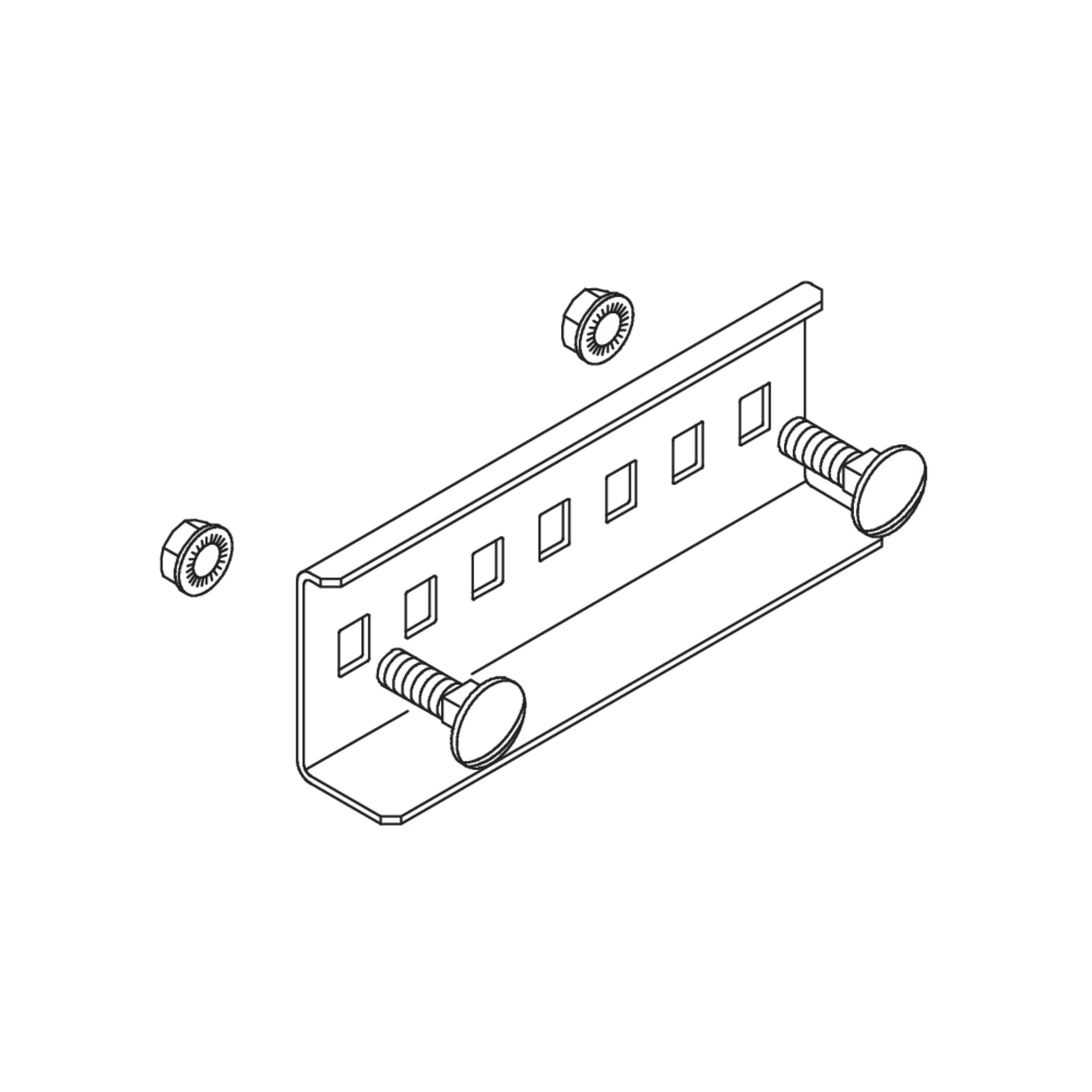

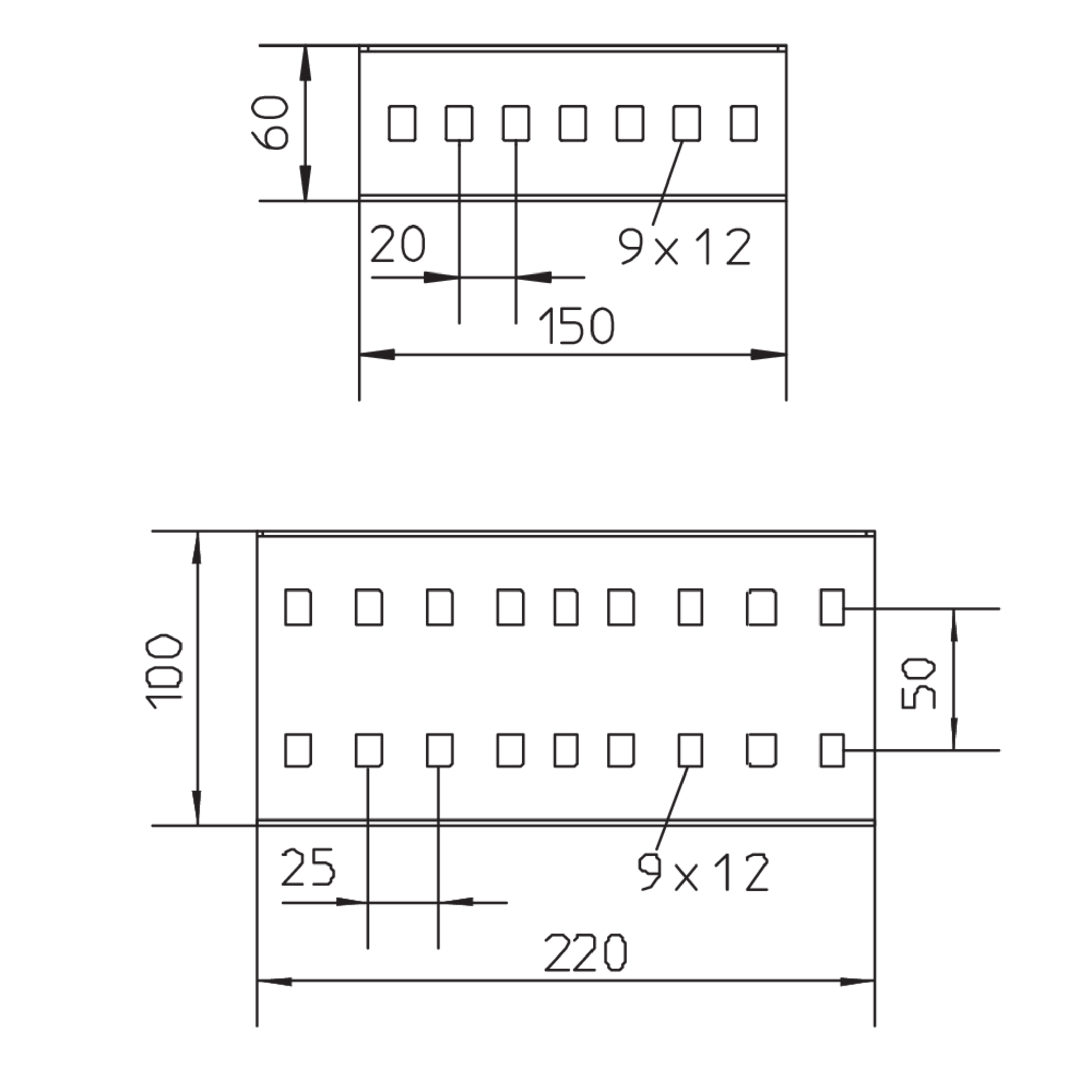

STU 50 vertical ladders can be connected to each other using side connector LGV 50 and clamping bolts. It is pushed onto the rail of the vertical ladder from the outside and bolted in place using the clamp fastener. The connecting rack is then pushed in and also bolted in place. The side connector LGV 50 is 50 mm high and 150 mm long. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

Article

H

height

L

length

G

Weight per storage unit
  • LGV 50S
    Cable ladder coupler
    50 mm
    150 mm
    0.212 kg
    Included accessories
    More information

steel, batch/hot-dip galvanized

Article

H

height

L

length

G

Weight per storage unit
  • LGV 50F
    Cable ladder coupler
    50 mm
    150 mm
    0.218 kg
    Included accessories
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

height

L

length

G

Weight per storage unit
  • LGV 50E
    Cable ladder coupler
    50 mm
    150 mm
    0.208 kg
    Included accessories
    More information
