KHUV 60

Connector, KHU 60

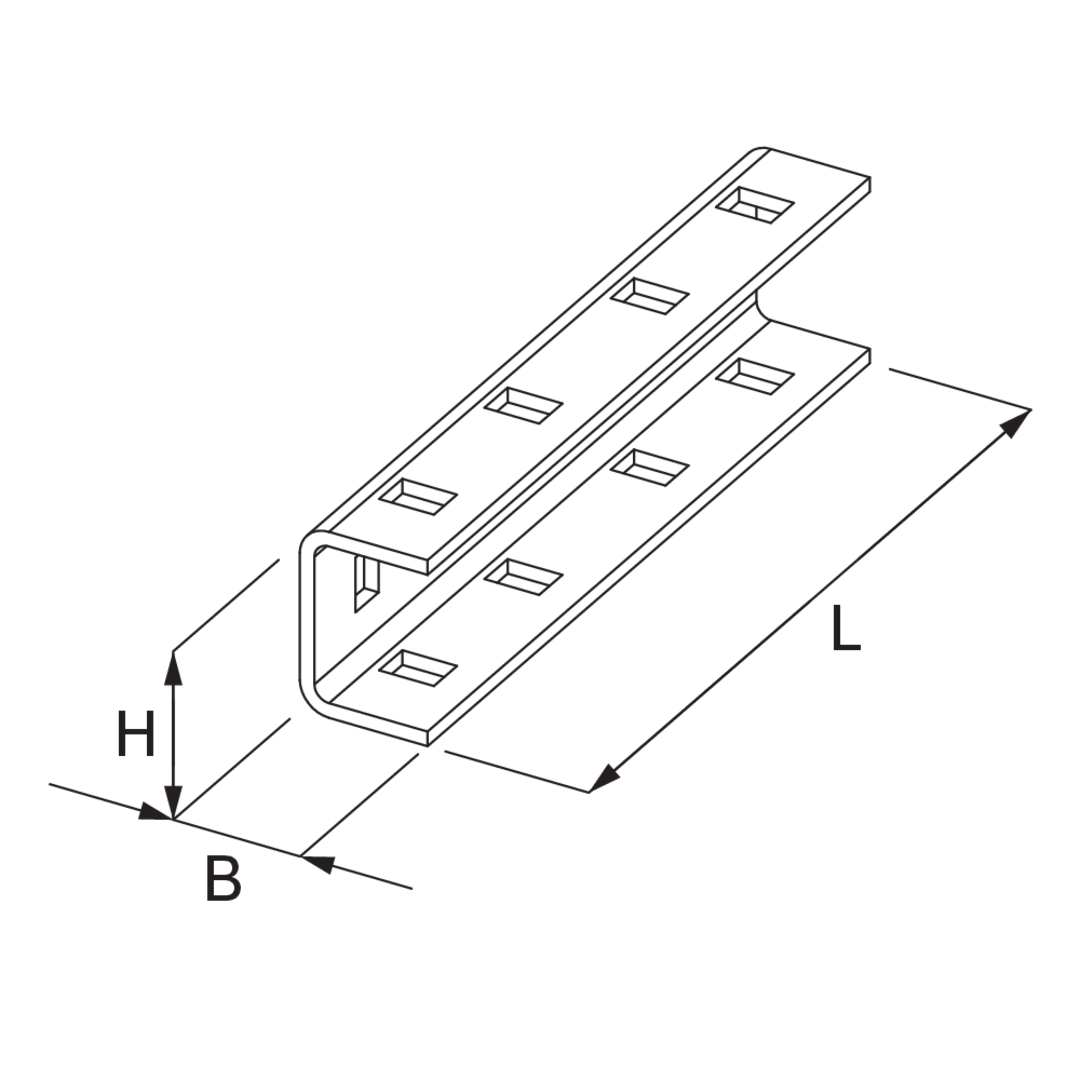

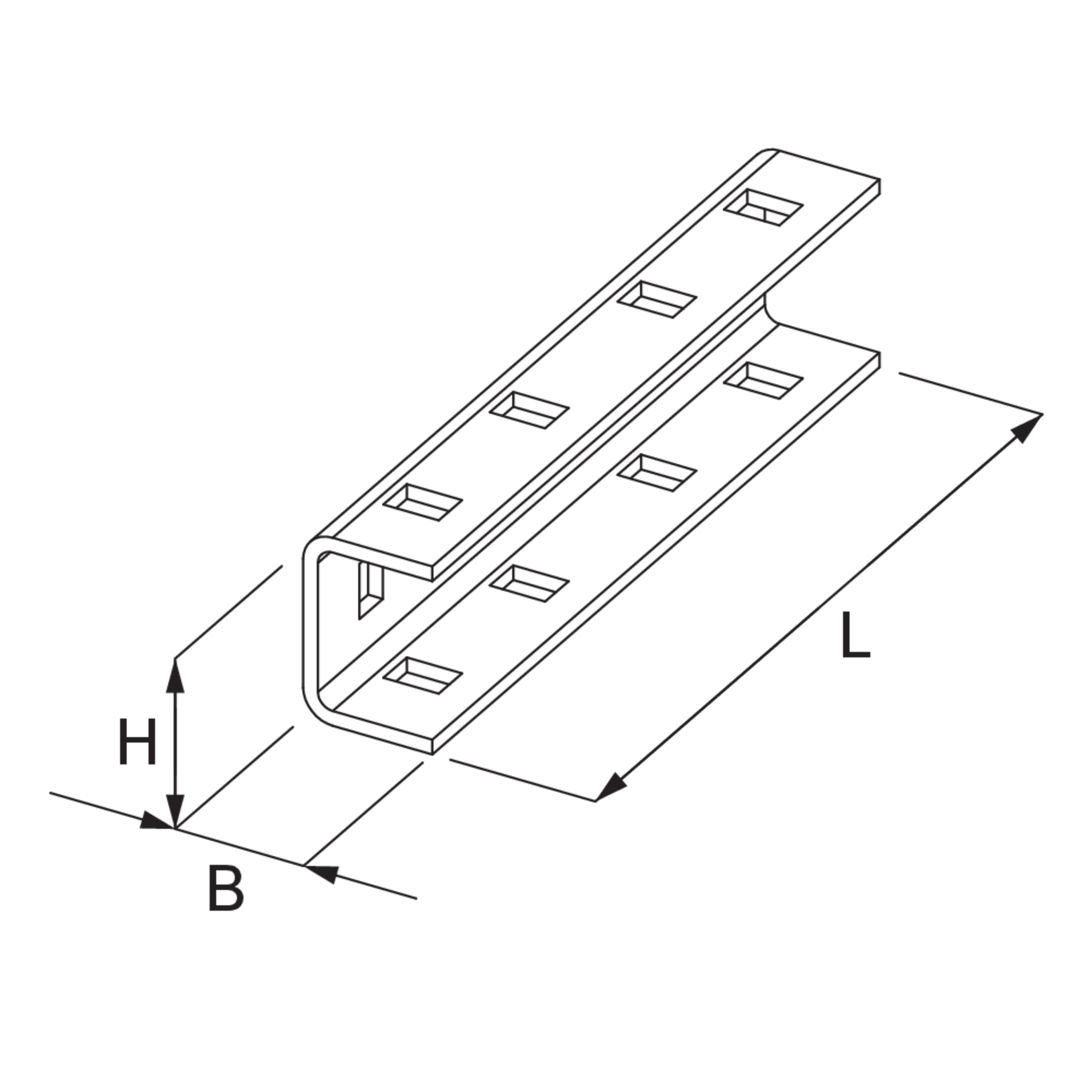

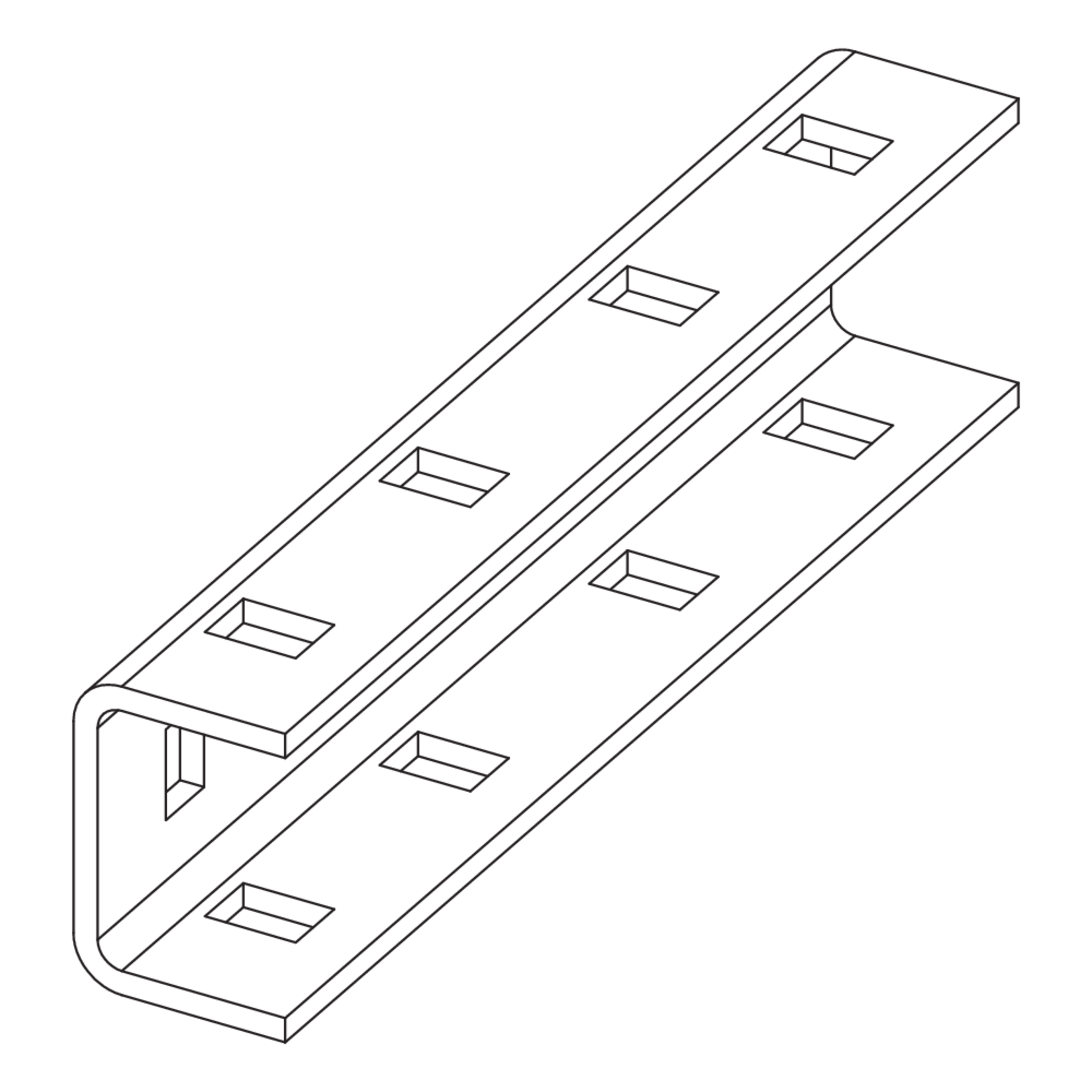

KHU 60 bracket holders and STU 60/62 vertical ladders can be connected using the connector KHUV 60. The connector is 51 mm high and 210 mm long. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

Variants

steel, batch/hot-dip galvanized

Article

H

B

L

t

W

Included accessories

  • KHUV 60F
    Coupler KHUV 60F
    51 mm
    35 mm
    210 mm
    4.00 mm
    0.828 kg
    Included accessories
    More information

steel, galvanic zinc plated

Article

H

B

L

t

W

Included accessories

  • KHUV 60GV
    Coupler KHUV 60F
    51 mm
    35 mm
    210 mm
    4.00 mm
    0.771 kg
    Included accessories
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

B

L

t

W

Included accessories

  • KHUV 60E
    Coupler KHUV 60E
    51 mm
    35 mm
    210 mm
    4.00 mm
    0.787 kg
    Included accessories
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

H

B

L

t

W

Included accessories

  • KHUV 60E4
    Connector
    51 mm
    35 mm
    210 mm
    4.00 mm
    0.796 kg
    Included accessories
    More information
