KHUV 57

Connector, KHU 57

The connector KHUV 57 can be used to connect bracket holders KHU 57 to each other. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

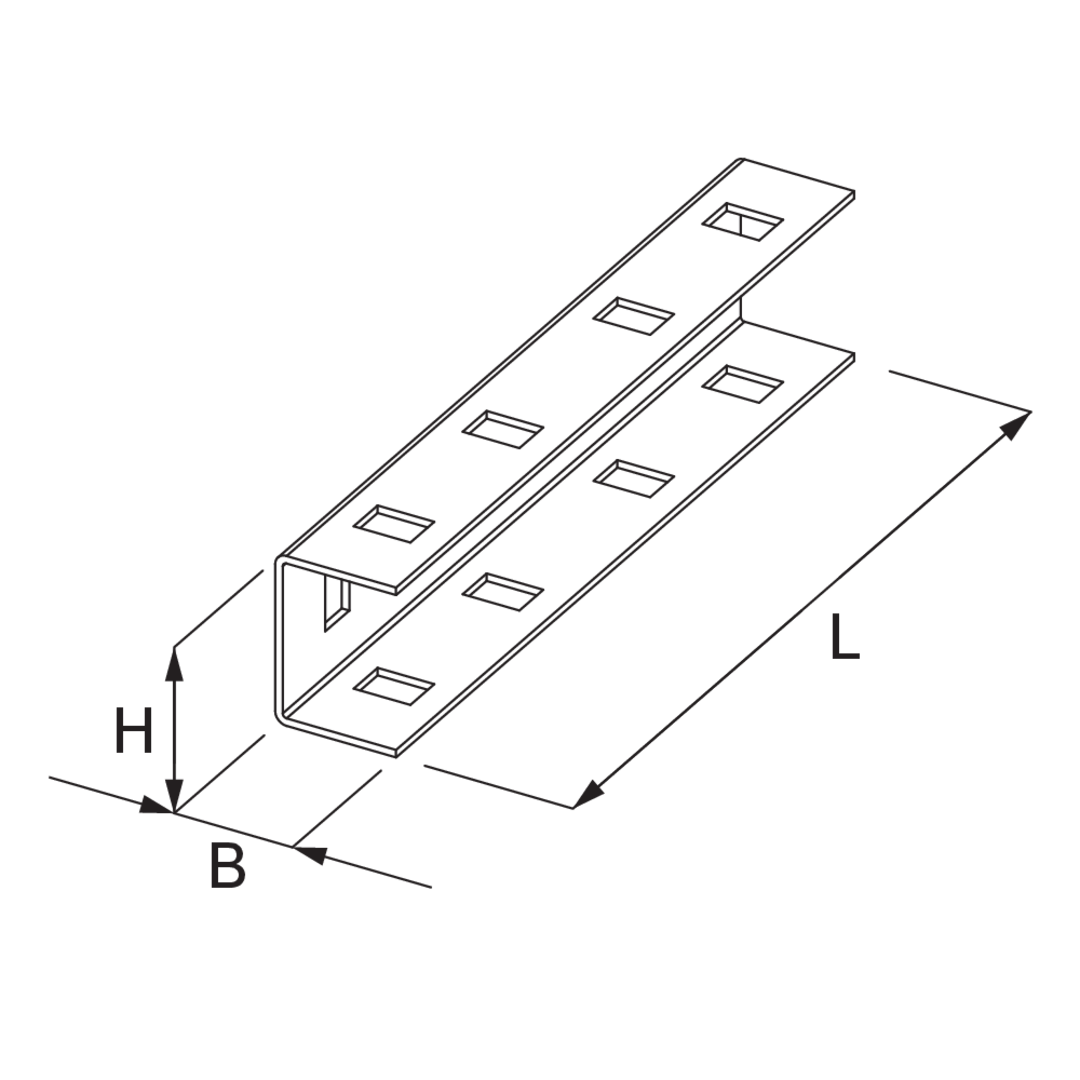

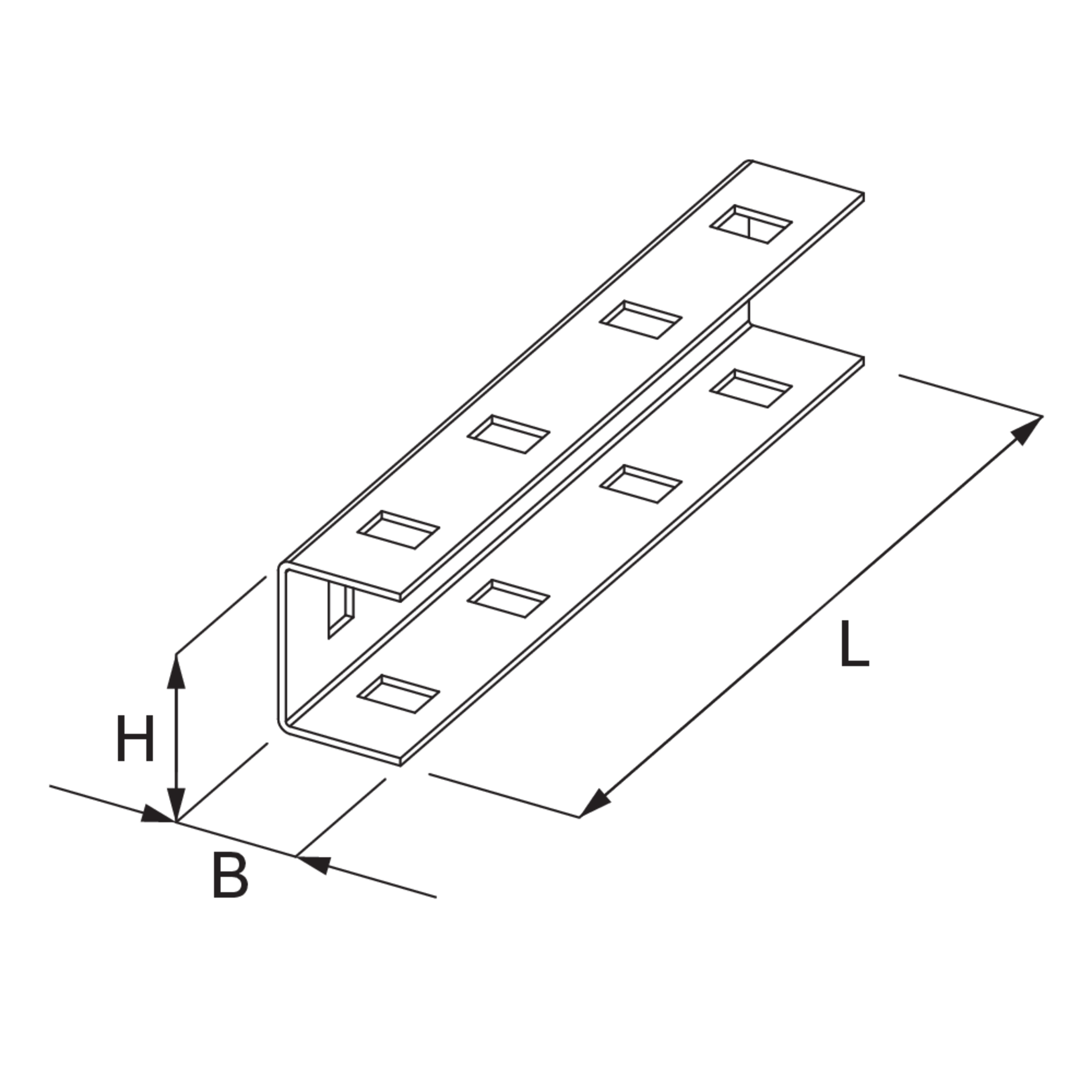

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit
  • KHUV 57S
    Coupler KHUV 57S
    height
    58 mm
    width
    33 mm
    length
    210 mm
    material thickness
    2.50 mm
    Weight per storage unit
    0.598 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit
  • KHUV 57F
    Coupler KHUV 57F
    height
    58 mm
    width
    33 mm
    length
    210 mm
    material thickness
    2.50 mm
    Weight per storage unit
    0.630 kg
    Included accessories
    More information

steel, galvanic zinc plated

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit
  • KHUV 57GV
    Coupler KHUV 57S
    height
    58 mm
    width
    33 mm
    length
    210 mm
    material thickness
    2.50 mm
    Weight per storage unit
    0.586 kg
    Included accessories
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit
  • KHUV 57E
    Coupler KHUV 57E
    height
    58 mm
    width
    33 mm
    length
    210 mm
    material thickness
    2.50 mm
    Weight per storage unit
    0.601 kg
    Included accessories
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit
  • KHUV 57E4
    Coupler KHUV 57E4
    height
    58 mm
    width
    33 mm
    length
    210 mm
    material thickness
    2.50 mm
    Weight per storage unit
    0.607 kg
    Included accessories
    More information
