KHUSS 60

Support piece, KHU 60

The maximum load capacities can be achieved by using support piece KHUSS 60 in bracket holder KDU/KHU 60. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

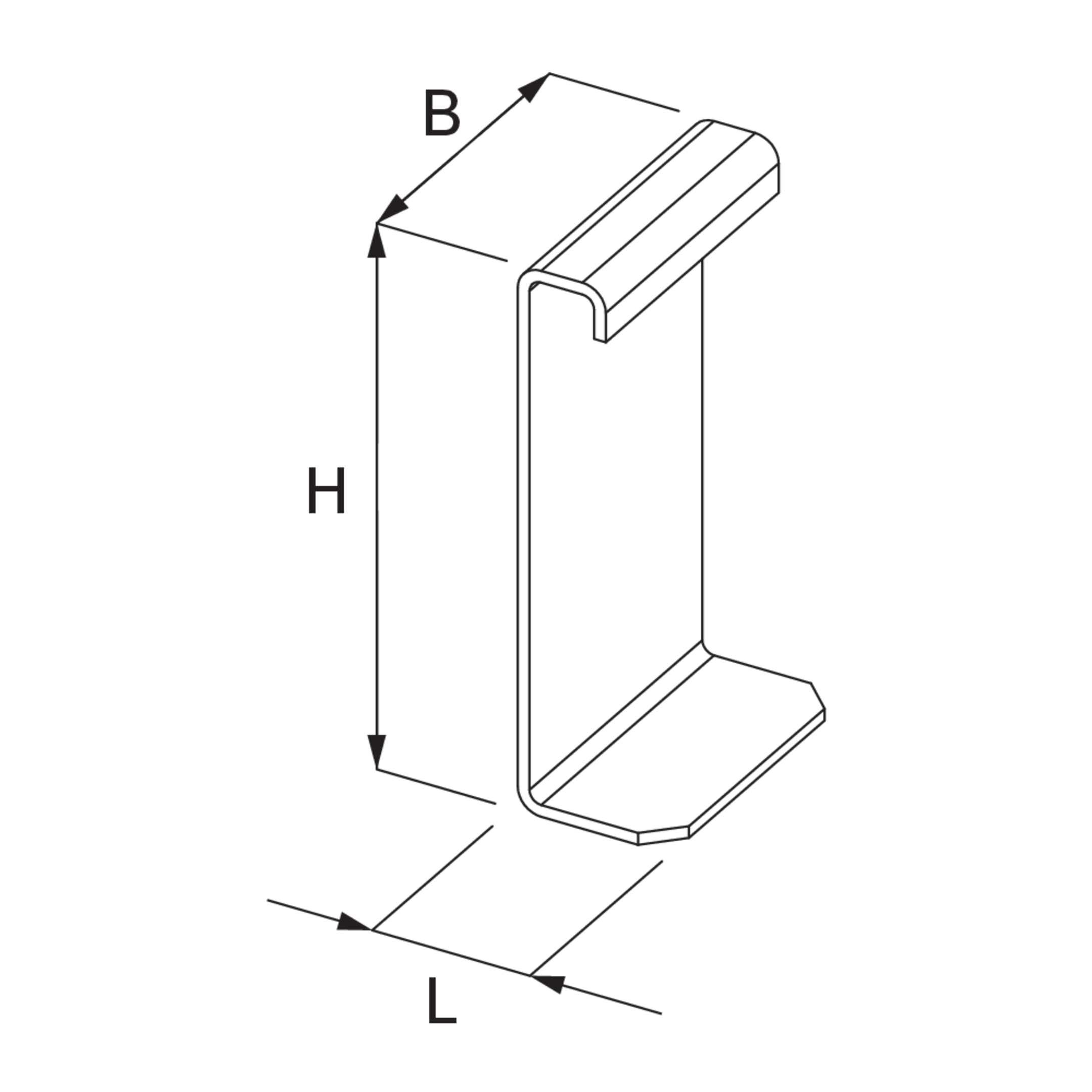

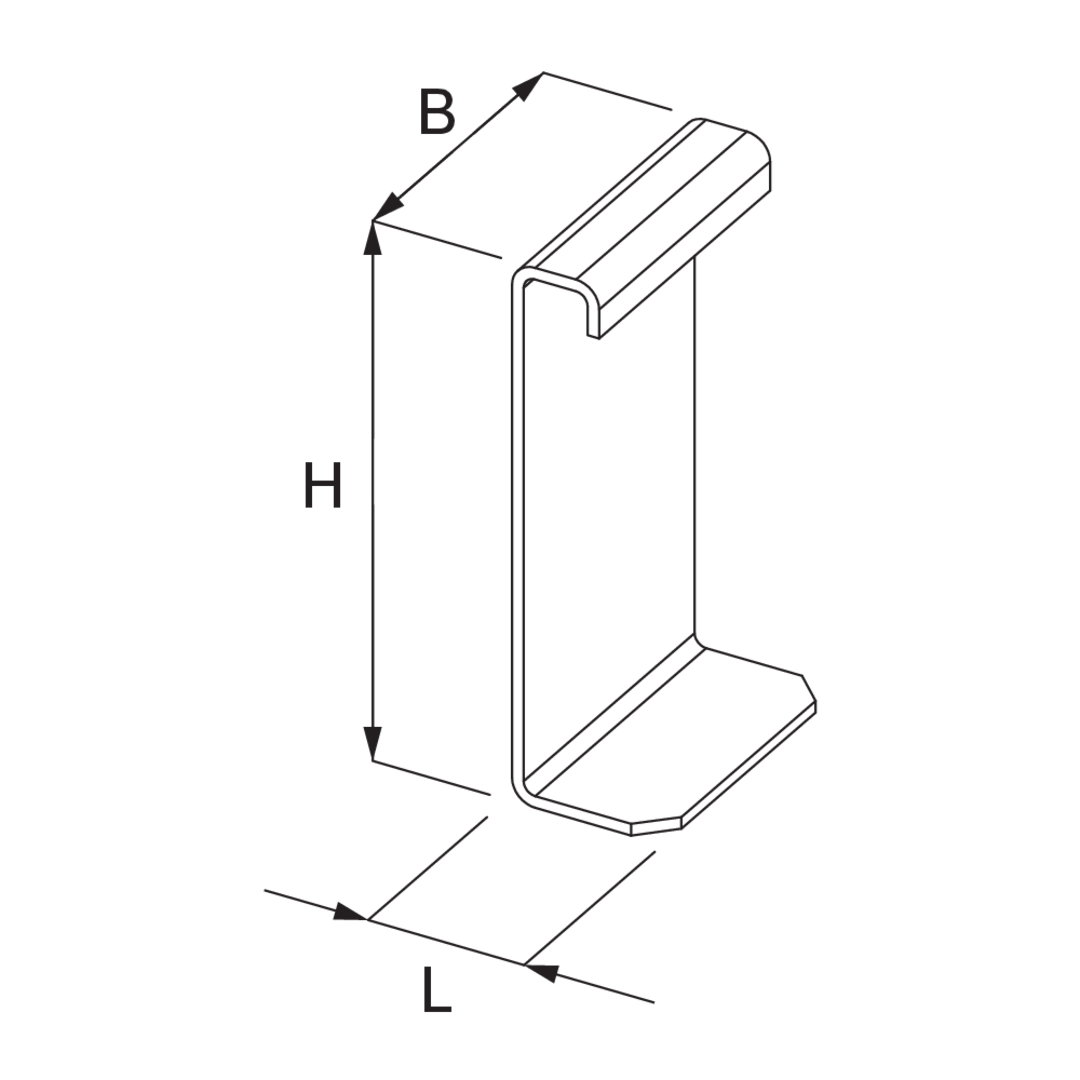

Variants

Stahl, band-/sendzimirverzinkt

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit
  • KHUSS 60S
    Stützstück
    Höhe
    93 mm
    Breite
    51 mm
    Länge
    26 mm
    Gewicht je Lagermengeneinheit
    0.180 kg
    Included accessories
    More information

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit
  • KHUSS 60F
    Stützstück
    Höhe
    93 mm
    Breite
    51 mm
    Länge
    26 mm
    Gewicht je Lagermengeneinheit
    0.182 kg
    Included accessories
    More information

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit
  • KHUSS 60E
    Stützstück
    Höhe
    93 mm
    Breite
    51 mm
    Länge
    26 mm
    Gewicht je Lagermengeneinheit
    0.184 kg
    Included accessories
    More information

Edelstahl, Werkstoff Nr. 1.4571/1.4404 (V4A)

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit
  • KHUSS 60E4
    Stützstück
    Höhe
    93 mm
    Breite
    51 mm
    Länge
    26 mm
    Gewicht je Lagermengeneinheit
    0.182 kg
    Included accessories
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Support systems Assembling instruction

    Montageanleitung

    PDF, 2 MB

    de en

  • Support systems - Technical information

    Technical information

    PDF, 19 MB

    de en

  • P-MPA-E-15-019 - KDU57 - Functional maintenance certificate

    General building authority test certificate
    DIN 4102-12
    Cable manufacturers: Dätwyler, Eupen, Leoni Studer, Prysmian, Nexans
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: ≤ 20 kg/m
    Fastening distance: ≤ 1.5 m
    Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
    Period of validity: 09.10.2026

    PDF, 10 MB

    de
    Download

  • P-MPA-E-14-010 - KDU57/KDU 60 - Functional maintenance certificate

    General building authority test certificate
    DIN 4102-12
    Cable manufacturer: Kabelwerke Eupen AG
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: 20 kg/m
    Fastening distance: ≤ 1.5 m
    Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
    Period of validity: 23/07/2029

    PDF, 5 MB

    de
    Download

  • P-MPA-E-16-013 - KDU57/KDU 60 - Functional maintenance certificate

    General building authority test certificate
    DIN 4102-12
    Cable manufacturer: Studer Cables AG
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: 20 kg/m
    Fastening distance: ≤ 1.5 m
    Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
    Period of validity: 30.08.2027

    PDF, 8 MB

    de
    Download

  • P-MPA-E-16-007 - KDU60 - Functional maintenance certificate

    DIN 4102-12
    Cable manufacturer: Dätwyler
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: ≤ 30 kg/m
    Fastening distance: ≤ 1.5 m
    Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
    Validity period: 01.02.2027

    PDF, 8 MB

    de
    Download

  • GA-2017/068 - Expert statement

    DIN 4102-12
    Fire protection fastening on load-bearing timber components
    Fire resistance duration: F30; F60
    Functional maintenance classes: E30; E60
    Cable load: ≤ 10 kg/m, ≤ 20 kg/m, ≤ 30 kg/m
    Mounting distance: ≤ 1.5 m
    Period of validity: 22/08/2027

    PDF, 1 MB

    de
    Download

Included accessories
