KHA 42

41x42 mm profile rail, perforated

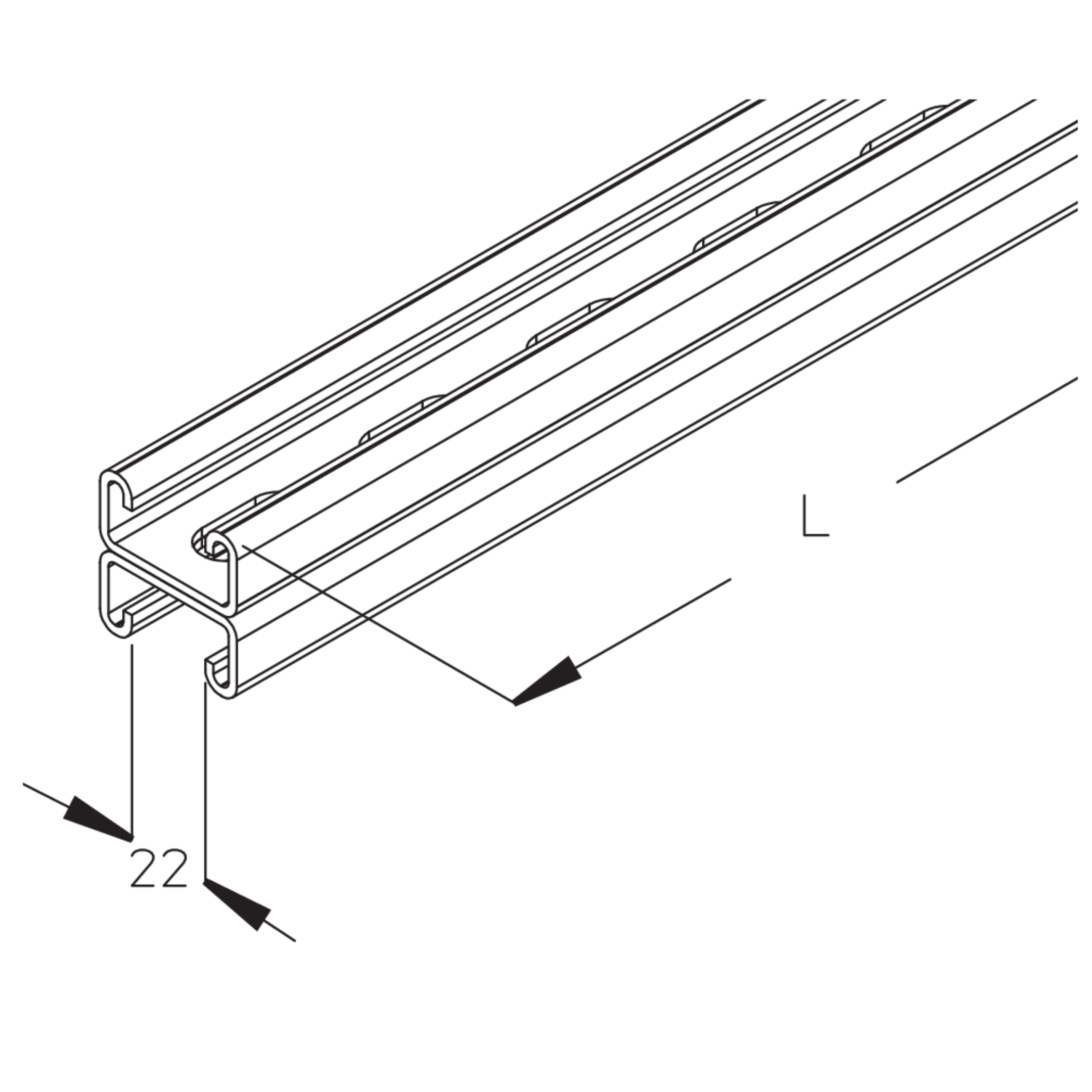

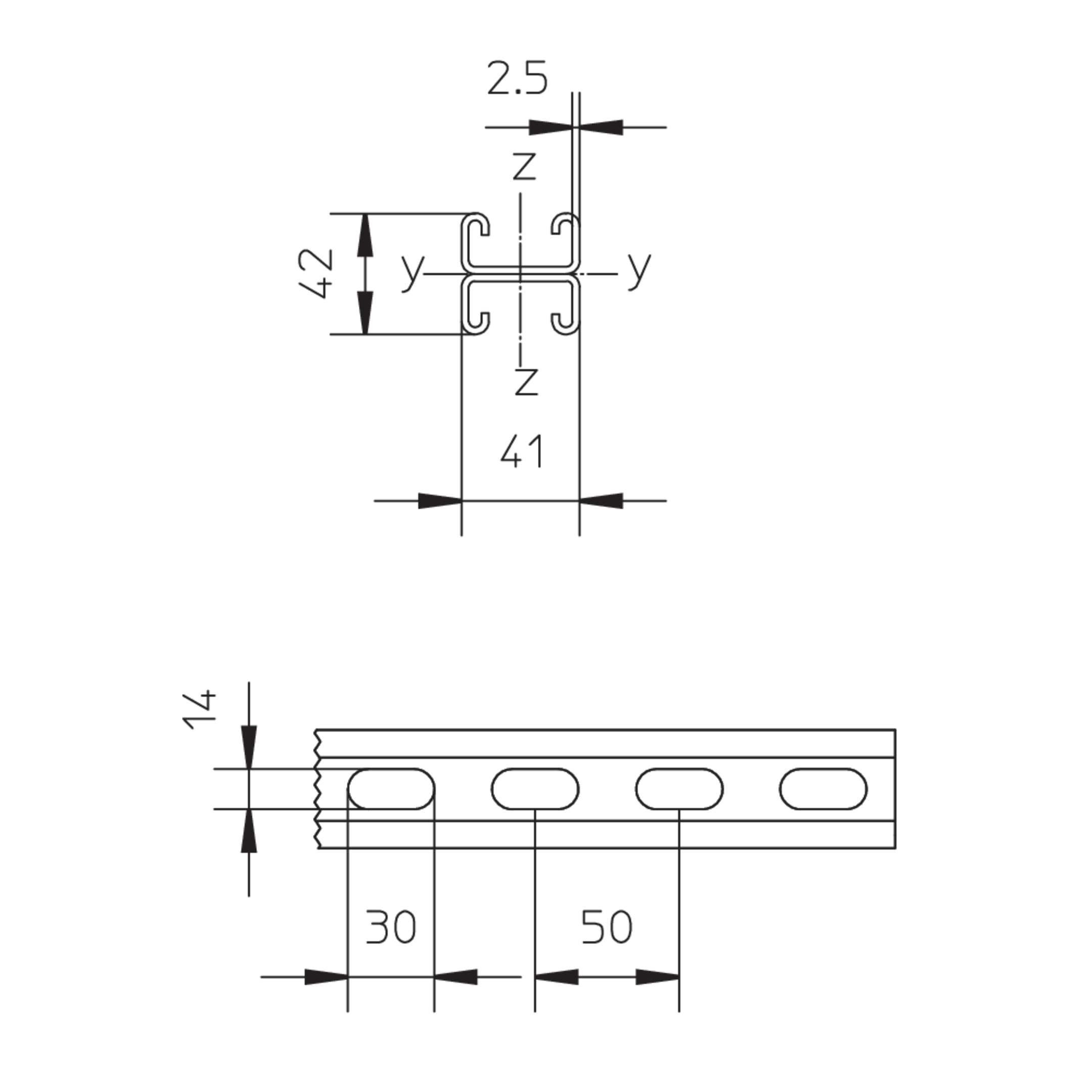

The perforated profile rail KHA 42 consists of two C+ profiles welded together back to back. It is 42 mm high, 41 mm wide and the slot is 22 mm wide (material = 2.5 mm thick). It is made of hot-dip galvanised steel and is available in lengths of 3000 or 6000 mm.

Get in touch Download datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

HP

Profilhöhe

BP

Profilbreite

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit
  • KHA 42-30F
    Profilschiene gelocht 41/42X2,5
    Profilhöhe
    42 mm
    Profilbreite
    41 mm
    Länge
    3000 mm
    Materialstärke
    2.50 mm
    Gewicht je Lagermengeneinheit
    10.639 kg
    More information
  • KHA 42-60F
    Profilschiene gelocht 41/42X2,5
    Profilhöhe
    42 mm
    Profilbreite
    41 mm
    Länge
    6000 mm
    Materialstärke
    2.50 mm
    Gewicht je Lagermengeneinheit
    21.278 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Support systems Assembling instruction

    Montageanleitung

    PDF, 2 MB

    de en

  • Support systems - Technical information

    Technical information

    PDF, 19 MB

    de en
