KHA 4

48x26 mm profile rail, perforated

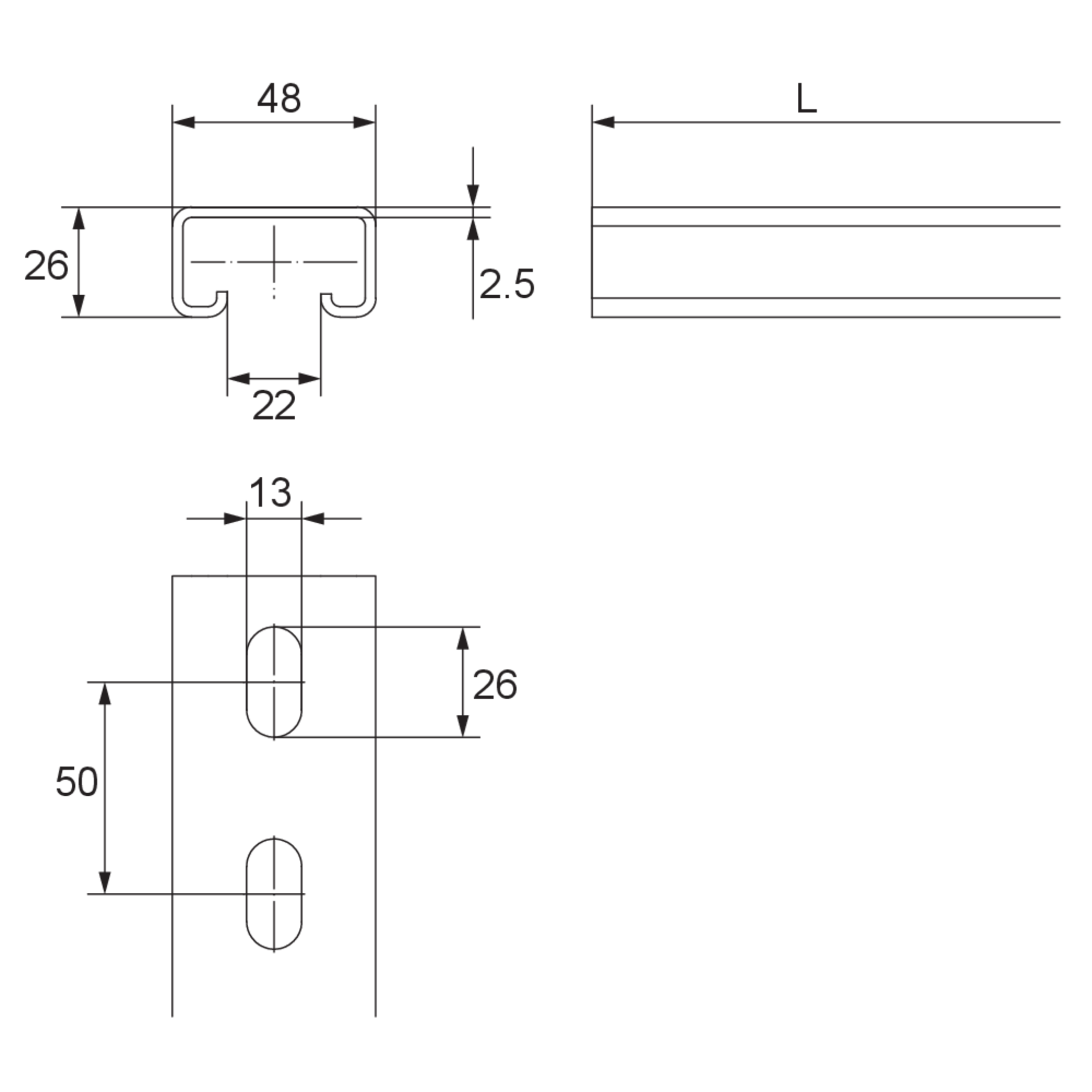

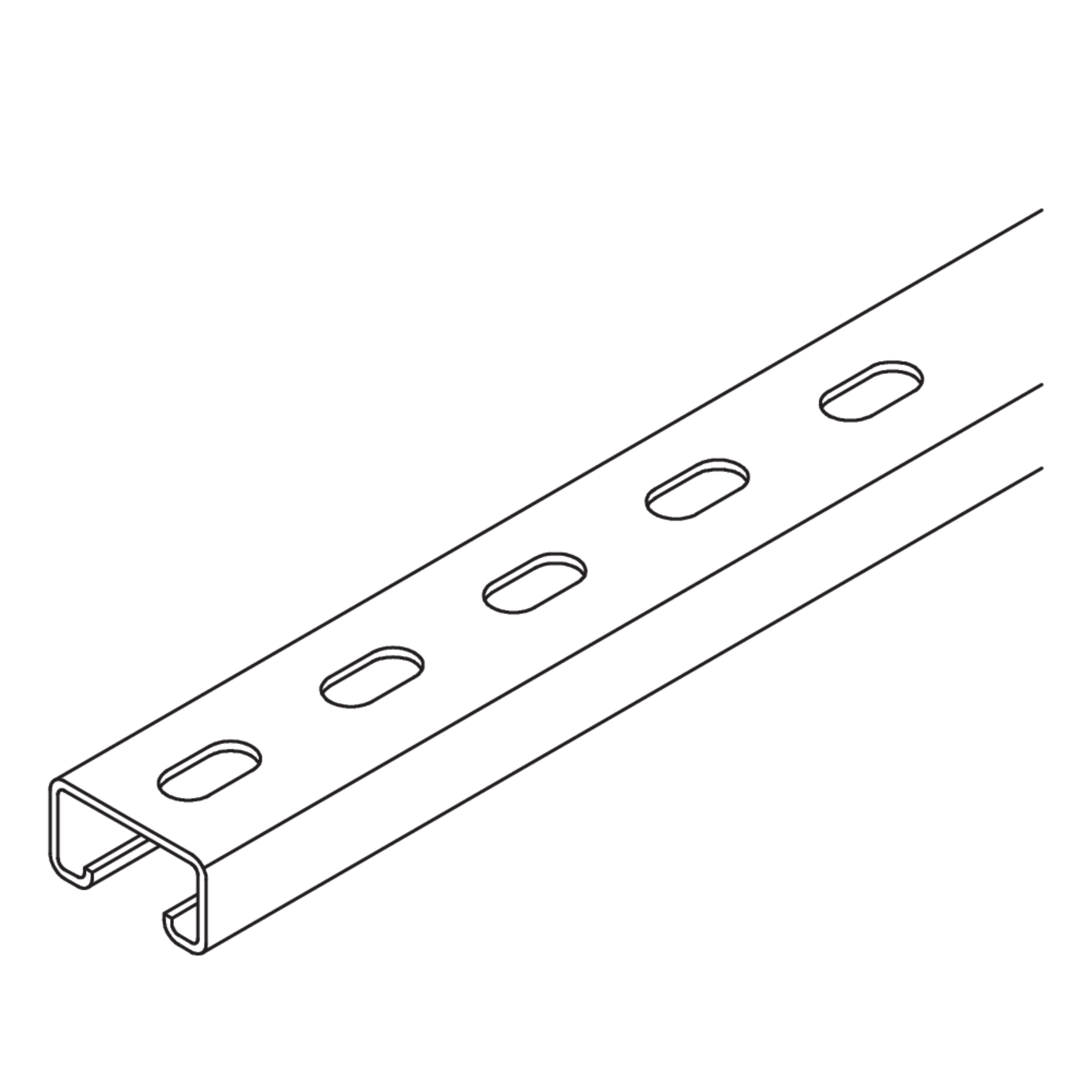

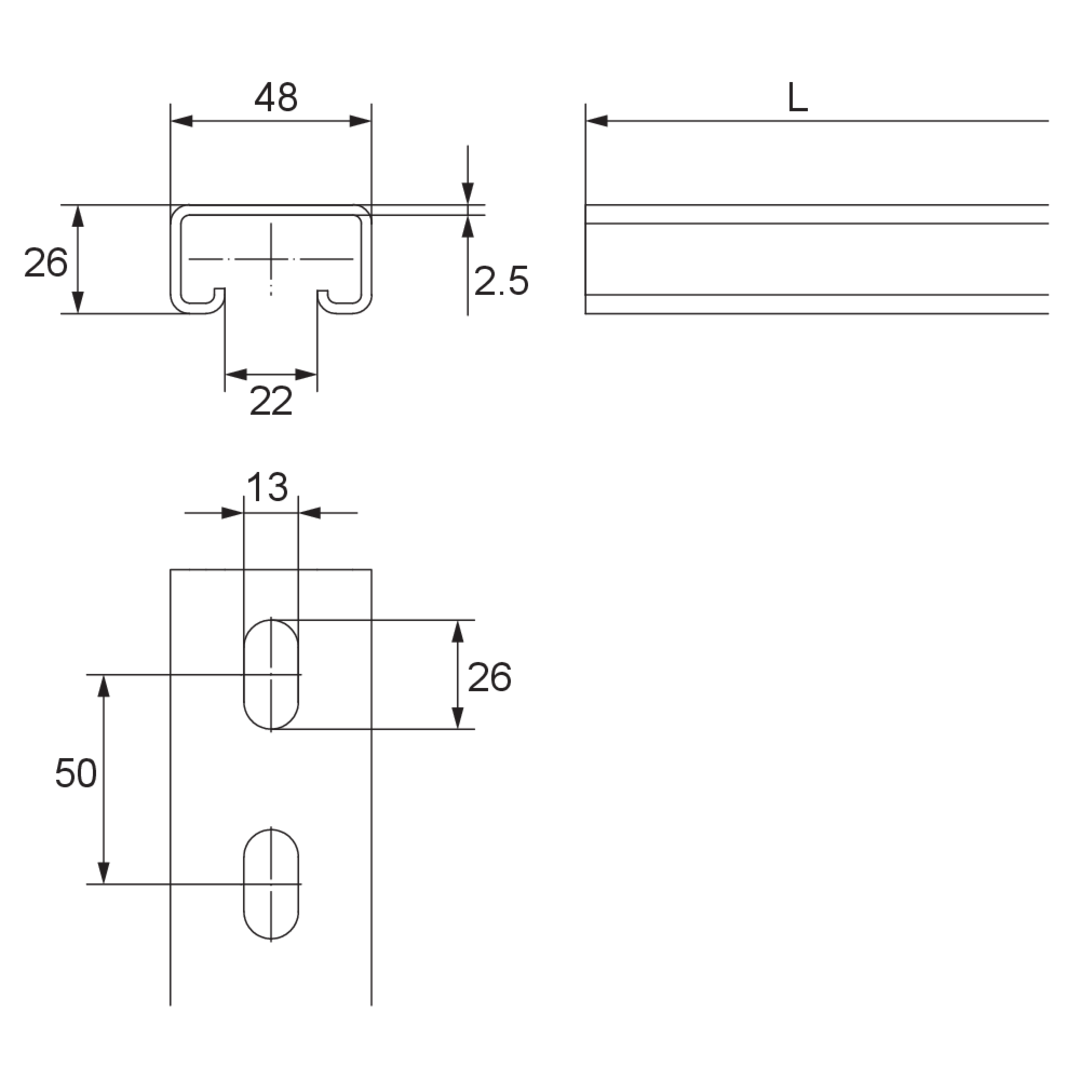

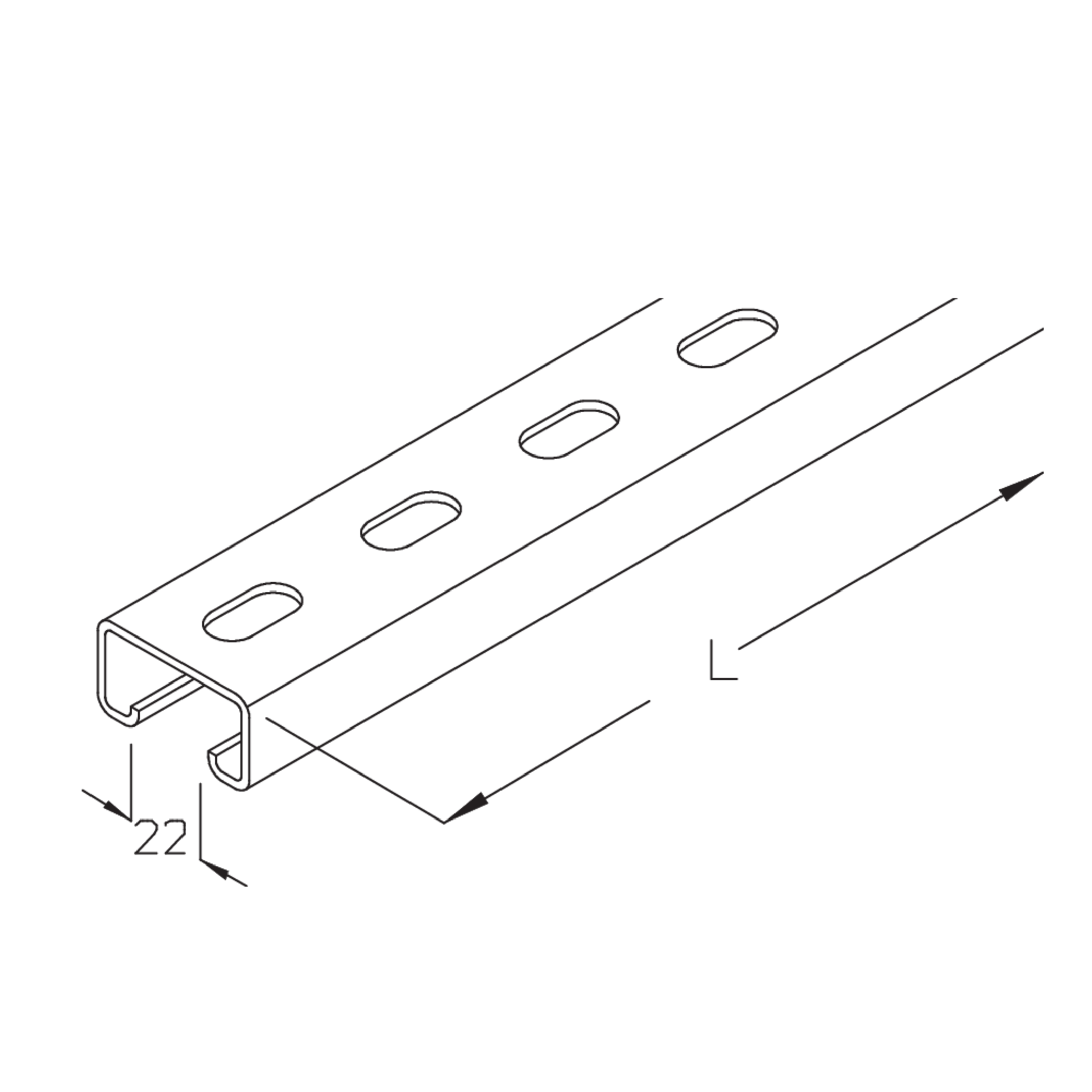

The profile rail KHA 4 consists of a C+ profile 48 x 26 mm with continuous perforation and a slot width of 22 mm (material thickness = 2.5 mm). It is made of hot-dip galvanised steel and is available in lengths of 3000 or 6000 mm.

Get in touch Download datasheet

Variants

steel, batch/hot-dip galvanized

Article

HP

profile height

BP

profile width

L

length

t

material thickness

G

Weight per storage unit
  • KHA 4-30F
    Bracket support KHA 4-30F
    26 mm
    48 mm
    3000 mm
    2.50 mm
    6.800 kg
    More information
  • KHA 4-60F
    Bracket support KHA 4-60F
    26 mm
    48 mm
    6000 mm
    2.50 mm
    13.600 kg
    More information
