KDU 57

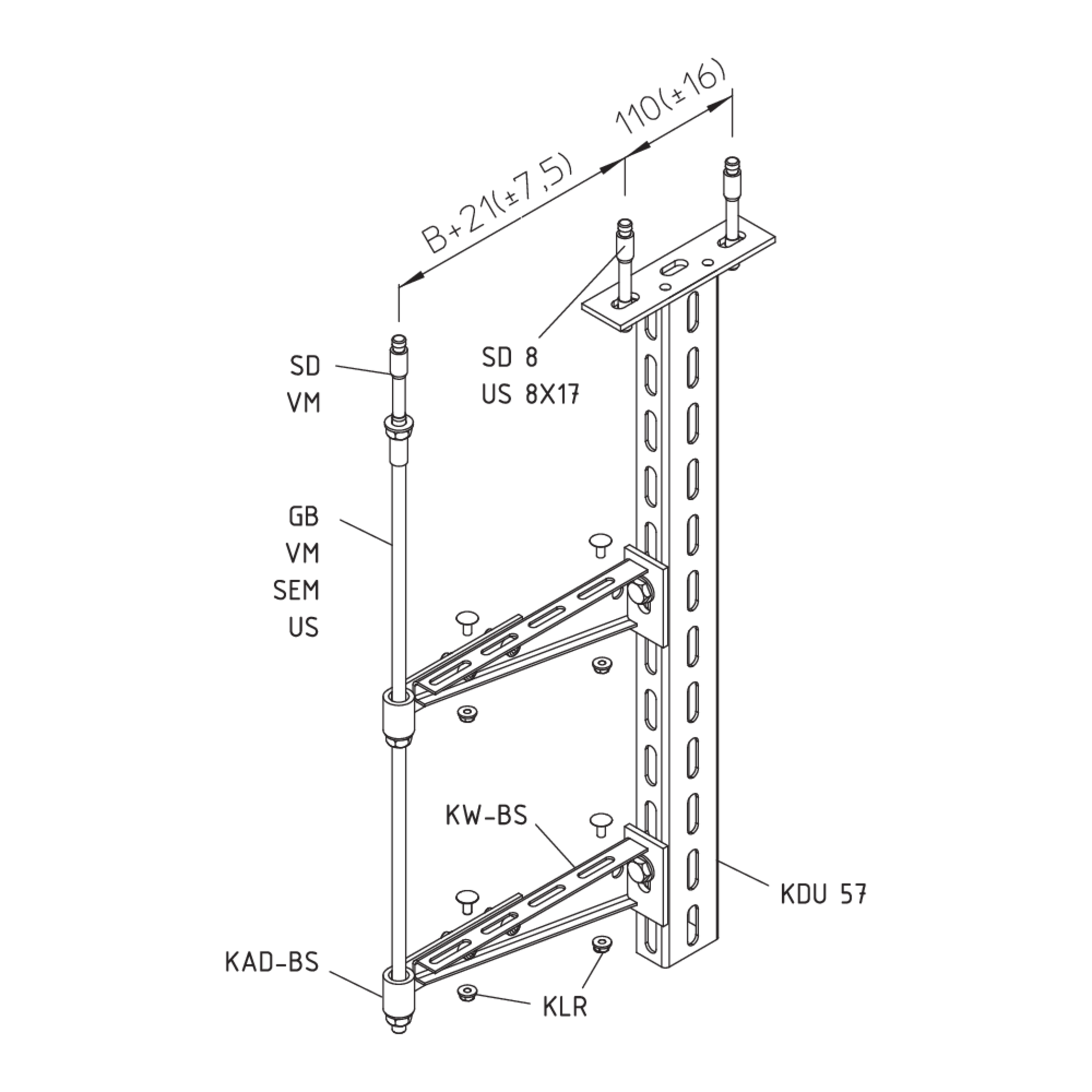

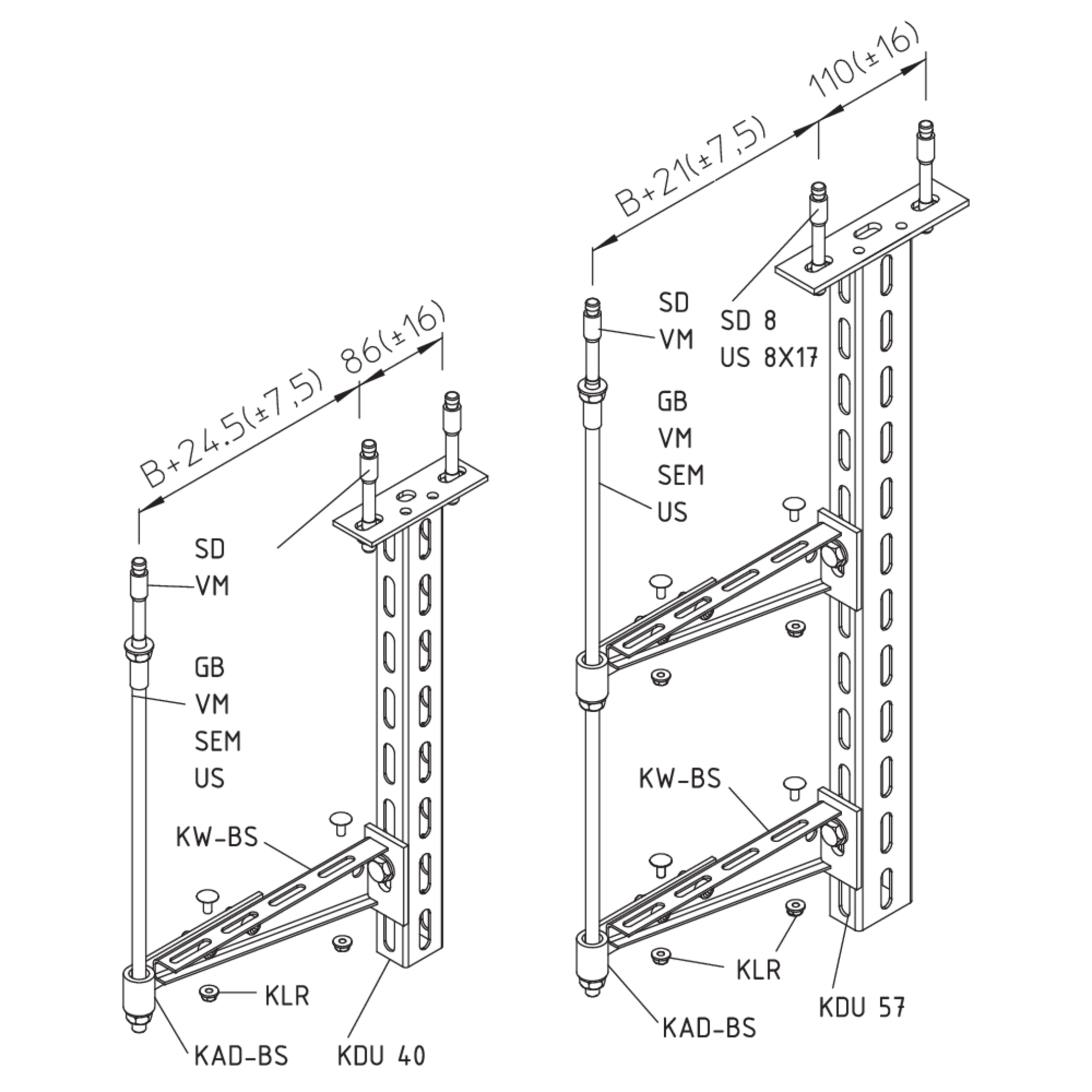

Bracket holder, 57x30 mm for escape route installation

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

H

height

HP

profile height

B

width

BP

profile width

L

length

t

material thickness

G

Weight per storage unit

  • KDU 57-02F
    Bracket Support KDU 57-02F
    height
    30 mm
    profile height
    30 mm
    width
    57 mm
    profile width
    57 mm
    length
    200 mm
    material thickness
    5.00 mm
    Weight per storage unit
    0.590 kg
    More information
  • KDU 57-03F
    Bracket Support KDU 57-03F
    height
    30 mm
    profile height
    30 mm
    width
    57 mm
    profile width
    57 mm
    length
    300 mm
    material thickness
    5.00 mm
    Weight per storage unit
    0.770 kg
    More information
  • KDU 57-04F
    Bracket Support KDU 57-04F
    height
    30 mm
    profile height
    30 mm
    width
    57 mm
    profile width
    57 mm
    length
    400 mm
    material thickness
    5.00 mm
    Weight per storage unit
    0.950 kg
    More information
  • KDU 57-05F
    Bracket Support KDU 57-05F
    height
    30 mm
    profile height
    30 mm
    width
    57 mm
    profile width
    57 mm
    length
    500 mm
    material thickness
    5.00 mm
    Weight per storage unit
    1.130 kg
    More information
  • KDU 57-06F
    Bracket Support KDU 57-06F
    height
    30 mm
    profile height
    30 mm
    width
    57 mm
    profile width
    57 mm
    length
    600 mm
    material thickness
    5.00 mm
    Weight per storage unit
    1.310 kg
    More information
  • KDU 57-07F
    Bracket Support KDU 57-07F
    height
    30 mm
    profile height
    30 mm
    width
    57 mm
    profile width
    57 mm
    length
    700 mm
    material thickness
    5.00 mm
    Weight per storage unit
    1.490 kg
    More information
  • KDU 57-08F
    Bracket Support KDU 57-08F
    height
    30 mm
    profile height
    30 mm
    width
    57 mm
    profile width
    57 mm
    length
    800 mm
    material thickness
    5.00 mm
    Weight per storage unit
    1.680 kg
    More information
  • KDU 57-09F
    Bracket Support KDU 57-09F
    height
    30 mm
    profile height
    30 mm
    width
    57 mm
    profile width
    57 mm
    length
    900 mm
    material thickness
    5.00 mm
    Weight per storage unit
    1.860 kg
    More information
  • KDU 57-10F
    Bracket Support KDU 57-10F
    height
    30 mm
    profile height
    30 mm
    width
    57 mm
    profile width
    57 mm
    length
    1000 mm
    material thickness
    5.00 mm
    Weight per storage unit
    2.040 kg
    More information
  • KDU 57-11F
    Bracket Support KDU 57-11F
    height
    30 mm
    profile height
    30 mm
    width
    57 mm
    profile width
    57 mm
    length
    1100 mm
    material thickness
    5.00 mm
    Weight per storage unit
    2.220 kg
    More information
  • KDU 57-12F
    Bracket Support KDU 57-12F
    height
    30 mm
    profile height
    30 mm
    width
    57 mm
    profile width
    57 mm
    length
    1200 mm
    material thickness
    5.00 mm
    Weight per storage unit
    2.400 kg
    More information
  • KDU 57-13F
    Bracket Support KDU 57-13F
    height
    30 mm
    profile height
    30 mm
    width
    57 mm
    profile width
    57 mm
    length
    1300 mm
    material thickness
    5.00 mm
    Weight per storage unit
    2.580 kg
    More information
  • KDU 57-14F
    Bracket Support KDU 57-14F
    height
    30 mm
    profile height
    30 mm
    width
    57 mm
    profile width
    57 mm
    length
    1400 mm
    material thickness
    5.00 mm
    Weight per storage unit
    2.770 kg
    More information
  • KDU 57-15F
    Bracket Support KDU 57-15F
    height
    30 mm
    profile height
    30 mm
    width
    57 mm
    profile width
    57 mm
    length
    1500 mm
    material thickness
    5.00 mm
    Weight per storage unit
    2.950 kg
    More information
