JZA K 41/22

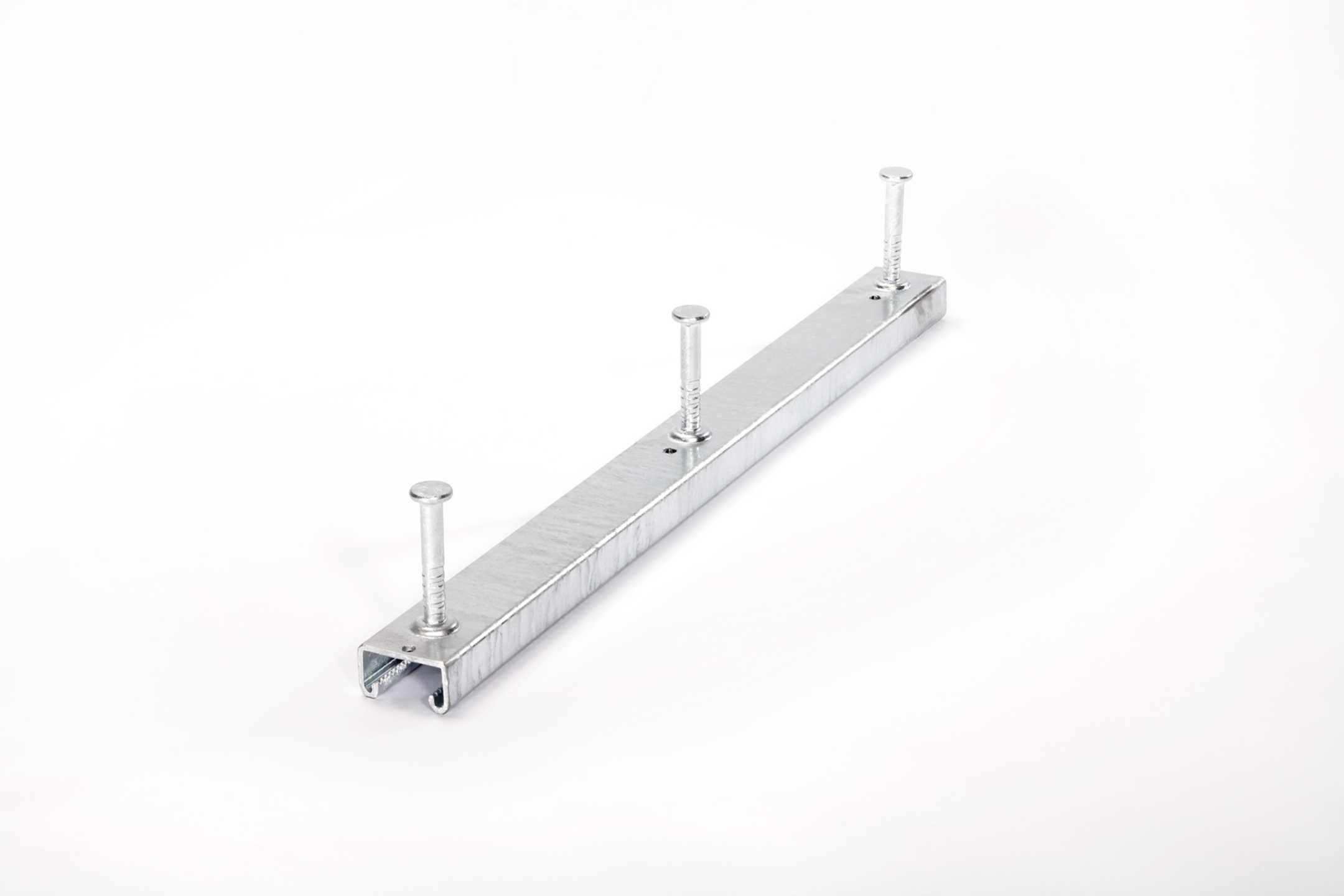

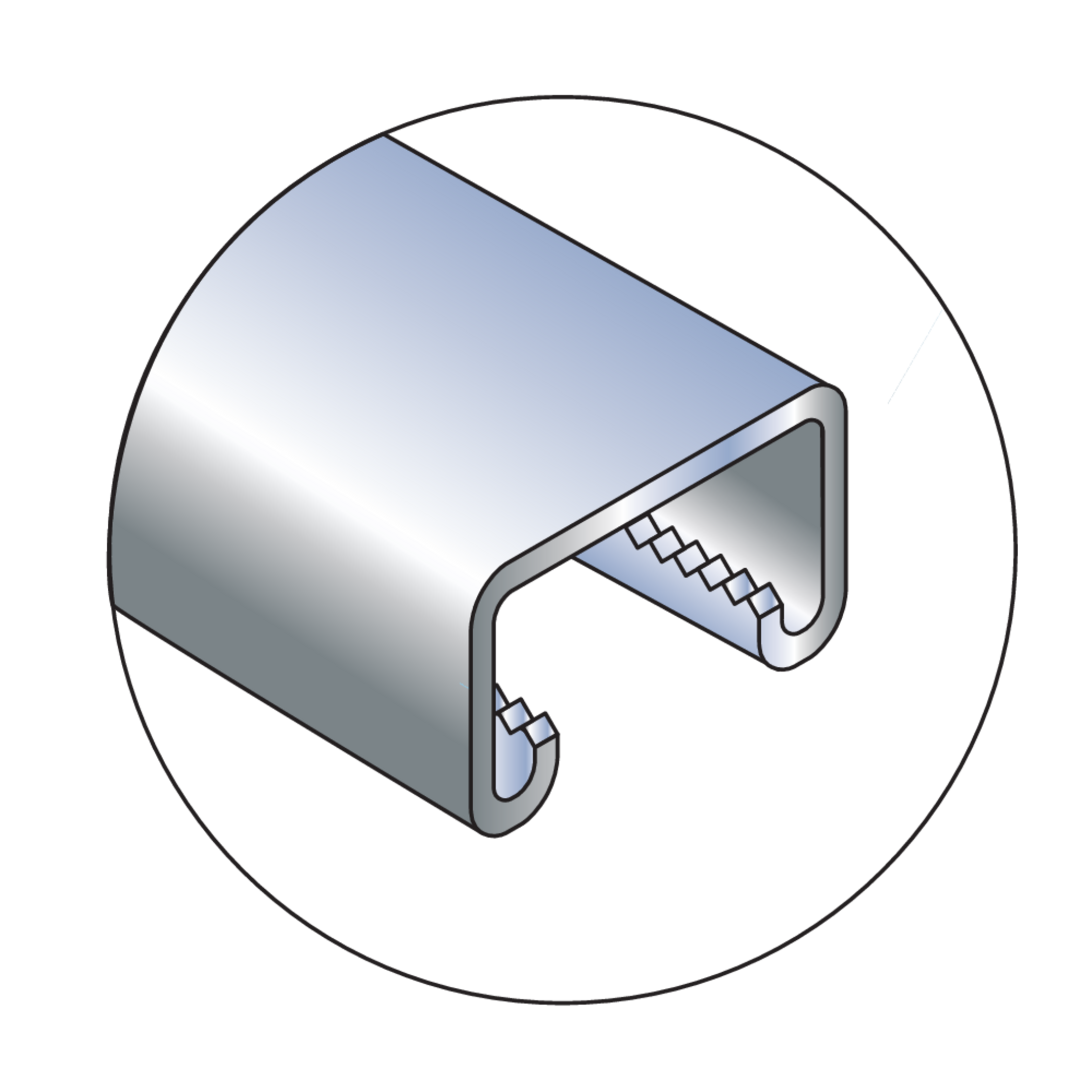

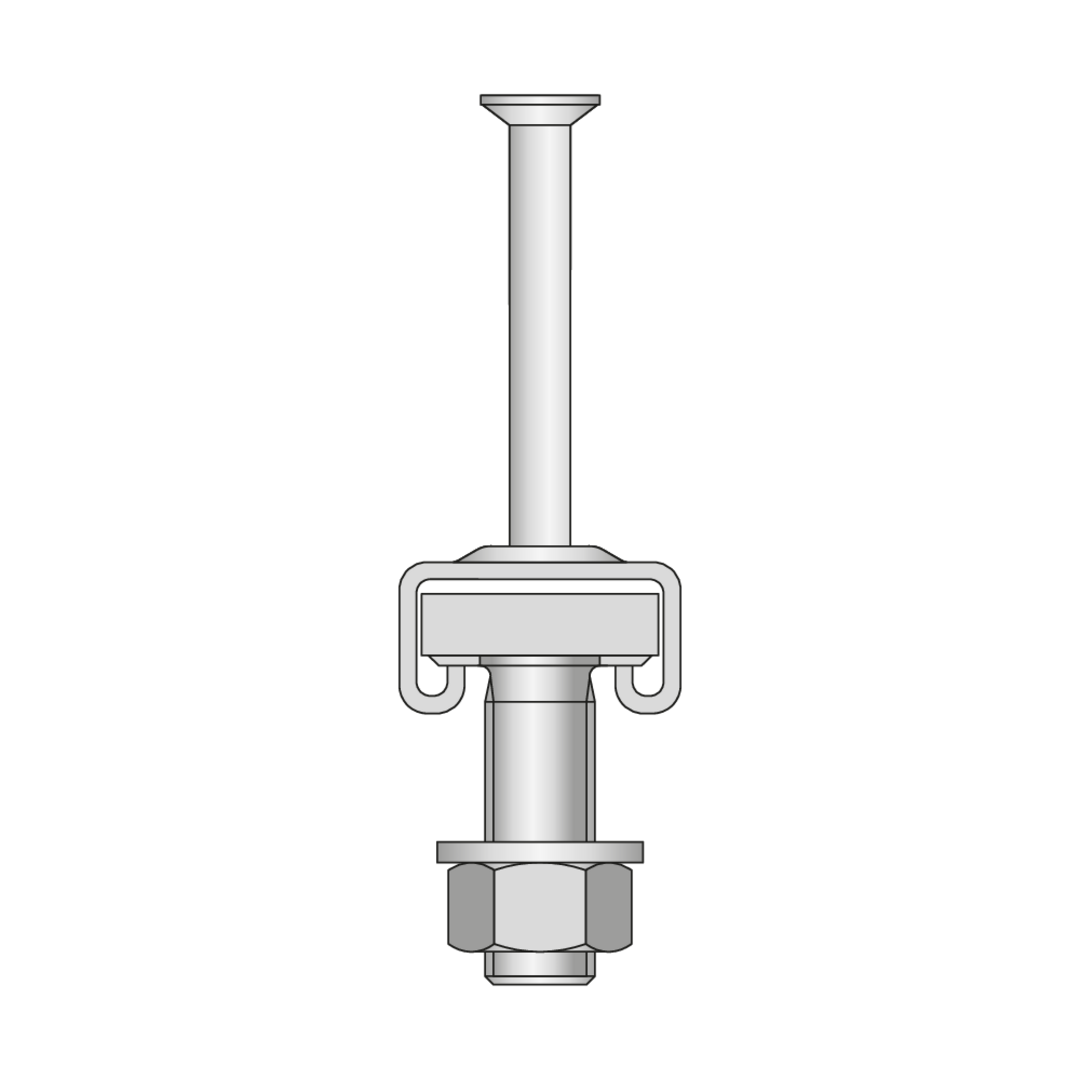

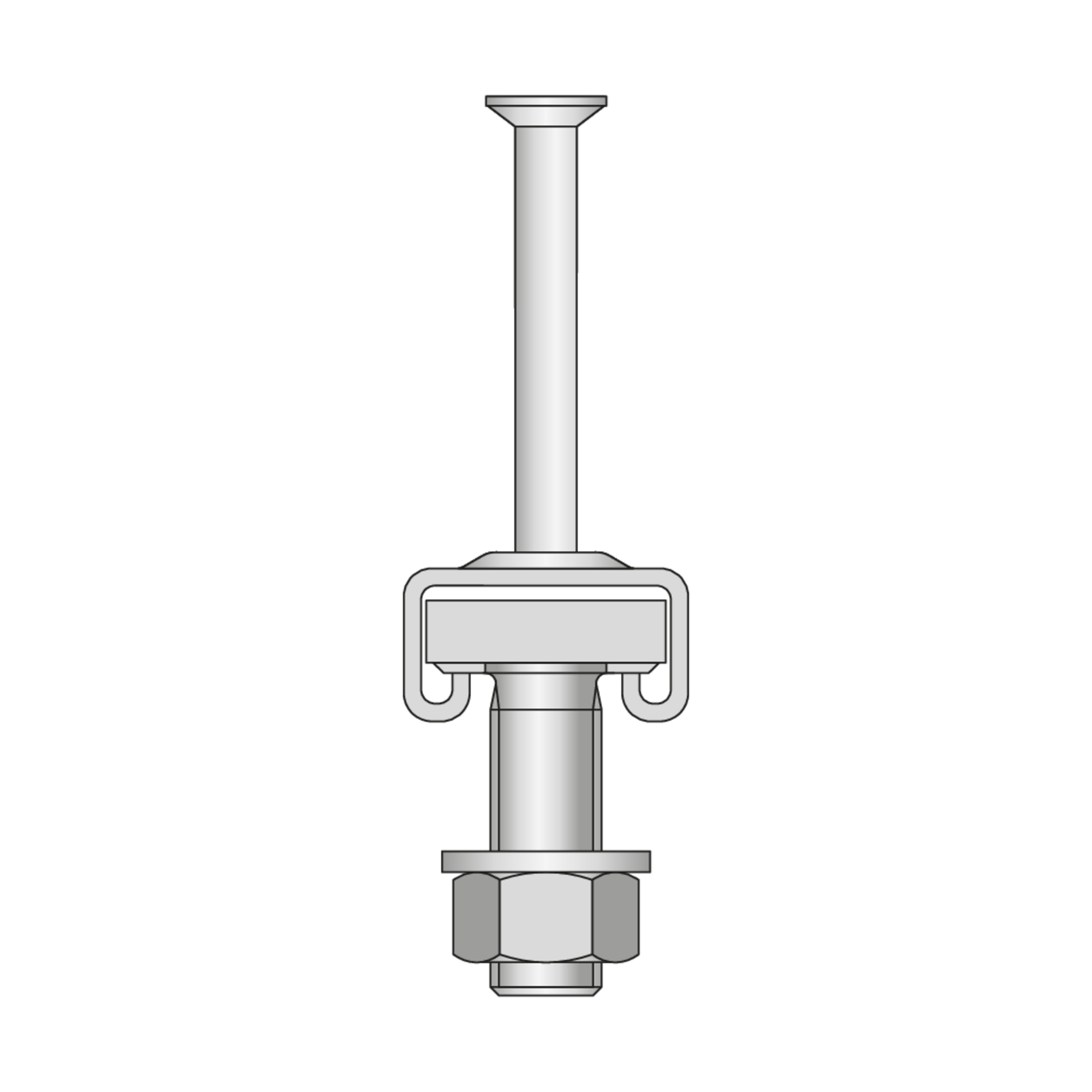

Anchor channel, cold-formed, toothed, with round or I anchor

The anchor channel JZA K 41/22 is approved throughout Europe by ETA-09/0338 and almost worldwide by ICC-ES ESR‐2854. It also has environmental product declaration EPD-JDL-20200260-IBB1-DE. It is made of hot-dip galvanised steel (fv) or stainless steel (A4). The material is 2.5 thick, it can be supplied in any desired length up to a maximum of 6 m and is paired with the bolts JZS M12 - JZS M16. The profile is 41 mm wide and 22 mm high. The filling is made of polyethylene (PE).

Allgemeine bauaufsichtliche Zulassung: Z-21.4-741
Umweltproduktdeklaration (EPD): EPD-JDL-20200260-IBB1-DE
Europäische Technische Bewertung: ETA-09/0338
Get in touch Download datasheet

Variants

steel, batch/hot-dip galvanized

Article

H

HP

BP

L

t

Anzahl der Anker

W

  • ZARK4122 FVK-0100
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    100 mm
    2.5 mm
    2 pcs
    0.296 kg
    More information
  • ZARK4122 FVK-0150
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    150 mm
    2.5 mm
    2 pcs
    0.399 kg
    More information
  • ZARK4122 FVK-0200
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    200 mm
    2.5 mm
    2 pcs
    0.502 kg
    More information
  • ZARK4122 FVK-0250
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    250 mm
    2.5 mm
    2 pcs
    0.605 kg
    More information
  • ZARK4122 FVK-0300
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    300 mm
    2.5 mm
    2 pcs
    0.708 kg
    More information
  • ZARK4122 FVK-0350
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    350 mm
    2.5 mm
    3 pcs
    0.856 kg
    More information
  • ZARK4122 FVK-0400
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    400 mm
    2.5 mm
    3 pcs
    0.959 kg
    More information
  • ZARK4122 FVK-0550
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    550 mm
    2.5 mm
    3 pcs
    1.268 kg
    More information
  • ZARK4122 FVK-0800
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    800 mm
    2.5 mm
    4 pcs
    1.829 kg
    More information
  • ZARK4122 FVK-1050
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    1050 mm
    2.5 mm
    5 pcs
    2.389 kg
    More information
  • ZARK4122 FVK-3000
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    3000 mm
    2.5 mm
    13 pcs
    6.769 kg
    More information
  • ZARK4122 FVK-6000
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    6000 mm
    2.5 mm
    25 pcs
    2.249 kg
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

H

HP

BP

L

t

Anzahl der Anker

W

  • ZARK4122 A4K-0100
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    100 mm
    2.5 mm
    2 pcs
    0.272 kg
    More information
  • ZARK4122 A4K-0150
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    150 mm
    2.5 mm
    2 pcs
    0.367 kg
    More information
  • ZARK4122 A4K-0200
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    200 mm
    2.5 mm
    2 pcs
    0.462 kg
    More information
  • ZARK4122 A4K-0250
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    250 mm
    2.5 mm
    2 pcs
    0.558 kg
    More information
  • ZARK4122 A4K-0300
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    300 mm
    2.5 mm
    2 pcs
    0.653 kg
    More information
  • ZARK4122 A4K-0350
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    350 mm
    2.5 mm
    3 pcs
    0.789 kg
    More information
  • ZARK4122 A4K-0400
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    400 mm
    2.5 mm
    3 pcs
    0.885 kg
    More information
  • ZARK4122 A4K-0550
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    550 mm
    2.5 mm
    3 pcs
    1.171 kg
    More information
  • ZARK4122 A4K-0800
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    800 mm
    2.5 mm
    4 pcs
    1.689 kg
    More information
  • ZARK4122 A4K-1050
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    1050 mm
    2.5 mm
    5 pcs
    2.207 kg
    More information
  • ZARK4122 A4K-3000
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    3000 mm
    2.5 mm
    13 pcs
    6.255 kg
    More information
  • ZARK4122 A4K-6000
    JORDAHL anchor channel toothed K41/22
    90 mm
    22 mm
    41 mm
    6000 mm
    2.5 mm
    25 pcs
    2.078 kg
    More information

Details

  • Allgemeine bauaufsichtliche Zulassung: Z-21.4-741
  • Umweltproduktdeklaration (EPD): EPD-JDL-20200260-IBB1-DE
  • Europäische Technische Bewertung: ETA-09/0338

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • CABR certificate anchor channels JTA, JZA and JXA

    Zertifikat

    PDF, 6 MB

    en
    Download
  • EXPERT Software Anchor channels

    EXPERT Software Anchor channels

    ZIP, 186 MB

    de en

  • Installation instructions Anchor Channels JTA

    Montageanleitung

    PDF, 1 MB

    de en

  • EPD Environmental Product Declaration Channel Systems

    Erklärung

    PDF, 2 MB

    de en

  • Declaration of Performance Anchor Channels JTA JXA JZA

    Erklärung

    PDF, 28 KB

    de en

  • ETA 09/0338 Anchor Channels JTA JXA JZA

    Zulassung

    PDF, 2 MB

    de en

  • Technische Information Channels and Accessories

    Technische Information

    PDF, 14 MB

    de en

  • Anchor Channels for new buildings

    Compact overview

    PDF, 797 KB

    de en

BIM- and CAD-Data

  • BIM Data Anchor Channels JTA (IFC)

    BIM Data Anchor Channels JTA (IFC)

    ZIP, 2 MB

    de en
  • CAD Details Anchor Channels JTA

    CAD Details Anchor Channels JTA

    ZIP, 19 MB

    de en
  • Assembly instruction für device cup UG45

    Assembly instruction für device cup UG45

    ZIP, 15 MB
