JTB-uni

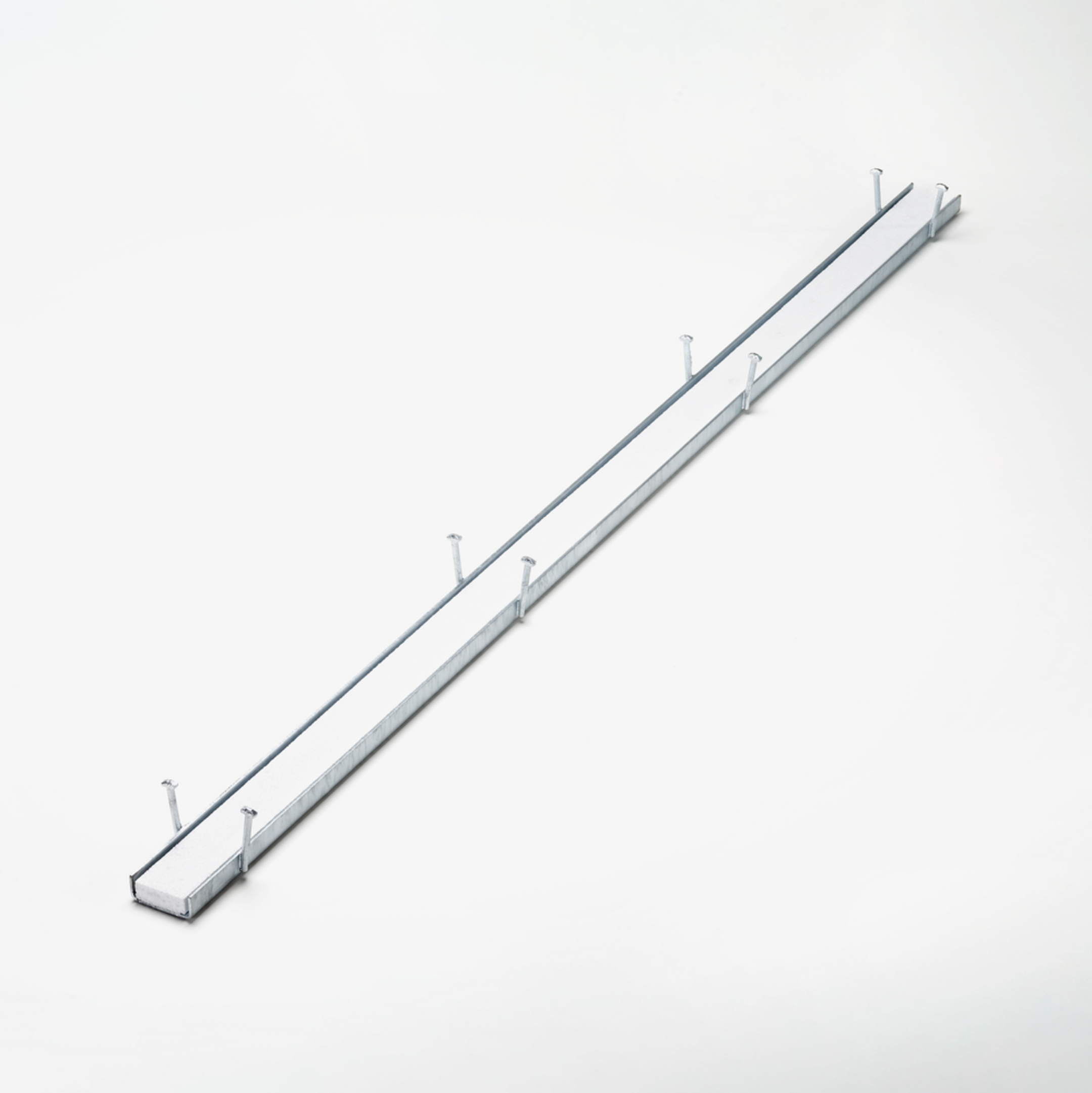

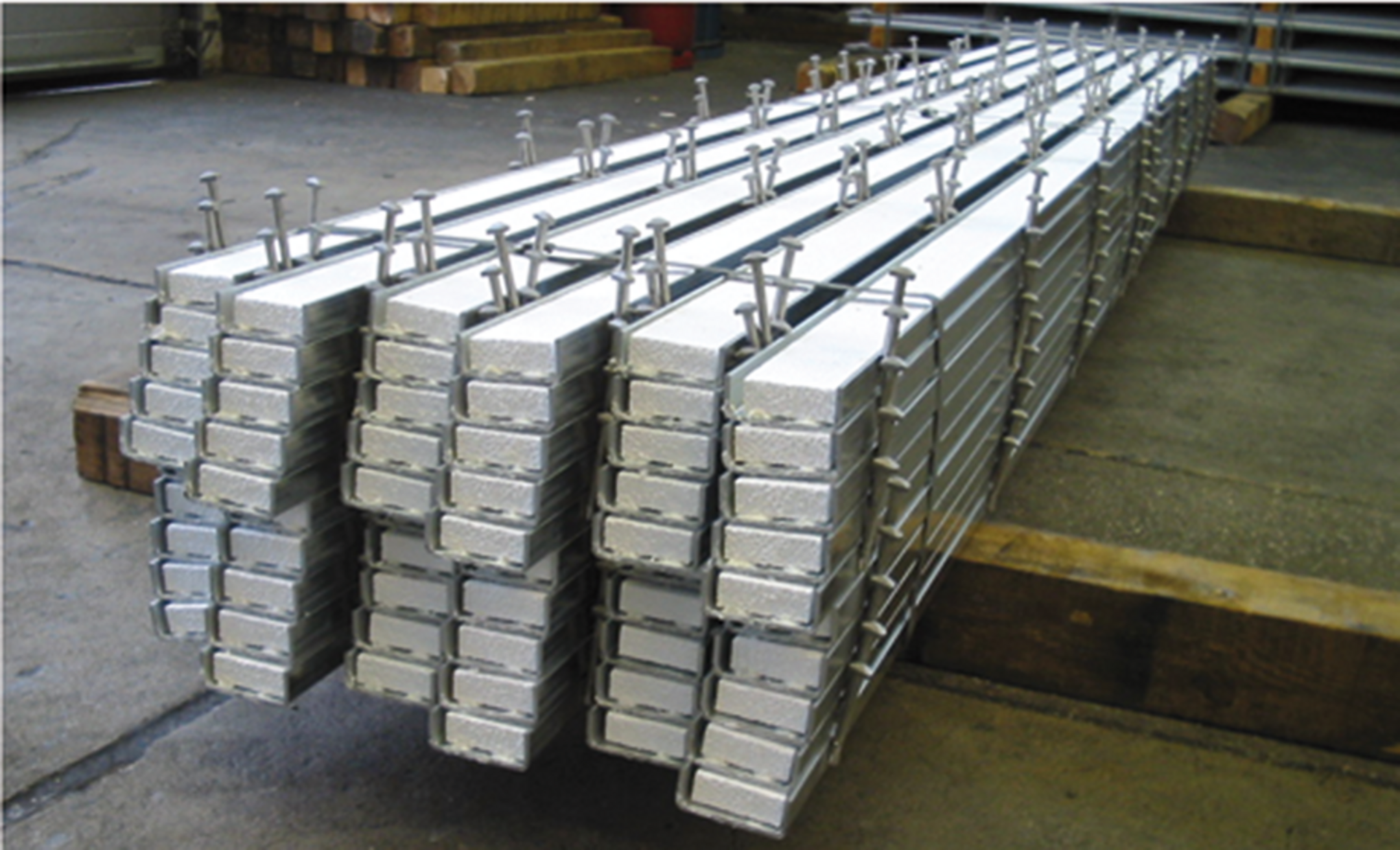

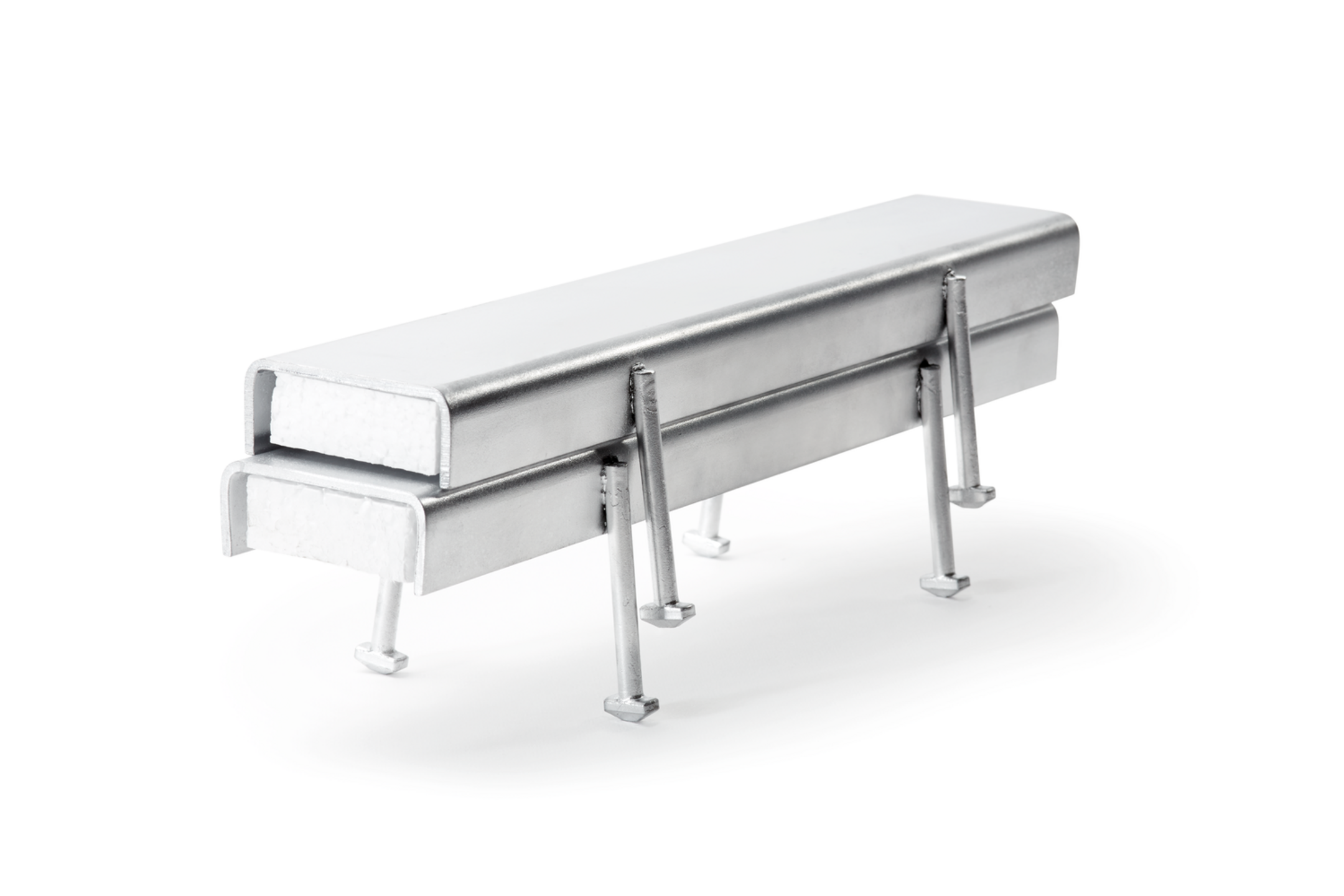

Profiled metal sheet channel rail for fastening profiled sheets to reinforced concrete components

The profiled metal sheet channel JTB-uni is approved by the building supervisory authority (technical approval number: Z-21.4-161. It is made of hot-dip galvanized steel (fv) or stainless steel (A4). With a bearing length of 3000 mm, the channel is available with a profile width of 60 mm. The profile height is 22 mm, the material thickness is 3 mm. Our end anchors are certified as well and available for customized cut-to-length channels. These are fastened to the channels with self-tapping bolts. The filling is made of polystyrene (PS).

Allgemeine bauaufsichtliche Zulassung: Z-21.4-161
Get in touch Download datasheet

Variants

steel, batch/hot-dip galvanized

Article

HP

BP

L

t

Anzahl der Anker

A

W

  • TBBR150 FVG-3000
    JORDAHL profiled metal sheet channels
    22 mm
    60 mm
    3000 mm
    3 mm
    20 pcs
    2.97 cm2
    2.510 kg
    More information
  • TBBR450 FVG-3000
    JORDAHL profiled metal sheet channels
    22 mm
    60 mm
    3000 mm
    3 mm
    8 pcs
    2.97 cm2
    2.380 kg
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

HP

BP

L

t

Anzahl der Anker

A

W

  • TBBR150 A4G-3000
    JORDAHL profiled metal sheet channels
    22 mm
    60 mm
    3000 mm
    3 mm
    20 pcs
    2.97 cm2
    2.510 kg
    More information
  • TBBR450 A4G-3000
    JORDAHL profiled metal sheet channels
    22 mm
    60 mm
    3000 mm
    3 mm
    8 pcs
    2.97 cm2
    2.380 kg
    More information

Details

  • Allgemeine bauaufsichtliche Zulassung: Z-21.4-161

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • Technische Information Channels and Accessories

    Technische Information

    PDF, 14 MB

    de en

  • Profiled metal sheet channels JTB - Assembly instructions

    Assembly instructions for: JTB-AR, JTB-uni and JTB-LA

    PDF, 356 KB

    de en

  • Certificate of conformity for JTB

    Zertifikat

    PDF, 72 KB

    de en

  • Allgemeine bauaufsichtliche Zulassung für JTB-LA

    Allgemeine bauaufsichtliche Zulassung (AbZ) Z-21.4-161 für Trapezblechbefestigungsschiene JTB, gültig bis 3. August 2029

    PDF, 1,016 KB

    de
    Download

BIM- and CAD-Data

  • CAD for Profiled metal sheet channels JTB-AR and JTB-uni

    CAD for Profiled metal sheet channels JTB-AR and JTB-uni

    CAD data

    ZIP, 77 KB

    de en
  • BIM for Profiled metal sheet channels JTB-AR and JTB-uni

    BIM for Profiled metal sheet channels JTB-AR and JTB-uni

    BIM data

    ZIP, 447 KB

    de en
