JTA W 72/48

Anchor channel, hot-rolled, with round or I anchor

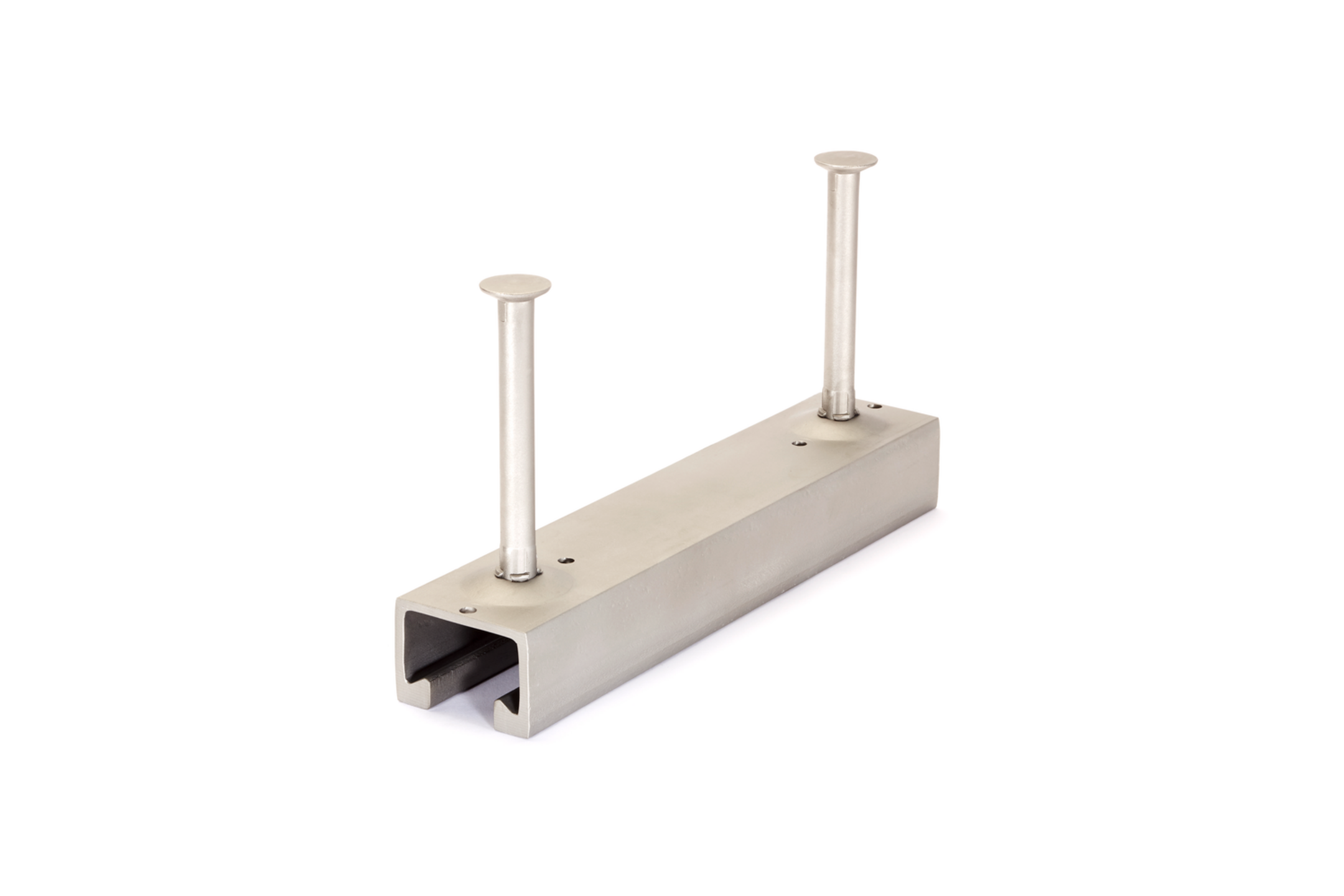

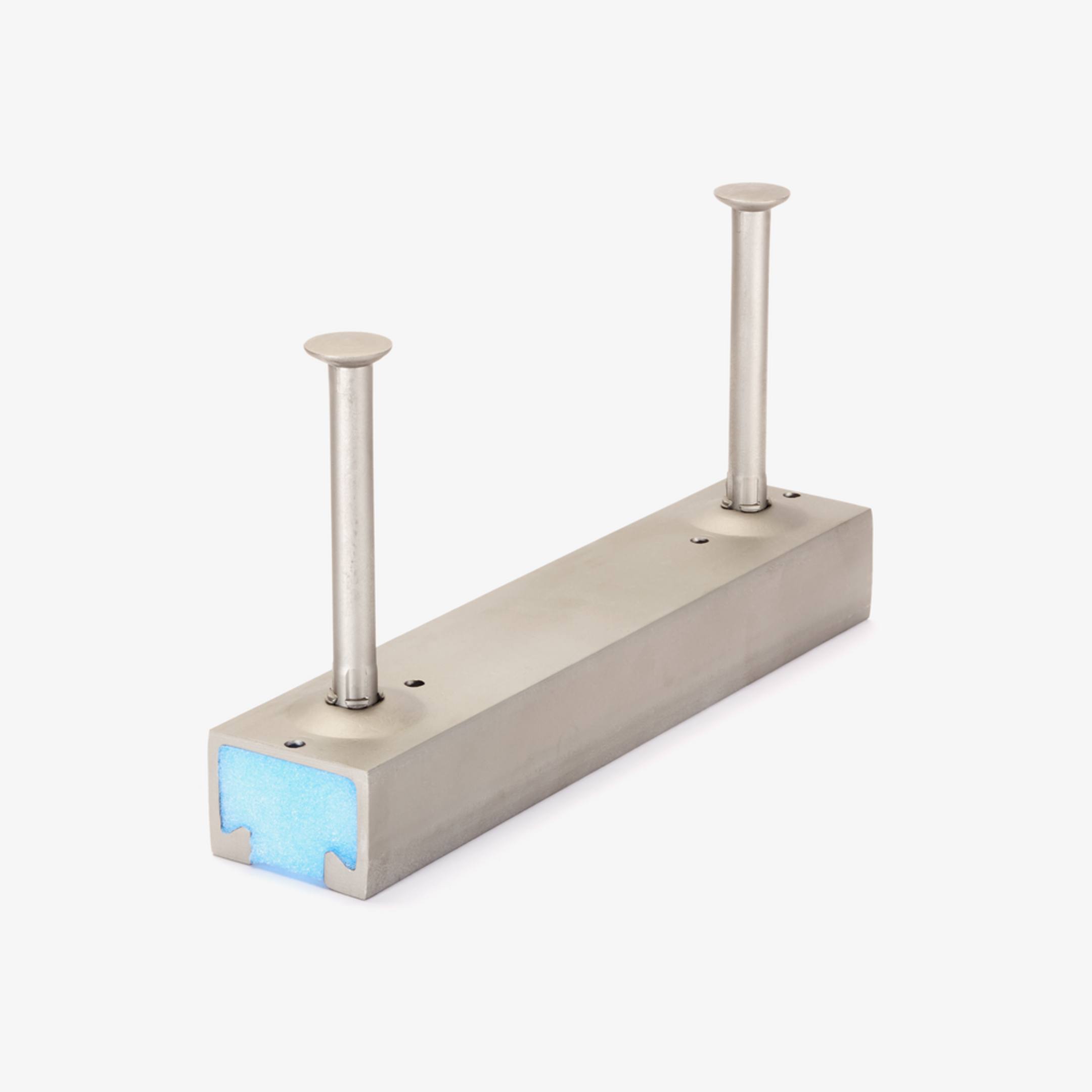

The anchor channel JTA W 72/48 is approved throughout Europe by ETA-09/0338 and almost worldwide by ICC-ES ESR‐2854. It also has environmental product declaration EPD-JDL-20200260-IBB1-DE. It is made of hot-dip galvanised steel (fv) or stainless steel (A4). It can be supplied in any desired length up to a maximum of 6 m and is paired with the bolts JA M20 - JA M30. The profile is 72 mm wide and 48 mm high. The filling is made of polyethylene (PE).

Brandschutz
Umweltproduktdeklaration (EPD): EPD-JDL-20200260-IBB1-DE
Europäische Technische Bewertung: ETA-09/0338
Get in touch Download datasheet

Variants

steel, batch/hot-dip galvanized

Article

H

HP

BP

L

t

Anzahl der Anker

W

  • JTAW7248-0150-FVKCE
    JORDAHL anchor channel W72/48
    195 mm
    48 mm
    72 mm
    150 mm
    5 mm
    2 pcs
    2.062 kg
    More information
  • JTAW7248-0200-FVKCE
    JORDAHL anchor channel W72/48
    195 mm
    48 mm
    72 mm
    200 mm
    5 mm
    2 pcs
    2.548 kg
    More information
  • JTAW7248-0250-FVKCE
    JORDAHL anchor channel W72/48
    195 mm
    48 mm
    72 mm
    250 mm
    5 mm
    2 pcs
    3.035 kg
    More information
  • JTAW7248-0300-FVKCE
    JORDAHL anchor channel W72/48
    195 mm
    48 mm
    72 mm
    300 mm
    5 mm
    2 pcs
    3.521 kg
    More information
  • JTAW7248-0350-FVKCE
    JORDAHL anchor channel W72/48
    195 mm
    48 mm
    72 mm
    350 mm
    5 mm
    2 pcs
    4.007 kg
    More information
  • JTAW7248-0400-FVKCE
    JORDAHL anchor channel W72/48
    195 mm
    48 mm
    72 mm
    400 mm
    5 mm
    3 pcs
    4.795 kg
    More information
  • JTAW7248-0550-FVKCE
    JORDAHL anchor channel W72/48
    195 mm
    48 mm
    72 mm
    550 mm
    5 mm
    3 pcs
    6.254 kg
    More information
  • JTAW7248-0800-FVKCE
    JORDAHL anchor channel W72/48
    195 mm
    48 mm
    72 mm
    800 mm
    5 mm
    4 pcs
    8.988 kg
    More information
  • JTAW7248-1050-FVKCE
    JORDAHL anchor channel W72/48
    195 mm
    48 mm
    72 mm
    1050 mm
    5 mm
    5 pcs
    11.721 kg
    More information
  • JTAW7248-6000-FVKCE
    JORDAHL anchor channel W72/48
    195 mm
    48 mm
    72 mm
    6000 mm
    5 mm
    21 pcs
    10.783 kg
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

H

HP

BP

L

t

Anzahl der Anker

W

  • JTAW7248-6000-A4KCE
    JORDAHL anchor channel W72/48
    195 mm
    48 mm
    72 mm
    6000 mm
    5 mm
    21 pcs
    9.990 kg
    More information

Details

  • Brandschutz
  • Umweltproduktdeklaration (EPD): EPD-JDL-20200260-IBB1-DE
  • Europäische Technische Bewertung: ETA-09/0338

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • CABR certificate anchor channels JTA, JZA and JXA

    Zertifikat

    PDF, 6 MB

    en
    Download
  • EXPERT Software Anchor channels

    EXPERT Software Anchor channels

    ZIP, 186 MB

    de en

  • Installation instructions Anchor Channels JTA

    Montageanleitung

    PDF, 1 MB

    de en

  • Processing note cutting of anchor channels JTA and JXA

    Erklärung

    PDF, 90 KB

    de en

  • EPD Environmental Product Declaration Channel Systems

    Erklärung

    PDF, 2 MB

    de en

  • Declaration of Performance Anchor Channels JTA JXA JZA

    Erklärung

    PDF, 28 KB

    de en

  • ETA 09/0338 Anchor Channels JTA JXA JZA

    Zulassung

    PDF, 2 MB

    de en

  • Technische Information Channels and Accessories

    Technische Information

    PDF, 14 MB

    de en

  • Anchor Channels for new buildings

    Compact overview

    PDF, 797 KB

    de en

BIM- and CAD-Data

  • BIM Data Anchor Channels JTA (IFC)

    BIM Data Anchor Channels JTA (IFC)

    ZIP, 2 MB

    de en
  • CAD Details Anchor Channels JTA

    CAD Details Anchor Channels JTA

    ZIP, 19 MB

    de en
  • BIM Data Connection Straps JVB

    BIM Data Connection Straps JVB

    ZIP, 715 KB

    de en
  • Assembly instruction für device cup UG45

    Assembly instruction für device cup UG45

    ZIP, 15 MB

    de en
