JLF-40-1
Liftschachtanker JLF 401.494 kg
JLF40
Lift shaft anchor

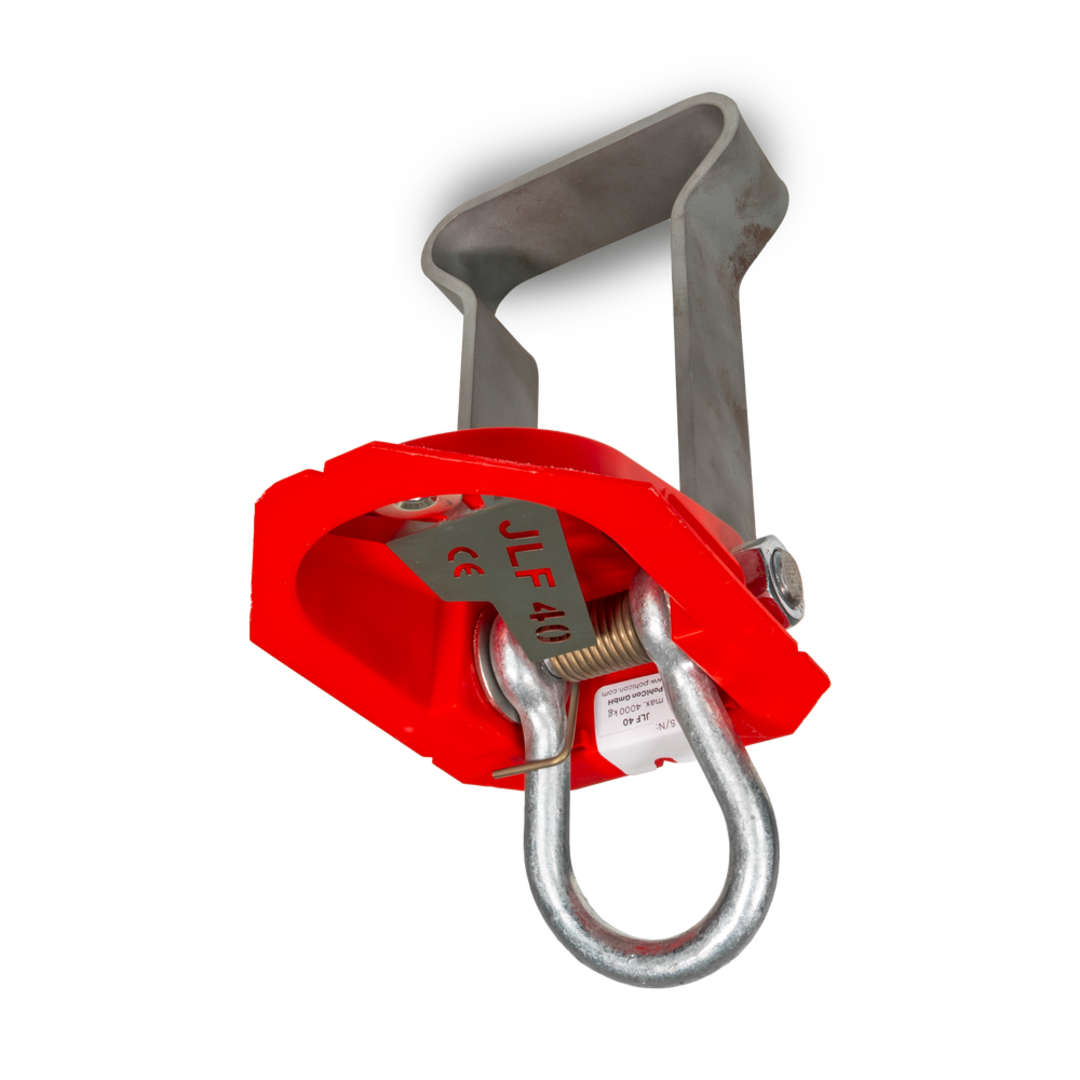

The lift shaft anchor JLF40 is approved throughout Europe in accordance with ETA-21/1071. The load-bearing components (anchor and shackle) are made of steel. The stirrup anchor with an installation depth of 190 mm ensures a secure and permanent connection in the concrete. The lift shaft anchor is suitable for centric tensile loads and thus for an inclined tensile load of up to ± 5°. It has a load capacity of up to 40 kN, which can also be recognised by the colour of the plastic housing.
