JG-H

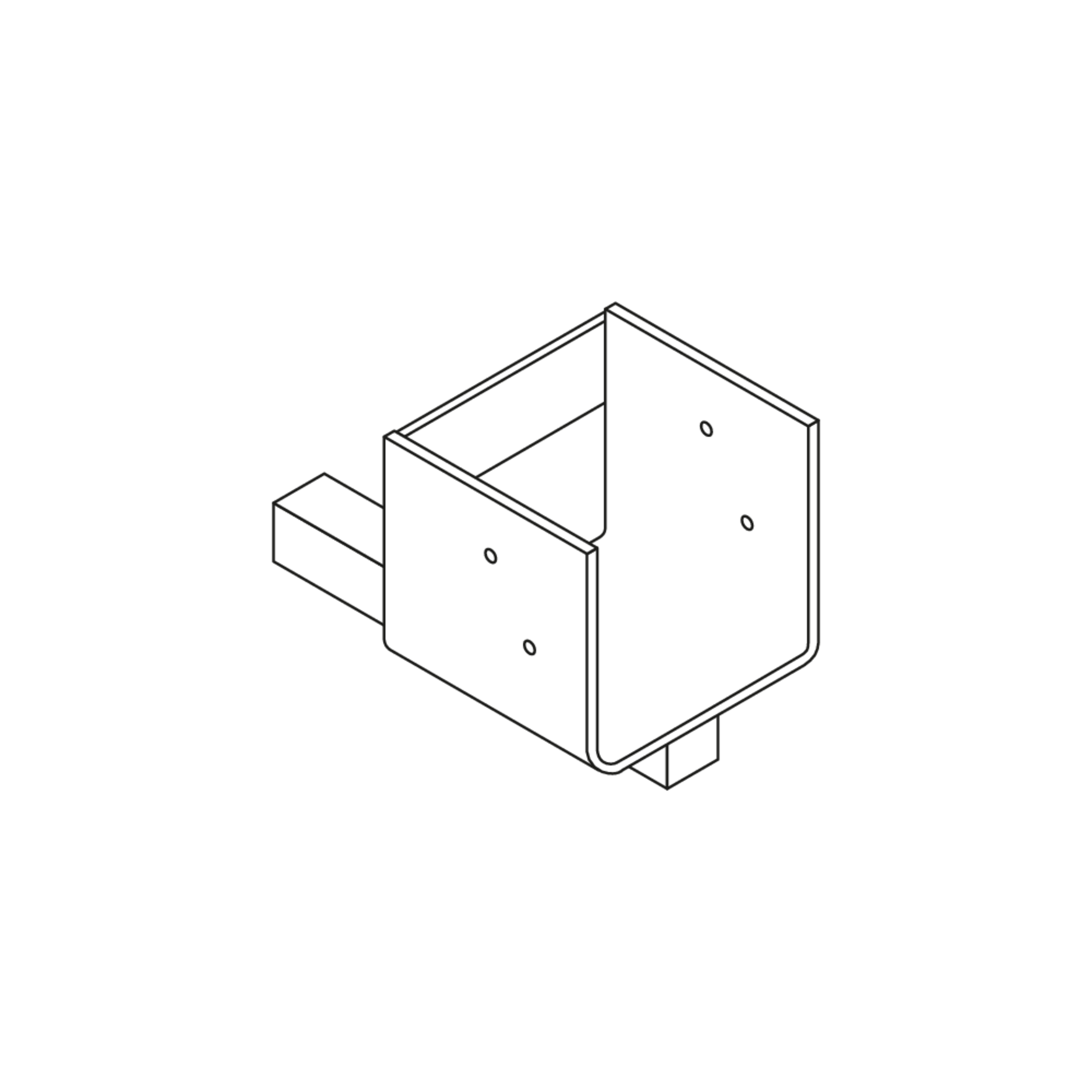

Scaffold shoes for the safe installation of working scaffolds in elevator shafts

The scaffold shoe JG-H is type-tested with the TÜV certificate R 60085529. It is made from steel. The scaffold shoe has a coloured anti-corrosion coating corresponding to the load level. Its load capacity VRd is 4.2 to 18.5 kN, depending on the type. As a rule, it is designed for squared timber widths of 100 mm. Widths of 120 mm are also possible on request.

Type approved: R 60085529
Get in touch Download datasheet

Variants

Article

H

height

B

width

L

length

colour

color

G

Weight per storage unit
  • GH2.5
    JORDAHL frame shoes H2.5
    height
    125 mm
    width
    120 mm
    length
    194 mm
    color
    gray
    Weight per storage unit
    2.530 kg
    More information
  • GH5/9
    JORDAHL frame shoes H5/9
    height
    130 mm
    width
    12 mm
    length
    194 mm
    color
    blue
    Weight per storage unit
    3.080 kg
    More information

Details

  • Type approved: R 60085529

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • Technical information Channels and Accessories

    Technical information

    PDF, 14 MB

    de en

  • Installation Instruction Scaffolding Base JG

    Montageanleitung

    PDF, 124 KB

    de
    Download
