JBRMQ

Fire-protection collar

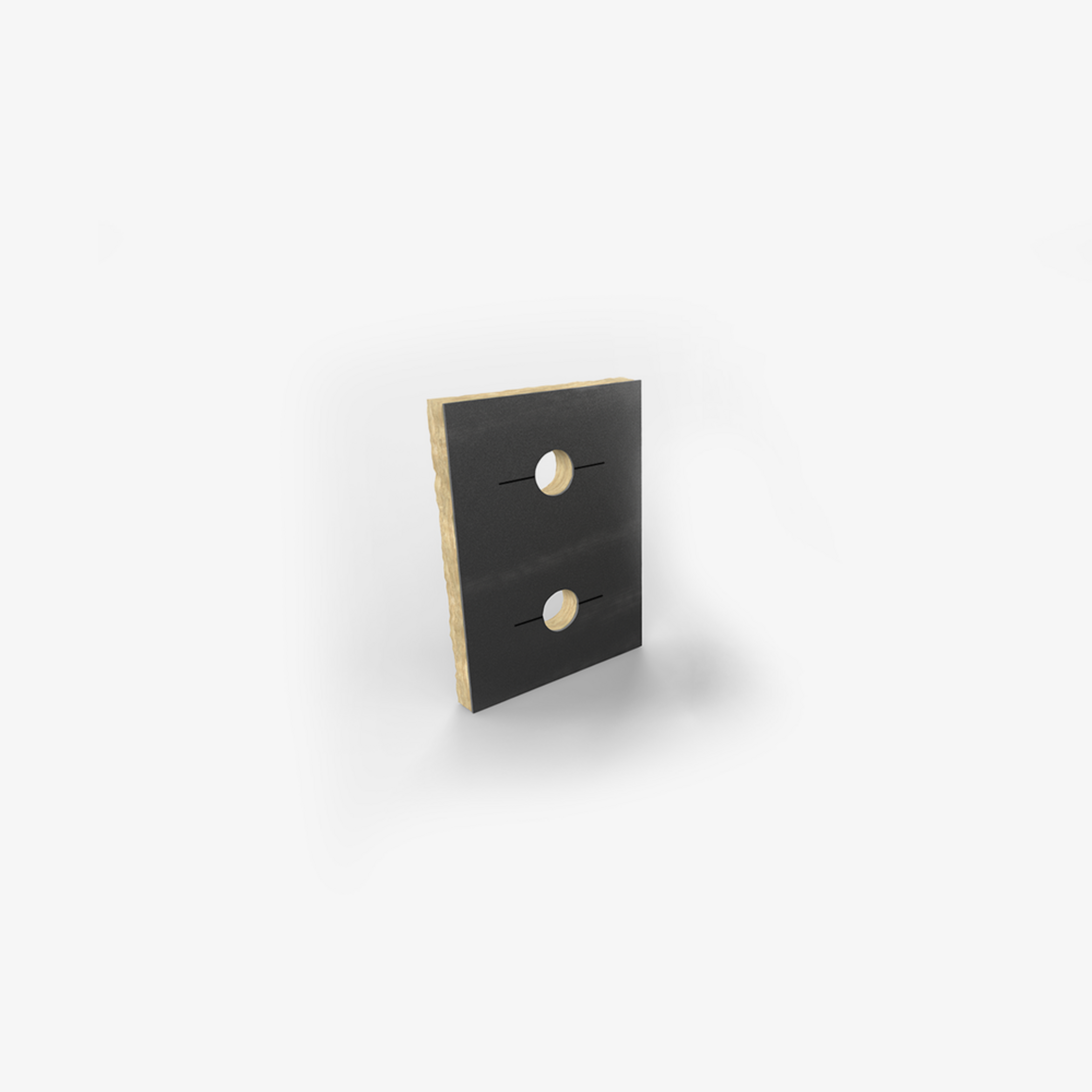

The fire protection collar JBRMQ is a mineral wool insulation board with a coating on one side and is mounted on the JDSDQ double shear connector. As a system solution, it meets high fire protection requirements and has a fire resistance of 120 minutes (R120) in accordance with DIN EN 13501-2. The coating foams up in case of fire and completely seals the joint. The fire protection collar is available in versions 20 and 30 mm thick for the corresponding joint widths. Fire protection collars can be combined to protect larger joint widths. A maximum clearance of 10 mm is permitted in the joint. The fire protection collars are designed for different mandrel sizes.

Fire protection
Get in touchDownload datasheet

Variants

Article

H

height

B

width

L

length

G

Weight per storage unit

  • BRMQ120-20
    JORDAHL fire protection collars R90
    height
    210 mm
    width
    150 mm
    length
    20 mm
    Weight per storage unit
    0.184 kg
    More information
  • BRMQ120-30
    JORDAHL fire protection collars R90
    height
    210 mm
    width
    150 mm
    length
    30 mm
    Weight per storage unit
    0.236 kg
    More information
  • BRMQ130-20
    JORDAHL fire protection collars R90
    height
    220 mm
    width
    150 mm
    length
    20 mm
    Weight per storage unit
    0.193 kg
    More information
  • BRMQ150-20
    JORDAHL fire protection collars R90
    height
    245 mm
    width
    150 mm
    length
    20 mm
    Weight per storage unit
    0.215 kg
    More information
  • BRMQ150-30
    JORDAHL fire protection collars R90
    height
    245 mm
    width
    150 mm
    length
    30 mm
    Weight per storage unit
    0.275 kg
    More information
  • BRMQ2530-20
    JORDAHL fire protection collars R90
    height
    150 mm
    width
    120 mm
    length
    20 mm
    Weight per storage unit
    0.105 kg
    More information
  • BRMQ2530-30
    JORDAHL fire protection collars R90
    height
    150 mm
    width
    120 mm
    length
    30 mm
    Weight per storage unit
    0.135 kg
    More information
  • BRMQ400-20
    JORDAHL fire protection collars R90
    height
    295 mm
    width
    200 mm
    length
    20 mm
    Weight per storage unit
    0.346 kg
    More information
  • BRMQ45-20
    JORDAHL fire protection collars R90
    height
    165 mm
    width
    120 mm
    length
    20 mm
    Weight per storage unit
    0.116 kg
    More information
  • BRMQ45-30
    JORDAHL fire protection collars R90
    height
    165 mm
    width
    120 mm
    length
    30 mm
    Weight per storage unit
    0.148 kg
    More information
  • BRMQ450-20
    JORDAHL fire protection collars R90
    height
    325 mm
    width
    200 mm
    length
    20 mm
    Weight per storage unit
    0.381 kg
    More information
  • BRMQ450-30
    JORDAHL fire protection collars R90
    height
    325 mm
    width
    200 mm
    length
    30 mm
    Weight per storage unit
    0.487 kg
    More information
  • BRMQ60-20
    JORDAHL fire protection collars R90
    height
    180 mm
    width
    130 mm
    length
    20 mm
    Weight per storage unit
    0.137 kg
    More information
  • BRMQ60-30
    JORDAHL fire protection collars R90
    height
    180 mm
    width
    130 mm
    length
    30 mm
    Weight per storage unit
    0.175 kg
    More information
  • BRMQ90-20
    JORDAHL fire protection collars R90
    height
    195 mm
    width
    130 mm
    length
    20 mm
    Weight per storage unit
    0.148 kg
    More information
  • BRMQ90-30
    JORDAHL fire protection collars R90
    height
    195 mm
    width
    130 mm
    length
    30 mm
    Weight per storage unit
    0.190 kg
    More information

Details

  • Fire protection

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    Price list 2025 Shell construction / facade

    Valid from February 1, 2025, updated version from 27/09/2025.

    • de

    • en

    Expert Report Fire Protection JDSD and HED

    Expert Report

    PDF, 635.62 KB

    • de

    Download

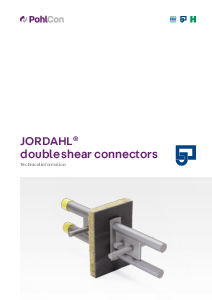

    Technical Information Double Shear Dowels JDSD
