ISOPRO® IP 120 Q

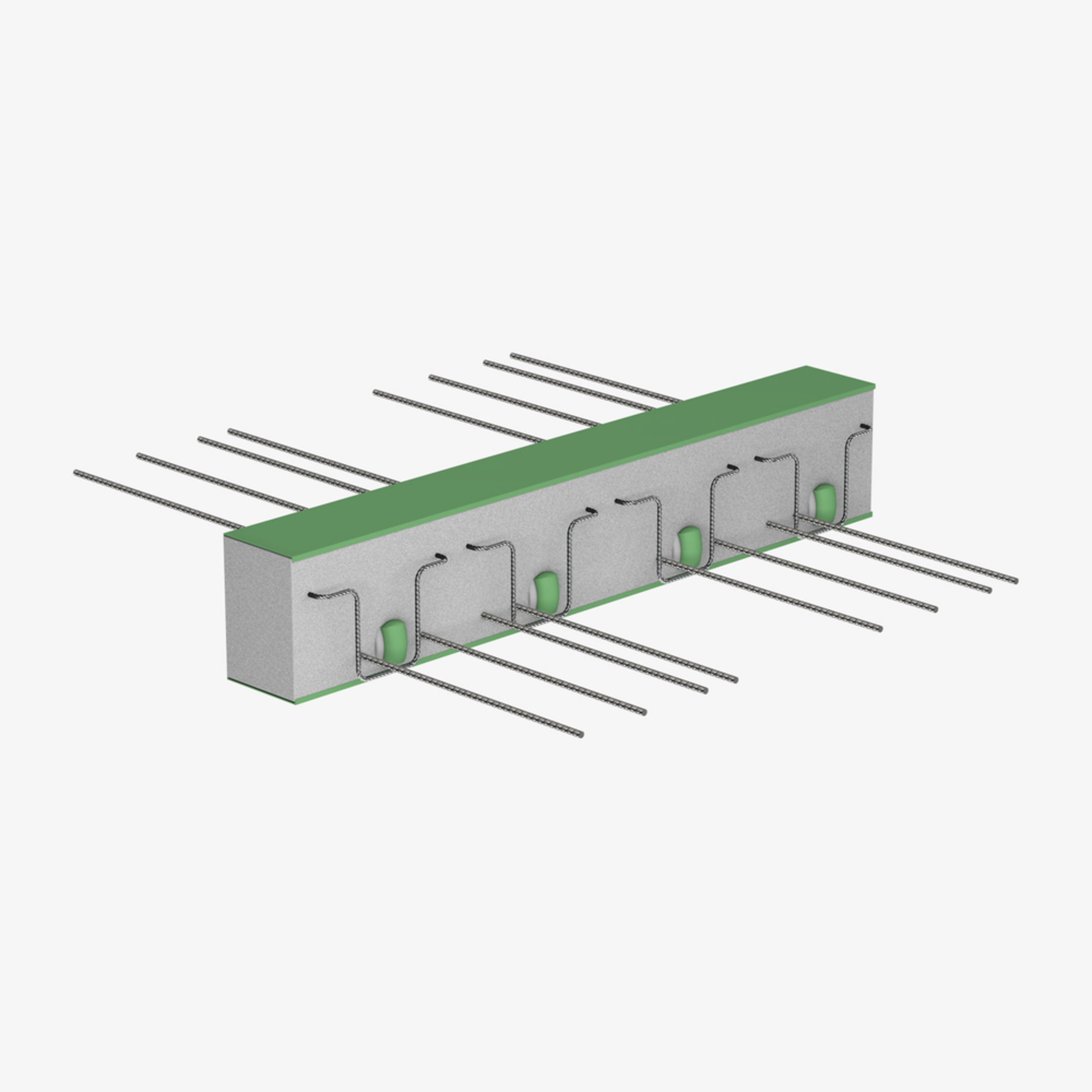

ISOPRO® IP 120 Q is a thermally insulated slab connection with a 120 mm insulating body for transmitting shear forces in supported reinforced concrete components. The stainless steel rebar is resistant to corrosion. The thrust bearing is made of special concrete. It complies with fire protection requirements: ISOPRO® IP 120 Q is available for fire protection structures up to REI 90. Please specify the load-bearing capacity, element height and fire protection version when ordering.

General building approval: Z-15.7-331
Get in touch Download datasheet

Variants

Article

G

Weight per storage unit

Q-bar on ceiling side

  • 233500021042
    IP120 Q10
    Weight per storage unit
    5.700 kg
    Q-bar on ceiling side
    Curved
    More information
  • 233500021043
    IP120 Q20
    Weight per storage unit
    5.900 kg
    Q-bar on ceiling side
    Curved
    More information
  • 233500021044
    IP120 Q30
    Weight per storage unit
    6.200 kg
    Q-bar on ceiling side
    Curved
    More information
  • 233500021045
    IP120 Q40
    Weight per storage unit
    6.400 kg
    Q-bar on ceiling side
    Curved
    More information
  • 233500021046
    IP120 Q50
    Weight per storage unit
    6.800 kg
    Q-bar on ceiling side
    Curved
    More information
  • 233500021047
    IP120 Q60
    Weight per storage unit
    7.500 kg
    Q-bar on ceiling side
    Straight
    More information
  • 233500021048
    IP120 Q70
    Weight per storage unit
    7.900 kg
    Q-bar on ceiling side
    Straight
    More information
  • 233500021049
    IP120 Q80
    Weight per storage unit
    8.900 kg
    Q-bar on ceiling side
    Straight
    More information
  • 233500021050
    IP120 Q90
    Weight per storage unit
    9.700 kg
    Q-bar on ceiling side
    Straight
    More information
  • 233500021051
    IP120 Q100
    Weight per storage unit
    11.600 kg
    Q-bar on ceiling side
    Straight
    More information
  • 233500021052
    IP120 Q110
    Weight per storage unit
    12.800 kg
    Q-bar on ceiling side
    Straight
    More information
  • 233500021053
    IP120 Q120
    Weight per storage unit
    14.200 kg
    Q-bar on ceiling side
    Straight
    More information

Details

  • General building approval: Z-15.7-331

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en
  • Planner software ISODESIGN 1.4.4

    Planner software ISODESIGN 1.4.4

    Software for designing our thermal insulation elements ISOPRO and ISOPRO 120

    ZIP, 53 MB

    de en

  • Declaration of Performance ISOPRO®

    Erklärung

    PDF, 26 KB

    de en

  • ISOPRO® Thermal insulation elements - Technical information

    Technische Information

    PDF, 8 MB

    de en

  • Approval ISOPRO 120 Thermal Insulation Elements

    Zulassung

    PDF, 5 MB

    de
    Download

  • ISOPRO® 120 Thermal insulation elements - Technical information

    Technische Information

    PDF, 5 MB

    de en

  • ISOPRO® 120 - Installation instructions

    Installation instruction for balcony insulation elements ISOPRO® 120 M, ISOPRO® 120 M P, ISOPRO® 120 Q, ISOPRO® 120 QQ

    PDF, 2 MB

    de en
