HT

Wood screw

The wood screw HT with plate head and Torx drive is suitable for connecting wooden constructions. The article can be used in fire protection applications. For technical parameters, see the expert report. The wood screw is made of galvanised steel and is available in lengths from 60 to 140 mm and with threads from M6 to M10.

Get in touch Download datasheet

Variants

steel, galvanic zinc plated

Article

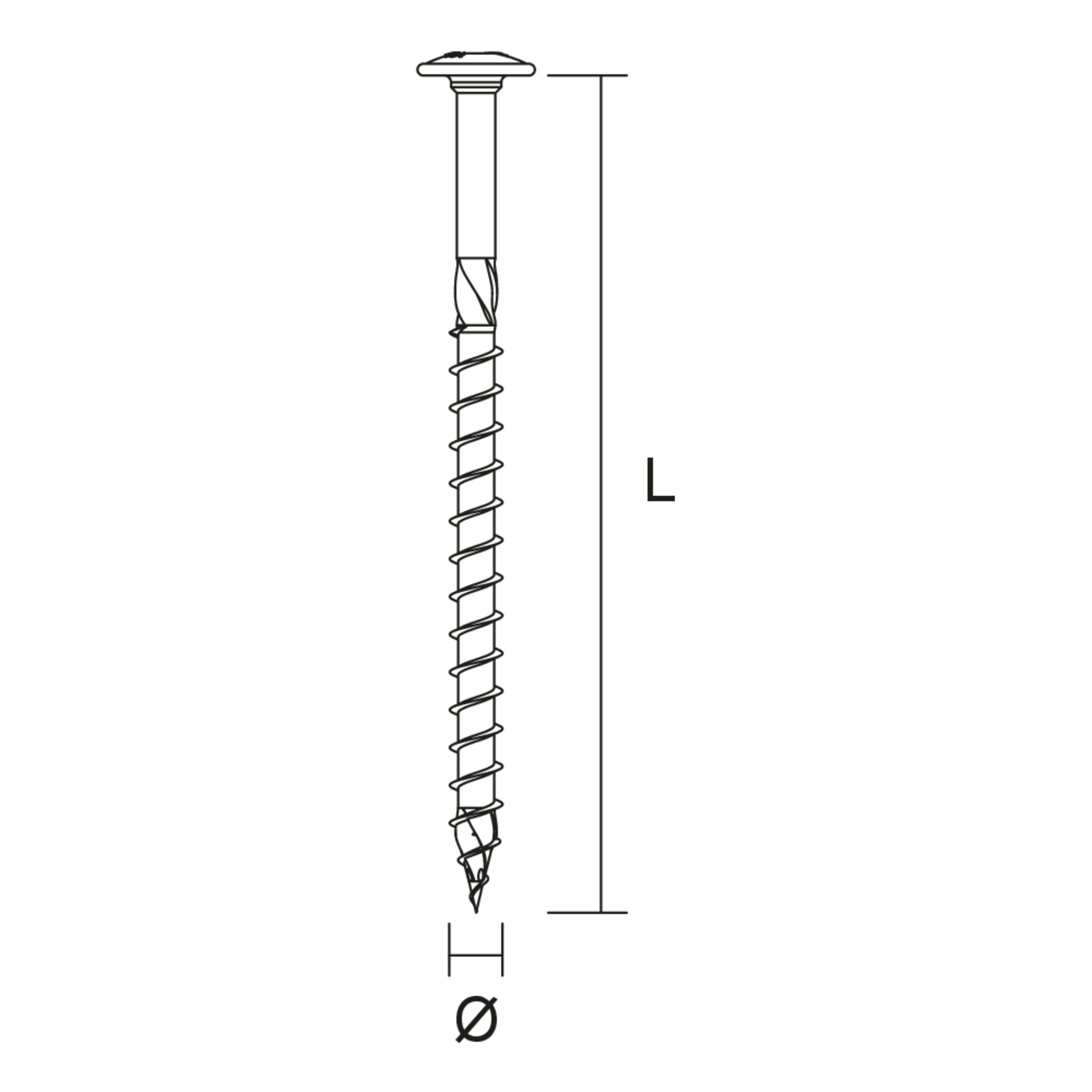

L

length

Ø

thread diameter

G

Weight per storage unit
  • HT 6X60GV
    Wood screw with disc head and
    length
    60 mm
    thread diameter
    6 mm
    Weight per storage unit
    0.009 kg
    More information
  • HT 6X80GV
    Wood screw with disc head and
    length
    80 mm
    thread diameter
    6 mm
    Weight per storage unit
    0.011 kg
    More information
  • HT 6X100GV
    Wood screw with disc head and
    length
    100 mm
    thread diameter
    6 mm
    Weight per storage unit
    0.013 kg
    More information
  • HT 10X80GV
    Wood screw with disc head and
    length
    80 mm
    thread diameter
    10 mm
    Weight per storage unit
    0.031 kg
    More information
  • HT 10X100GV
    Wood screw with disc head and
    length
    100 mm
    thread diameter
    10 mm
    Weight per storage unit
    0.037 kg
    More information
  • HT 10X120GV
    Wood screw with disc head and
    length
    120 mm
    thread diameter
    10 mm
    Weight per storage unit
    0.043 kg
    More information
  • HT 10X140GV
    Wood screw with disc head and
    length
    140 mm
    thread diameter
    10 mm
    Weight per storage unit
    0.049 kg
    More information
