HF-EU 5-6

HF cable clamp for fastening to flat steel profiles

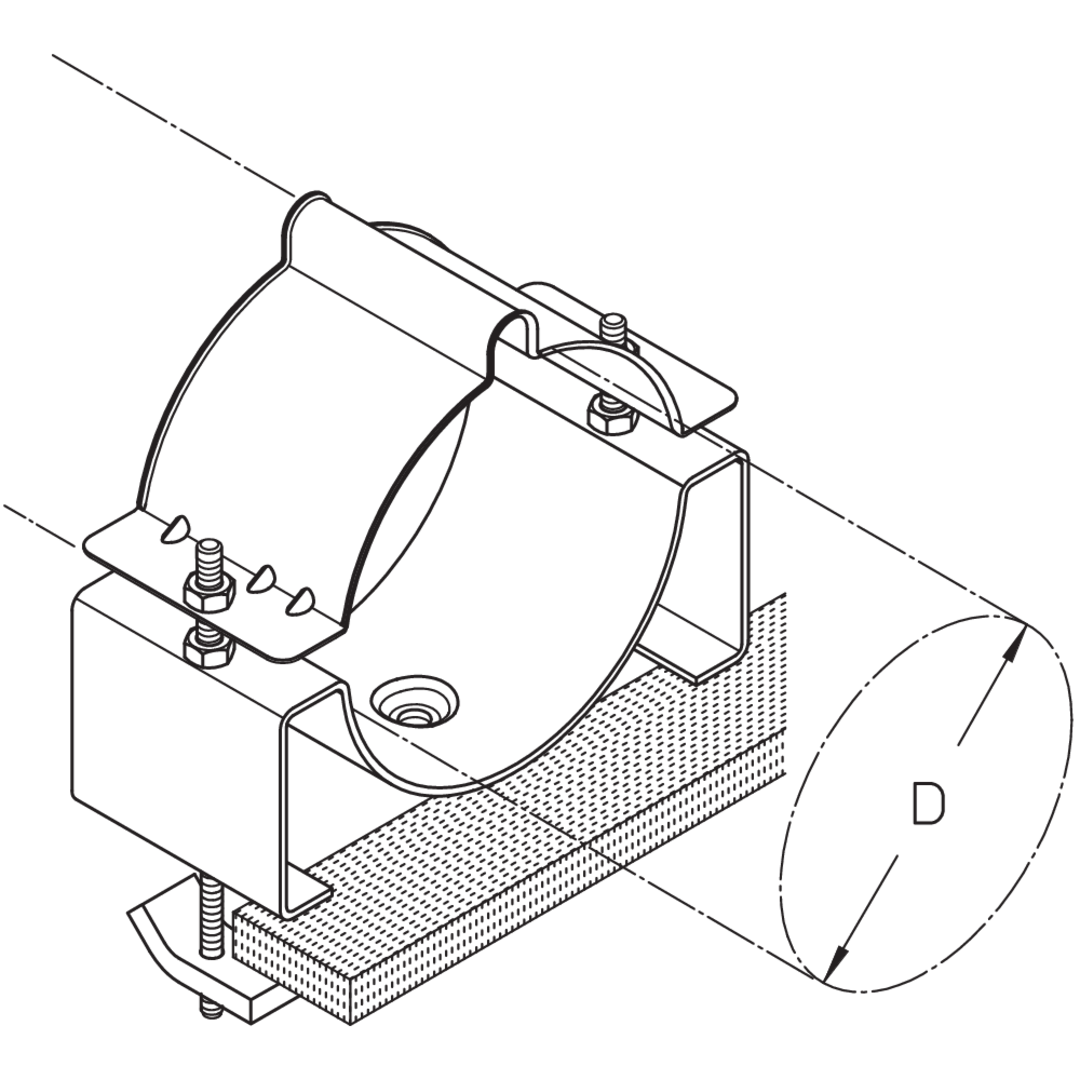

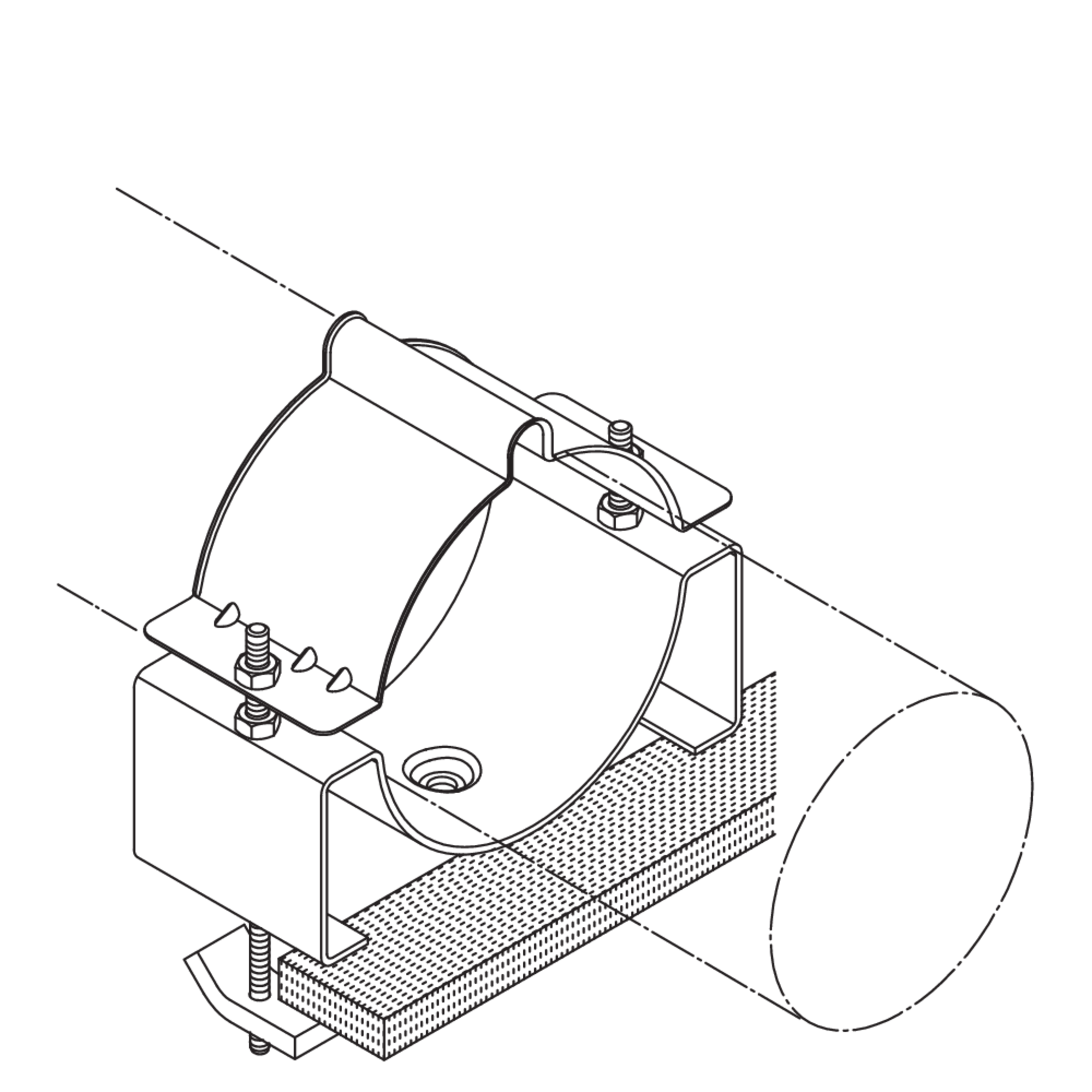

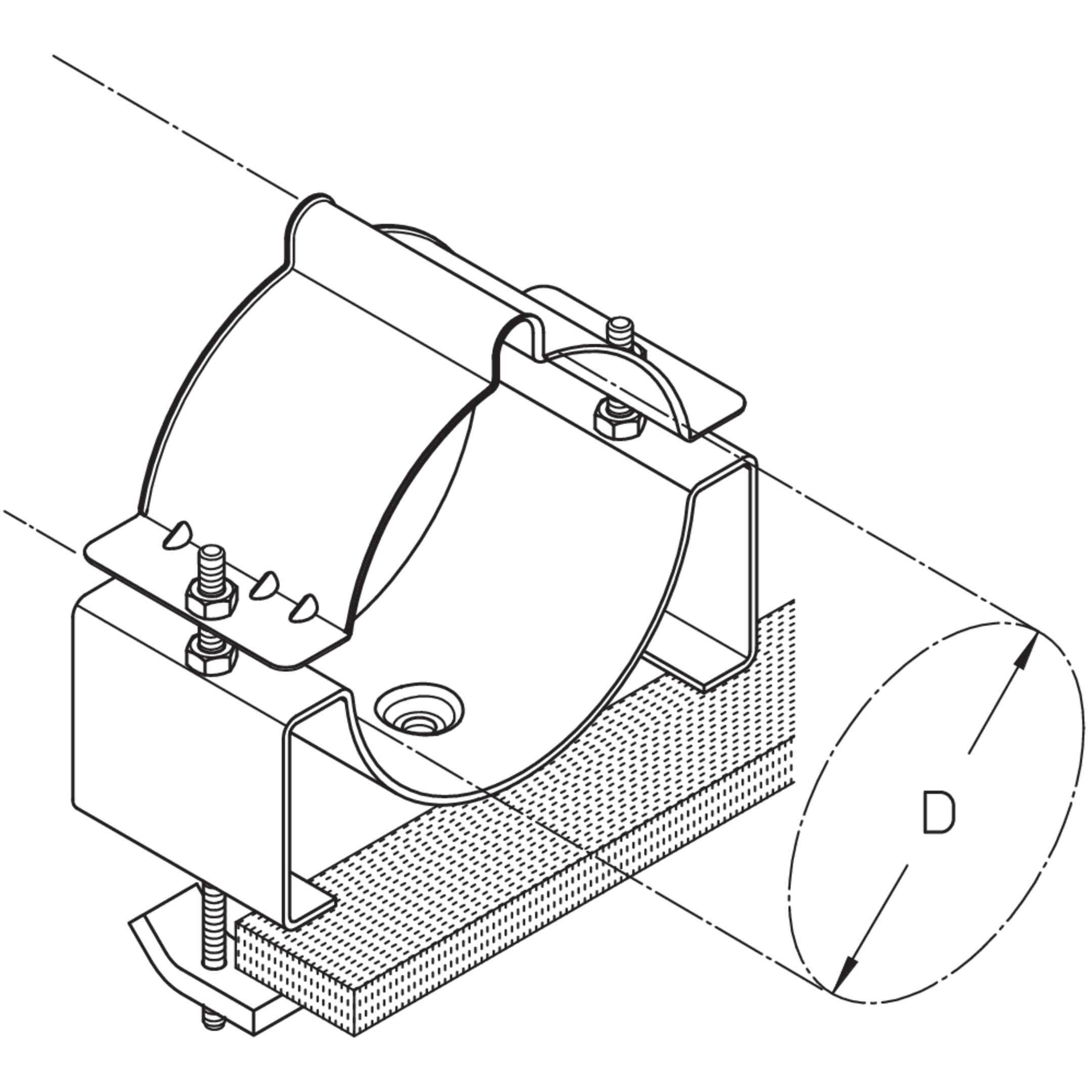

The HF cable clamps HF-EU 5-6 can be used to route fibre-optic/high-frequency cables with a maximum diameter of 160 mm. They are suitable for attachment to flat steel profiles made from material max. 15 mm thick. They are made of galvanised steel. Use HF-EE clamp inserts to accommodate various elliptical cables.

Get in touch Download datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

HF-EU 5
HF-Schellen E 26-30

Durchmesser

128 mm

Kabeltyp

E 26-30

Gewicht je Lagermengeneinheit

1.020 kg

More information
HF-EU 6
HF-Schellen E 20

Durchmesser

160 mm

Kabeltyp

E 20

Gewicht je Lagermengeneinheit

1.177 kg

More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link

Heinze.de

Tender text for this product

Open Link

Accessories

HF-EE

HF clamp insert

Downloads

Price list Building extension 2025

Valid from February 1st, 2025, updated version from 27/01/2025.

PDF, 46 MB

de en
EC Declaration of Conformity Cable clamps

Installation equipment for electric cables and circuits

PDF, 59 KB

de en
3335-772-11-3 - Expert statement

DIN 4102-12
Standardised supporting structure: Cable clamps
Fire resistance duration: F30; F60; F90
Functional maintenance classes: E30; E60; F90
Fastening distance: ≤ 0.3 m; ≤ 0.4 m
Period of validity: 06.07.2027

PDF, 834 KB

de
Download
Cable Clamps Catalogue

Katalog

PDF, 5 MB

de en
