HF cable clamps for fastening to walls

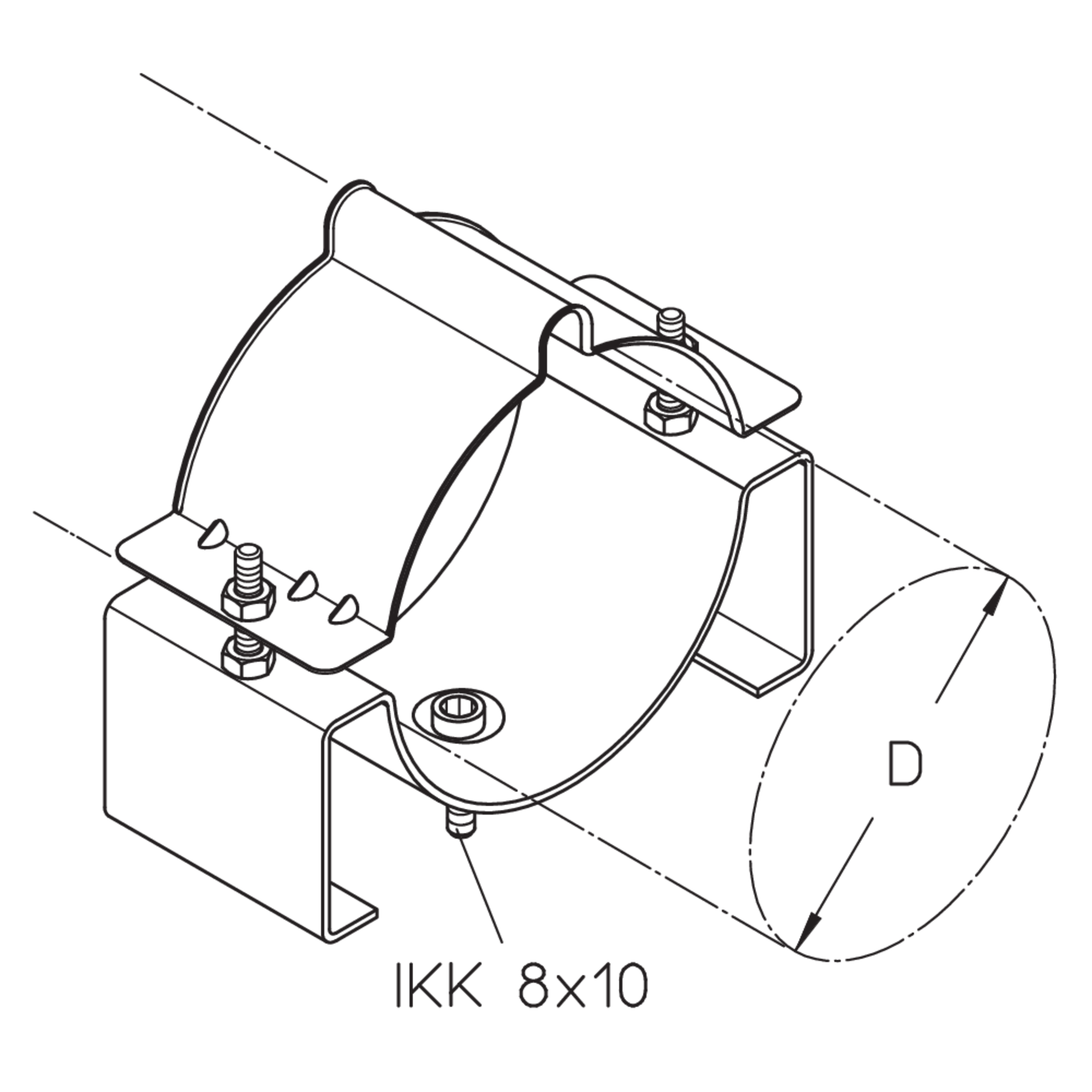

The HF cable clamps HF-EM 8 5-6 with hexagon socket head screw IKK 8x10 can be used to route fibre-optic/high-frequency cables with a diameter of max. 160 mm. They are suitable for mounting directly on the wall and are made of galvanised steel. Use HF-EE clamp inserts to accommodate various elliptical cables.
D
diameter
cable type
Kabeltyp
G
Weight per storage unit
Price list Building extension 2025
Valid from February 1st, 2025, updated version from 27/01/2025.
PDF, 46 MB
EC Declaration of Conformity Cable clamps
Installation equipment for electric cables and circuits
PDF, 59 KB
3335-772-11-3 - Expert statement
DIN 4102-12<br />Standardised supporting structure: Cable clamps<br />Fire resistance duration: F30; F60; F90<br />Functional maintenance classes: E30; E60; F90<br />Fastening distance: ≤ 0.3 m; ≤ 0.4 m<br />Period of validity: 06.07.2027
PDF, 834 KB
Cable Clamps Catalogue
Katalog
PDF, 5 MB
