GS

Slide sleeve

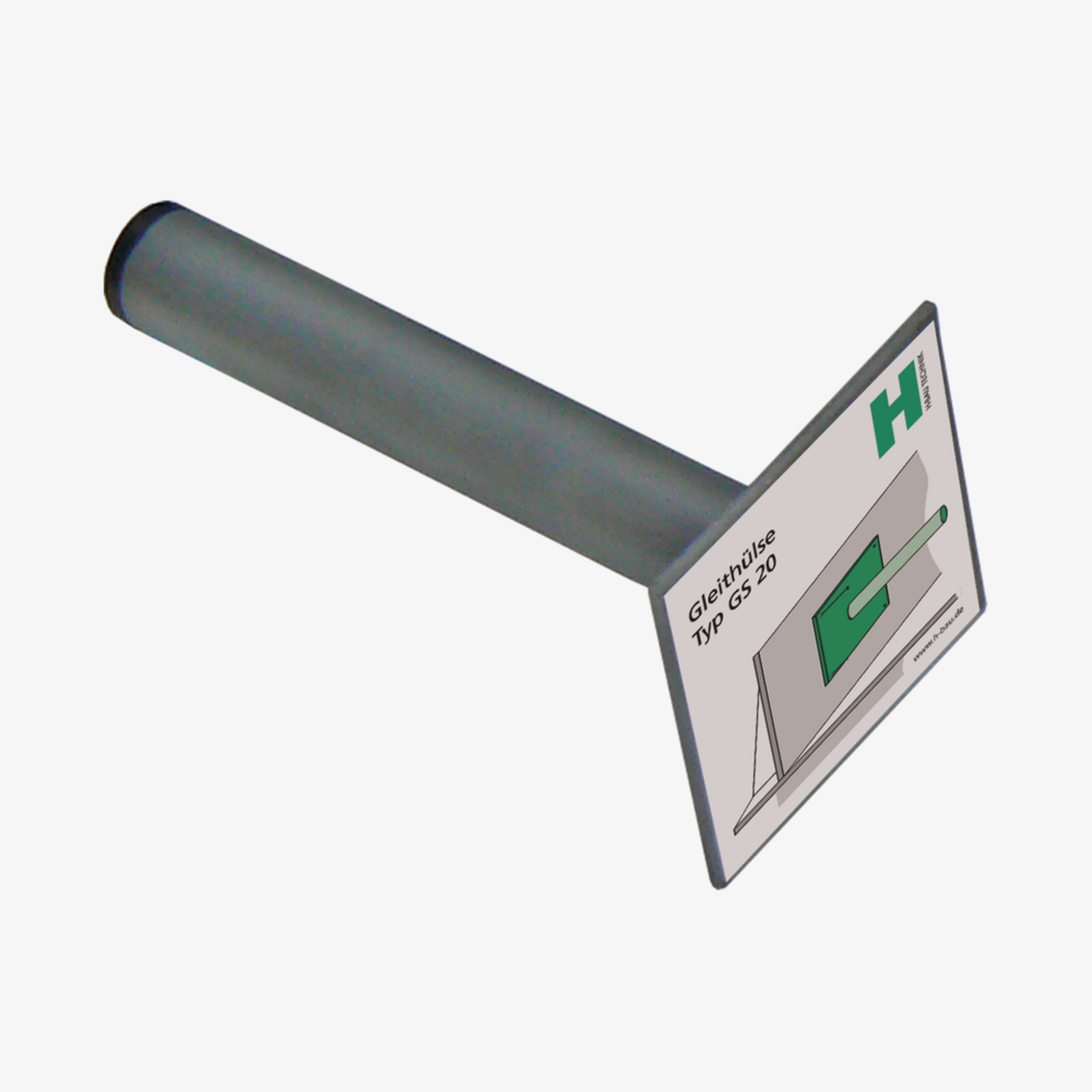

The sliding sleeve GS is a necessary accessory for the shear dowel HED-S in the stainless steel version. Using the sleeve eliminates the need for drilling through the formwork or subsequent concrete drilling. The sliding sleeve GS is made of stainless steel (A4) and enables the dowel to move longitudinally in the sliding sleeve. The standard lengths are 160 or 265 mm. Other lengths are available on request.

Get in touch Download datasheet

Variants

Article

L

Länge

D

Durchmesser

G

Gewicht je Lagermengeneinheit
  • 550600012748
    Querkraftdorn Gleithülse GS 20/160
    Länge
    160 mm
    Durchmesser
    20 mm
    Gewicht je Lagermengeneinheit
    0.324 kg
    More information
  • 550600012749
    Querkraftdorn Gleithülse GS 20/265
    Länge
    265 mm
    Durchmesser
    20 mm
    Gewicht je Lagermengeneinheit
    0.610 kg
    More information
  • 550600012750
    Querkraftdorn Gleithülse GS 22/160
    Länge
    160 mm
    Durchmesser
    22 mm
    Gewicht je Lagermengeneinheit
    0.343 kg
    More information
  • 550600012751
    Querkraftdorn Gleithülse GS 22/265
    Länge
    265 mm
    Durchmesser
    22 mm
    Gewicht je Lagermengeneinheit
    0.630 kg
    More information
  • 550600012752
    Querkraftdorn Gleithülse GS 25/160
    Länge
    160 mm
    Durchmesser
    25 mm
    Gewicht je Lagermengeneinheit
    0.420 kg
    More information
  • 550600012753
    Querkraftdorn Gleithülse GS 25/265
    Länge
    265 mm
    Durchmesser
    25 mm
    Gewicht je Lagermengeneinheit
    0.690 kg
    More information
  • 550600012754
    Querkraftdorn Gleithülse GS 30/185
    Länge
    185 mm
    Durchmesser
    30 mm
    Gewicht je Lagermengeneinheit
    0.423 kg
    More information
  • 550600012755
    Querkraftdorn Gleithülse GS 30/265
    Länge
    265 mm
    Durchmesser
    30 mm
    Gewicht je Lagermengeneinheit
    0.790 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
