GK

Slide sleeve

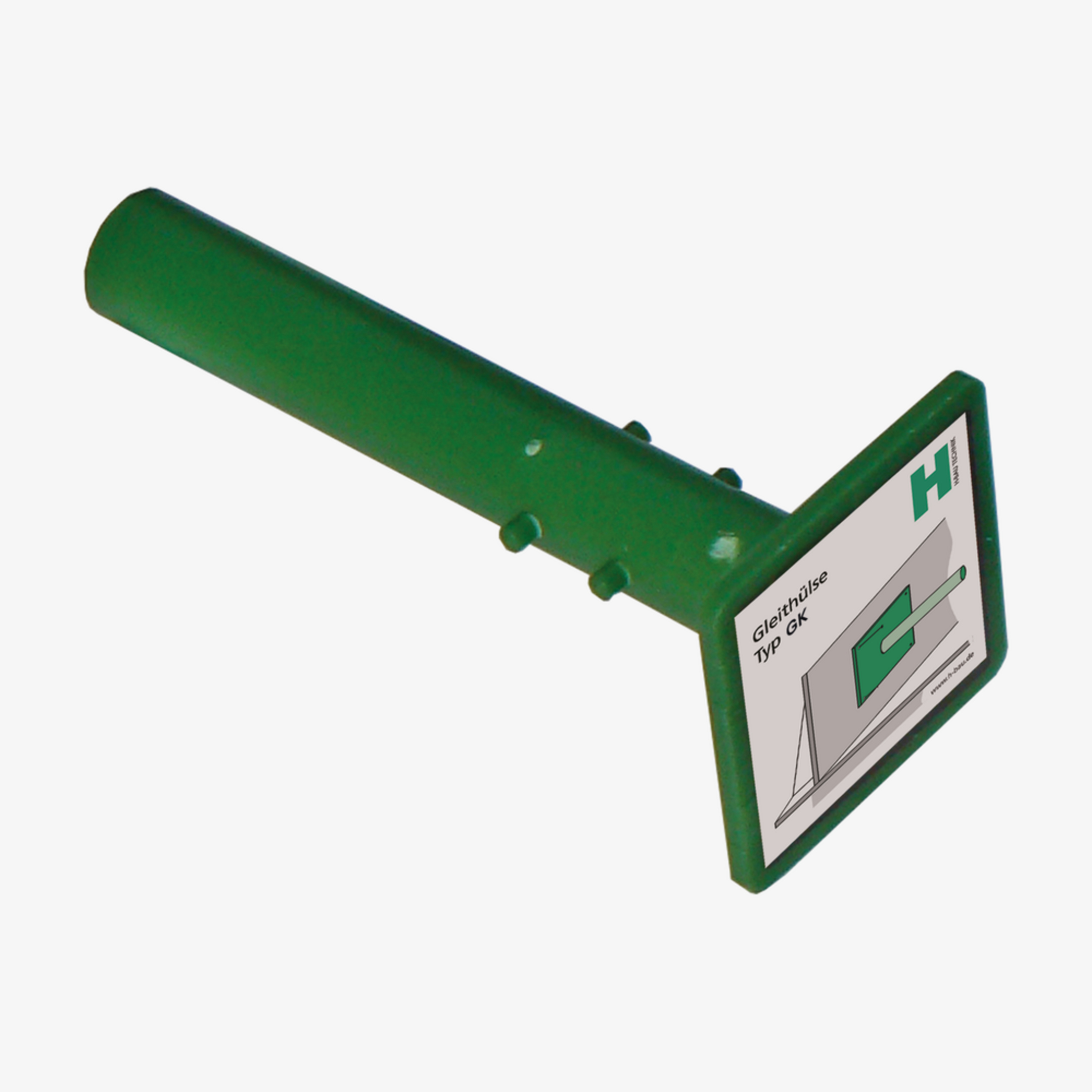

The sliding sleeve GK is a necessary accessory for the shear dowel HED-S in the stainless steel version. Using the sleeve eliminates the need for drilling through the formwork or subsequent concrete drilling. The cost-saving sliding sleeve GK is made of plastic and enables the dowel to move longitudinally in the sliding sleeve. It is available in lengths of up to 320 mm for different diameters.

Get in touch Download datasheet

Variants

Article

L

Länge

D

Durchmesser

G

Gewicht je Lagermengeneinheit
  • 550500004970
    Querkraftdorn Gleithülse GK 20/160
    Länge
    160 mm
    Durchmesser
    20 mm
    Gewicht je Lagermengeneinheit
    0.057 kg
    More information
  • 550500004971
    Querkraftdorn Gleithülse GK 20/265
    Länge
    265 mm
    Durchmesser
    20 mm
    Gewicht je Lagermengeneinheit
    0.060 kg
    More information
  • 550500004973
    Querkraftdorn Gleithülse GK 22/160
    Länge
    160 mm
    Durchmesser
    22 mm
    Gewicht je Lagermengeneinheit
    0.040 kg
    More information
  • 550500004974
    Querkraftdorn Gleithülse GK 22/265
    Länge
    265 mm
    Durchmesser
    22 mm
    Gewicht je Lagermengeneinheit
    0.065 kg
    More information
  • 550500004976
    Querkraftdorn Gleithülse GK 25/160
    Länge
    160 mm
    Durchmesser
    25 mm
    Gewicht je Lagermengeneinheit
    0.036 kg
    More information
  • 550500004977
    Querkraftdorn Gleithülse GK 25/265
    Länge
    265 mm
    Durchmesser
    25 mm
    Gewicht je Lagermengeneinheit
    0.085 kg
    More information
  • 550500004979
    Querkraftdorn Gleithülse GK 30/185
    Länge
    185 mm
    Durchmesser
    30 mm
    Gewicht je Lagermengeneinheit
    0.055 kg
    More information
  • 550500004980
    Querkraftdorn Gleithülse GK 30/265
    Länge
    265 mm
    Durchmesser
    30 mm
    Gewicht je Lagermengeneinheit
    0.090 kg
    More information
