BRM

Fire-protection collar

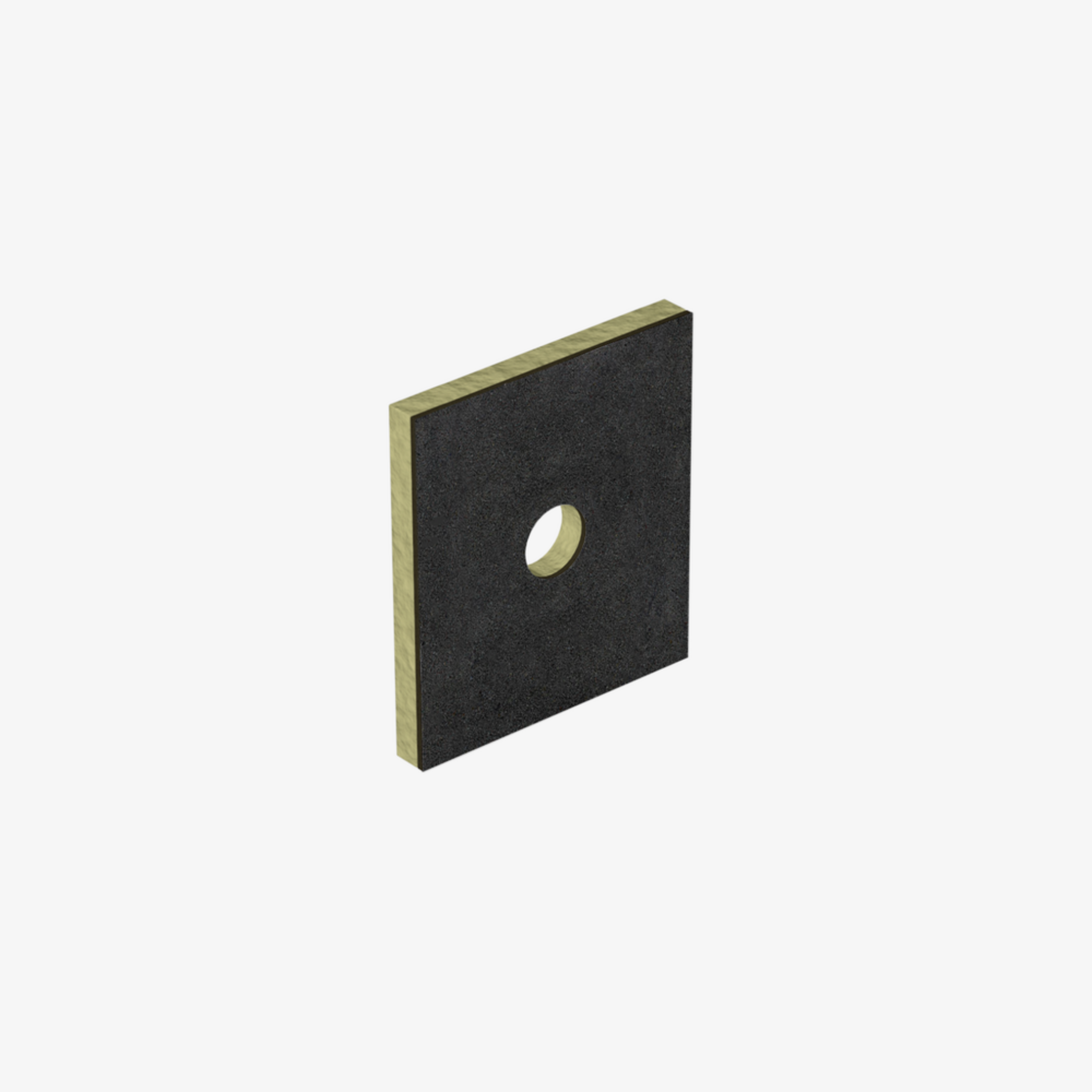

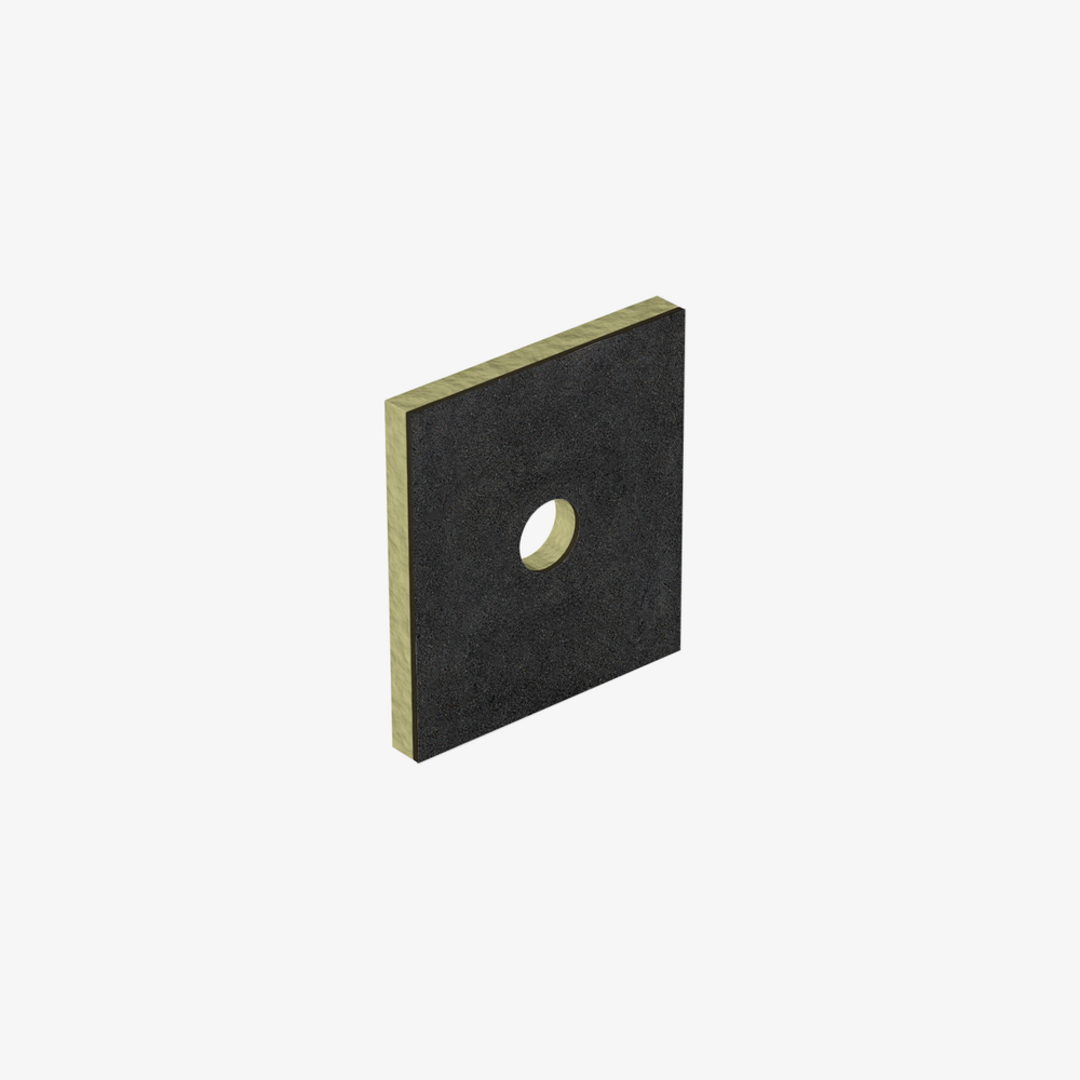

The fire protection collar BRM is a mineral wool insulation panel with a coating on one side. It is mounted on shear dowel HED-S or HED-P. It has a fire resistance duration of 90 minutes (R90) in accordance with DIN EN 13501-2. The coating foams up in case of fire and completely seals the joint. The fire protection collar is available in versions 20, 30 and 40 mm thick for joints of the corresponding widths. Fire protection collars can be combined to protect larger joint widths. A maximum clearance of 10 mm is permitted in the joint. The fire protection sleeves are designed for dowels of different sizes and can be combined with GK and GS sliding sleeves.

Get in touch Download datasheet

Variants

Article

G

Weight per storage unit

Details

  • Optimally adapted to HED-P and HED-S shear dowels
  • Designed for common construction joints up to 20 mm or 30 mm
  • Can be customised for larger joint widths by combining several fire protection sleeves
  • Easy to assemble

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • Expert Report Fire Protection JDSD and HED

    Gutachten

    PDF, 636 KB

    de
    Download

  • Technical Information Shear Dowels HED

    Technische Information

    PDF, 1 MB

    de en

Included accessories

Services: From planning to utilisation

We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.

Consulting, planning, design

Customised solutions
