BLD

Diagonal adaptor

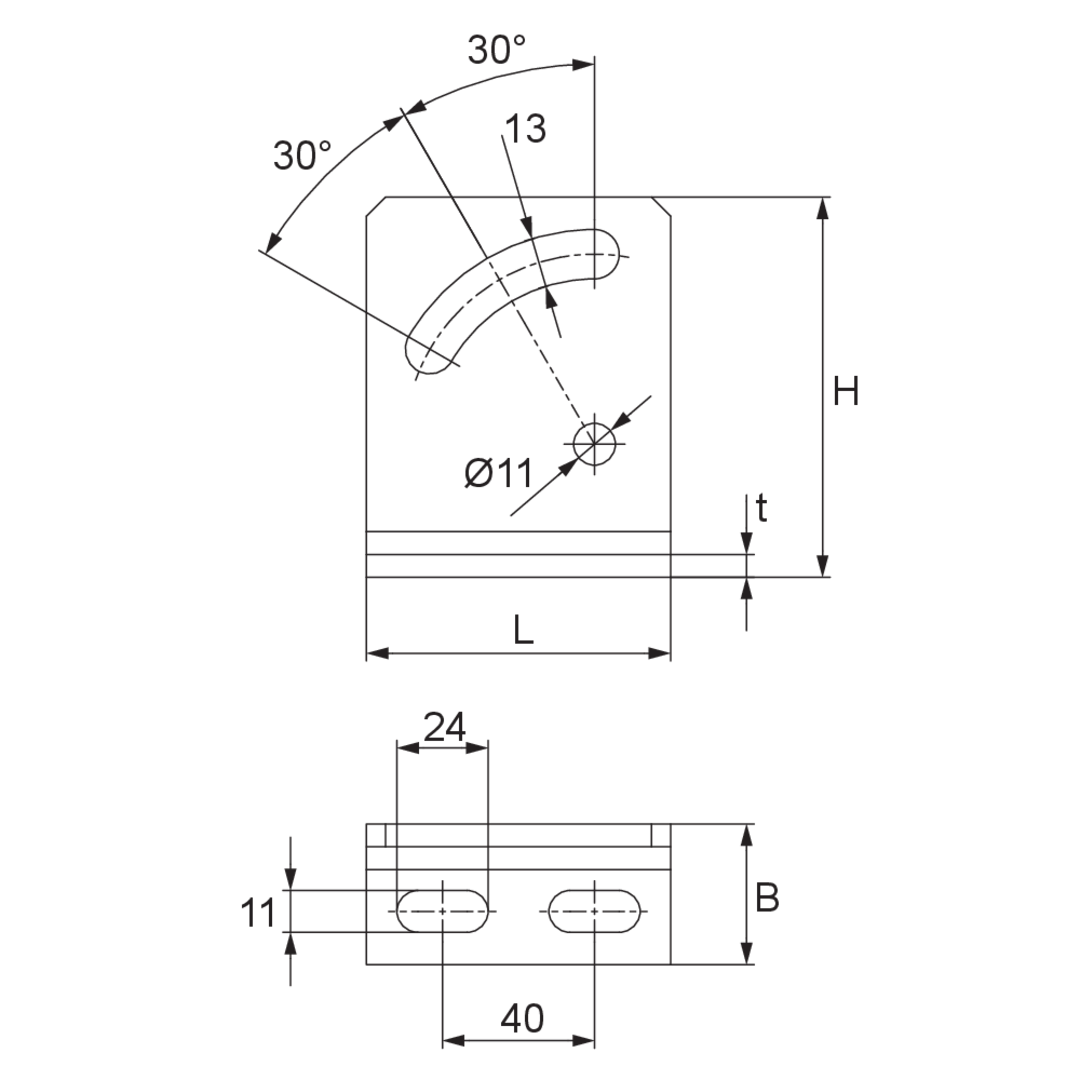

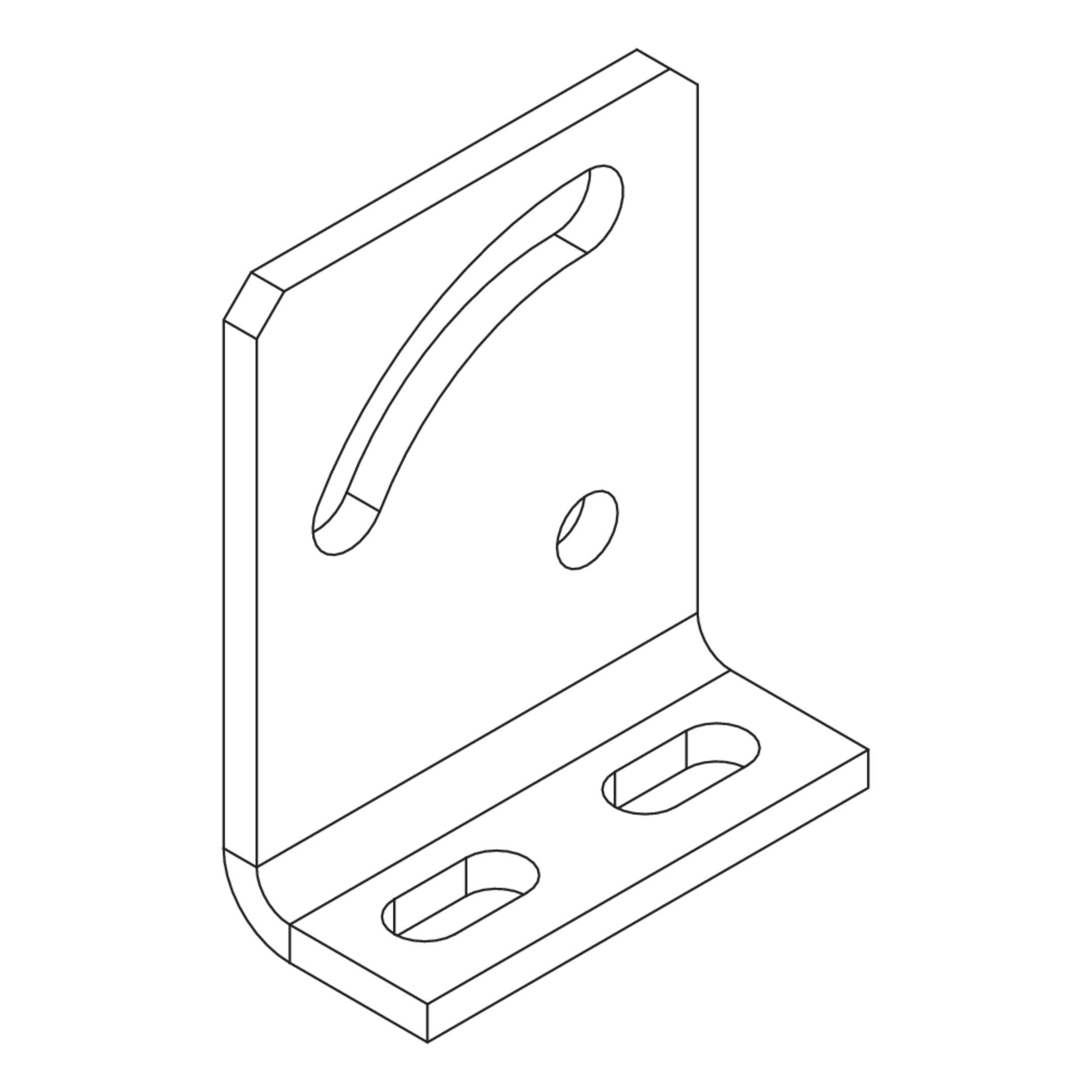

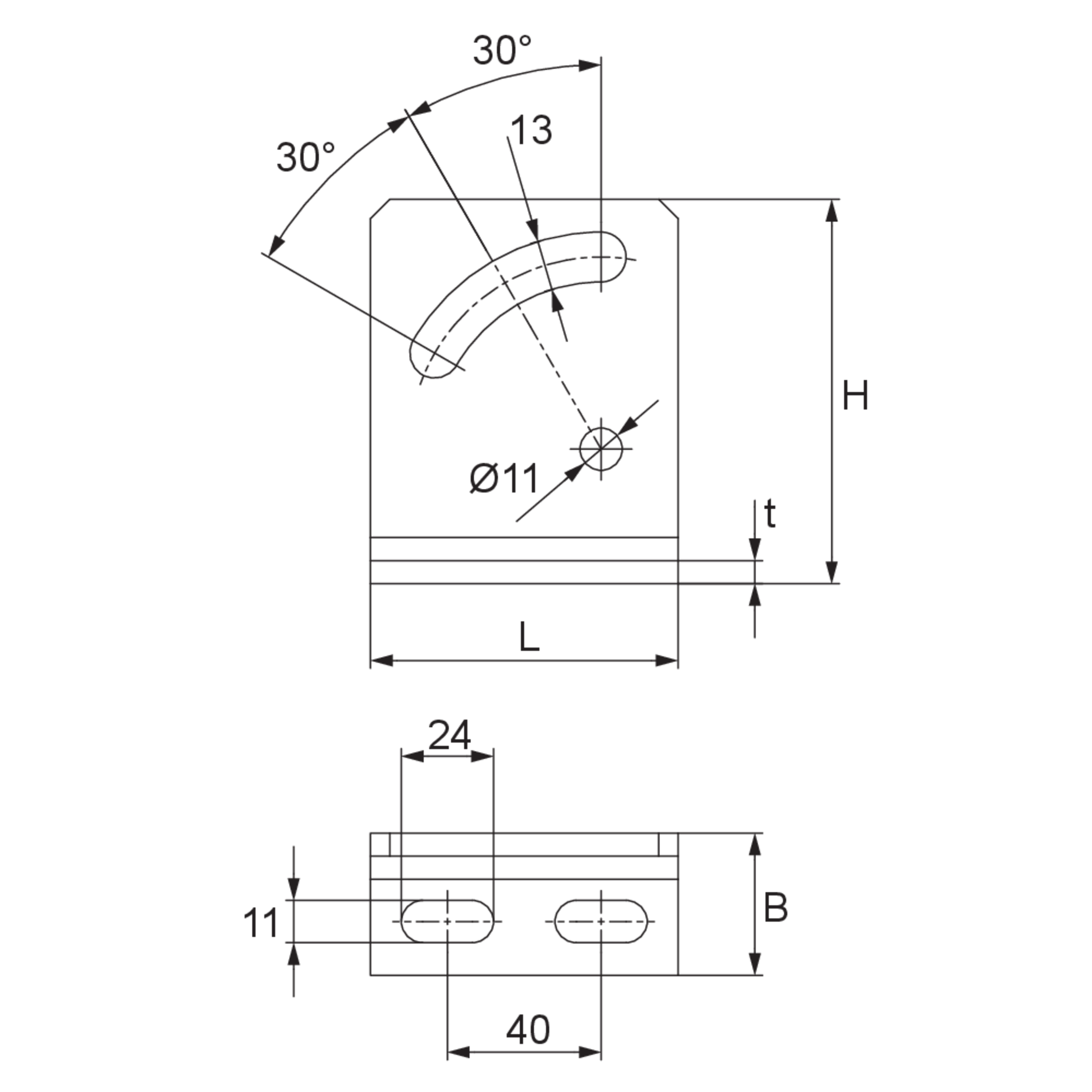

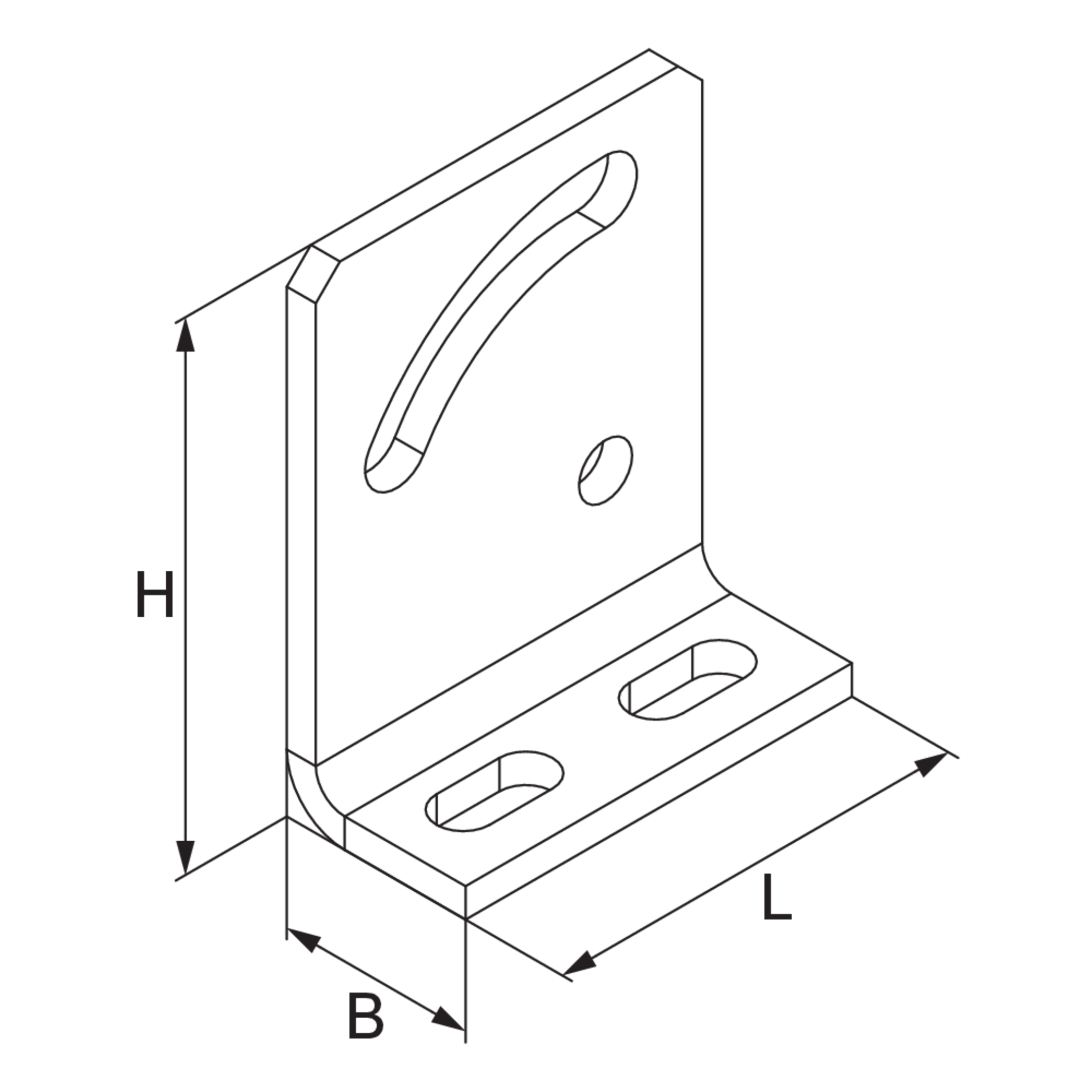

The connection part BLD is a mounting bracket for connecting profiles in the range of 0° to 60°. It is made of hot-dip galvanised steel.

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

B

Breite

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit

  • BLD F
    Befestigungslasche
    Höhe
    100 mm
    Breite
    37 mm
    Länge
    80 mm
    Materialstärke
    6 mm
    Gewicht je Lagermengeneinheit
    0.412 kg

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en
  • Support systems Assembling instruction

    Montageanleitung

    PDF, 2 MB

    de en
  • Support systems - Technical information

    Technical information

    PDF, 19 MB

    de en

Included accessories
