BKVB 110

Floor duct bend, variable, height = 110 mm

The floor duct bend BKVB 110 with integrated connectors allows the direction of cable routing to be changed horizontally by 0 to 90°. It is 110 mm high and 100 to 600 mm wide. It is made of sendzimir hot-dip galvanised steel. To dissipate vertical live loads, one separating strip must be installed in the floor duct for widths ≥ 300 mm and two separating strips for widths ≥ 500 mm. The side connectors must be bent into the required position before assembly. The bend is pushed into the floor ducts and then bolted in place. Provide the remaining outer side rail with edge protection strip (KSB).

Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

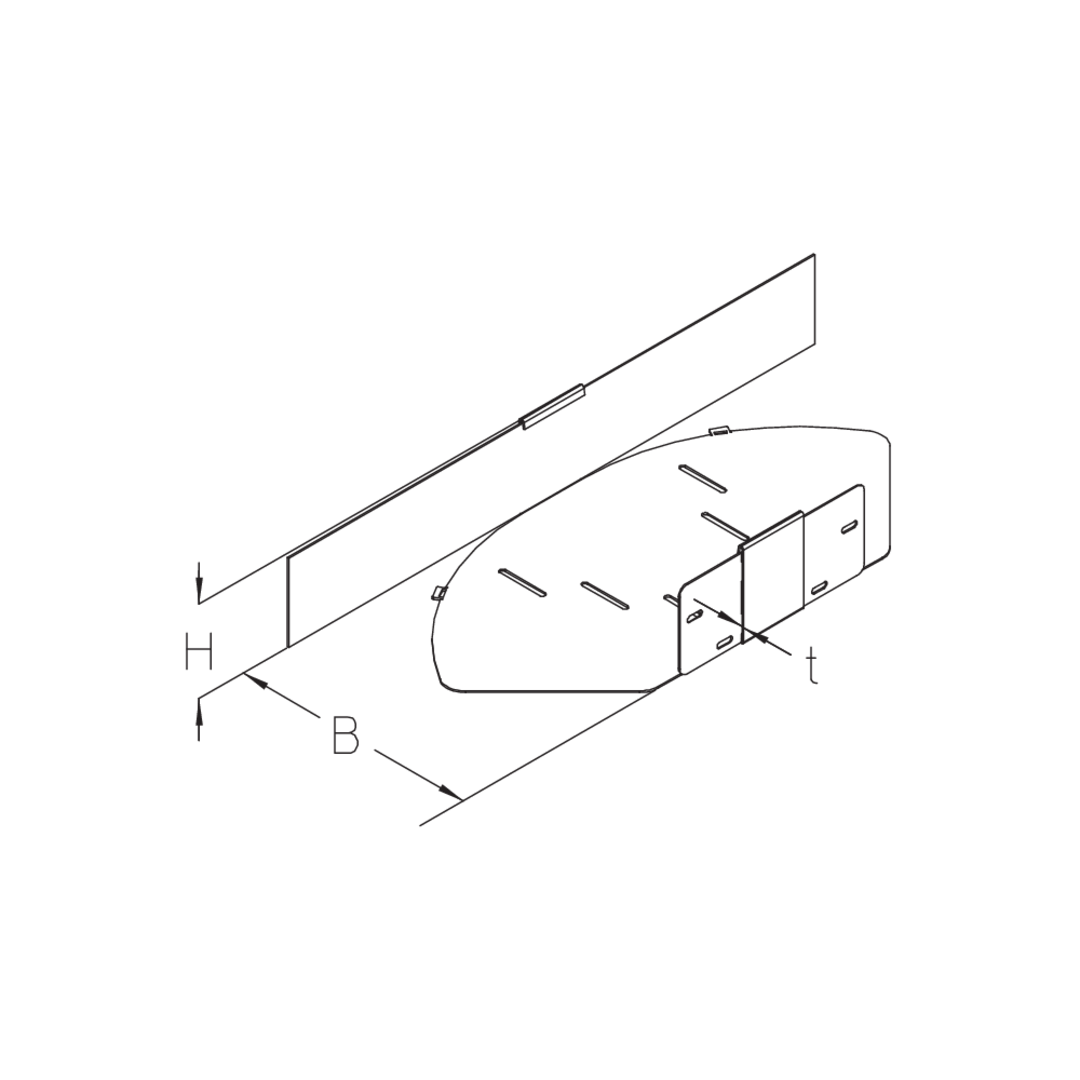

H

height

B

width

t

material thickness

direction

Direction change

W

Angle

G

Weight per storage unit
  • BKVB 110-10S
    90° floor duct bend, variable,
    height
    110 mm
    width
    100 mm
    material thickness
    2.00 mm
    Direction change
    horizontal

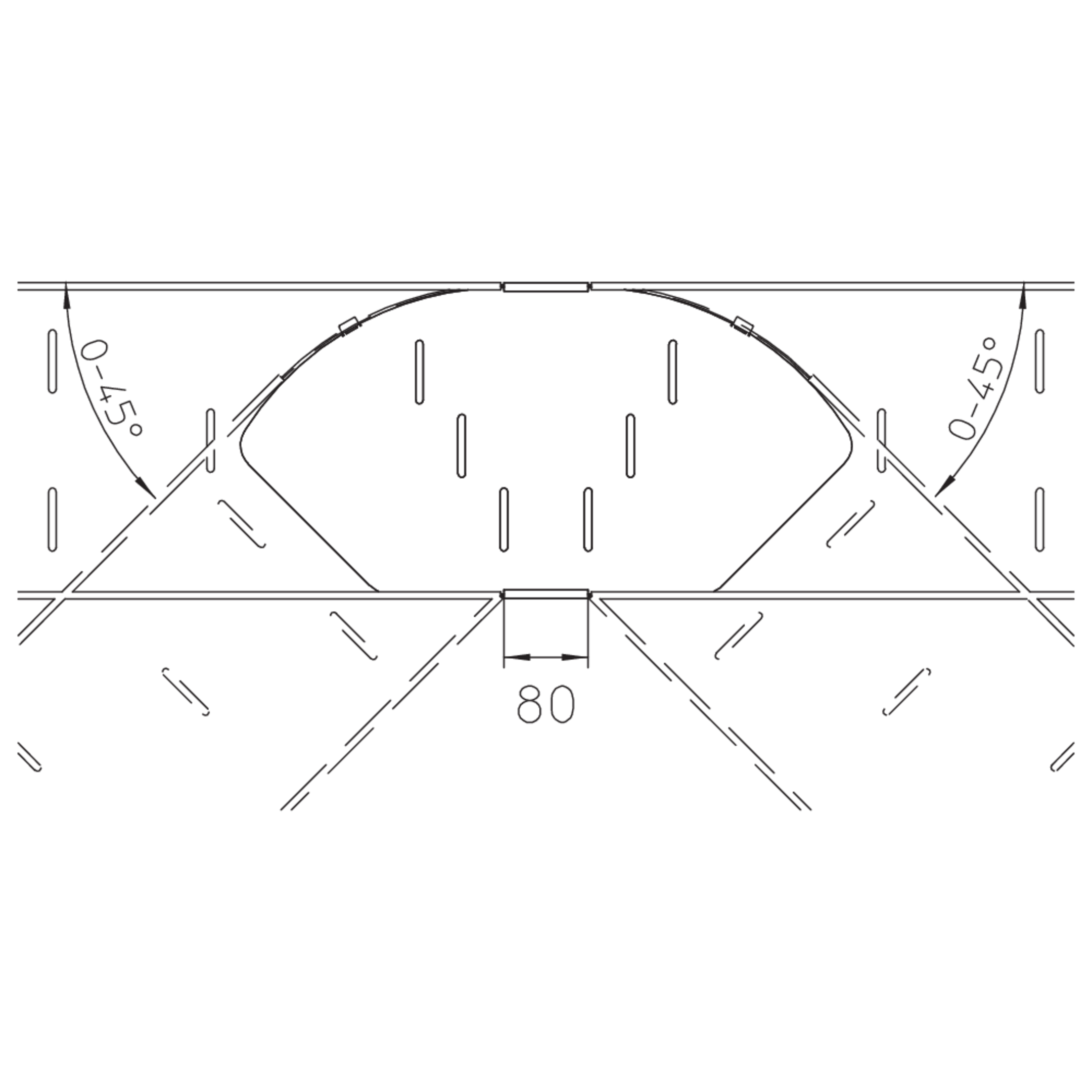

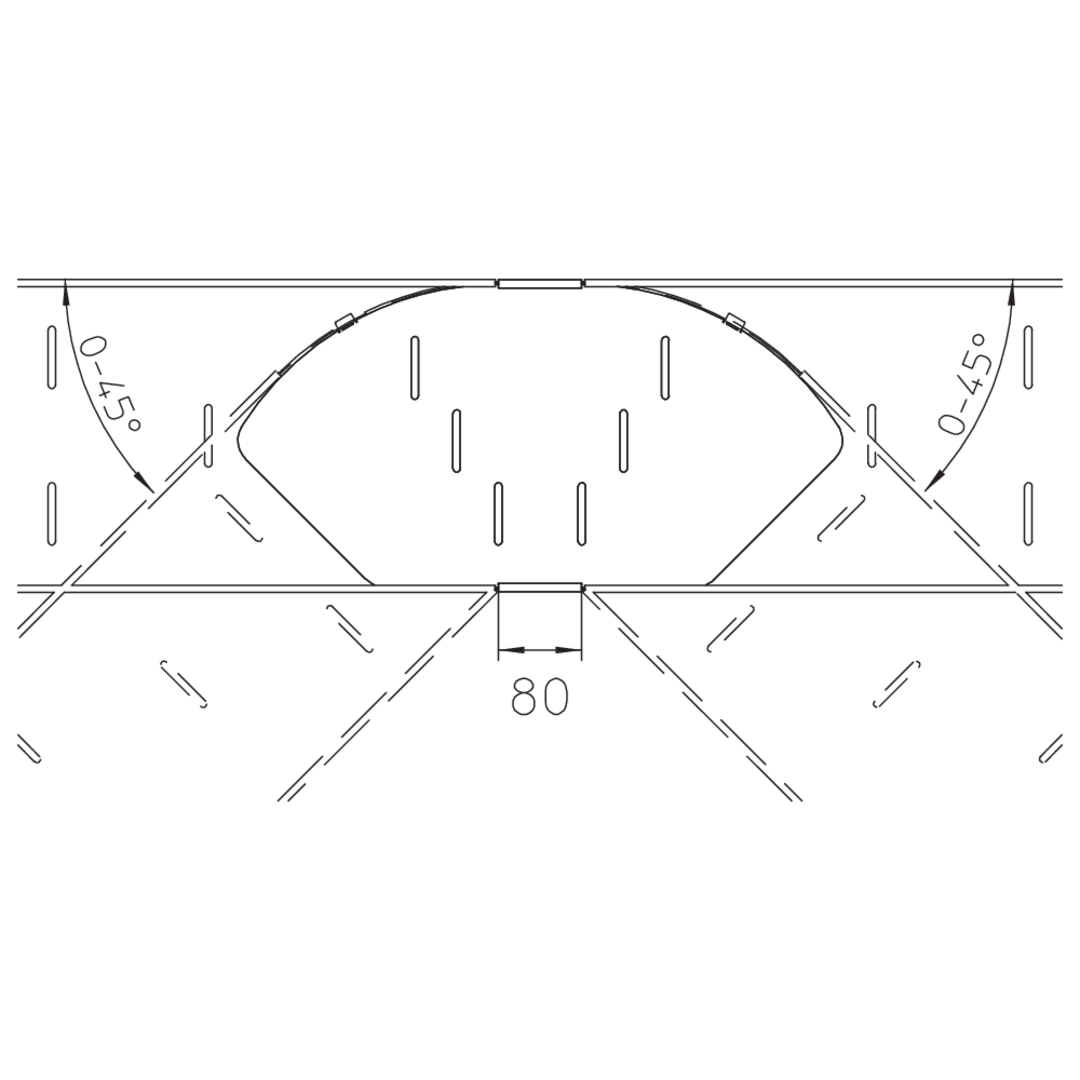

    Angle
    var.
    Weight per storage unit
    1.504 kg
    Included accessories
    More information
  • BKVB 110-15S
    90° floor duct bend, variable,
    height
    110 mm
    width
    150 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    var.
    Weight per storage unit
    1.974 kg
    Included accessories
    More information
  • BKVB 110-20S
    90° floor duct bend, variable,
    height
    110 mm
    width
    200 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    var.
    Weight per storage unit
    2.484 kg
    Included accessories
    More information
  • BKVB 110-30S
    90° floor duct bend, variable,
    height
    110 mm
    width
    300 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    var.
    Weight per storage unit
    3.664 kg
    Included accessories
    More information
  • BKVB 110-40S
    90° floor duct bend, variable,
    height
    110 mm
    width
    400 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    var.
    Weight per storage unit
    5.094 kg
    Included accessories
    More information
  • BKVB 110-50S
    90° floor duct bend, variable,
    height
    110 mm
    width
    500 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    var.
    Weight per storage unit
    6.754 kg
    Included accessories
    More information
  • BKVB 110-60S
    90° floor duct bend, variable,
    height
    110 mm
    width
    600 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    var.
    Weight per storage unit
    8.654 kg
    Included accessories
    More information

Details

  • Creates horizontal, variable changes of cable routing direction from 0 to 90°
  • Cable-friendly guide

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
