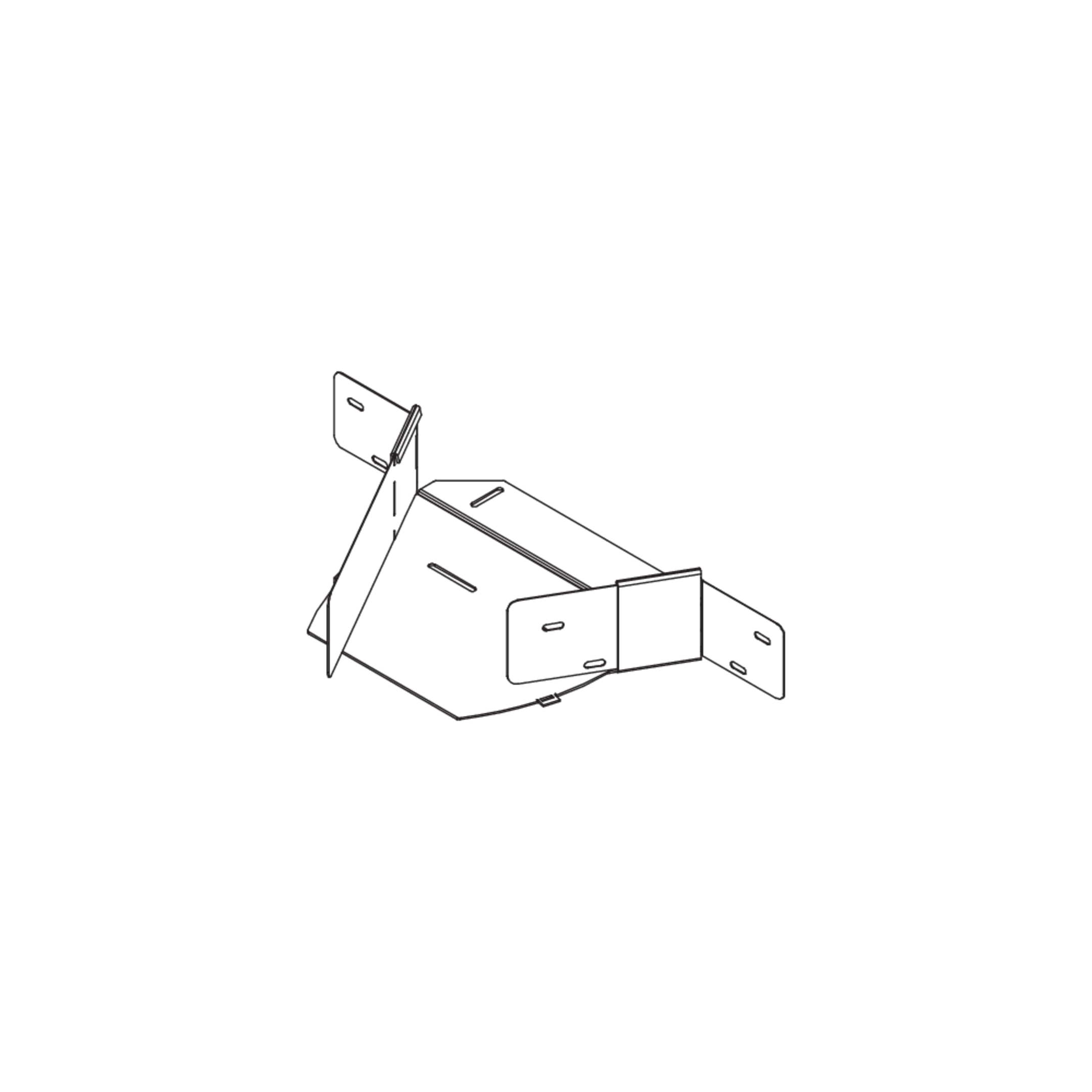

BKVAA 100

Floor duct attachment branch, variable, height = 100 mm

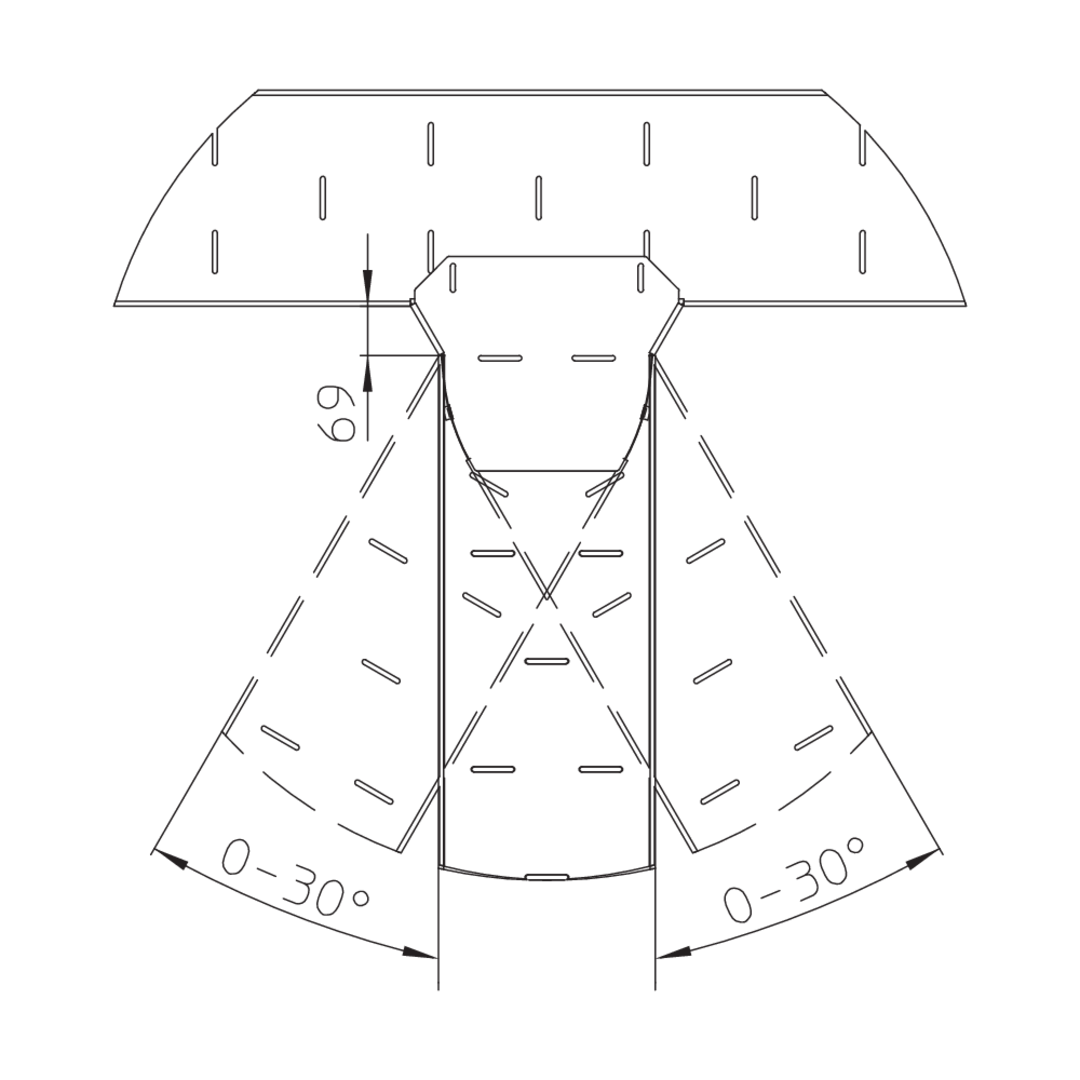

The BKVAA 100 variable floor duct attachment branch with integrated connectors enables another floor duct to be branched off at a variable angle of 60 to 120°. It is 100 mm high and 100 to 600 mm wide. It is made of sendzimir hot-dip galvanised steel. To dissipate vertical live loads, one separating strip must be installed for widths ≥ 300 mm and two separating strips for widths ≥ 500 mm. The side rail of the main floor duct is cut out accordingly at the point where the connecting floor duct will branch off. The BKVAA variable attachment branch is positioned and bolted in place at this point. The branching floor duct can then be pushed in.

Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

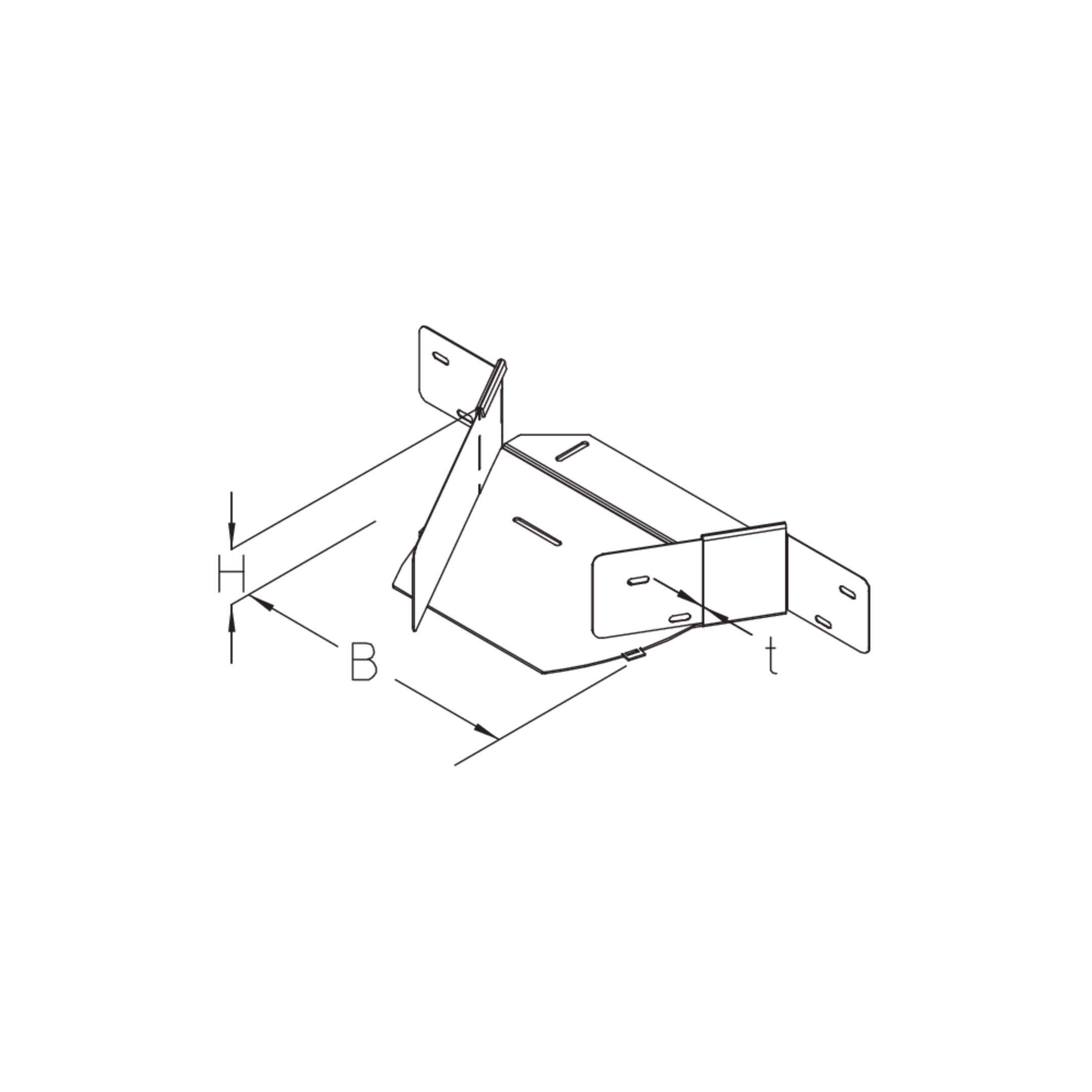

height

B

width

t

material thickness

G

Weight per storage unit
  • BKVAA 100-10S
    Floor duct attachment branch, variable,
    height
    100 mm
    width
    100 mm
    material thickness
    2.00 mm
    Weight per storage unit
    1.241 kg
    Included accessories
    More information
  • BKVAA 100-15S
    Floor duct attachment branch, variable,
    height
    100 mm
    width
    150 mm
    material thickness
    2.00 mm
    Weight per storage unit
    1.463 kg
    Included accessories
    More information
  • BKVAA 100-20S
    Floor duct attachment branch, variable,
    height
    100 mm
    width
    200 mm
    material thickness
    2.00 mm
    Weight per storage unit
    1.726 kg
    Included accessories
    More information
  • BKVAA 100-30S
    Floor duct attachment branch, variable,
    height
    100 mm
    width
    300 mm
    material thickness
    2.00 mm
    Weight per storage unit
    2.316 kg
    Included accessories
    More information
  • BKVAA 100-40S
    Floor duct attachment branch, variable,
    height
    100 mm
    width
    400 mm
    material thickness
    2.00 mm
    Weight per storage unit
    3.106 kg
    Included accessories
    More information
  • BKVAA 100-50S
    Floor duct attachment branch, variable,
    height
    100 mm
    width
    500 mm
    material thickness
    2.00 mm
    Weight per storage unit
    4.059 kg
    Included accessories
    More information
  • BKVAA 100-60S
    Floor duct attachment branch, variable,
    height
    100 mm
    width
    600 mm
    material thickness
    2.00 mm
    Weight per storage unit
    5.211 kg
    Included accessories
    More information

Details

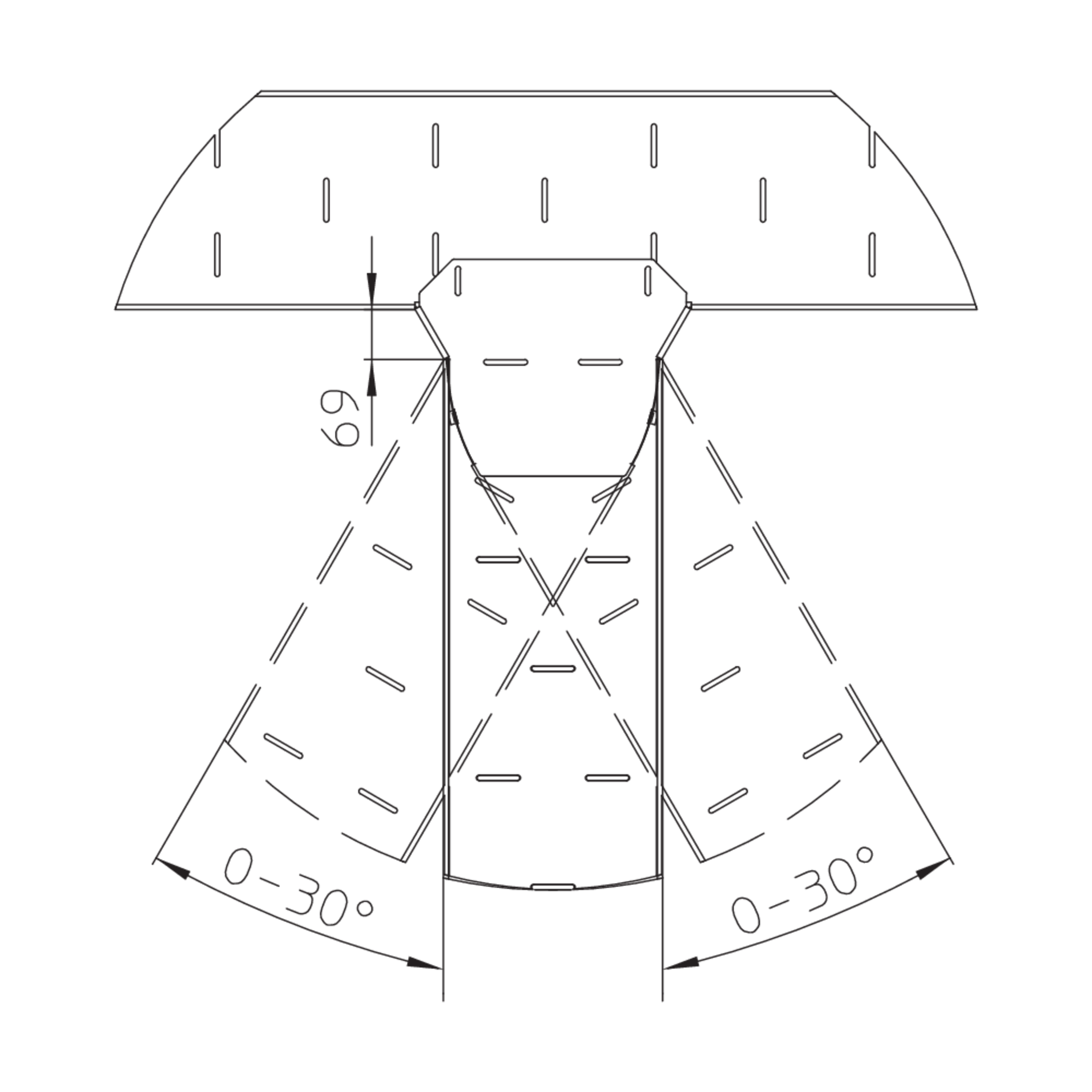

  • Changes the cable routing direction horizontally in the form of a branch at a variably adjustable angle of 60 to 120°.
