BKS 110

Floor duct riser, height = 110 mm

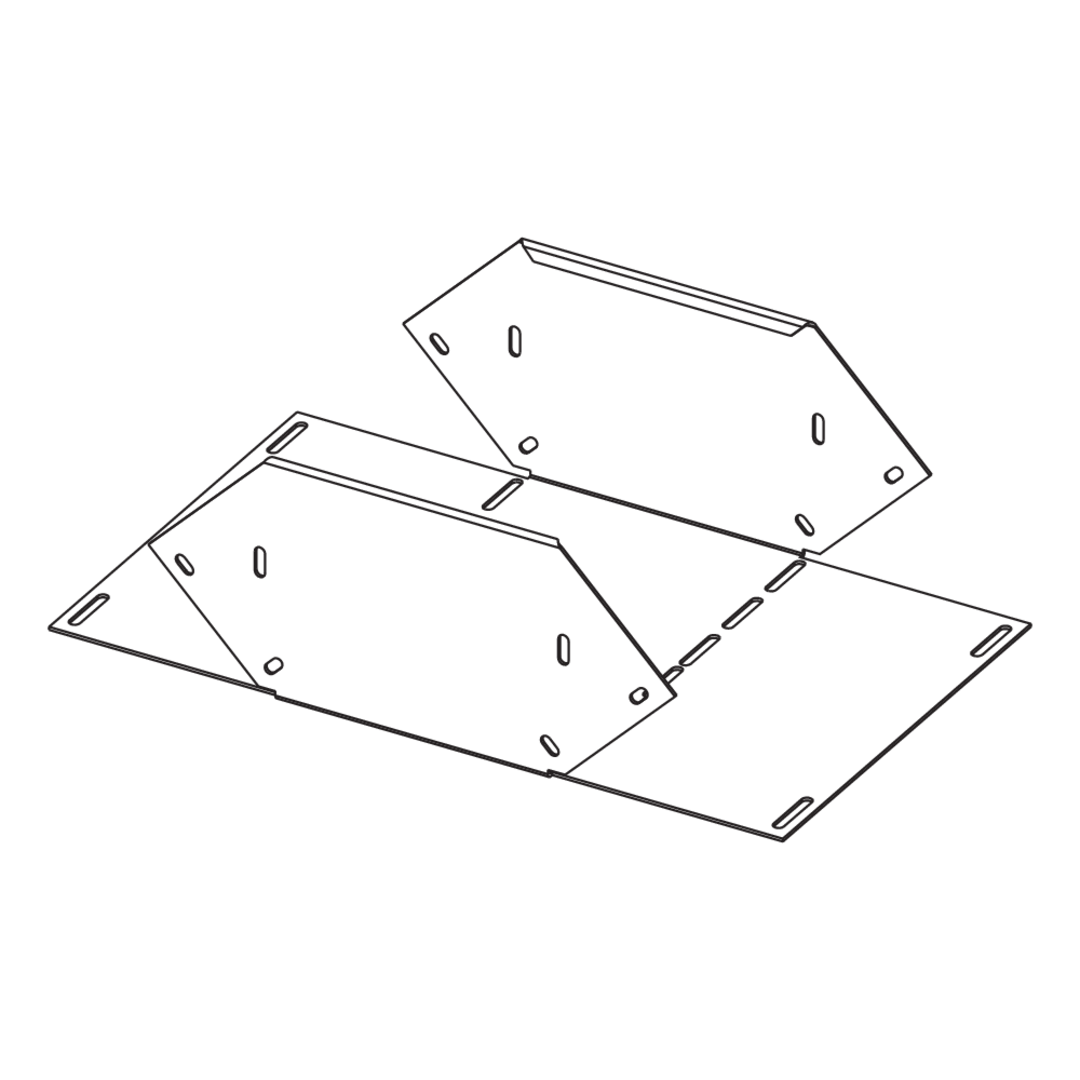

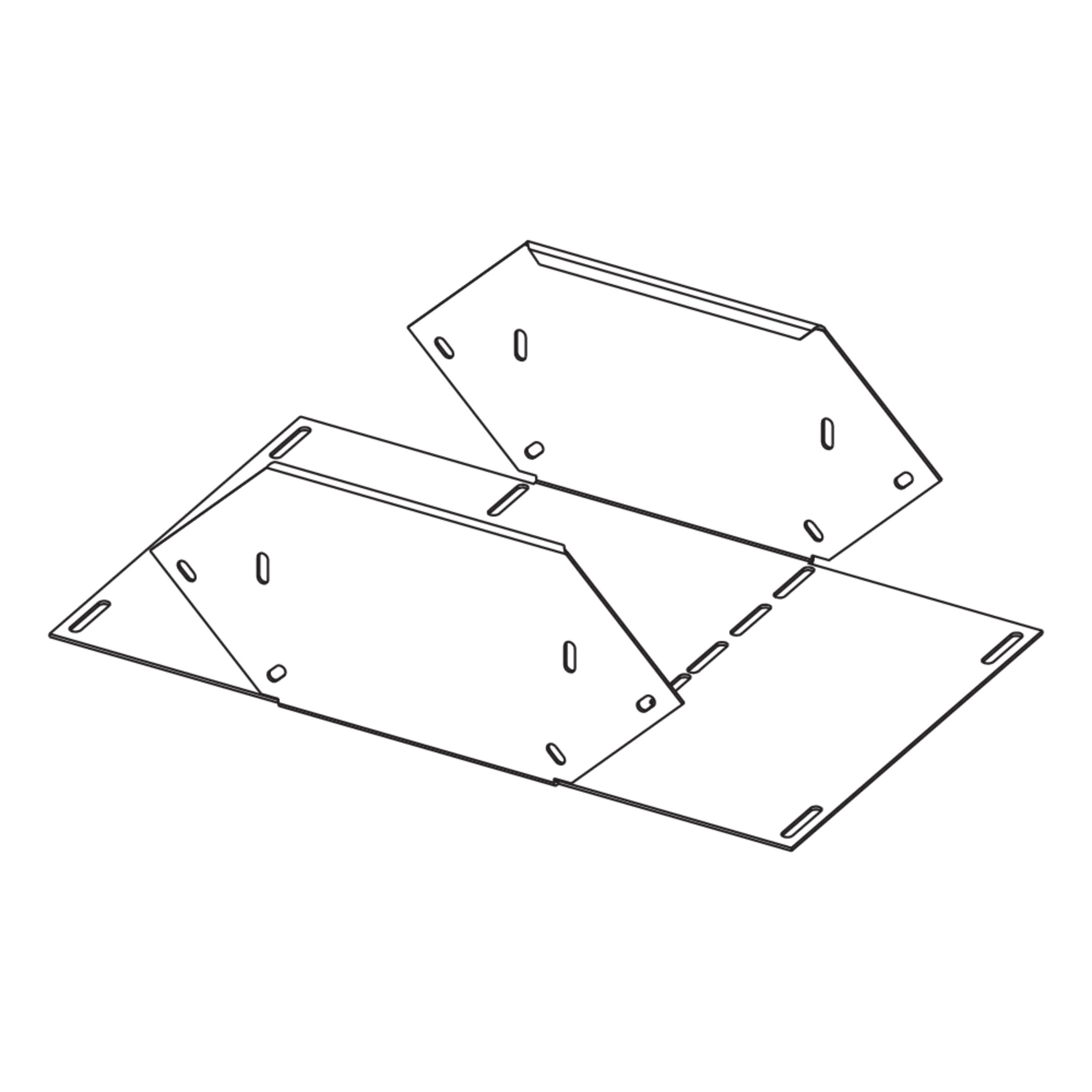

The floor duct riser BKS 110 with integrated connectors allows the direction of cable routing to be changed vertically by 90° upwards and downwards. It is 110 mm high and 100 to 600 mm wide. It is made of sendzimir hot-dip galvanised steel. The floor duct riser is fitted to the floor duct to be connected using the supplied connectors and clamping screws. The floor bracket must be bent according to its function as a drop section or as a rising bend.

Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

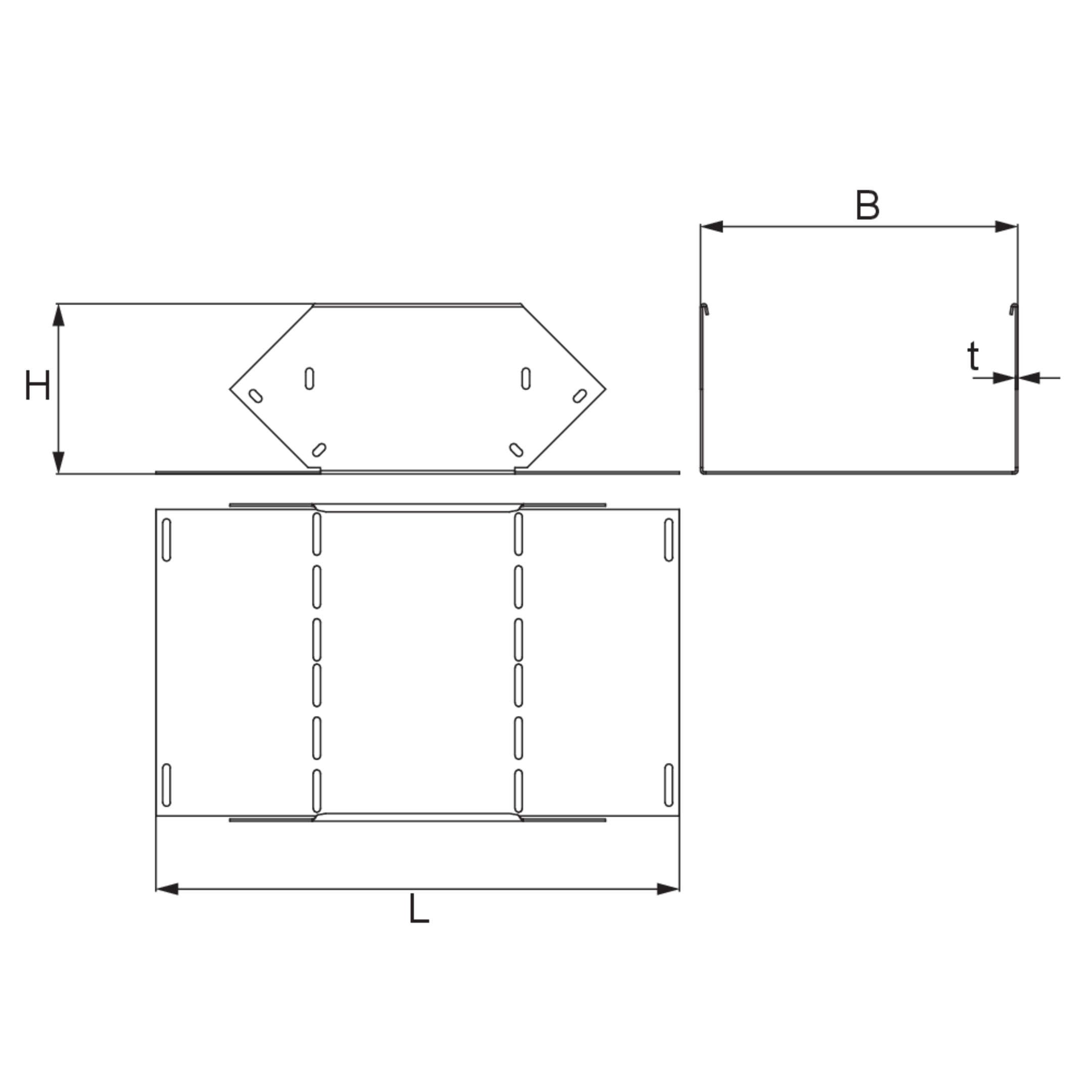

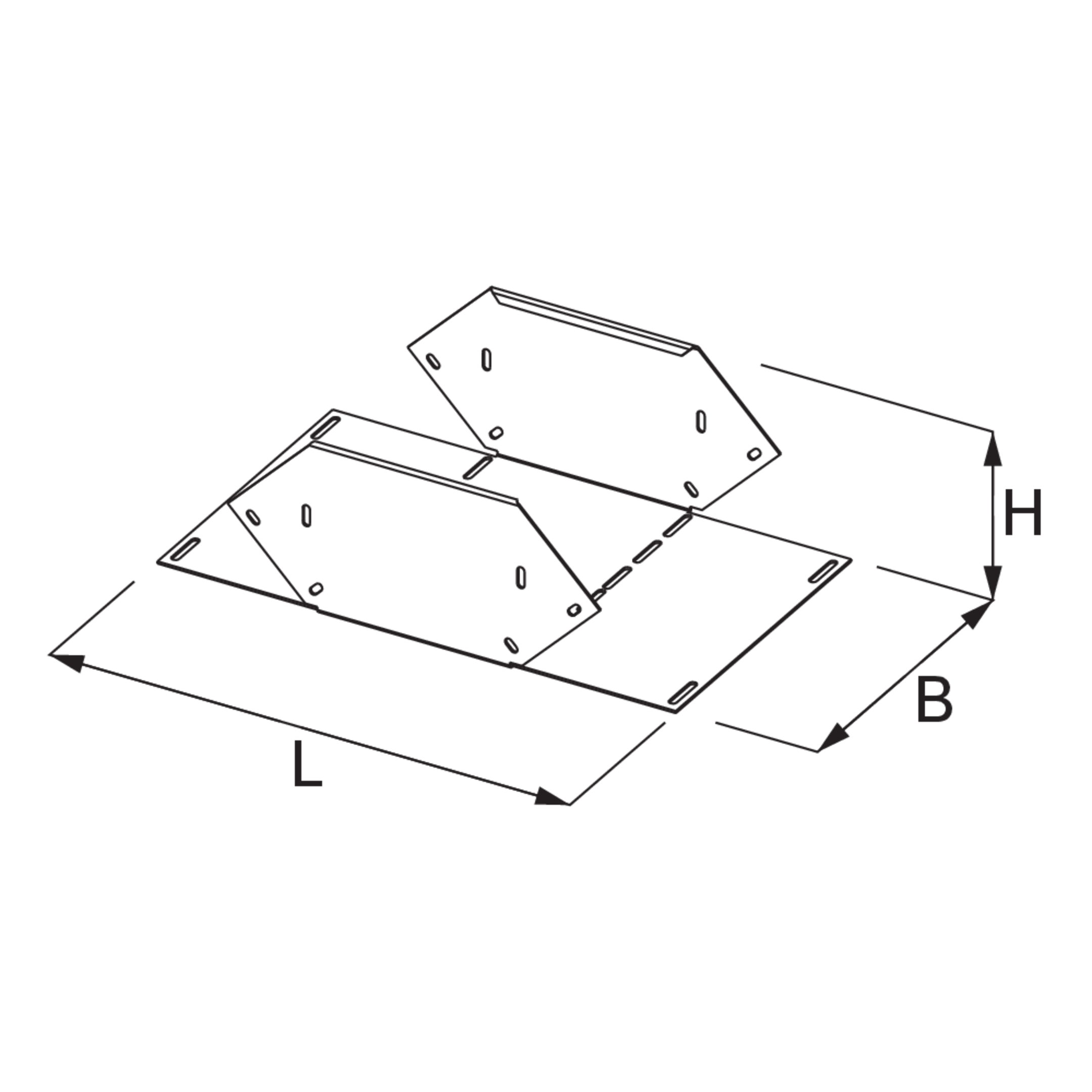

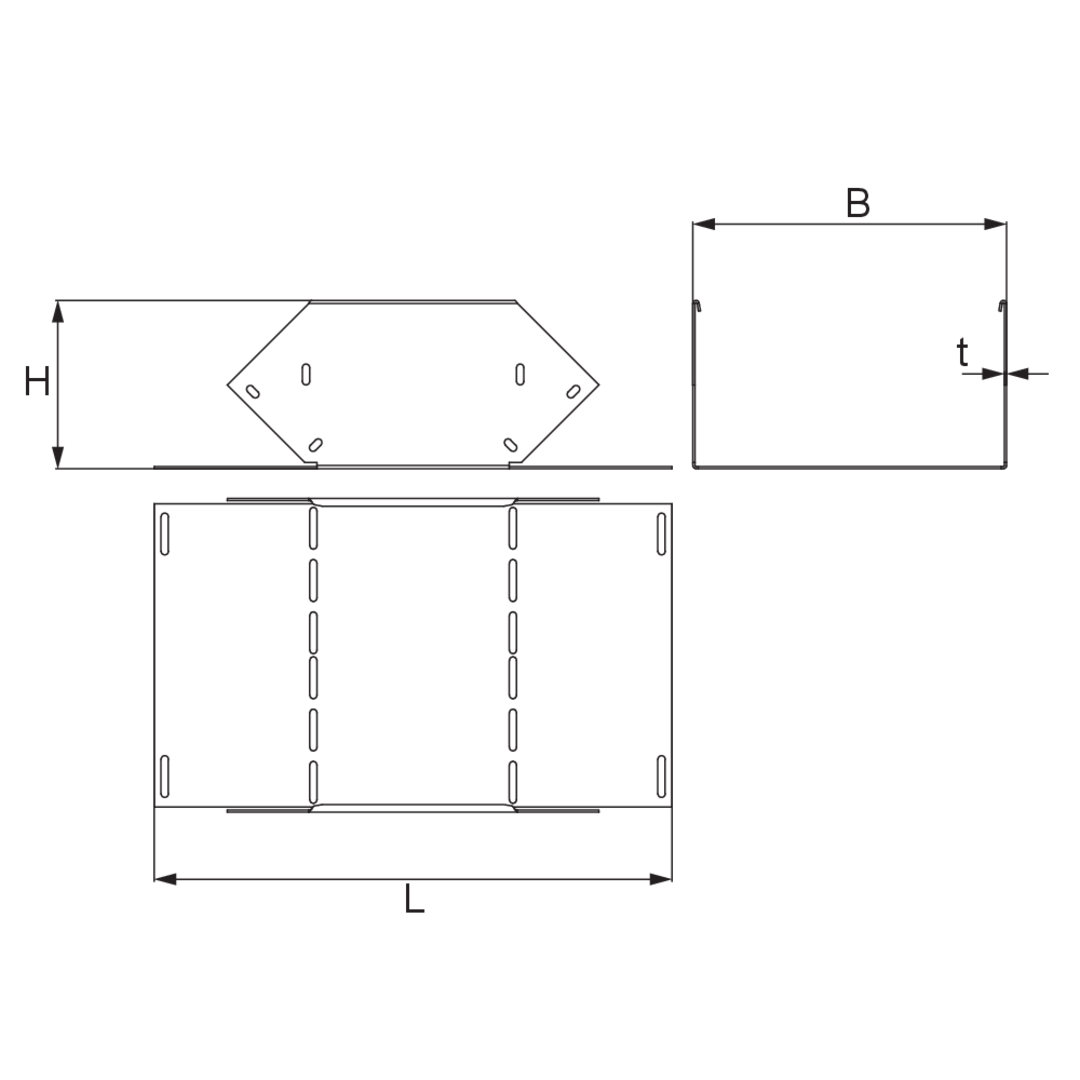

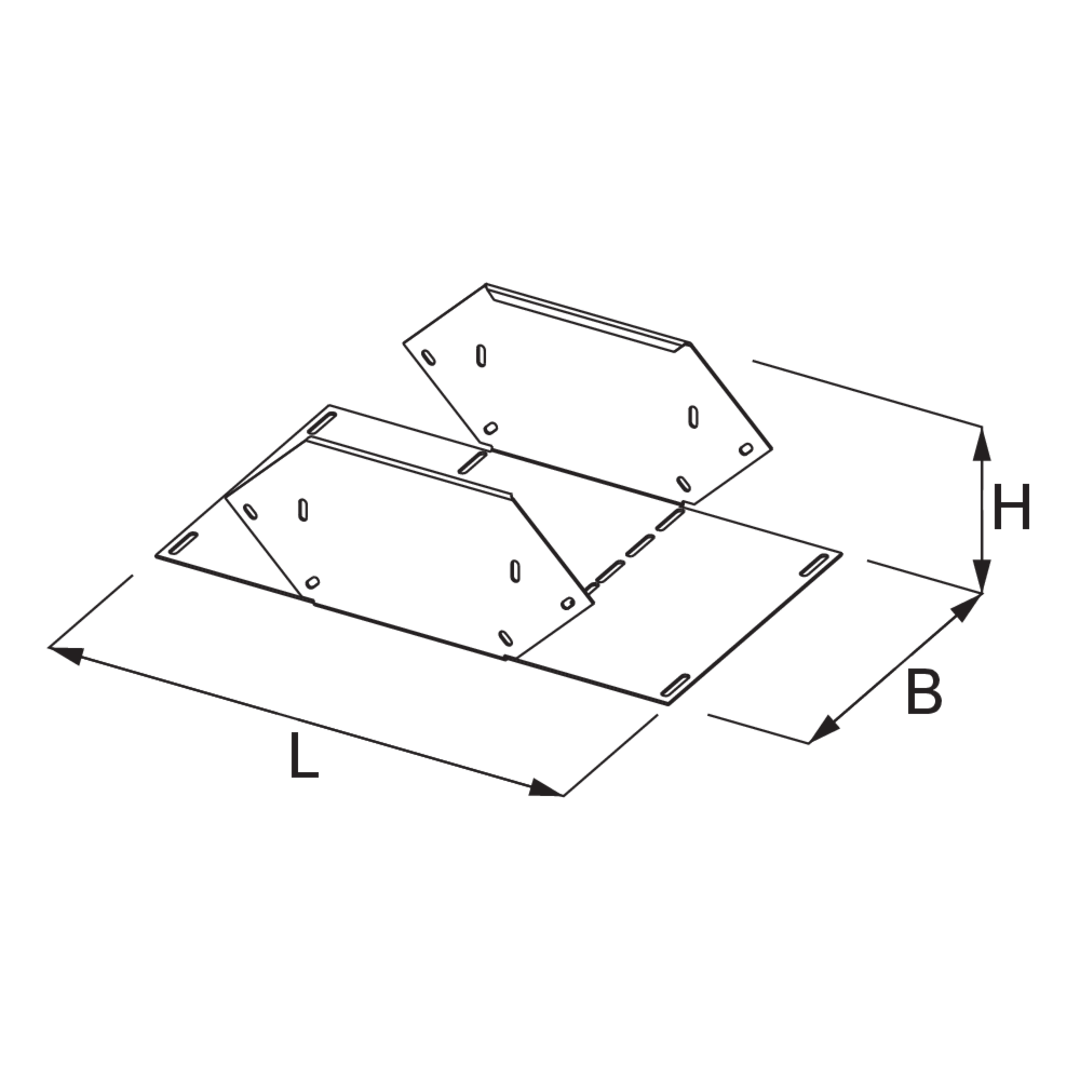

H

height

B

width

L

length

t

material thickness

direction

Direction change

W

Angle

G

Weight per storage unit
  • BKS 110-10S
    Floor duct riser
    height
    110 mm
    width
    100 mm
    length
    495 mm
    material thickness
    2.00 mm
    Direction change
    rising/falling
    Angle
    90°
    Weight per storage unit
    3.810 kg
    Included accessories
    More information
  • BKS 110-15S
    Floor duct riser
    height
    110 mm
    width
    150 mm
    length
    495 mm
    material thickness
    2.00 mm
    Direction change
    rising/falling
    Angle
    90°
    Weight per storage unit
    4.234 kg
    Included accessories
    More information
  • BKS 110-20S
    Floor duct riser
    height
    110 mm
    width
    200 mm
    length
    495 mm
    material thickness
    2.00 mm
    Direction change
    rising/falling
    Angle
    90°
    Weight per storage unit
    4.631 kg
    Included accessories
    More information
  • BKS 110-30S
    Floor duct riser
    height
    110 mm
    width
    300 mm
    length
    495 mm
    material thickness
    2.00 mm
    Direction change
    rising/falling
    Angle
    90°
    Weight per storage unit
    5.482 kg
    Included accessories
    More information
  • BKS 110-40S
    Floor duct riser
    height
    110 mm
    width
    400 mm
    length
    495 mm
    material thickness
    2.00 mm
    Direction change
    rising/falling
    Angle
    90°
    Weight per storage unit
    6.308 kg
    Included accessories
    More information
  • BKS 110-50S
    Floor duct riser
    height
    110 mm
    width
    500 mm
    length
    495 mm
    material thickness
    2.00 mm
    Direction change
    rising/falling
    Angle
    90°
    Weight per storage unit
    7.158 kg
    Included accessories
    More information
  • BKS 110-60S
    Floor duct riser
    height
    110 mm
    width
    600 mm
    length
    495 mm
    material thickness
    2.00 mm
    Direction change
    rising/falling
    Angle
    90°
    Weight per storage unit
    7.983 kg
    Included accessories
    More information

Details

  • Allows the direction of cable routing to be changed by 90°.
  • Cable-friendly guide

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
