BKGL 100

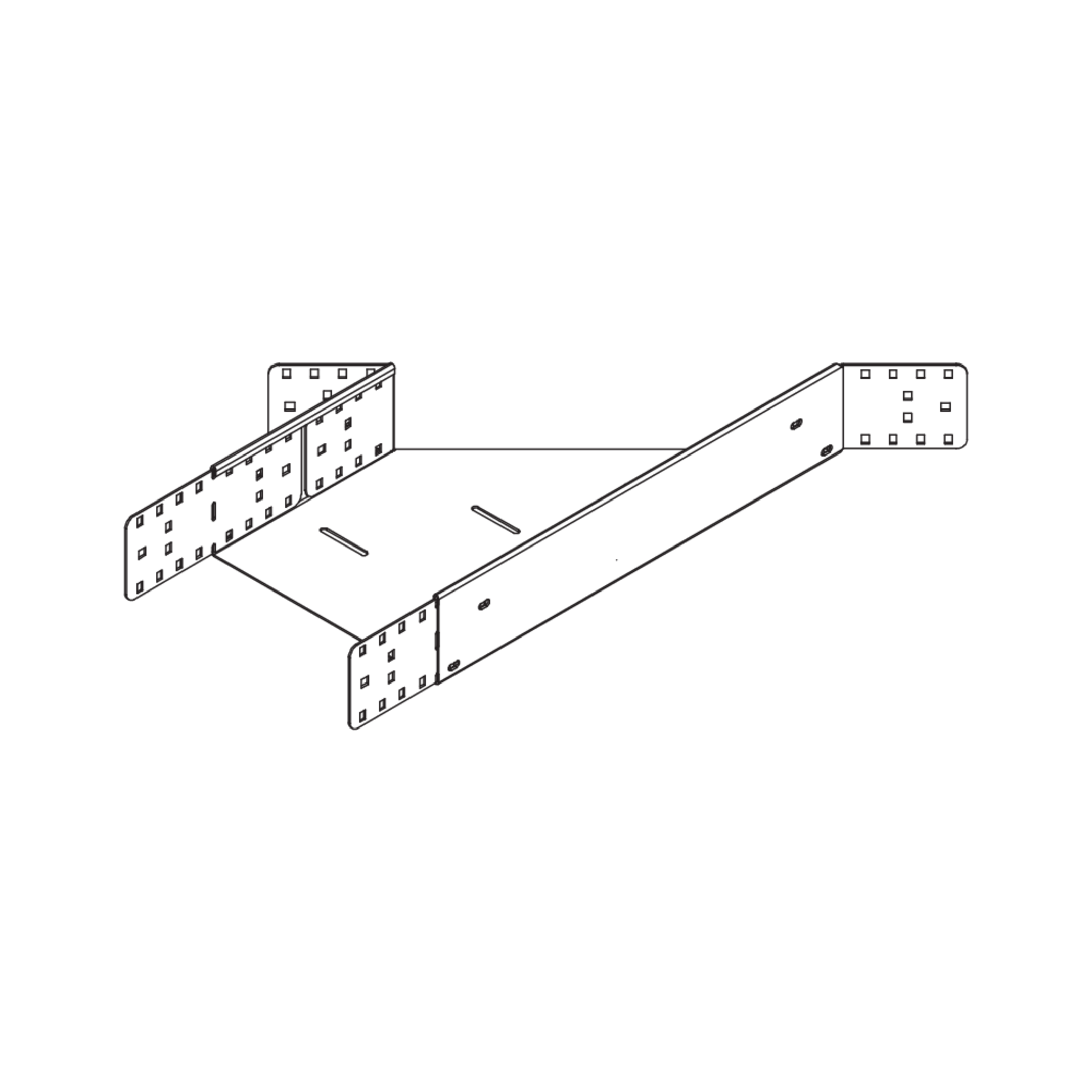

Floor duct with miter cut, left, height = 100 mm

The floor duct branch BKGL 100 with a mitre cut on the left and integrated connectors allows the direction of cable routing to be changed horizontally in the form of a 45° branch. It is 100 mm high and 100 to 600 mm wide. It is made of sendzimir hot-dip galvanised steel. To dissipate vertical live loads, one separating strip must be installed in the floor duct for widths ≥ 300 mm and two separating strips for widths ≥ 500 mm. The side rail of the main floor duct is cut out accordingly at the point where the connecting floor duct will branch off. The BKGL branch is positioned and bolted in place at this point. The branching floor duct can then be pushed in.

Get in touchDownload datasheet

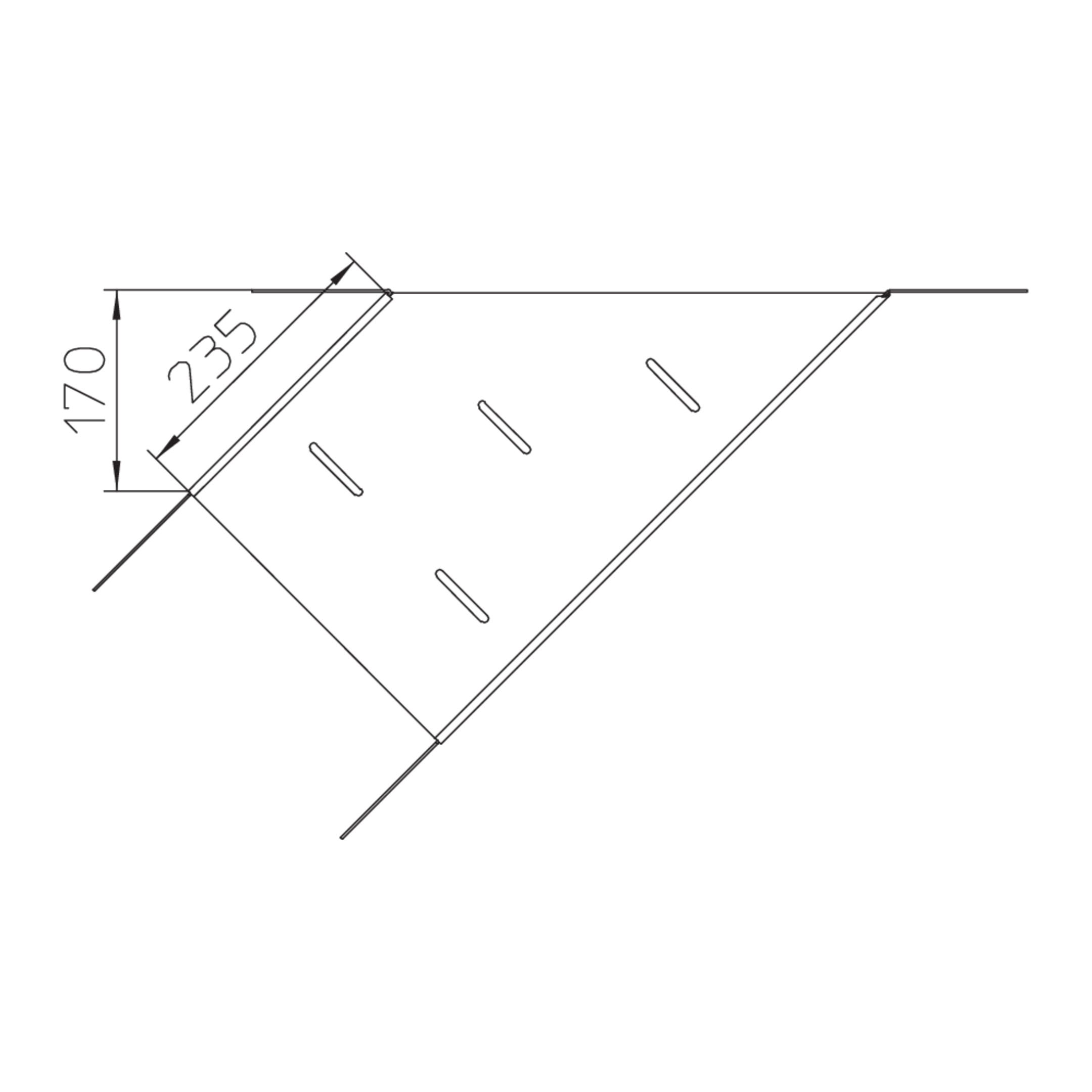

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

t

material thickness

W

Angle

G

Weight per storage unit

  • BKGL 100-10S
    Floor duct branch with mitre cut,
    height
    100 mm
    width
    100 mm
    material thickness
    2.00 mm
    Angle
    45°
    Weight per storage unit
    2.782 kg
    Included accessories
    More information
  • BKGL 100-15S
    Floor duct branch with mitre cut,
    height
    100 mm
    width
    150 mm
    material thickness
    2.00 mm
    Angle
    45°
    Weight per storage unit
    3.142 kg
    Included accessories
    More information
  • BKGL 100-20S
    Floor duct branch with mitre cut,
    height
    100 mm
    width
    200 mm
    material thickness
    2.00 mm
    Angle
    45°
    Weight per storage unit
    3.552 kg
    Included accessories
    More information
  • BKGL 100-30S
    Floor duct branch with mitre cut,
    height
    100 mm
    width
    300 mm
    material thickness
    2.00 mm
    Angle
    45°
    Weight per storage unit
    4.382 kg
    Included accessories
    More information
  • BKGL 100-40S
    Floor duct branch with mitre cut,
    height
    100 mm
    width
    400 mm
    material thickness
    2.00 mm
    Angle
    45°
    Weight per storage unit
    5.562 kg
    Included accessories
    More information
  • BKGL 100-50S
    Floor duct branch with mitre cut,
    height
    100 mm
    width
    500 mm
    material thickness
    2.00 mm
    Angle
    45°
    Weight per storage unit
    6.832 kg
    Included accessories
    More information
  • BKGL 100-60S
    Floor duct branch with mitre cut,
    height
    100 mm
    width
    600 mm
    material thickness
    2.00 mm
    Angle
    45°
    Weight per storage unit
    8.182 kg
    Included accessories
    More information

Details

  • Changes the cable routing direction horizontally in the form of a branch of 45°.
