BKBR 110

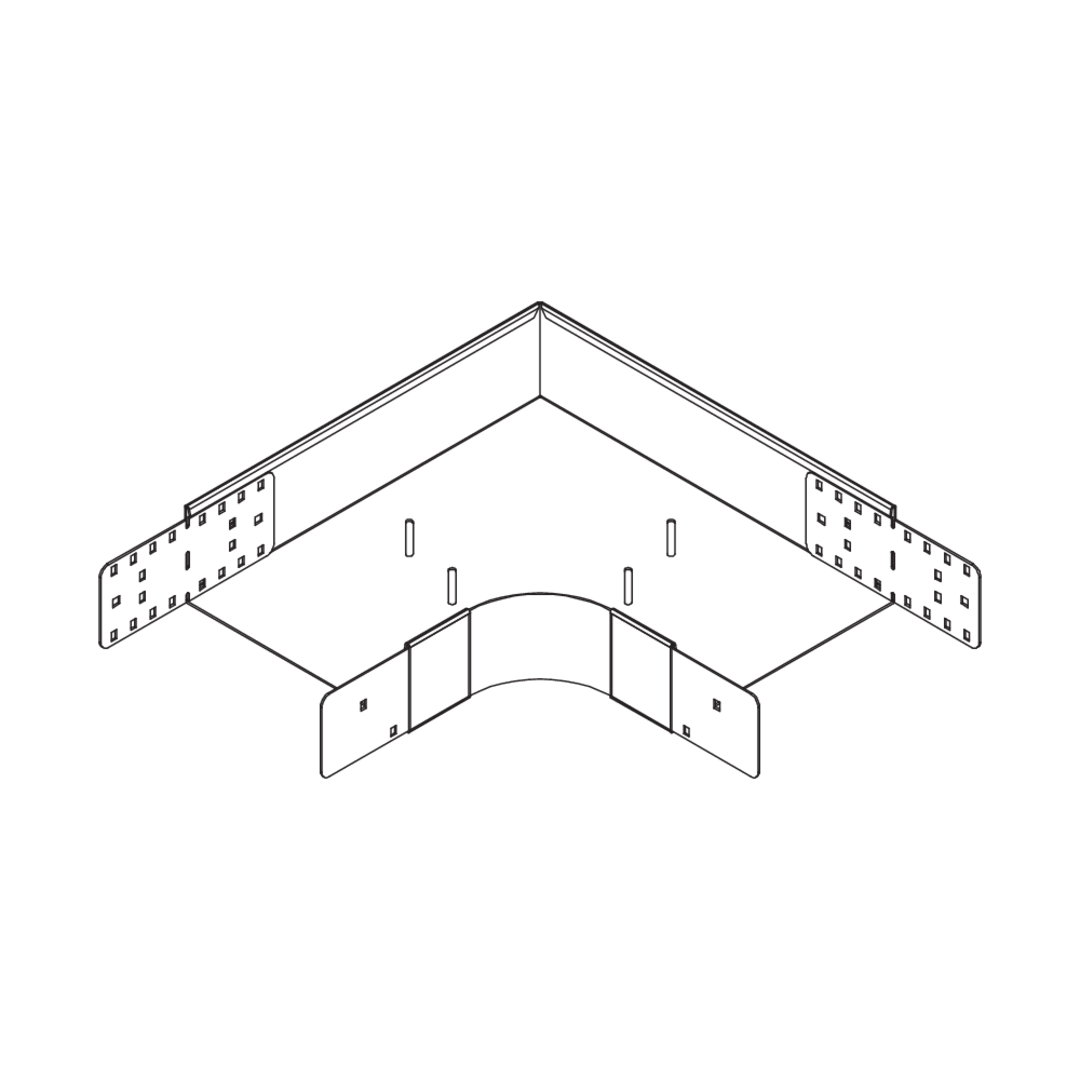

Floor duct bend with radius, height = 110 mm

The floor duct bend BKBR 110 with integrated connectors and a radius of 95 mm allows the direction of cable routing to be changed horizontally by 90°. It is 110 mm high and 100 to 600 mm wide. It is made of sendzimir hot-dip galvanised steel. To dissipate vertical live loads, one separating strip must be installed in the floor duct for widths ≥ 300 mm and two separating strips for widths ≥ 500 mm. The bend is pushed into the floor ducts and then bolted in place.

Get in touch Download datasheet

Variants

Stahl, band-/sendzimirverzinkt

Article

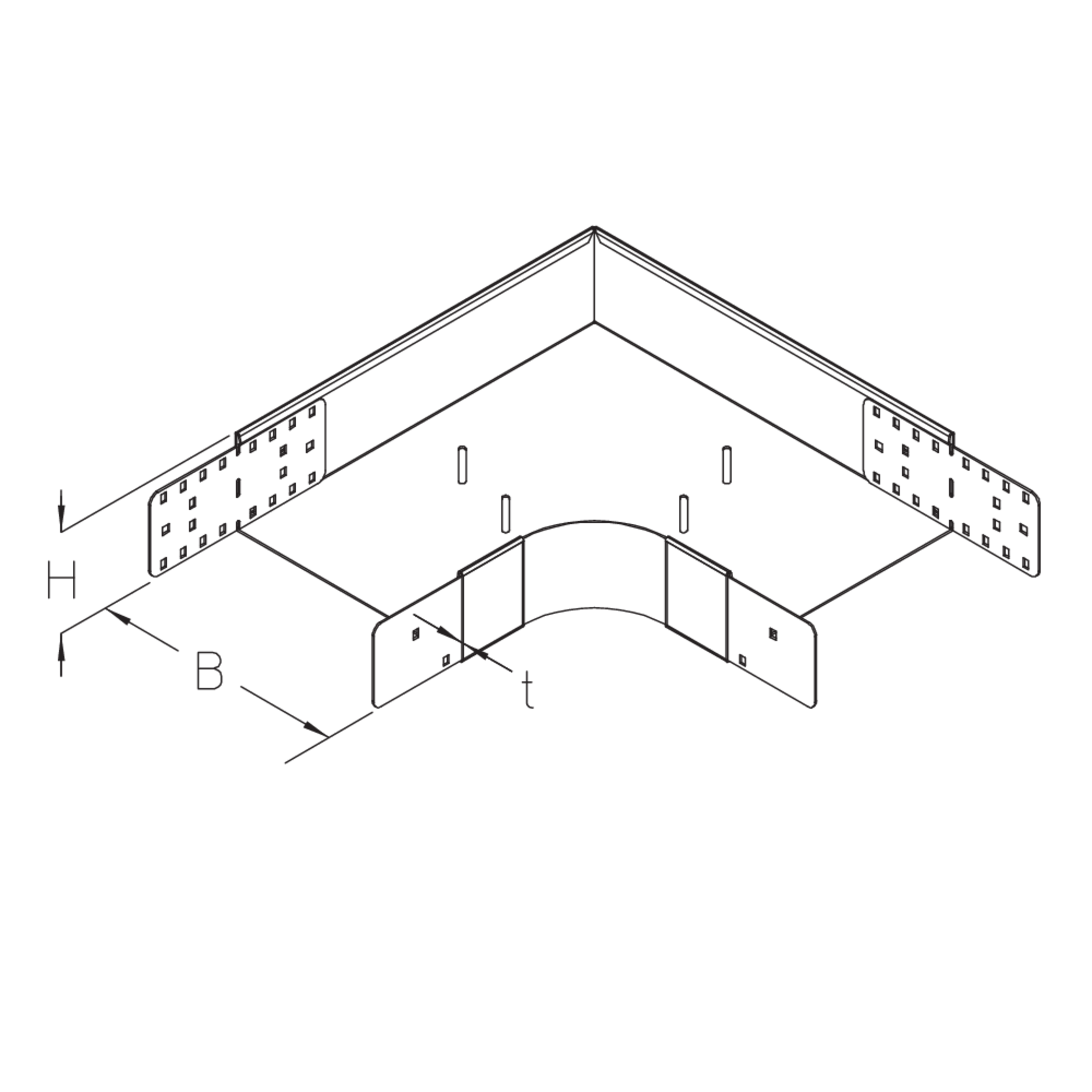

H

Höhe

B

Breite

t

Materialstärke

R

Radius

Richtung

Richtungsänderung

W

Winkel

G

Gewicht je Lagermengeneinheit
  • BKBR 110-10S
    Bodenkanal-Bogen 90° m. Radius,
    Höhe
    110 mm
    Breite
    100 mm
    Materialstärke
    2.00 mm
    Radius
    95 mm
    Richtungsänderung
    Horizontal
    Winkel
    90°
    Gewicht je Lagermengeneinheit
    3.870 kg
    Included accessories
    More information
  • BKBR 110-15S
    Bodenkanal-Bogen 90° m. Radius,
    Höhe
    110 mm
    Breite
    150 mm
    Materialstärke
    2.00 mm
    Radius
    95 mm
    Richtungsänderung
    Horizontal
    Winkel
    90°
    Gewicht je Lagermengeneinheit
    4.520 kg
    Included accessories
    More information
  • BKBR 110-20S
    Bodenkanal-Bogen 90° m. Radius,
    Höhe
    110 mm
    Breite
    200 mm
    Materialstärke
    2.00 mm
    Radius
    95 mm
    Richtungsänderung
    Horizontal
    Winkel
    90°
    Gewicht je Lagermengeneinheit
    5.250 kg
    Included accessories
    More information
  • BKBR 110-30S
    Bodenkanal-Bogen 90° m. Radius,
    Höhe
    110 mm
    Breite
    300 mm
    Materialstärke
    2.00 mm
    Radius
    95 mm
    Richtungsänderung
    Horizontal
    Winkel
    90°
    Gewicht je Lagermengeneinheit
    6.940 kg
    Included accessories
    More information
  • BKBR 110-40S
    Bodenkanal-Bogen 90° m. Radius,
    Höhe
    110 mm
    Breite
    400 mm
    Materialstärke
    2.00 mm
    Radius
    95 mm
    Richtungsänderung
    Horizontal
    Winkel
    90°
    Gewicht je Lagermengeneinheit
    8.960 kg
    Included accessories
    More information
  • BKBR 110-50S
    Bodenkanal-Bogen 90° m. Radius,
    Höhe
    110 mm
    Breite
    500 mm
    Materialstärke
    2.00 mm
    Radius
    95 mm
    Richtungsänderung
    Horizontal
    Winkel
    90°
    Gewicht je Lagermengeneinheit
    11.280 kg
    Included accessories
    More information
  • BKBR 110-60S
    Bodenkanal-Bogen 90° m. Radius,
    Höhe
    110 mm
    Breite
    600 mm
    Materialstärke
    2.00 mm
    Radius
    95 mm
    Richtungsänderung
    Horizontal
    Winkel
    90°
    Gewicht je Lagermengeneinheit
    13.920 kg
    Included accessories
    More information

Details

  • Creates horizontal changes of the cable routing direction by 90°.
  • Cable-friendly guide

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • BK Floor Duct - Technical Information

    Technische Information

    PDF, 6 MB

    de en

  • Floor ducts - Assembly instructions

    Montageanleitung

    PDF, 2 MB

    de en
