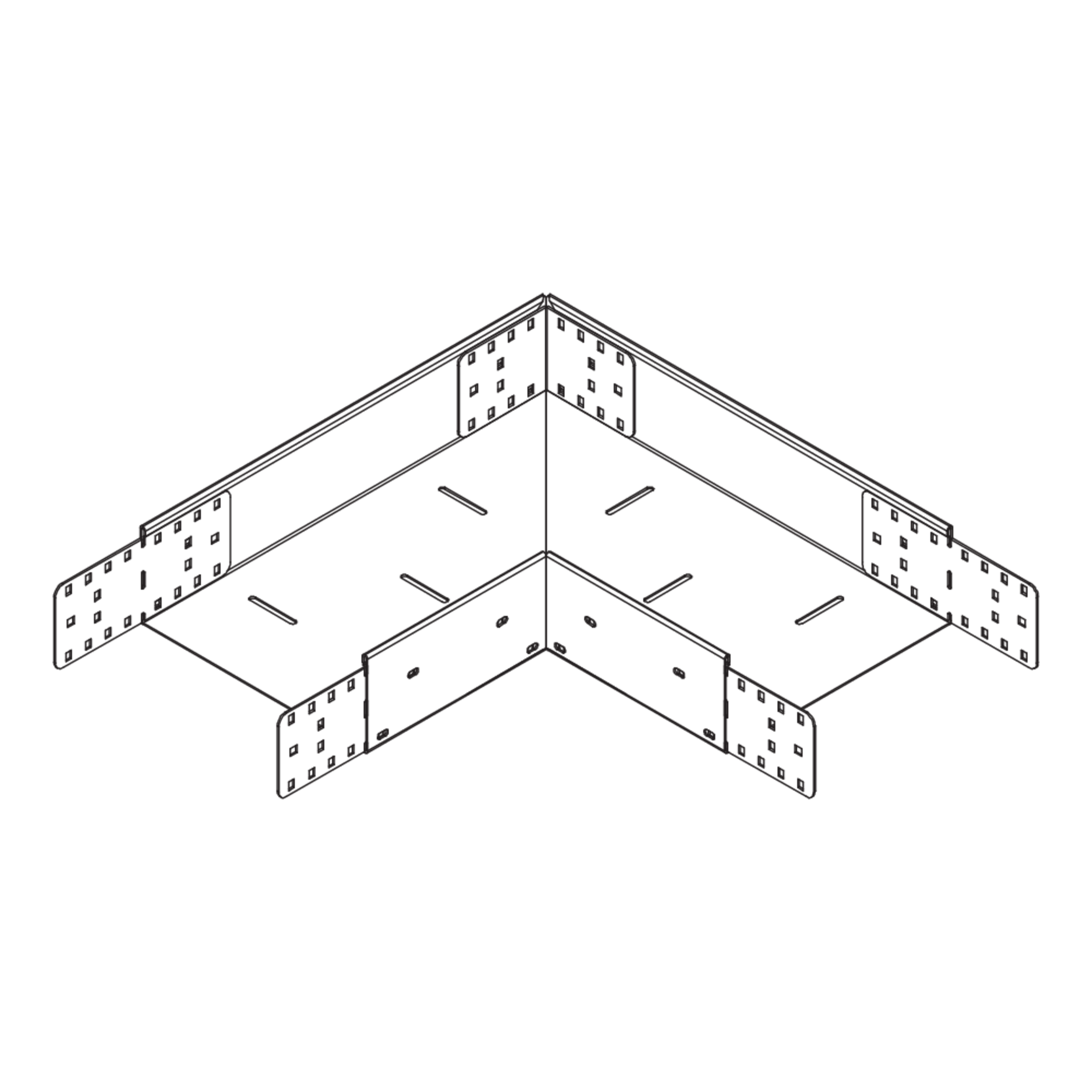

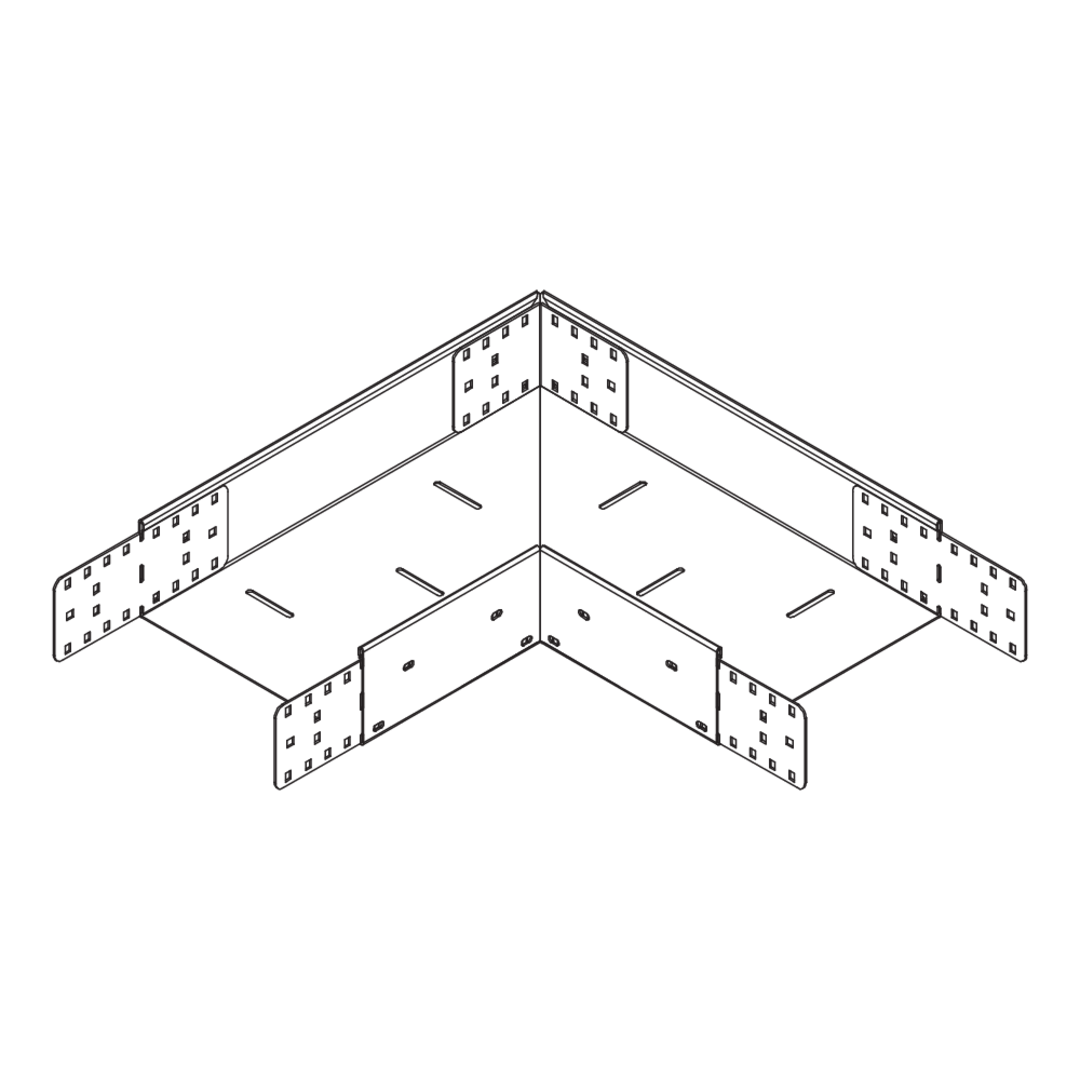

BKBG 110

Floor duct with mitre cut, height = 110 mm

The floor duct bend BKBG 110 with integrated connectors and mitre cut allows the direction of cable routing to be changed horizontally by 90°. It is 110 mm high and 100 to 600 mm wide. It is made of sendzimir hot-dip galvanised steel. To dissipate vertical live loads, one separating strip must be installed in the floor duct for widths ≥ 300 mm and two separating strips for widths ≥ 500 mm. The bend is pushed into the floor ducts and then bolted in place.

Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

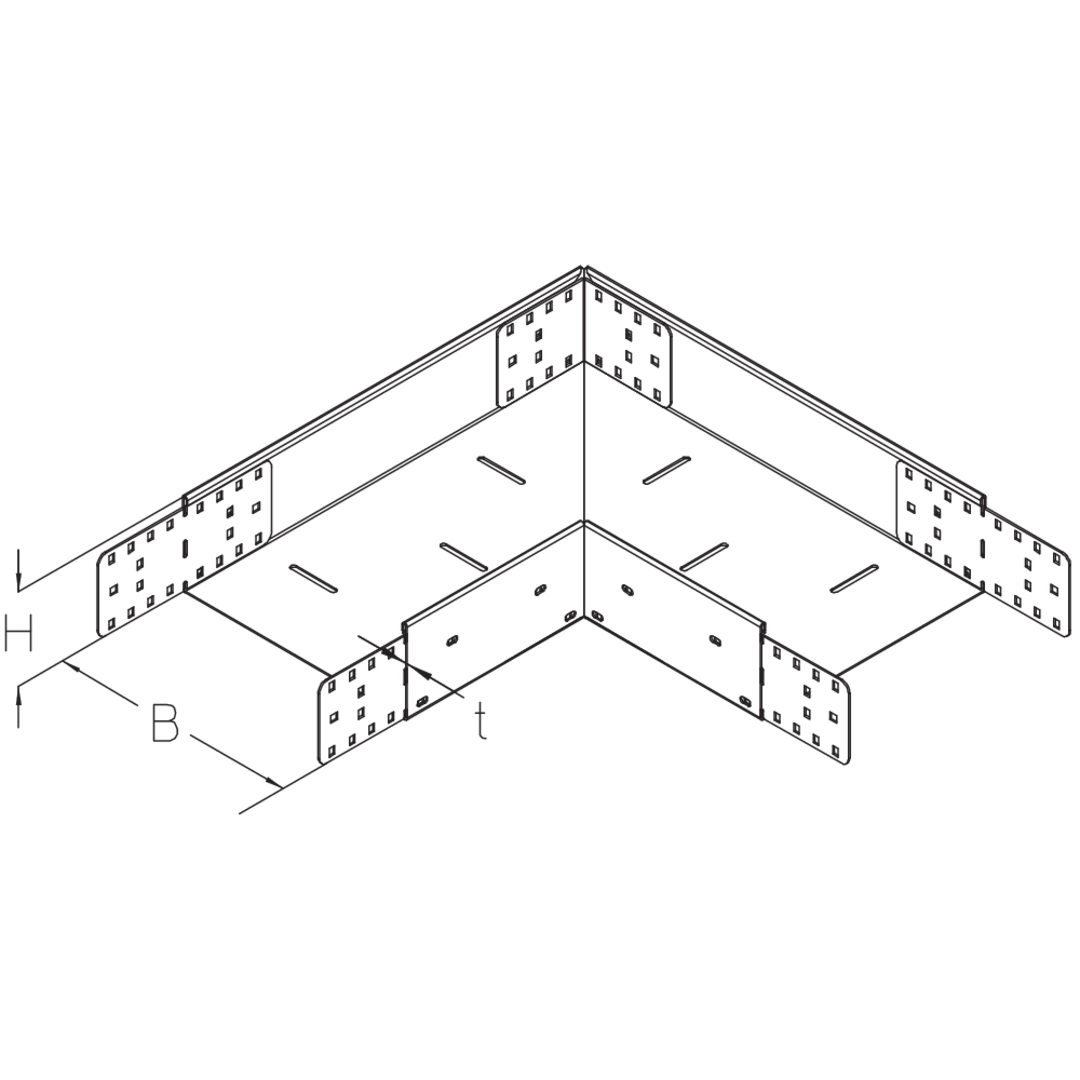

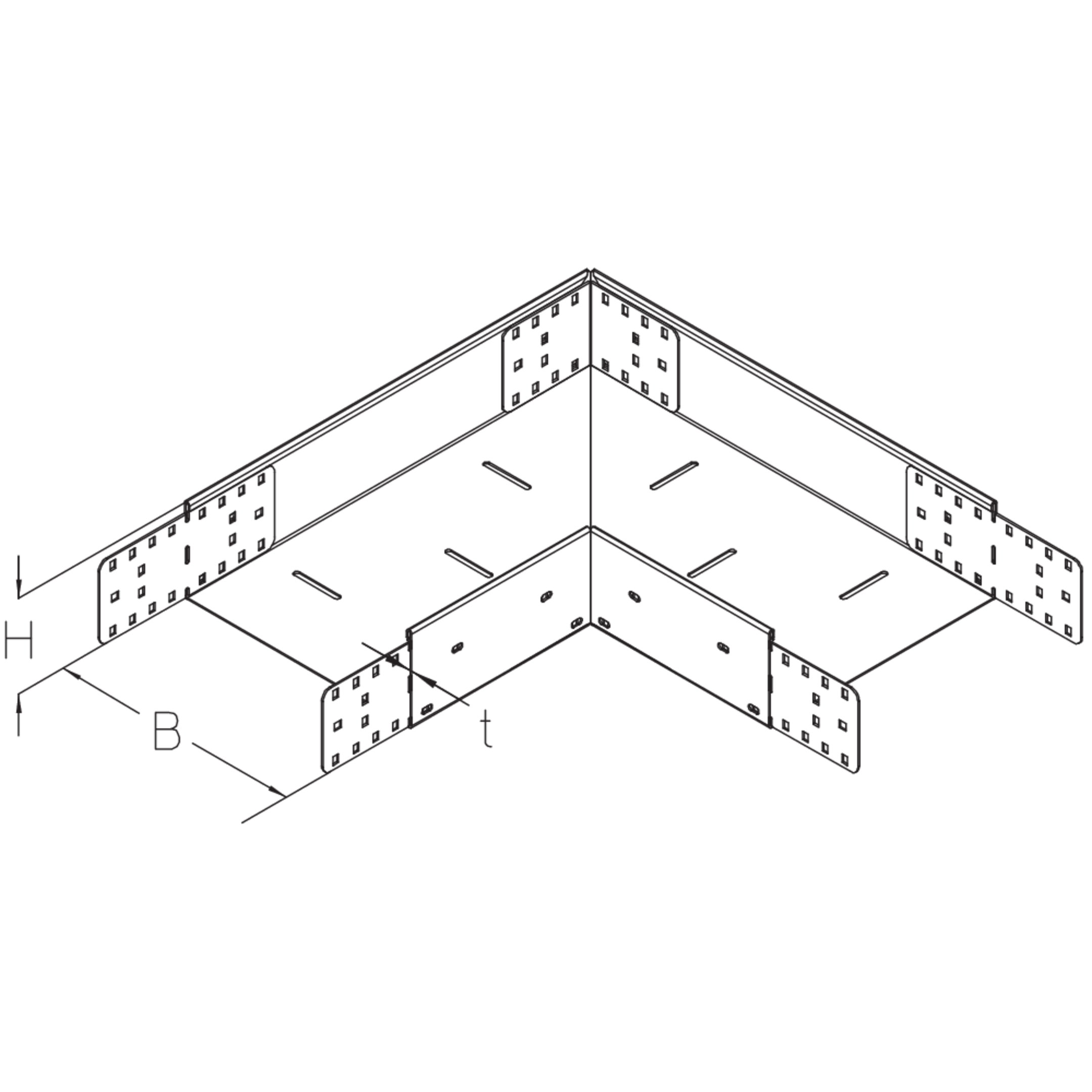

H

height

B

width

t

material thickness

direction

Direction change

W

Angle

G

Weight per storage unit
  • BKBG 110-10S
    90° floor duct bend with mitre cut
    height
    110 mm
    width
    100 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    5.054 kg
    Included accessories
    More information
  • BKBG 110-15S
    90° floor duct bend with mitre cut
    height
    110 mm
    width
    150 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    5.794 kg
    Included accessories
    More information
  • BKBG 110-20S
    90° floor duct bend with mitre cut
    height
    110 mm
    width
    200 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    6.614 kg
    Included accessories
    More information
  • BKBG 110-30S
    90° floor duct bend with mitre cut
    height
    110 mm
    width
    300 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    8.494 kg
    Included accessories
    More information
  • BKBG 110-40S
    90° floor duct bend with mitre cut
    height
    110 mm
    width
    400 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    10.714 kg
    Included accessories
    More information
  • BKBG 110-50S
    90° floor duct bend with mitre cut
    height
    110 mm
    width
    500 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    13.274 kg
    Included accessories
    More information
  • BKBG 110-60S
    90° floor duct bend with mitre cut
    height
    110 mm
    width
    600 mm
    material thickness
    2.00 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    16.014 kg
    Included accessories
    More information

Details

  • Creates horizontal changes of the cable routing direction by 90°.
  • Cable-friendly guide

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • BK Floor Duct - Technical Information

    Technische Information

    PDF, 6 MB

    de en

  • Floor ducts - Assembly instructions

    Montageanleitung

    PDF, 2 MB

    de en
